Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>

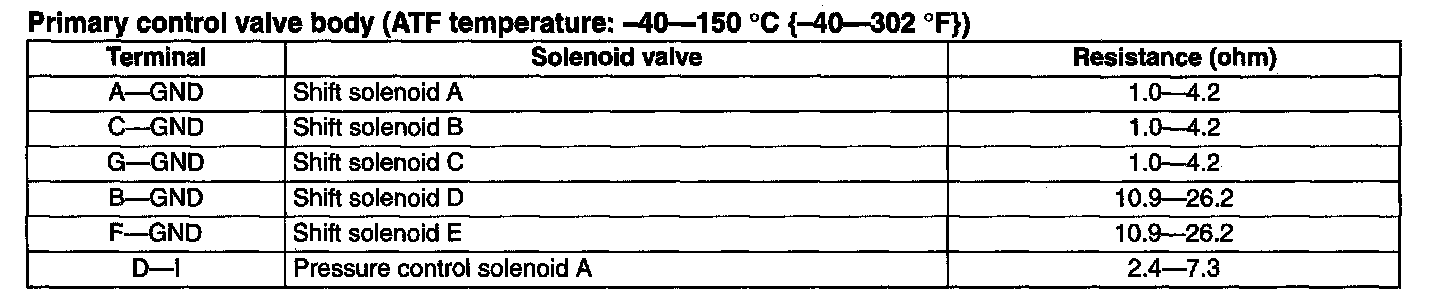

Primary Control Valve Body (ATF Temperature: -40-150 degrees C {-40-302 degrees F})
Primary Control Valve Body (ATF Temperature: -40-150 degrees C {-40-302 degrees F})
Primary Control Valve Body (ATF Temperature: -40--150 Degrees C (-40-302 Degrees F):
