Key Cylinder Lamp: Service and Repair

IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (Driver's side) Front Scuff Plate Removal/Installation

b. Front side trim (Driver's side) Front Side Trim Removal/Installation

c. Hood release lever Service and Repair

d. Lower panel Lower Panel Removal/Installation

e. Column cover Service and Repair

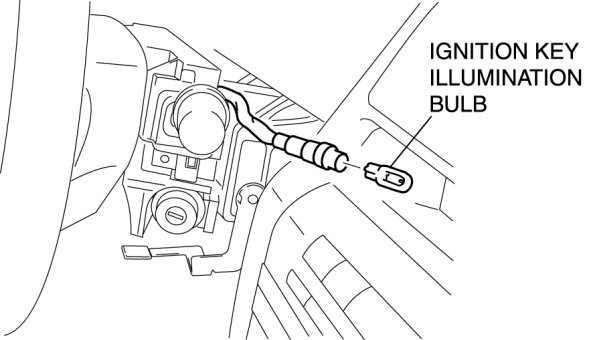

3. Remove the ignition key illumination bulb.






4. Install in the reverse order of removal.
