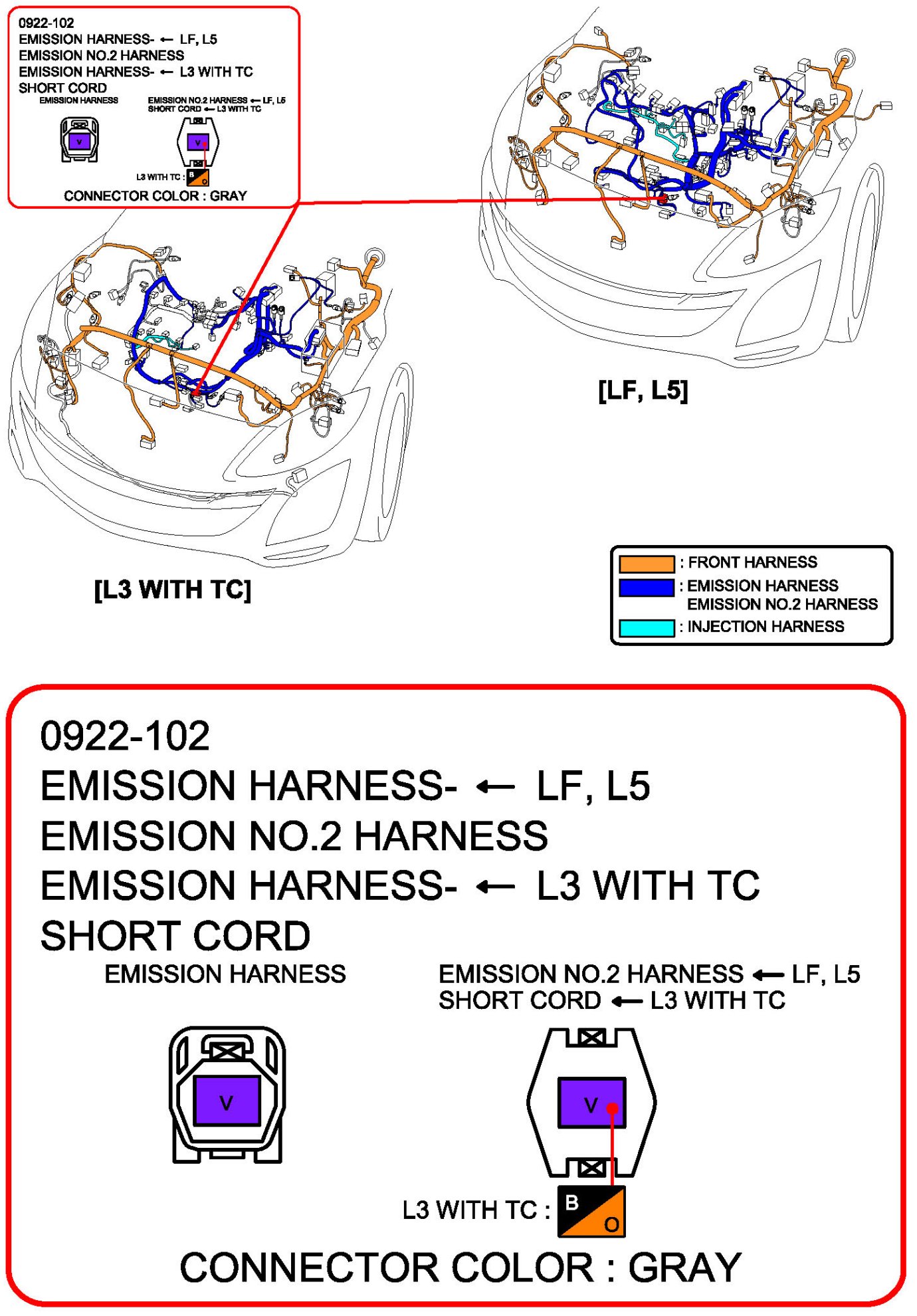

Emission Harness - Emission No.2 Harness - LF, L5 / Short Cord - L3 With TC
Emission Harness - Emission No.2 Harness - LF, L5 / Short Cord - L3 With TC
Emission Harness - Emission No.2 Harness - LF, L5 / Short Cord - L3 With TC:
