Home >> Mazda >> 2010 >> 3 L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Description and Operation

Lighting and Horns: Description and Operation

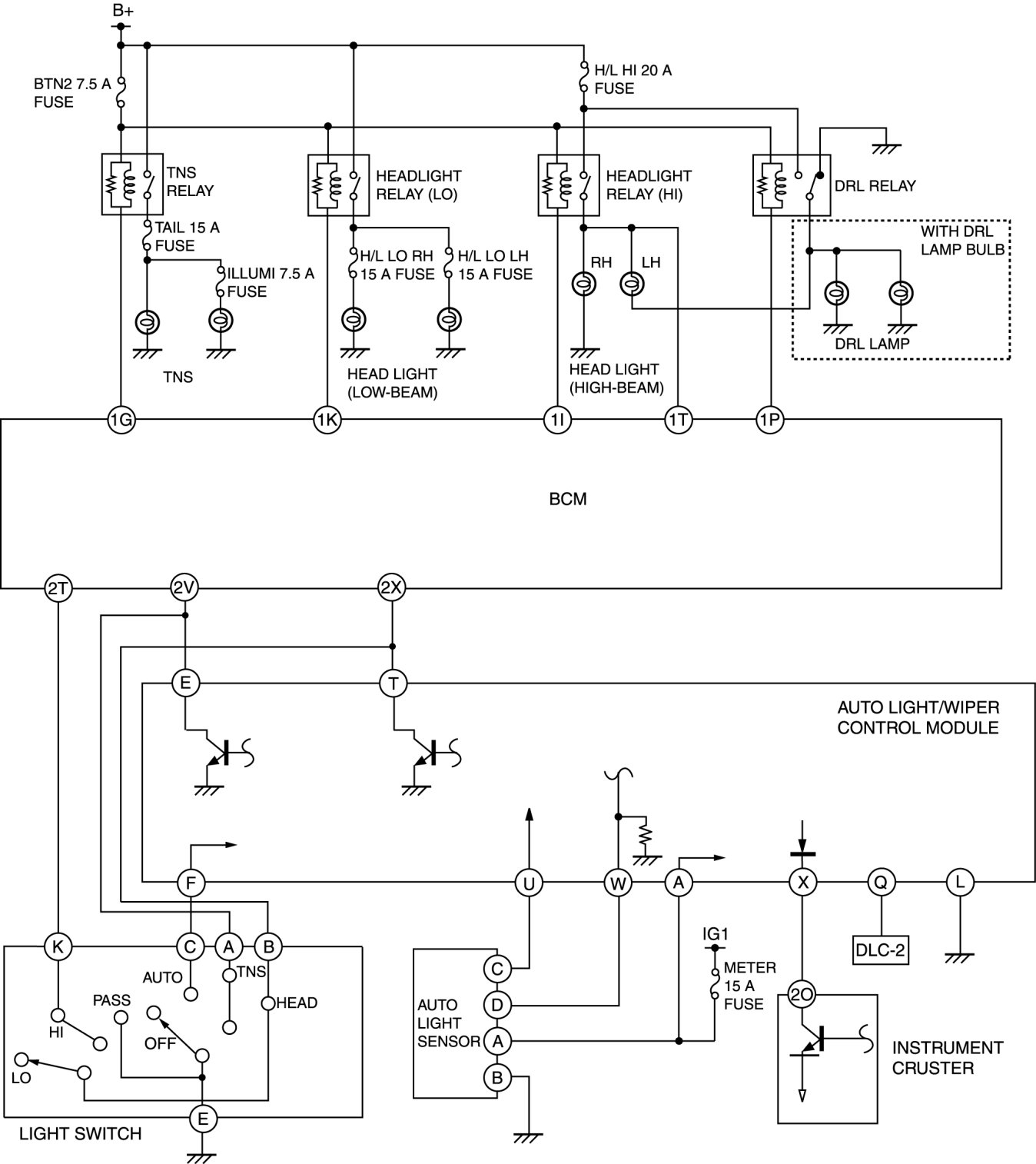

DRL AND AUTO LIGHT SYSTEM WIRING DIAGRAM
