Body - Front Door Glass Rattling Noises

Bulletin No: 09-033/10

Last Issued: 06/30/2010

Subject:

RATTLE NOISE FROM FRONT DOOR GLASS

APPLICABLE MODEL(S) / VINS

2010 Mazda3 vehicles with VINS lower than JM1 BL******31 1099 (produced before April 1, 2010)

DESCRIPTION

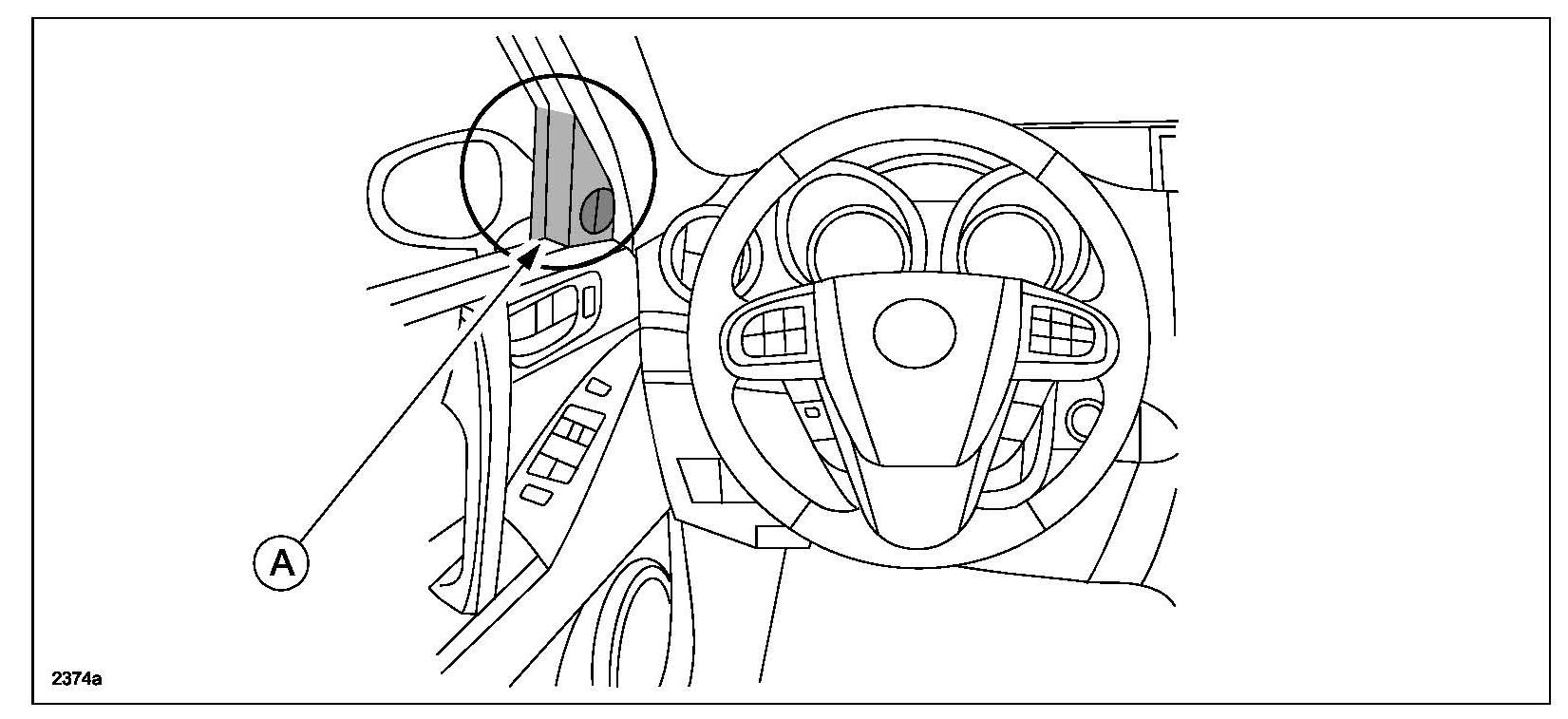

Some vehicles may exhibit a rattle noise from the front door glass when the front door is shut or when driving on rough road with the door glass slightly opened (approx. 8cm). This is caused by the front door glass and inner garnish (A) contacting each other. To ensure clearance, the shape of the inner garnish has now been changed.

Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

1. Verify customer concern.

2. Replace the inner garnish with a modified one. Refer to MS3 online service information or Workshop Manual section 09-12 - INNER GARNISH REMOVAL/INSTALLATION.

3. Verify repair.

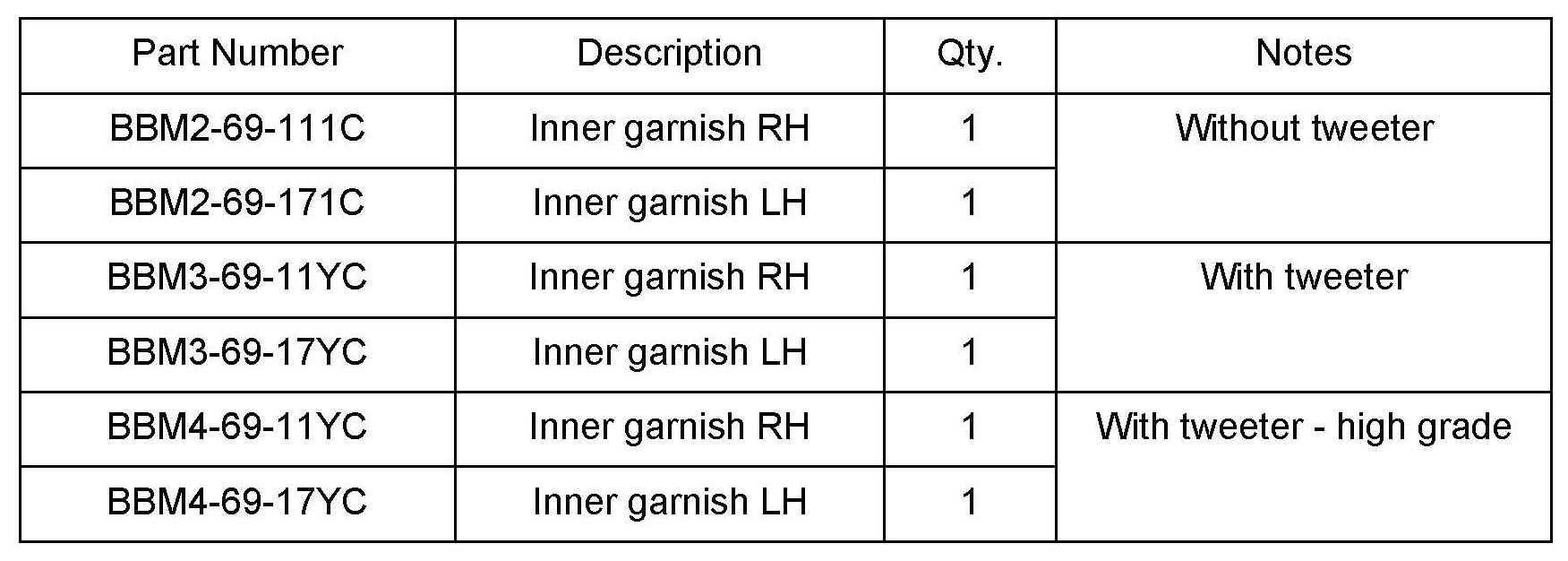

PART(S) INFORMATION

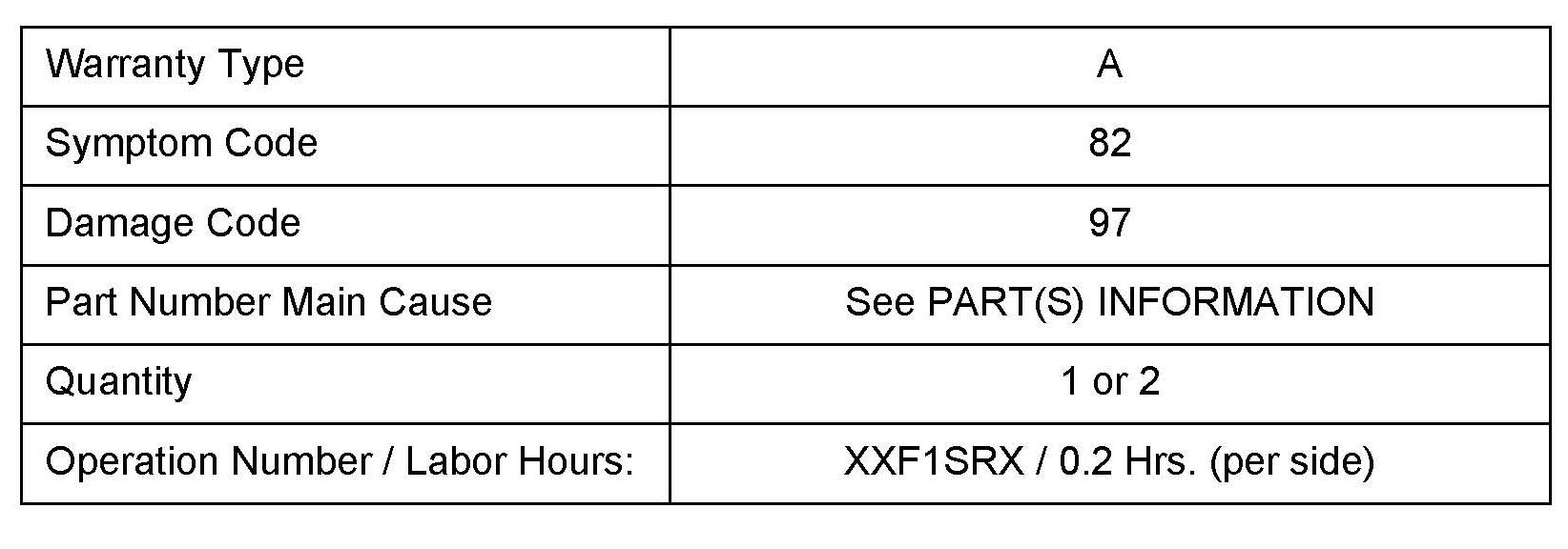

WARRANTY INFORMATION

NOTE:

^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.

^ This repair will be covered under Mazda's New Vehicle Limited Warranty term.

^ Additional diagnostic time cannot be claimed for this repair.
