Drivetrain - Oil Seepage From The Inner CV Joint Boot

Bulletin No.: 03-002/09

Last Issued: 07/24/2009

Subject:
OIL SEEPAGE FROM JOINT SHAFT

APPLICABLE MODEL(S)/VINS
2010 Mazda3

DESCRIPTION

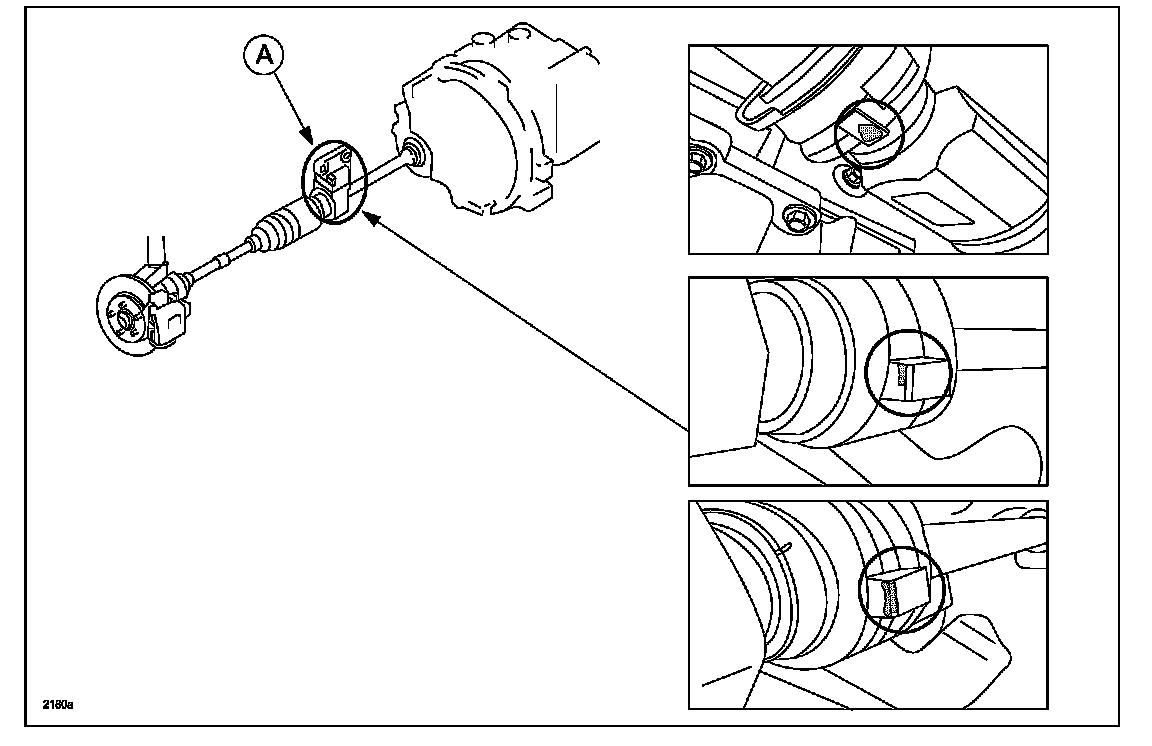

Some new vehicles may exhibit oil seepage underneath the bearing bracket (A) on the right side of the joint shaft. This is caused by the oil content separating from the grease applied to the bearing and spline seeping from the seal and bracket.





There is no functional problem with this issue since the amount of oil seepage is very small compared to the amount of grease. Note that the oil seepage will stop while the vehicle is in use.

If you encounter a customer complaint about this concern, wipe off the oil with a rag. DO NOT replace the joint shaft.
