Interior - Front Door Panel Buzzing Noises

Bulletin No.: 09-041/09

Last Issued: 07/29/2009

Subject:
BUZZING NOISE FROM FRONT DOOR PANEL

APPLICABLE MODEL(S)/VINS
2010 Mazda3 vehicles with VINs lower than JM1 BL **** ** 158389 (produced before May 20, 2009)

DESCRIPTION





Some customers may complain about a buzzing noise from the upper part of the front door panel when the volume of the audio system is loud. Due to the loud volume, both front door trim and body panel vibrate causing the rib molded on the upper part of the front door trim to interfere with the body panel, which causes the noise. The rib is now eliminated from the front door panel.

Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

1. Verify customer concern.

2. Remove the front door trim from the vehicle. Refer to Workshop manual section 09-13 FRONT DOOR TRIM REMOVAL / INSTALLATION.

3. Prepare (5) self-adhesive pads using a non-woven material (foam / rubber / heavy duty duct tape etc.) with dimensions of 1" x 3/4" and a thickness of .039 inch. (17MM x 25MM and 1.0MM thick).

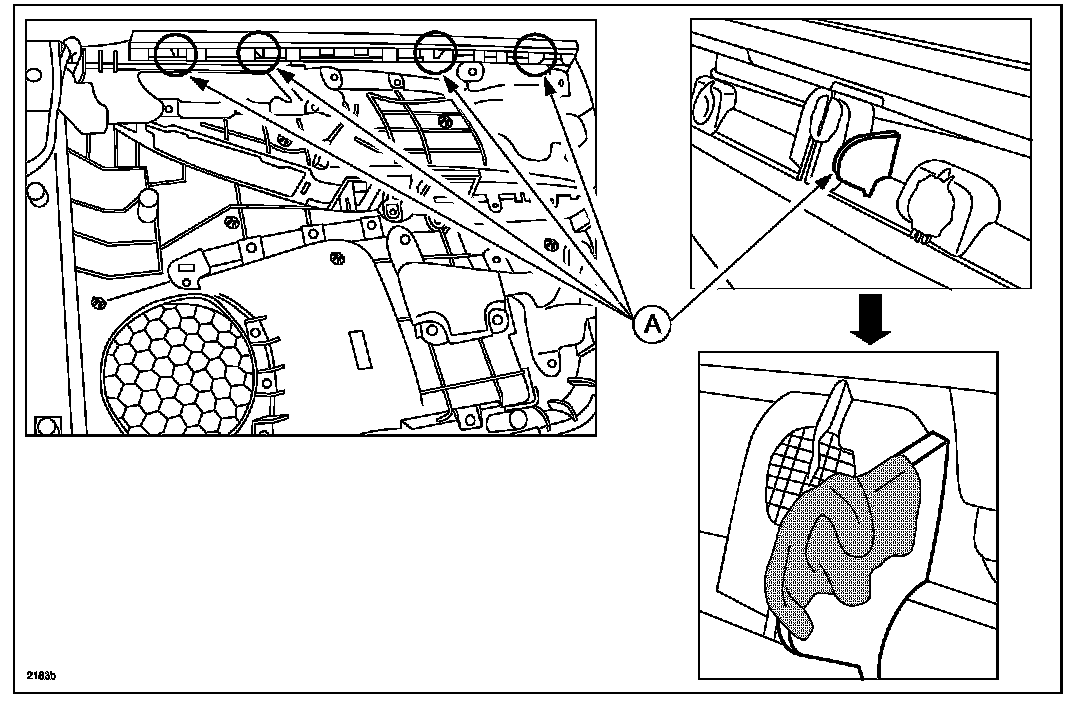

4. Apply 4 non-woven pads on 4 rib "A's" on the the upper part of the door trim.

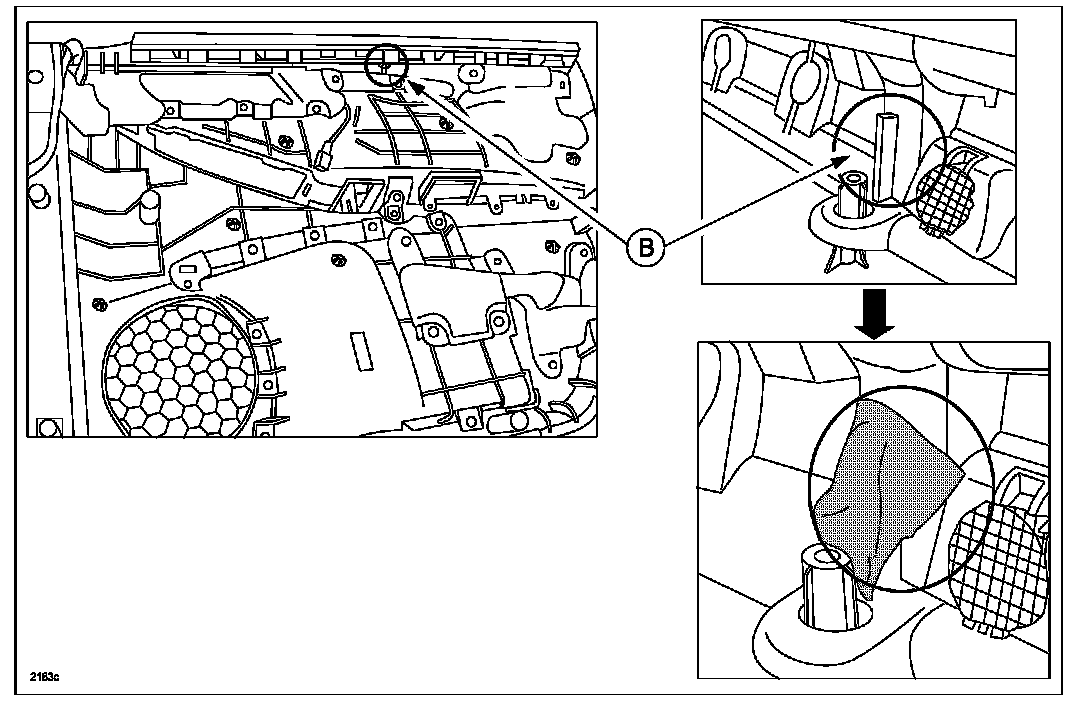

5. Apply non-woven pad on rib "B" on the the upper part of the door trim.

6. Install the front door trim to the vehicle. Refer to Workshop manual section 09-13 FRONT DOOR TRIM REMOVAL / INSTALLATION.

7. Verify repair.

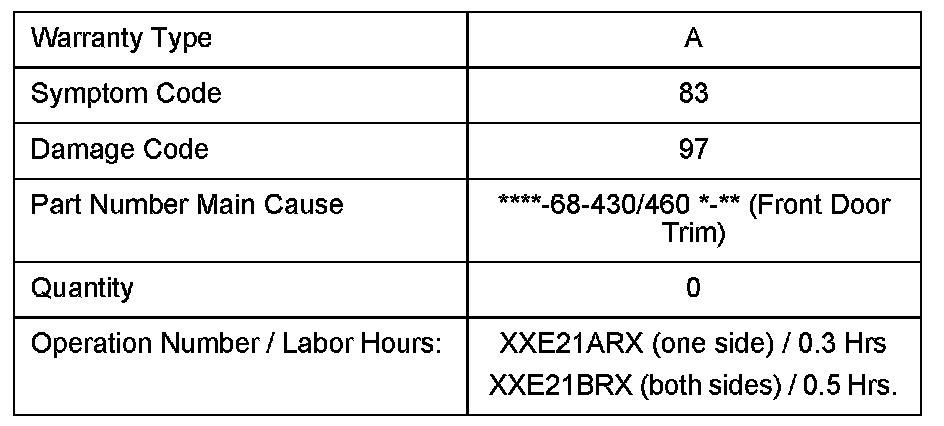

WARRANTY INFORMATION

NOTE:
^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.

^ This repair will be covered under Mazda's New Vehicle Limited Warranty term.

^ Additional diagnostic time cannot be claimed for this repair.
