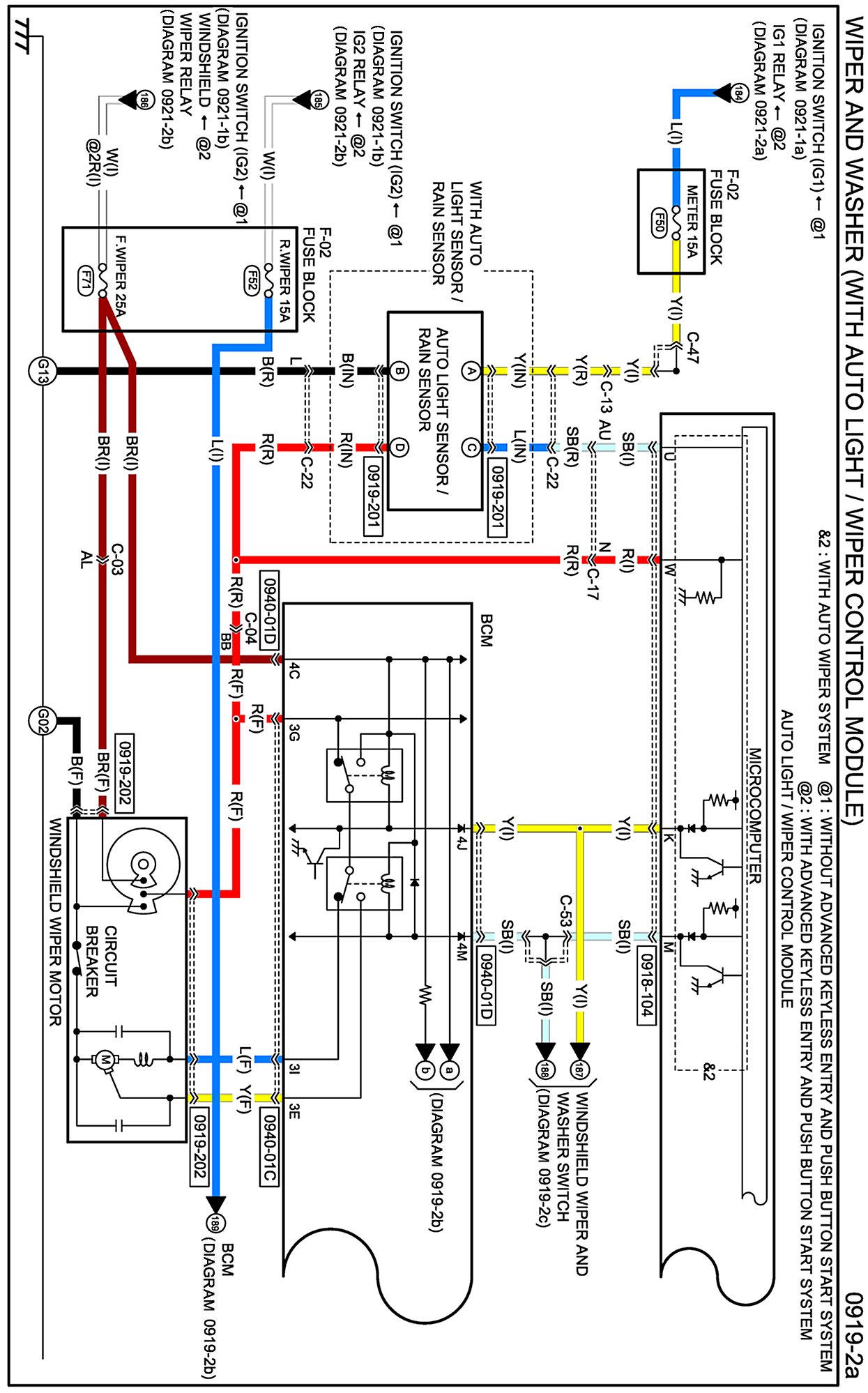

Diagram 0919-2a (Wiper and Washer (With Auto Light / Wiper Control Module))
Diagram 0919-2a (Wiper and Washer (With Auto Light / Wiper Control Module))
Diagram 0919-2a:
