Automatic Transmission/Transaxle: Description and Operation

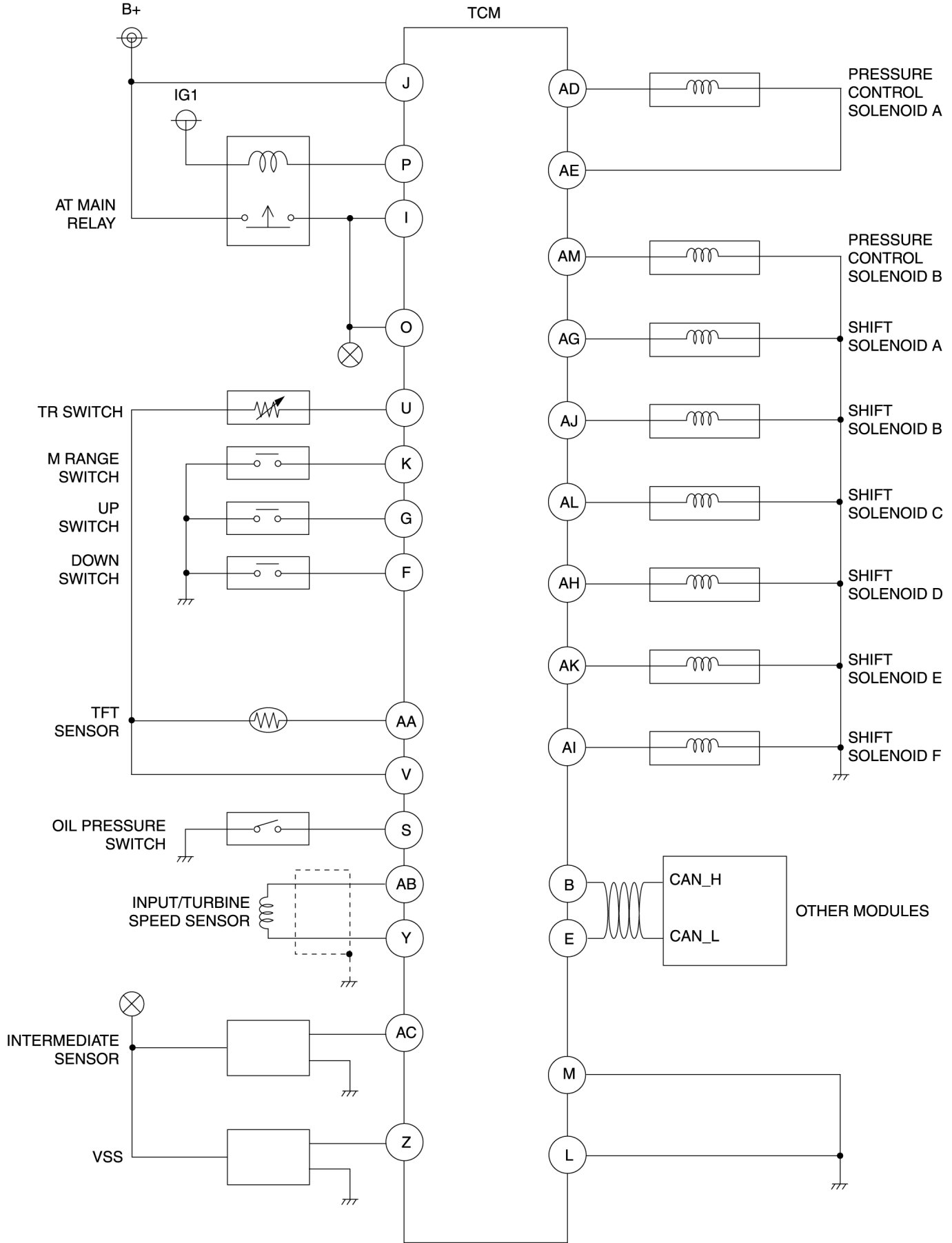

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [FS5A-EL]
