A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0130
P0130

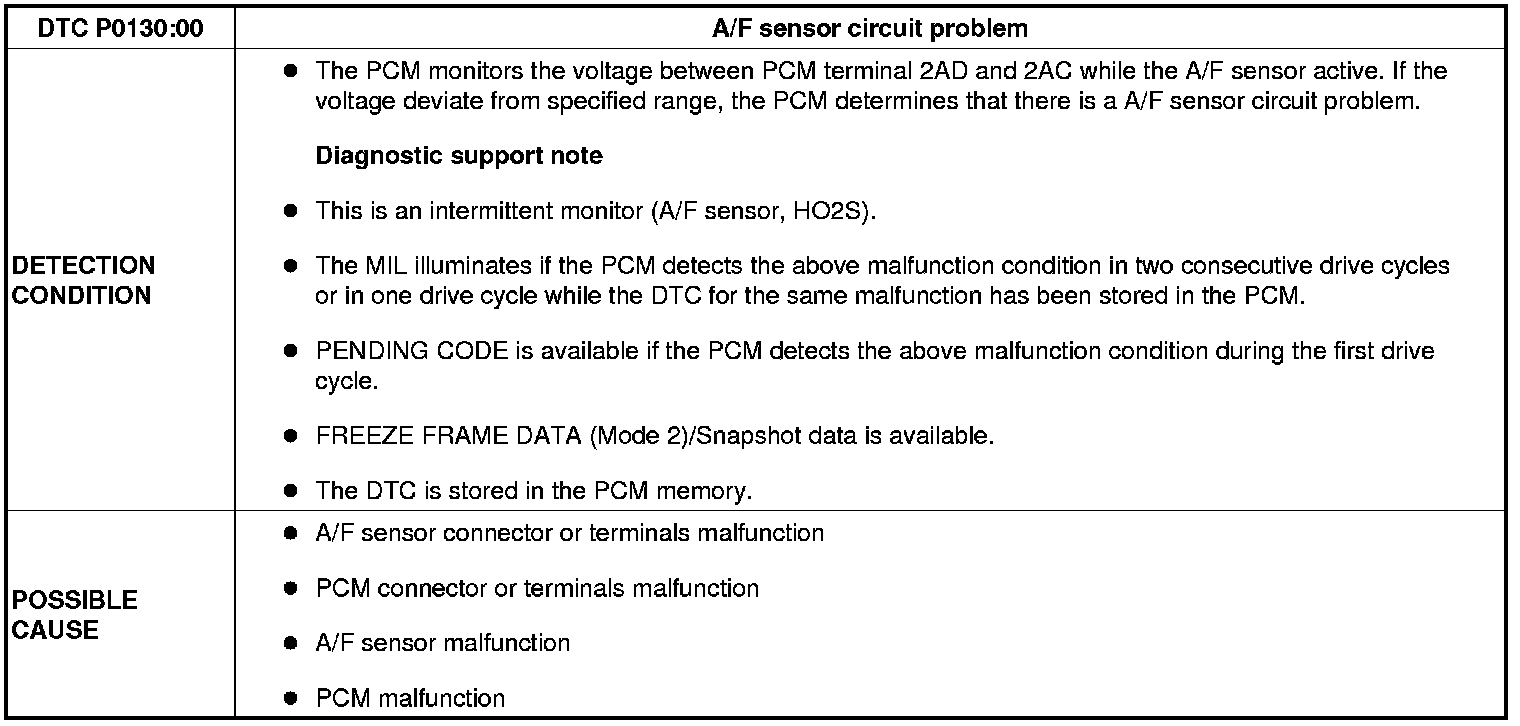

DTC P0130:00 [LF, L5]

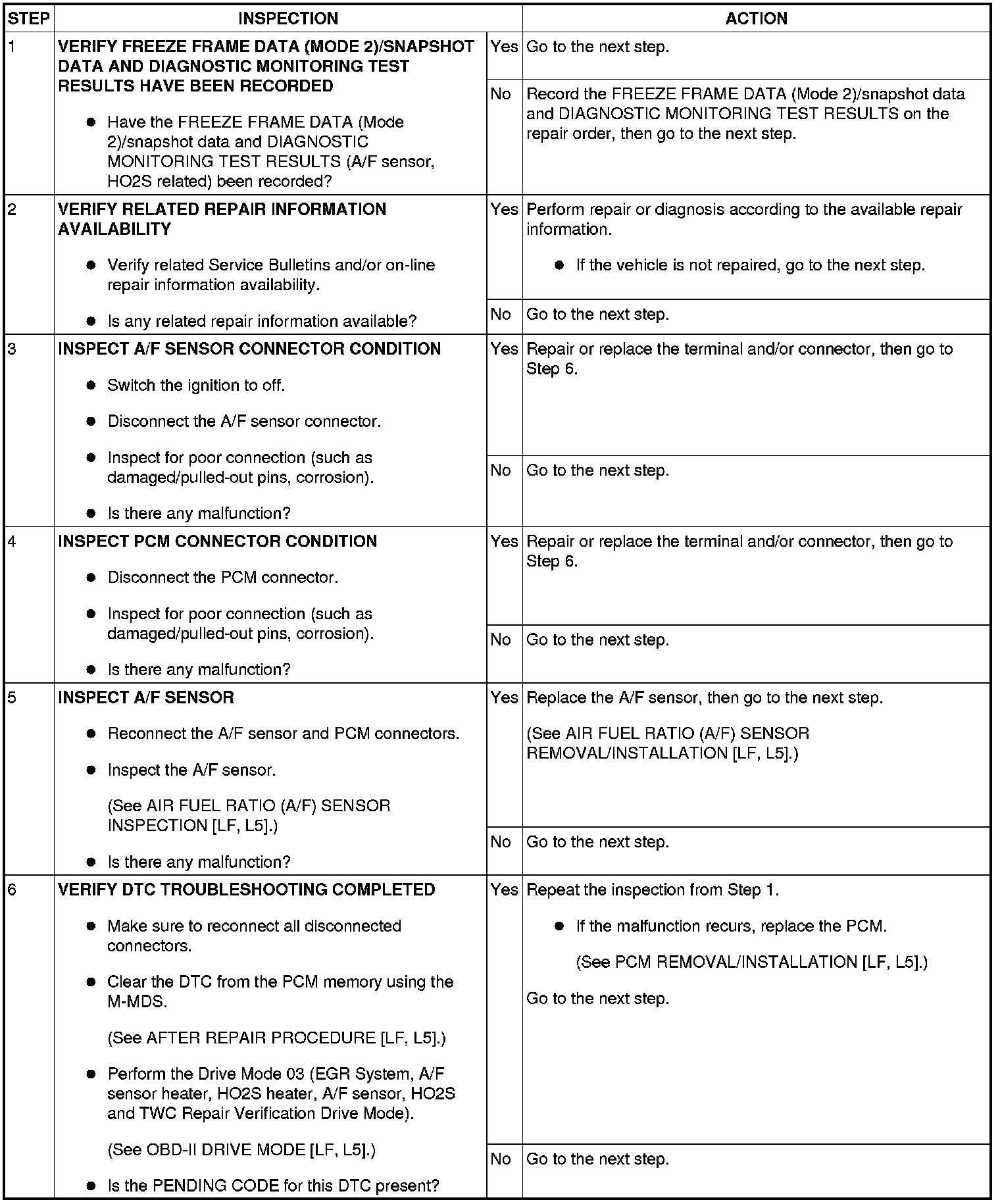

Diagnostic procedure
