Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2011
>>
RX8 2RTR-1.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2232
B2232

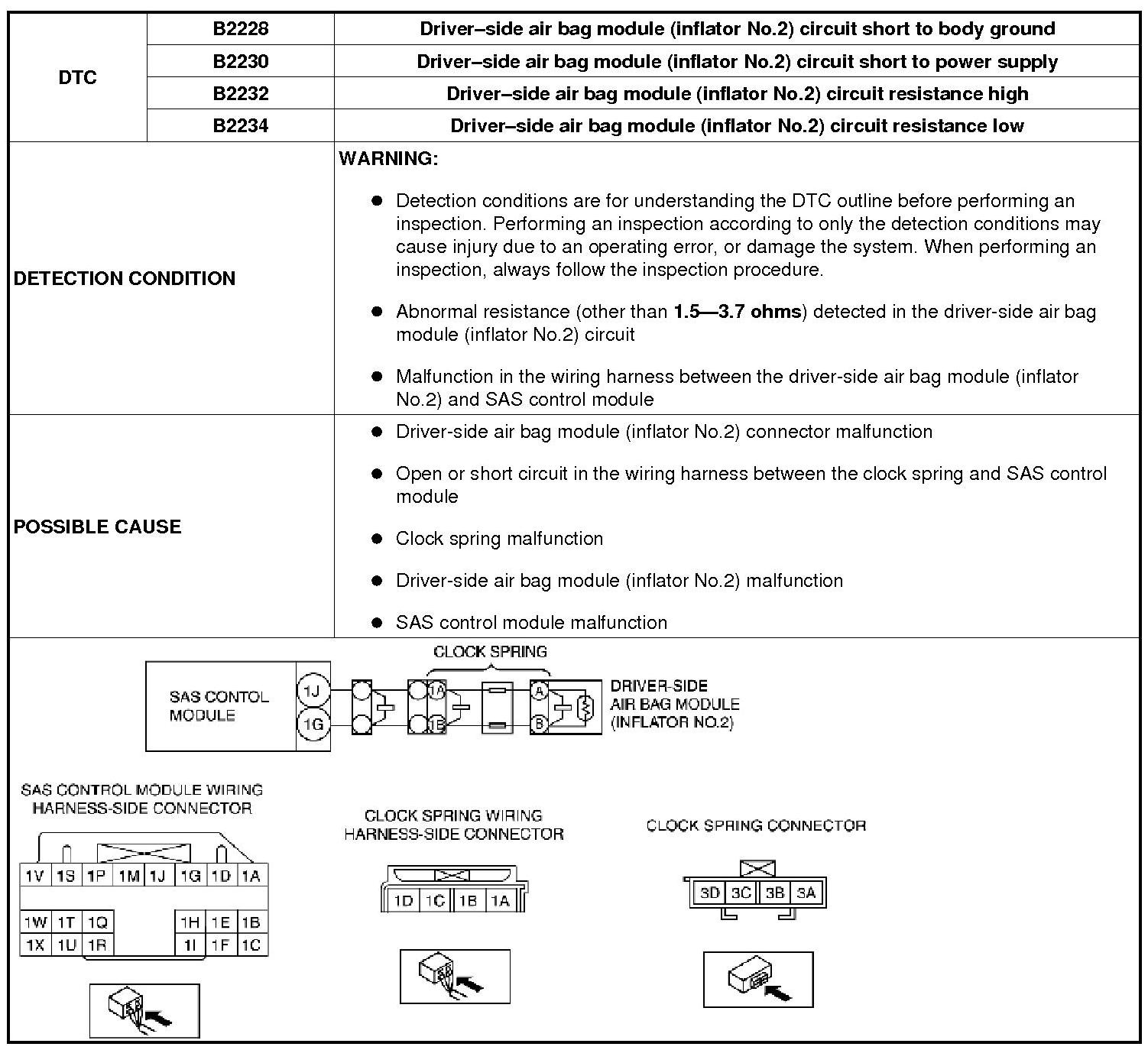

DTC B2228, B2230, B2232, B2234

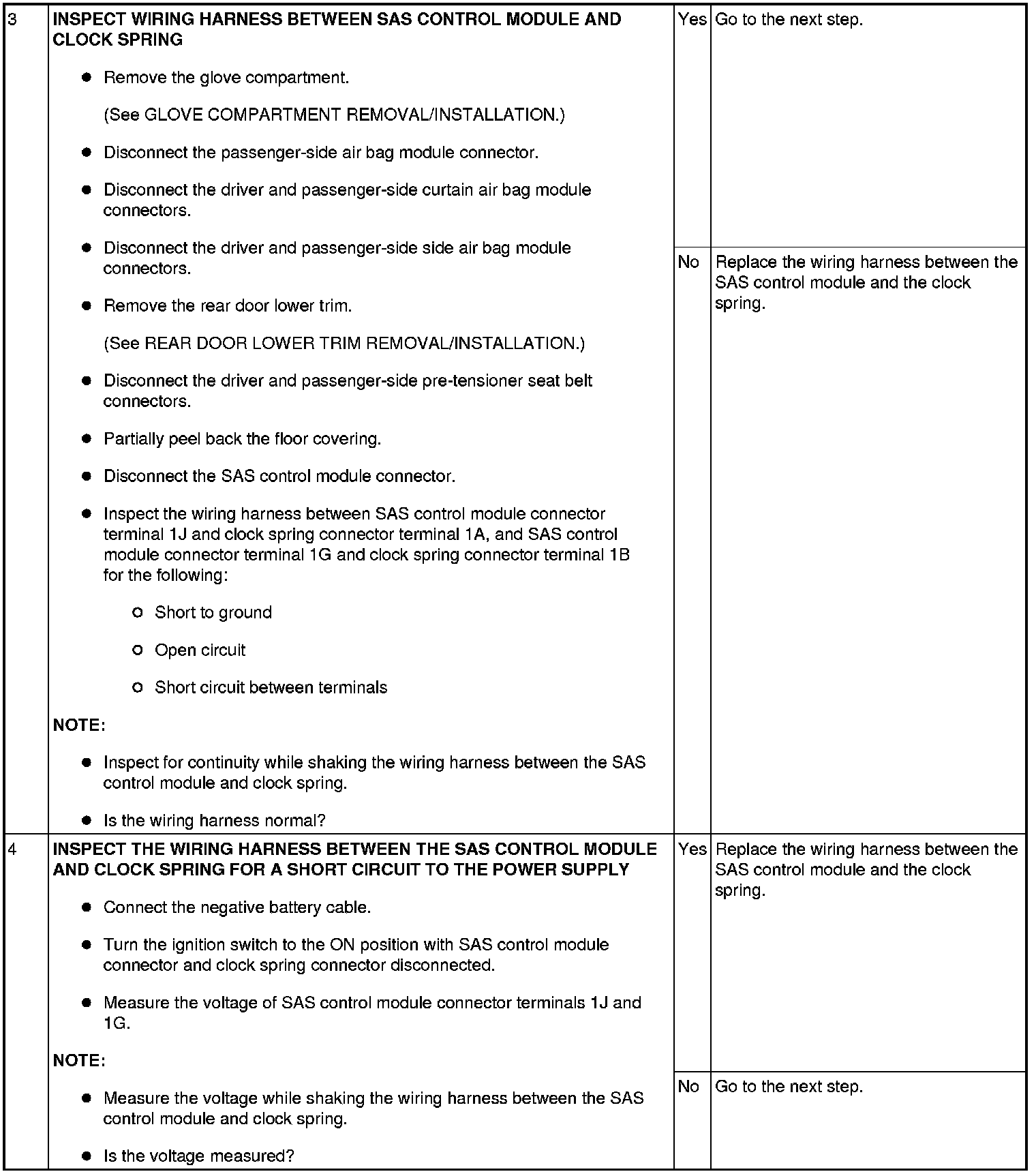

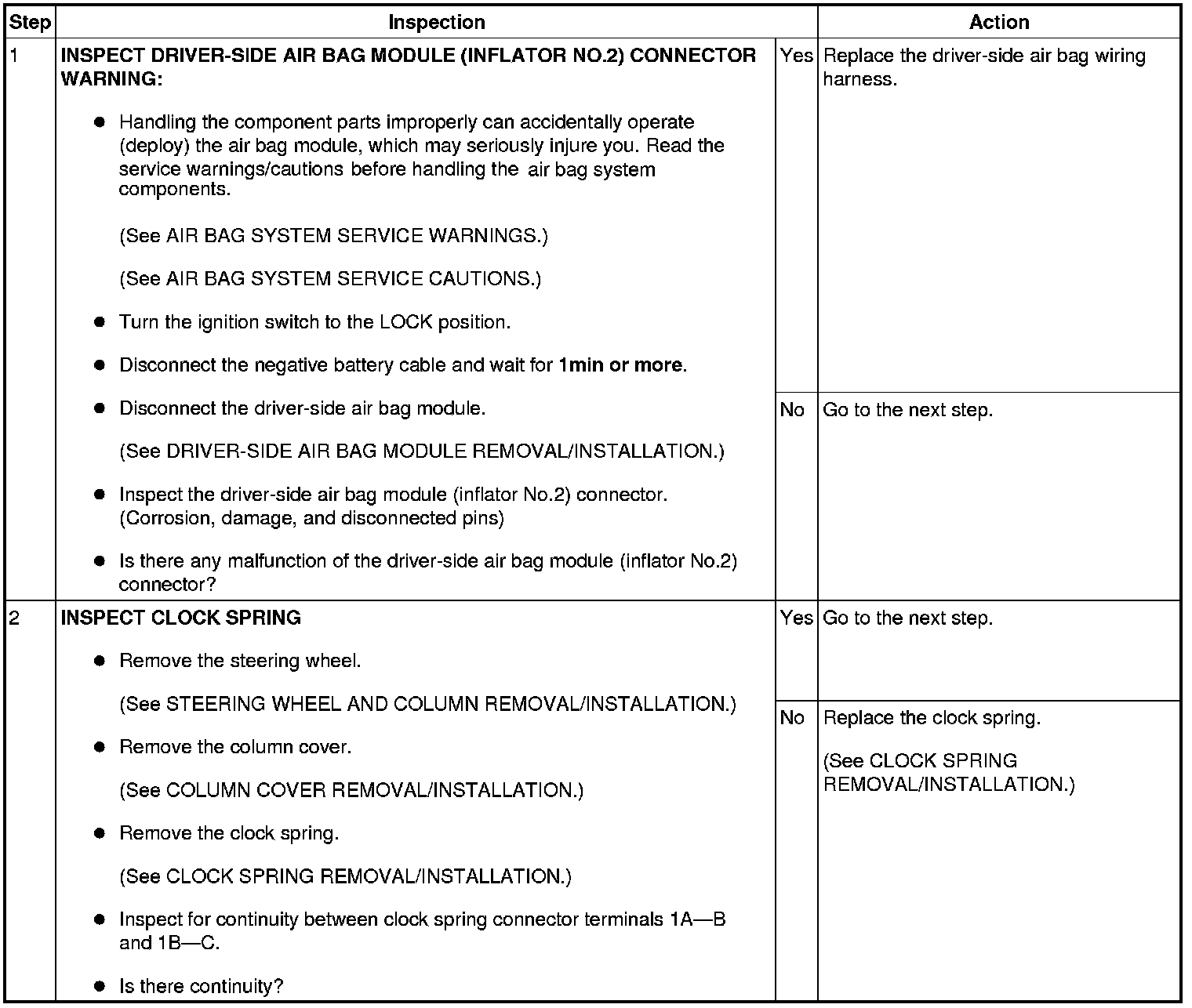

Diagnostic Procedure
