Radio, Stereo, and Compact Disc: Application and ID




SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]

NOTE:
- The supplier can vary with the module. When asking the supplier (service center) for repair or replacement, identify the supplier and fill in the Audio Repair Order Form with the following procedures.

Identification Using the Label or Inscribed Lettering

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Shift lever knob (MT) Transmission Removal/Installation

b. Shift knob (AT) Selector Lever Removal/Installation

c. Upper panel Removal and Replacement

d. Ashtray panel Removal and Replacement

e. Lower panel Lower Panel Removal/Installation

f. Knee bolster Knee Bolster Removal/Installation

g. Center panel unit Center Panel Unit Removal/Installation

3. Verify the supplier by referring to the label attached to each unit.






Verify Using the Diagnostic Assist Function

1. Turn the ignition switch to the ACC or ON position.

2. Turn the audio unit power ON.

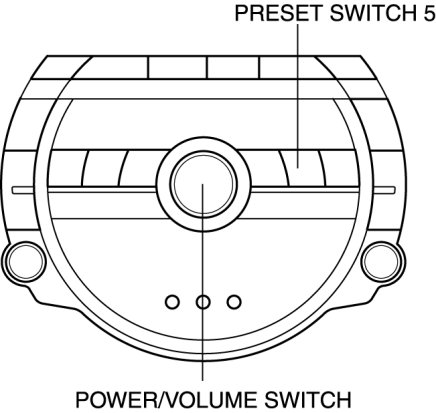

3. While pressing the POWER/VOLUME switch, simultaneously press the Preset switch 5 for approx. 3 s or more.

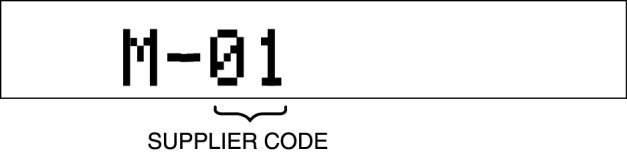

4. Identify the supplier code by referring to the information display.










NOTE:

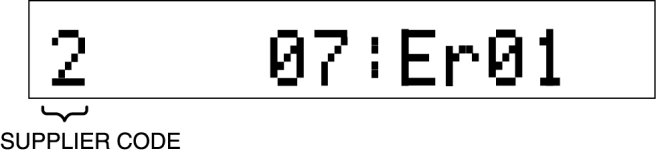

- The supplier code can also be identified from the DTC displays screen.






5. Cancel the diagnostic assist function by either turning OFF the audio unit power or by ignition to the switched OFF
