Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the ashtray. Removal and Replacement

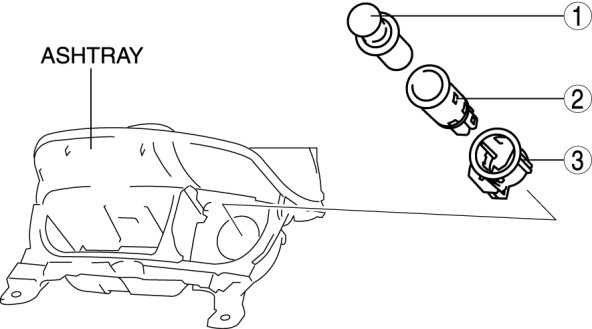

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

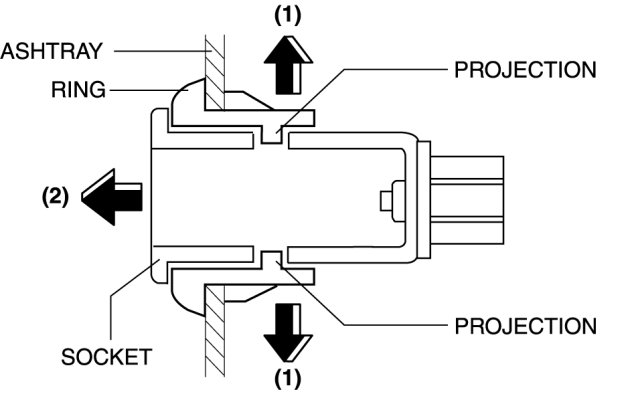

Socket Removal Note

1. Remove the socket in the direction of the arrow (2) shown in the figure while opening the rings in the direction of the arrow (1) using a tape-wrapped fastener remover.






Ring Removal Note

1. Remove the ring in the direction of the arrow (2) shown in the figure while pressing the ring tabs in the direction of the arrow (1).
