Lighting and Horns: Description and Operation




DRL AND AUTO LIGHT SYSTEM WIRING DIAGRAM

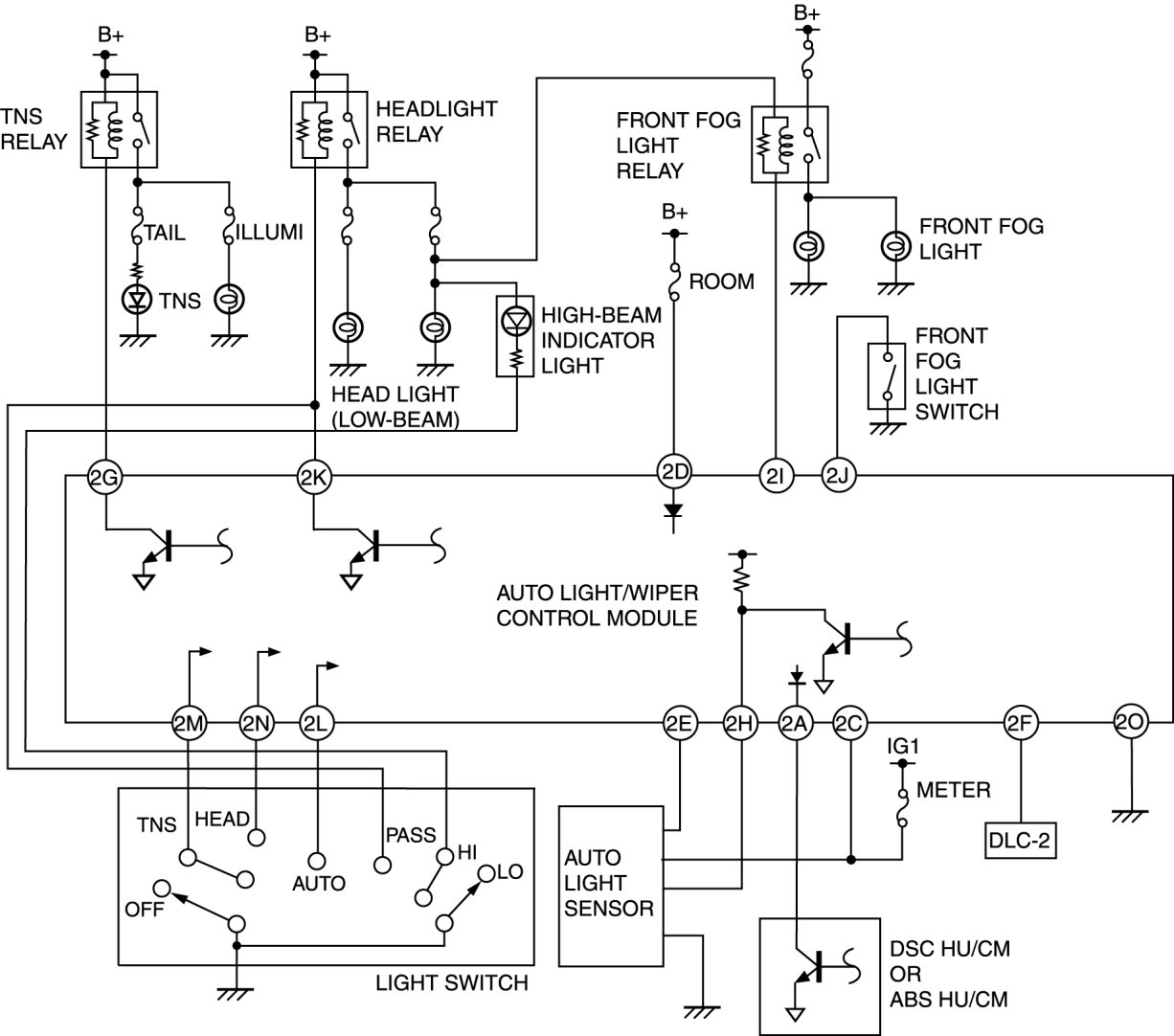

Vehicles With DRL

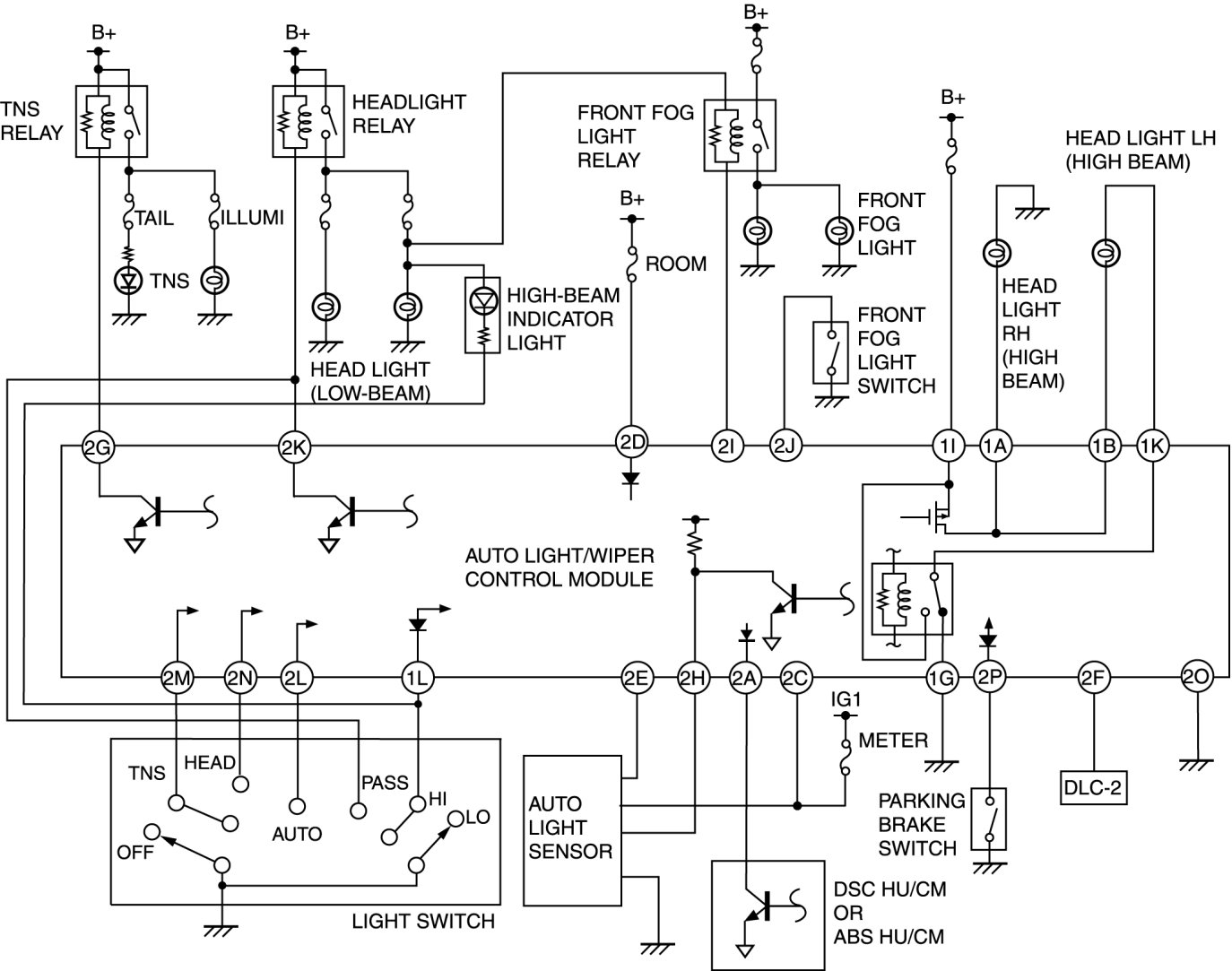

Vehicles Without DRL
