Steering: Service and Repair

GENERAL PROCEDURES (STEERING)

Wheel And Tire Installation

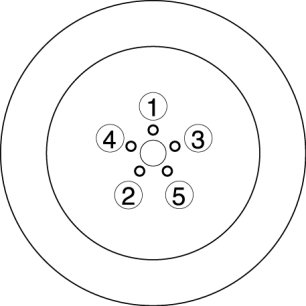

1. When installing the wheels and tires, tighten the wheel nuts in a criss-cross pattern to the following tightening torque.






Tightening torque
- 88-118 Nm
{9.0-12.0 kgf-m, 65.0-87.0 ft-lbf}

Connector Disconnection

1. Perform the following works, before the connectors are disconnected.
a. Remove the engine cover. Service and Repair

b. Remove the battery cover. Removal and Replacement

c. Disconnect the negative battery cable. Removal and Replacement

EPS Related Parts

1. Make sure that there are no DTCs in the EPS memory after working on EPS related parts. If there are any codes in the memory, clear them.

EPS System Neutral Setting

CAUTION:
- After working on the steering system, always set the EPS system to the neutral position to prevent system malfunction.

1. After performing the following, set the EPS system to the neutral position. Programming and Relearning

- Steering gear and linkage replacement
- EPS control unit replacement
- Disconnecting the steering shaft joint (gear side)
