Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 1 Car-Navigation System Does Not Start Operation (Display Changes To Back.)

No. 1 Car-Navigation System Does Not Start Operation (Display Changes To Back.)





NO.1 CAR-NAVIGATION SYSTEM DOES NOT START OPERATION (DISPLAY CHANGES TO BACK.) [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

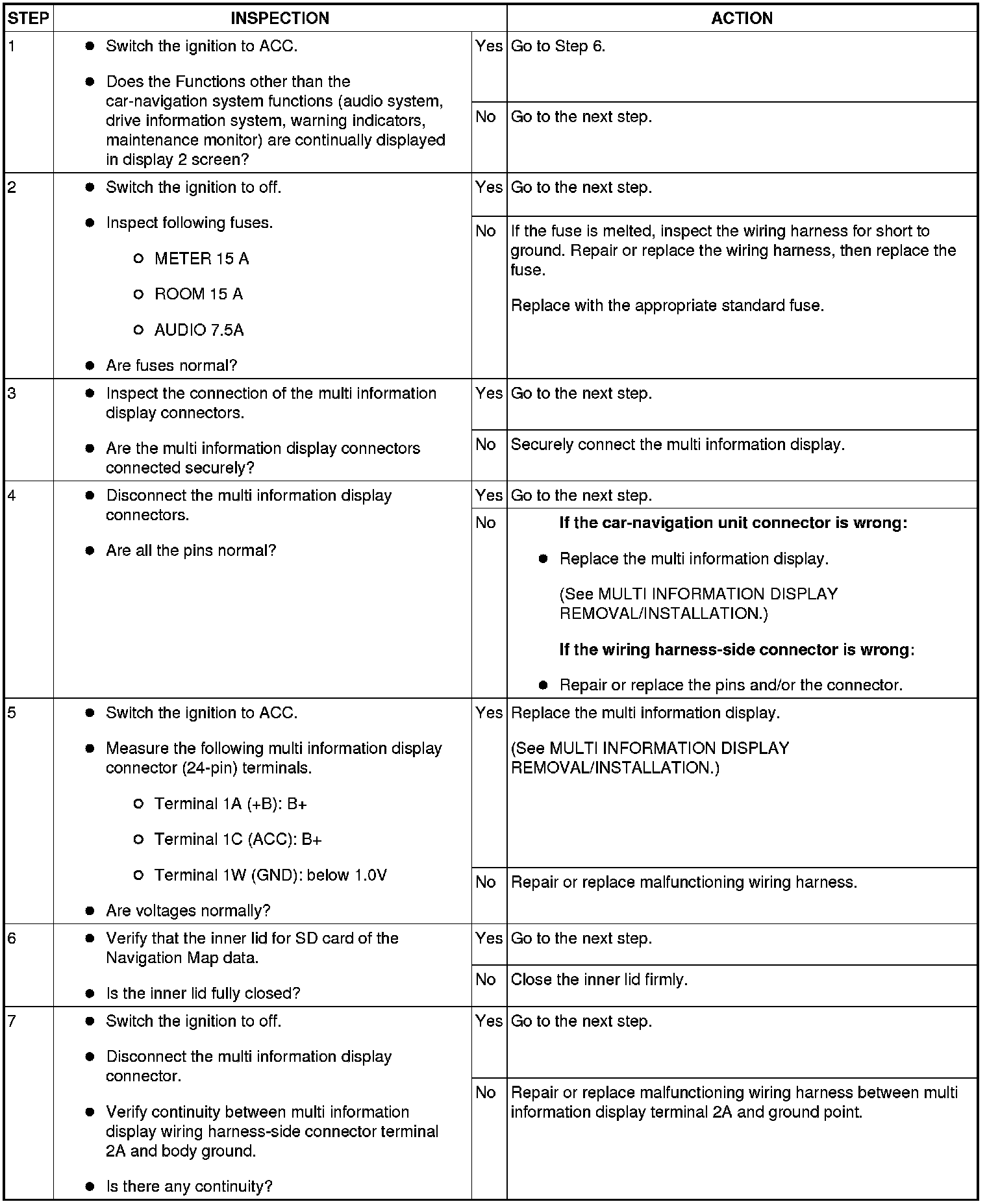

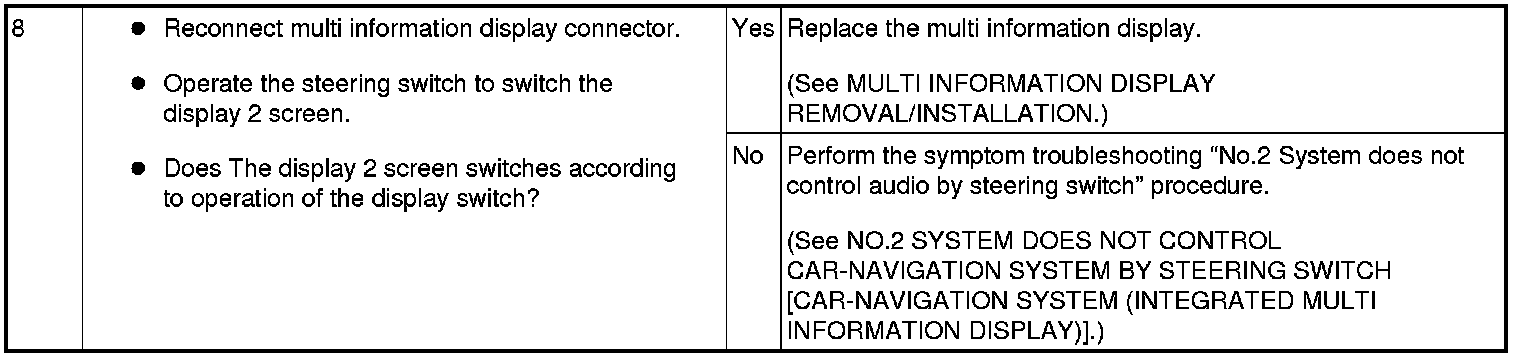

Diagnostic procedure
