Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (SKYACTIV-G)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0716
P0716

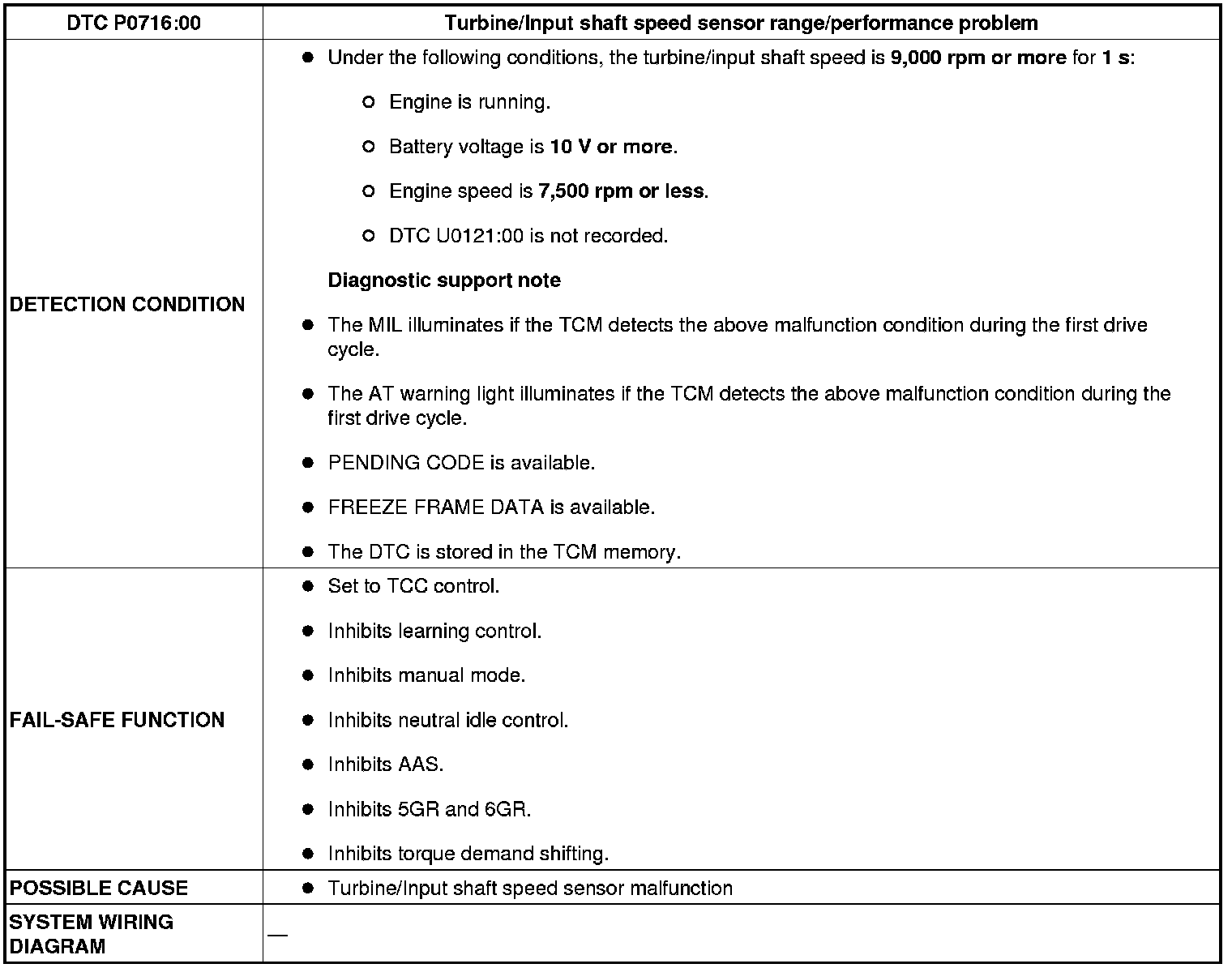

DTC P0716:00 [FW6A-EL]
Diagnostic procedure
