Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (SKYACTIV-G)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P2090
P2090
DTC P2090:00 [SKYACTIV-G 2.0]

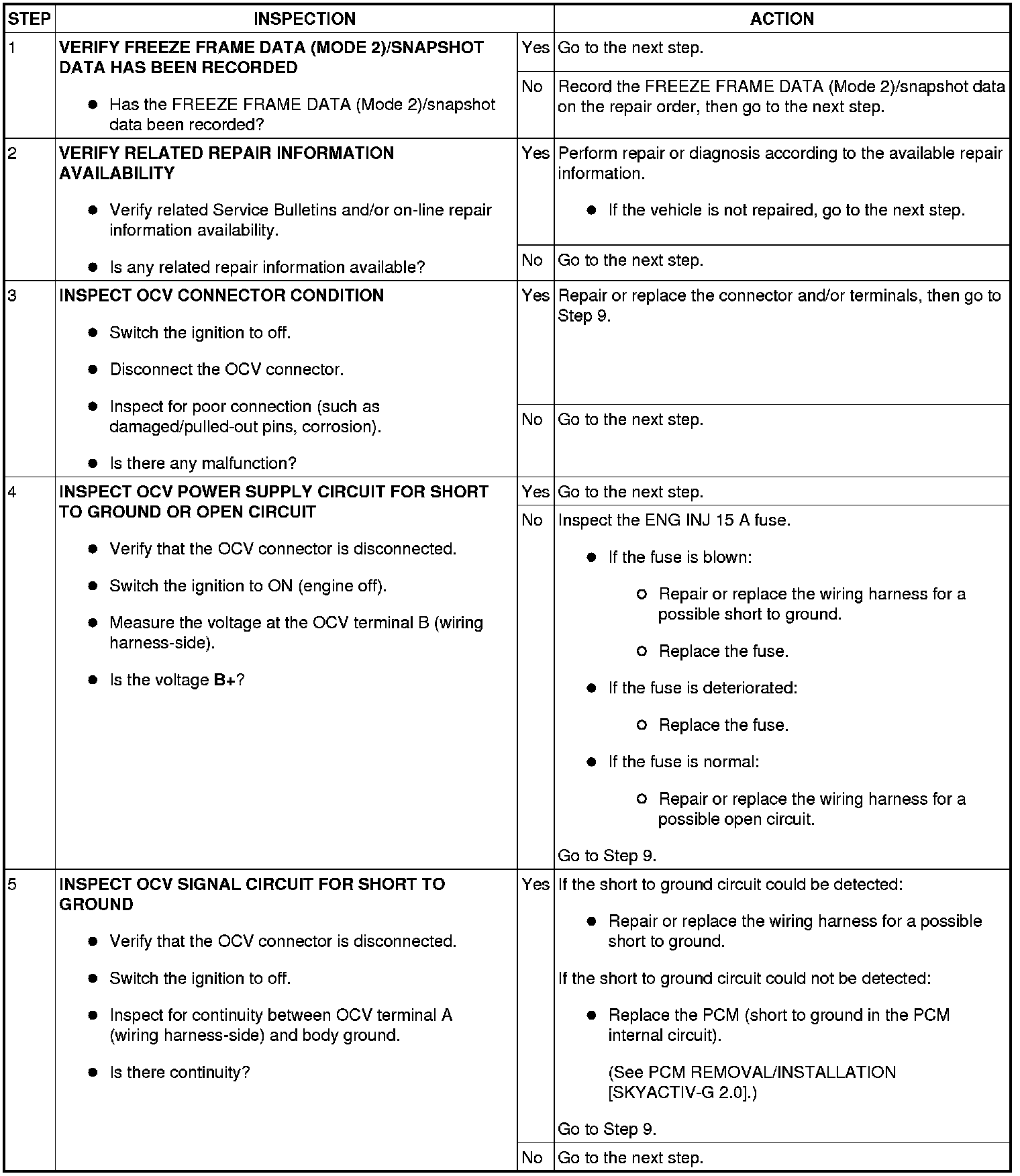

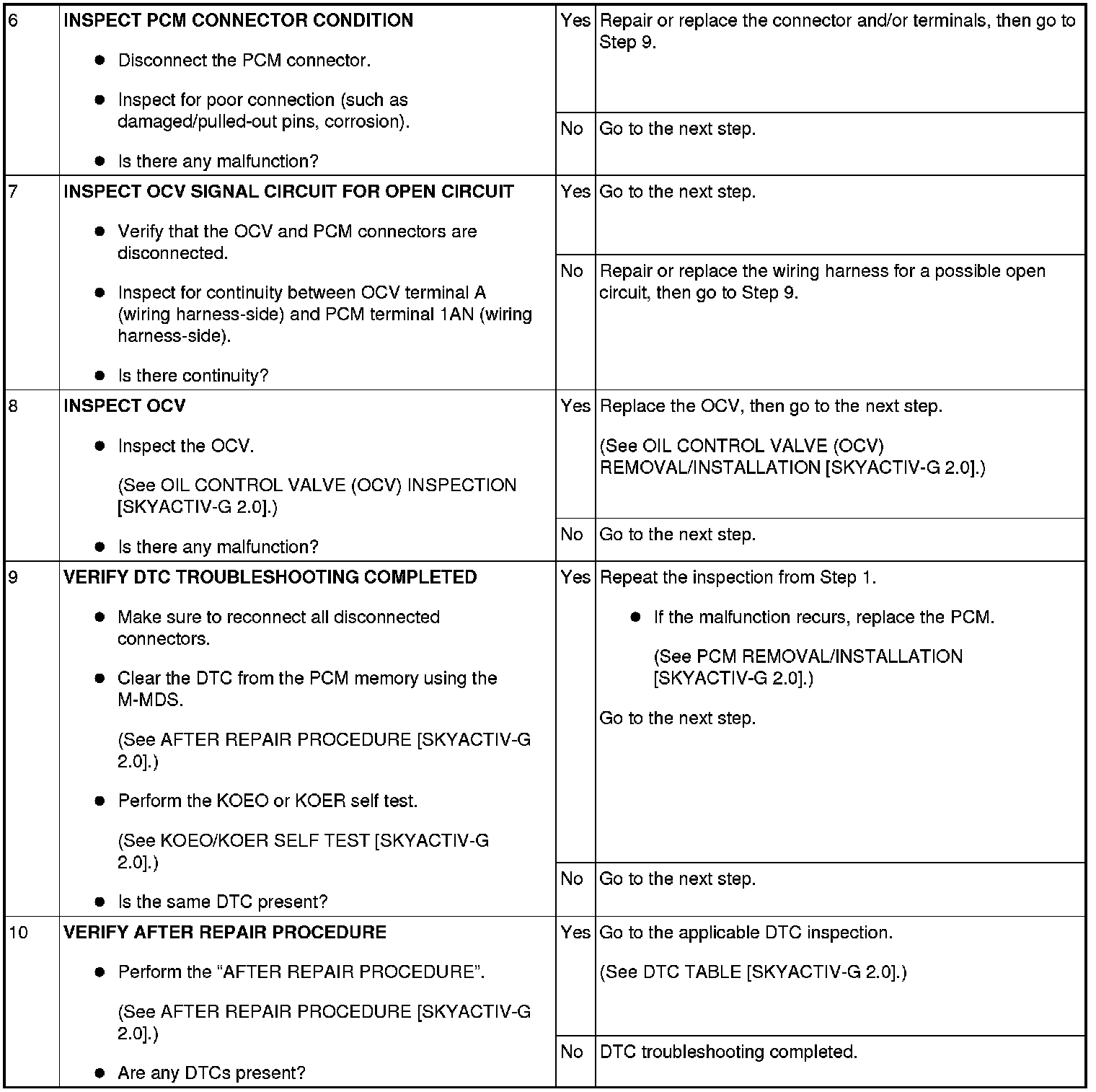

Diagnostic Procedure
