Home >> Mazda >> 2012 >> 3 L4-2.0L (SKYACTIV-G) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

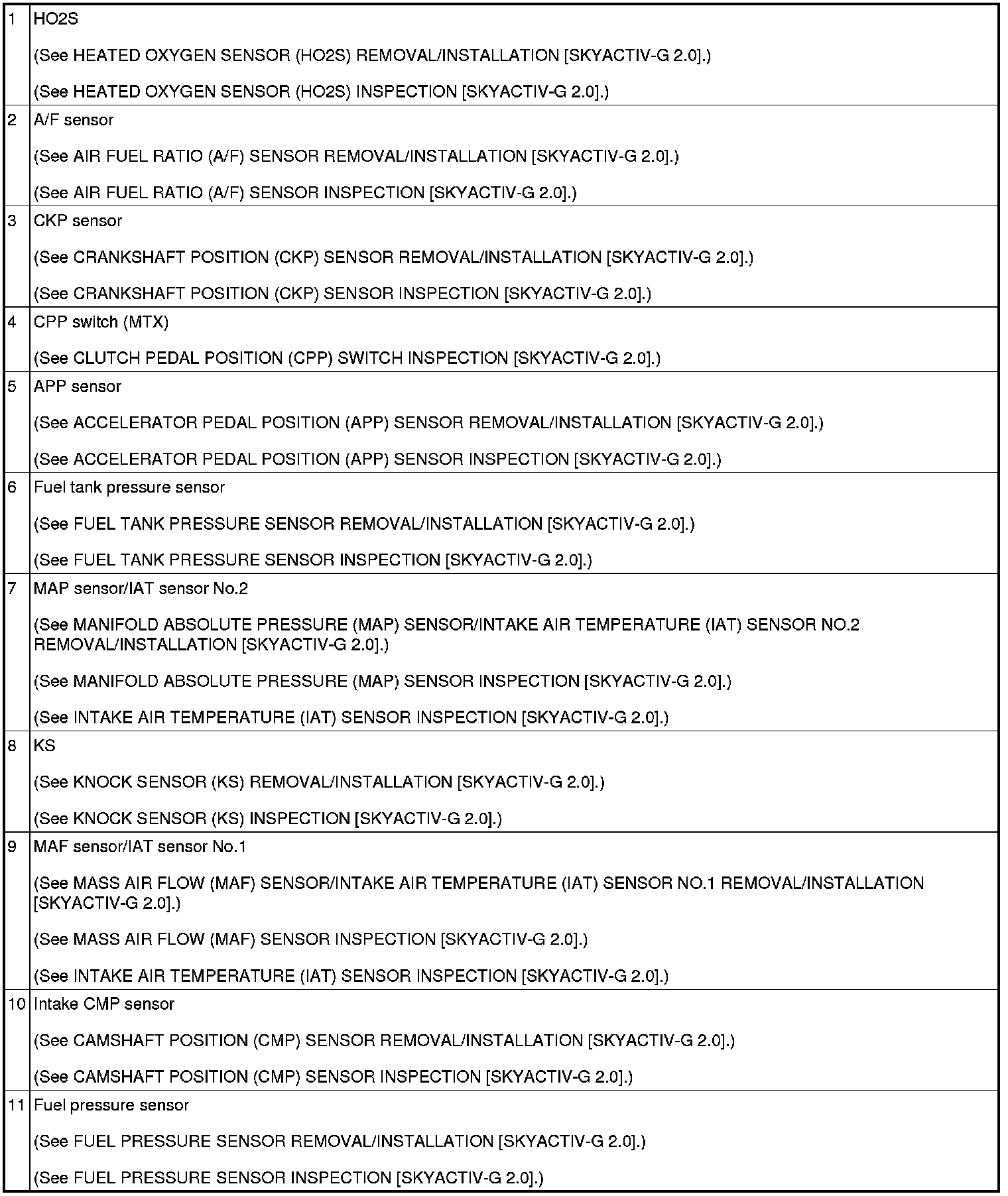

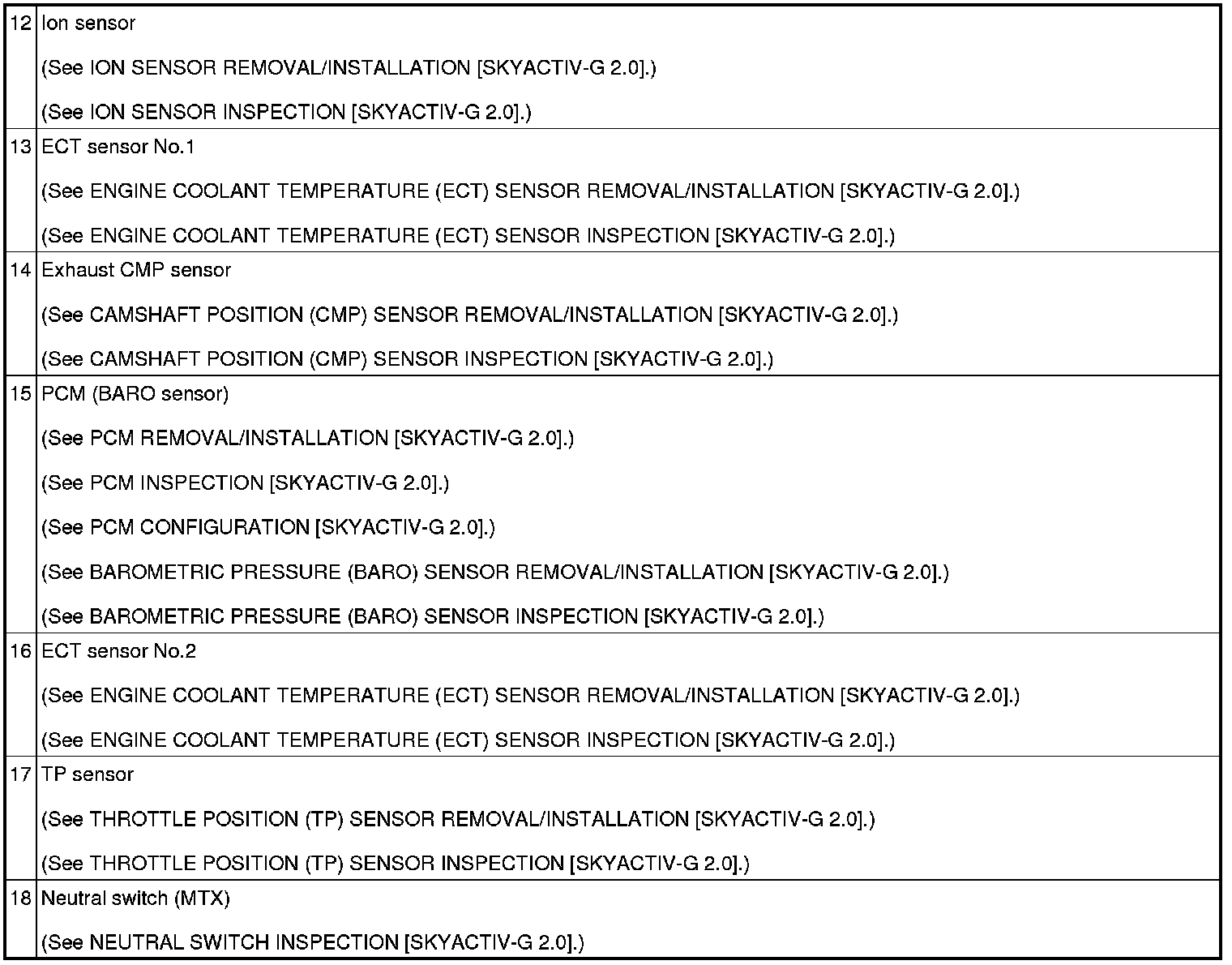

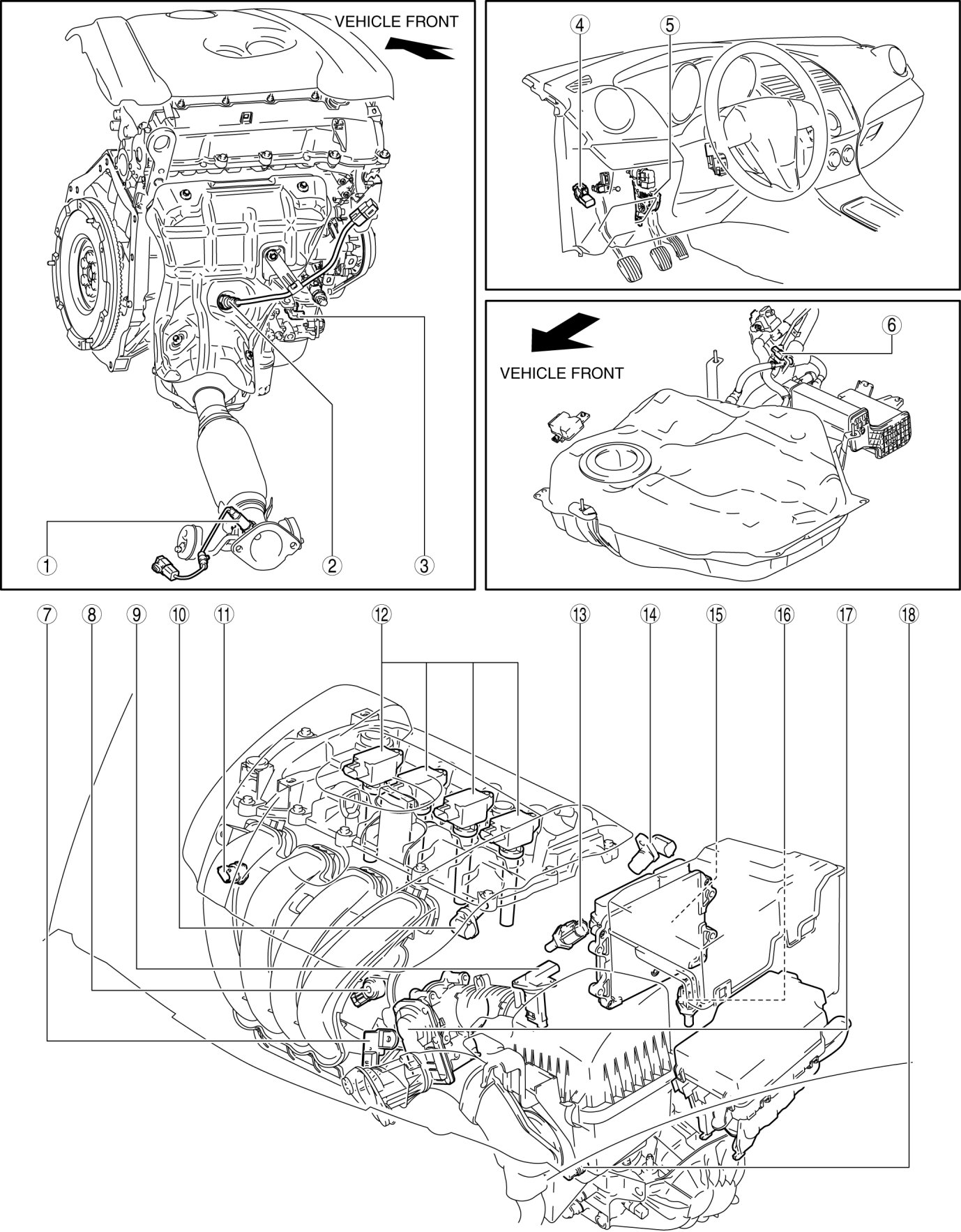

CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]
