Home >> Mazda >> 2012 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Instrument Panel Harness-Interior Light Harness <-- With Sunroof, Instrument Panel Harness-Short Cord <-- Without Sunroof

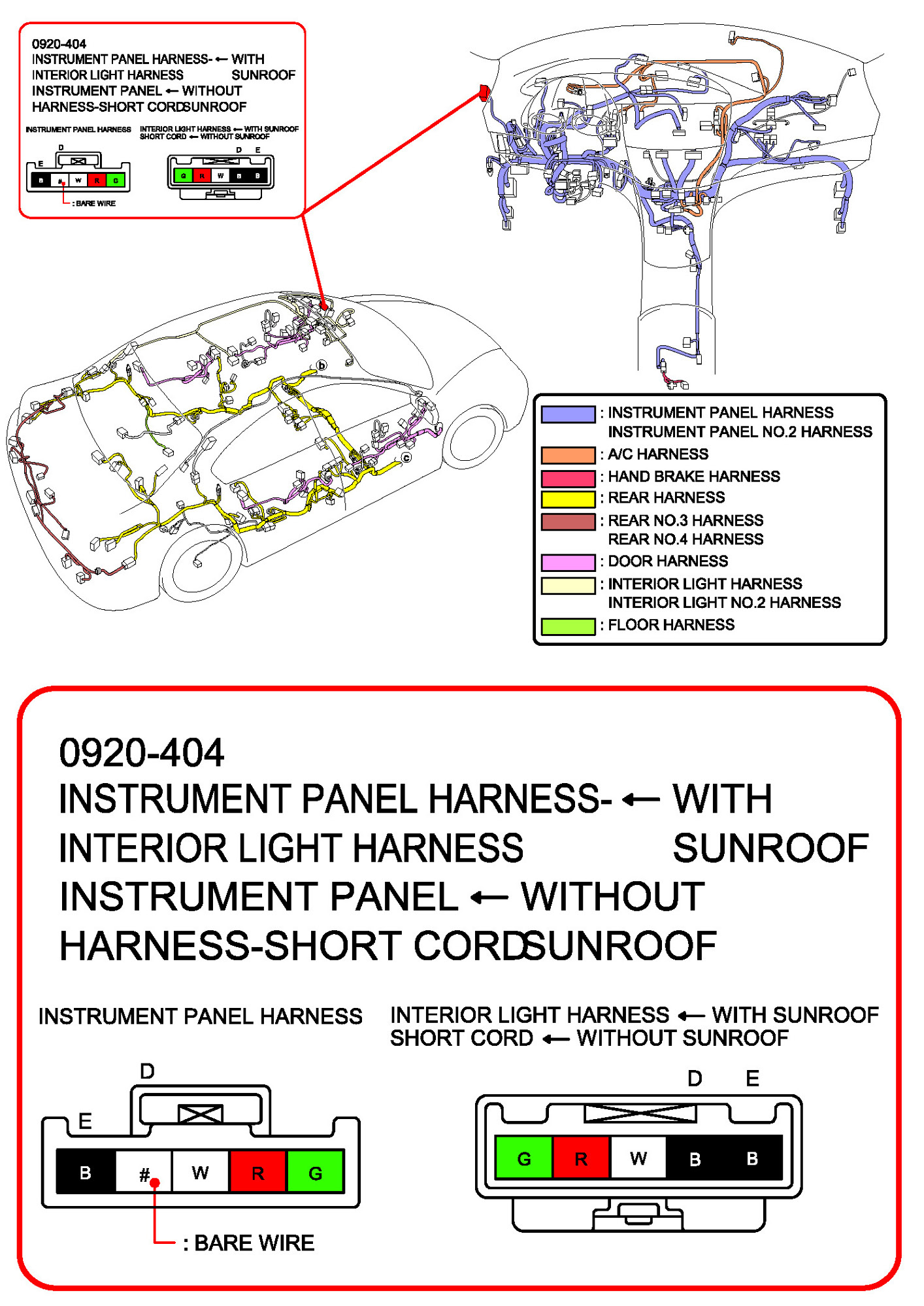

Instrument Panel Harness-Interior Light Harness <-- With Sunroof, Instrument Panel Harness-Short Cord <-- Without Sunroof
