Electrical Diagrams

Trailer Coupling PE31.19-U-2000D
- with CODE (550) Trailer coupling

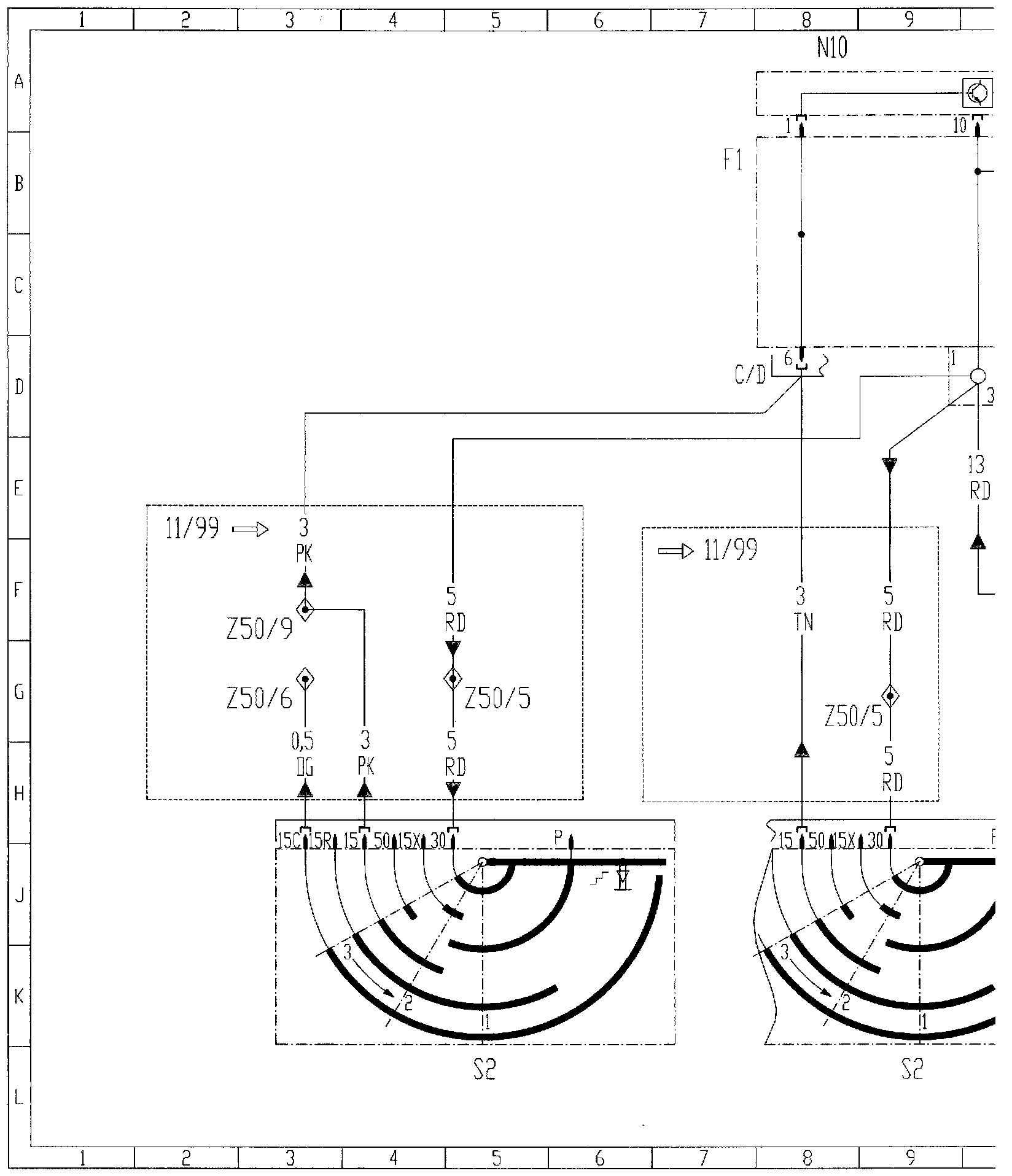

Diagram, Part 1:

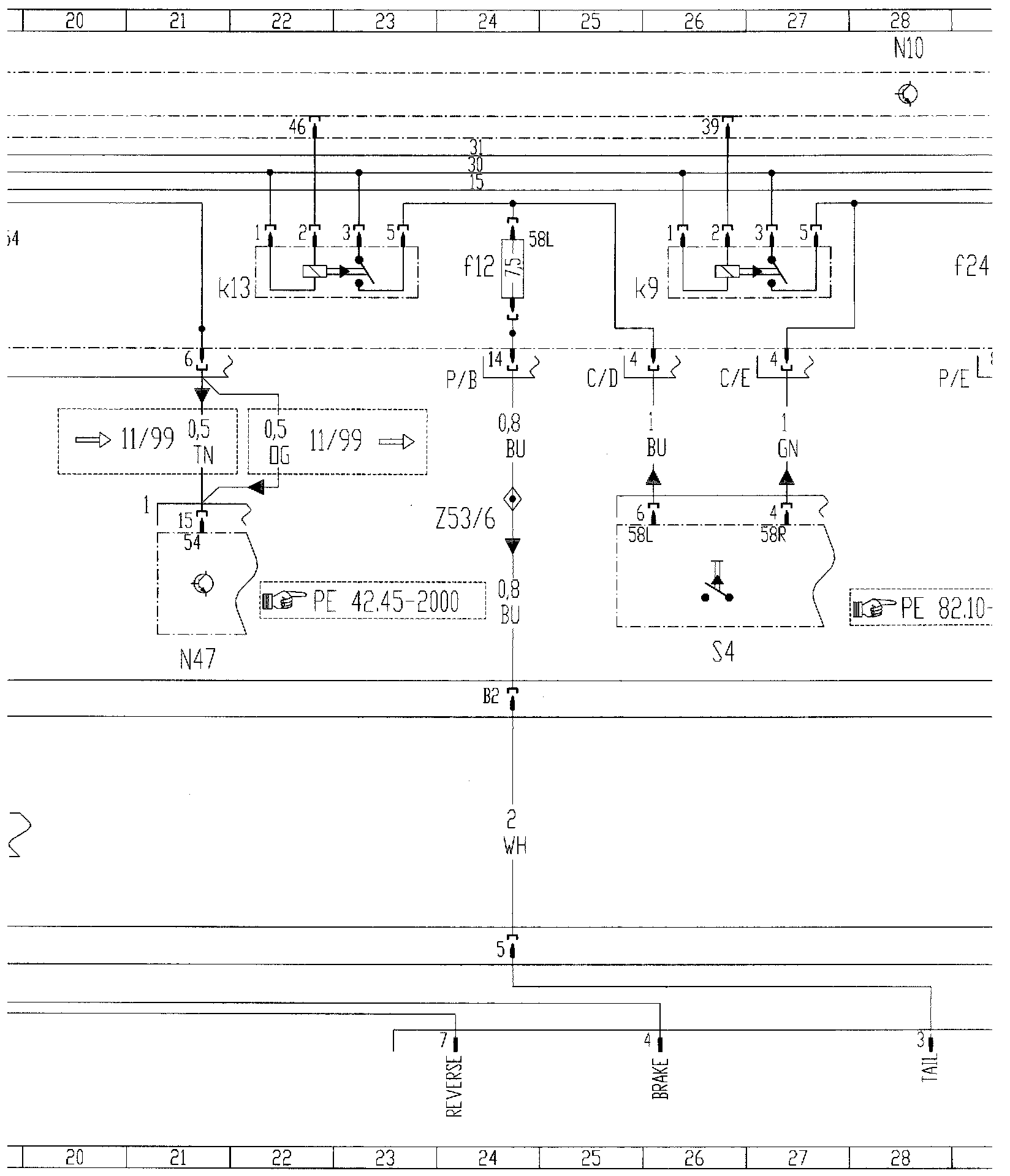

Diagram, Part 2:

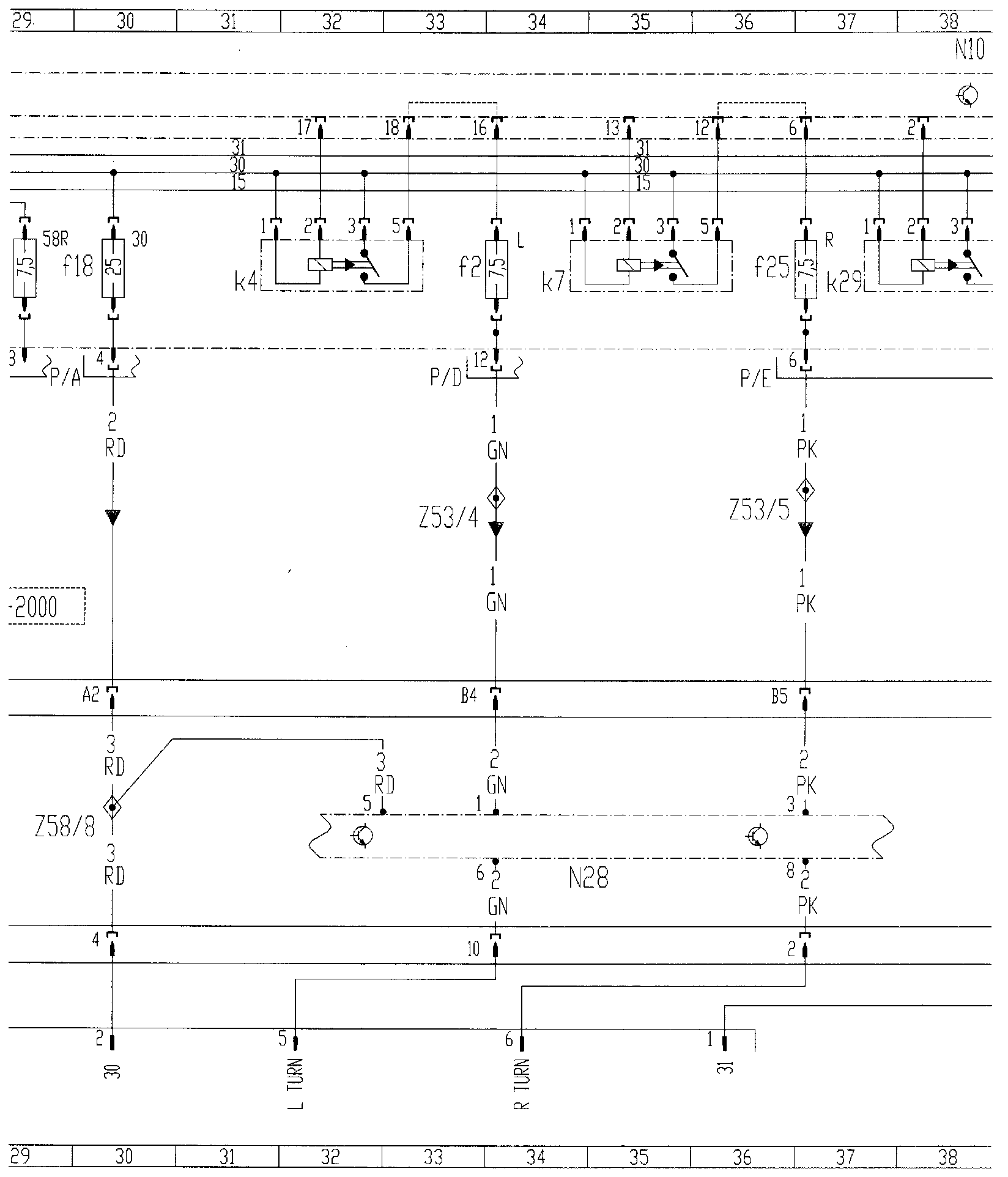

Diagram, Part 3:

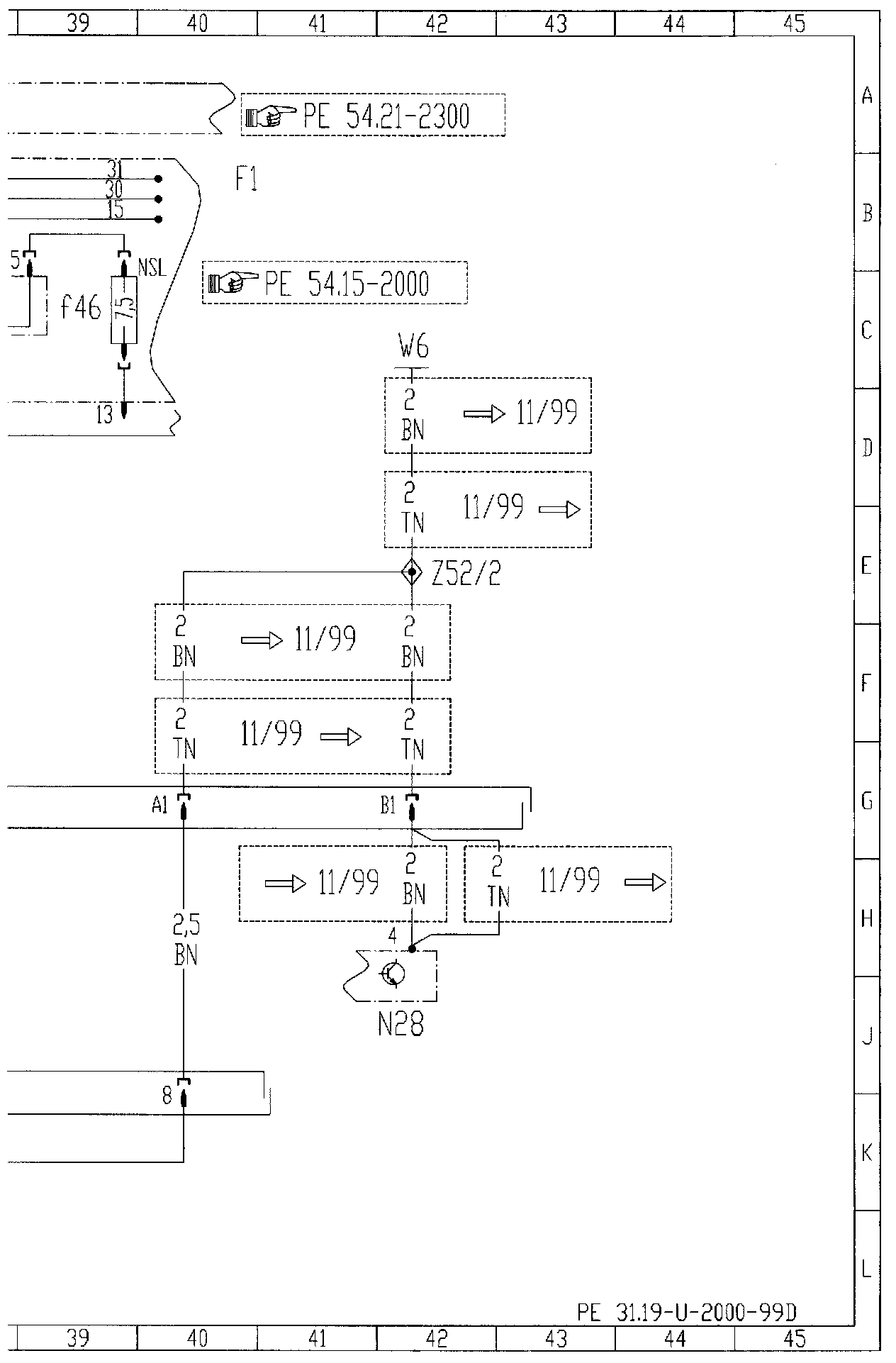

Diagram, Part 4:

Diagram, Part 5:

Component Description/Coordinates, F1 - Z58/8:
