AR88.70-P-9020GH Remove/Install Mirror Glass

Removing And Installing Mirror Glass







Remove/Install

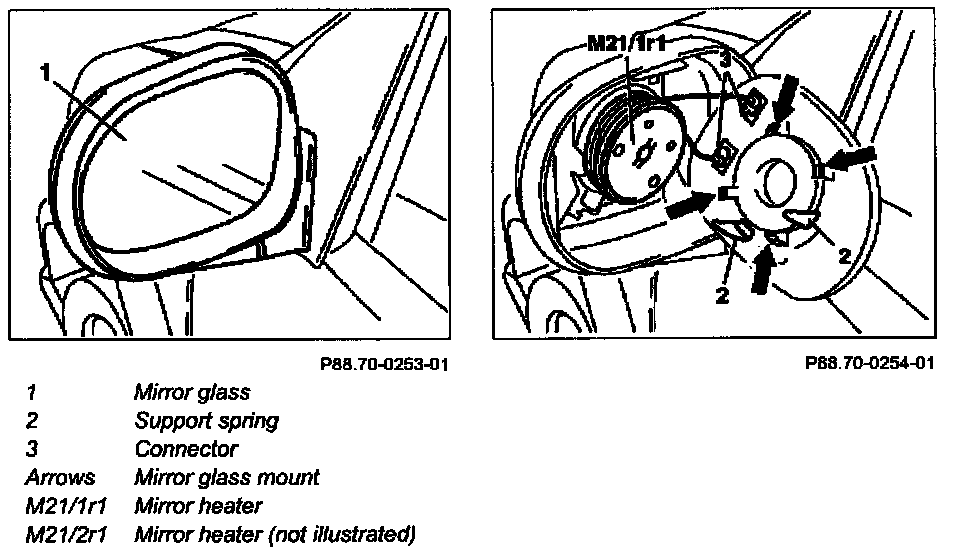

1 Tilt mirror glass (1) at top outward

NOTE: Actuate electrical mirror adjustment switch

2 Press mirror glass (1) off of drive
- See Special Tools below.

3 Disconnect connector (3) from mirror heater (M21/1r1 and M21/2r1)
4 Remove mirror glass (1)

NOTE: Installation: Install mirror glass (1) from bottom to top, thereby observe support spring (2) and mirror glass mounts (arrows).

5 Install in the reverse order

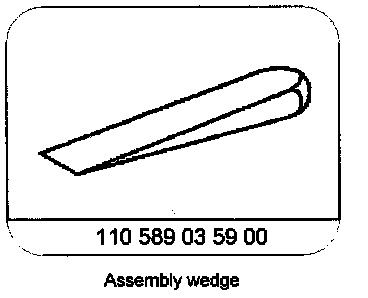

Special Tools

Assembly Wedge P/N # 110 589 03 59 00:
