Anti-Theft Alarm System (ATA) PE80.50-U-2000B

Anti-Theft Alarm System (ATA) PE80.50-U-2000B (As of 11/99)
- with CODE (551a) Anti-theft alarm system (ATA)

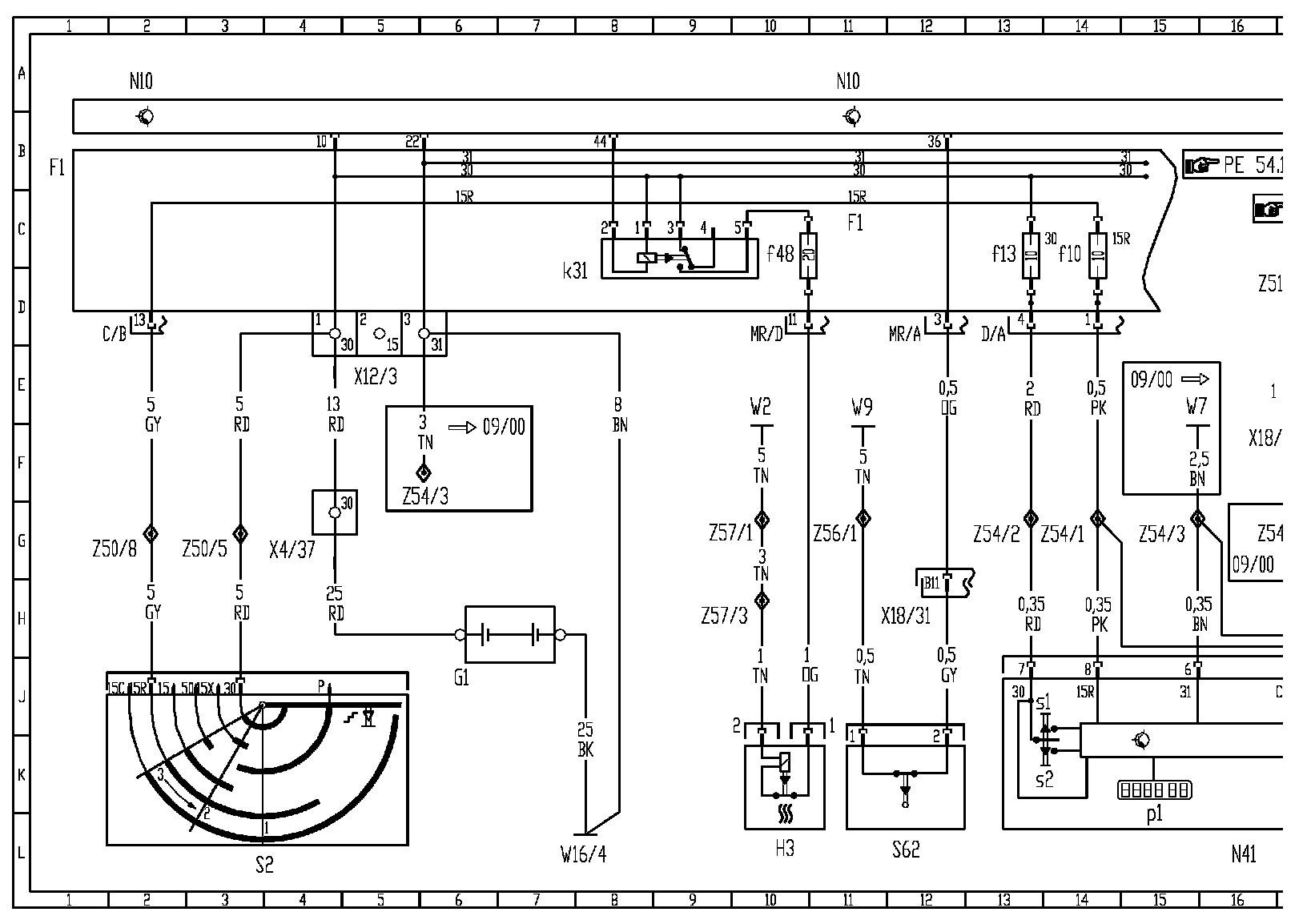

Wiring Diagram, Part 1:

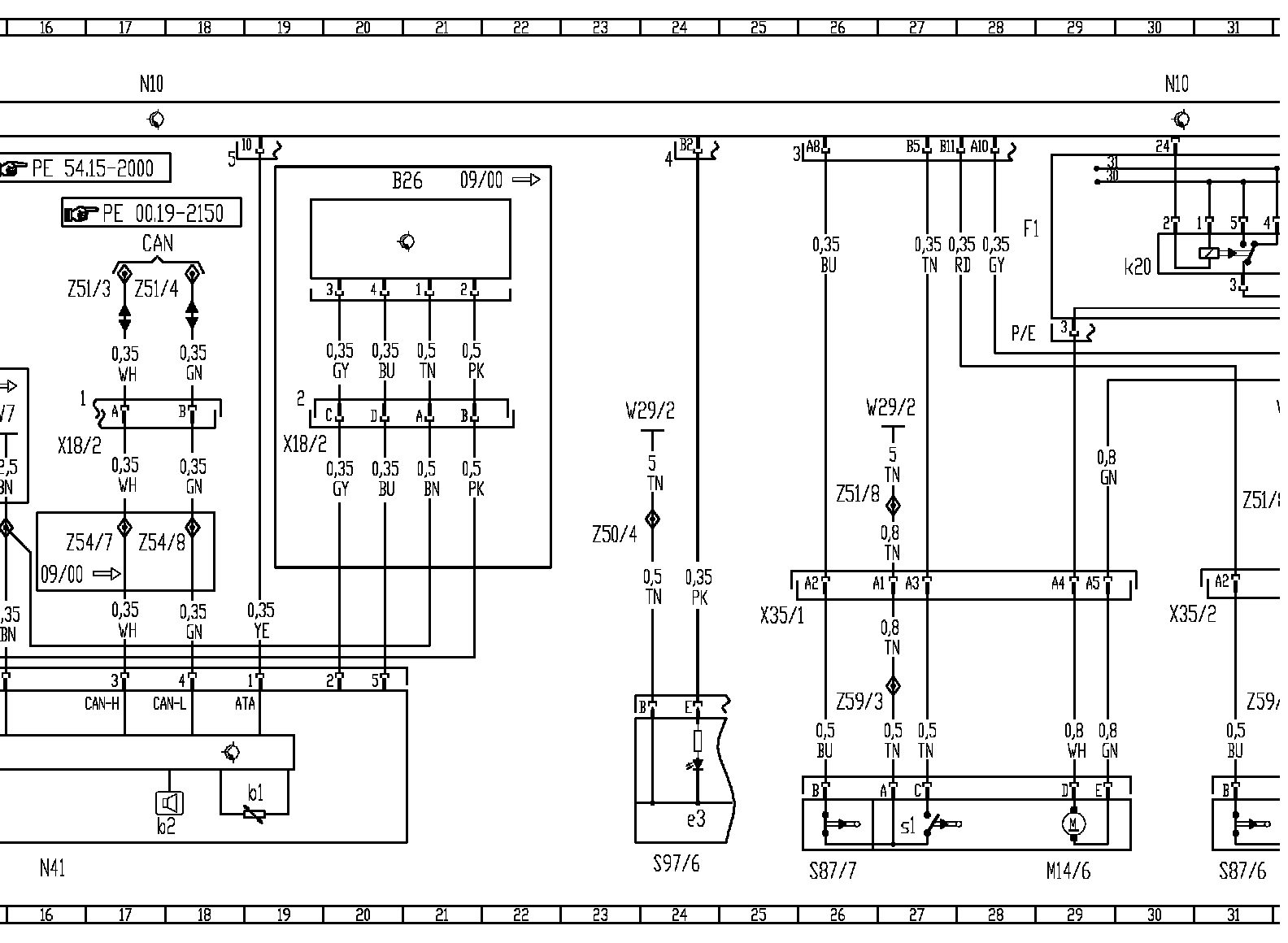

Wiring Diagram, Part 2:

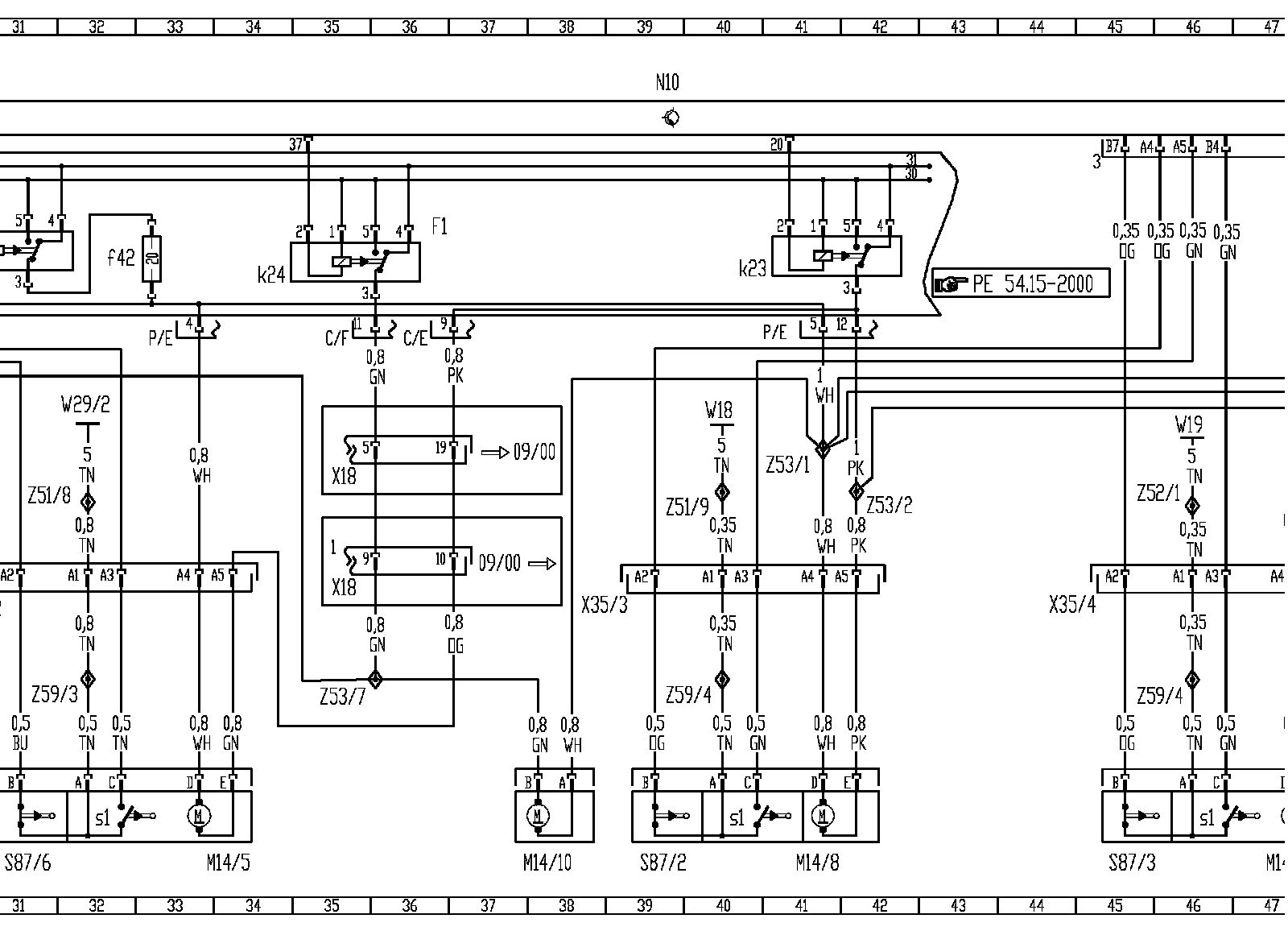

Wiring Diagram, Part 3:

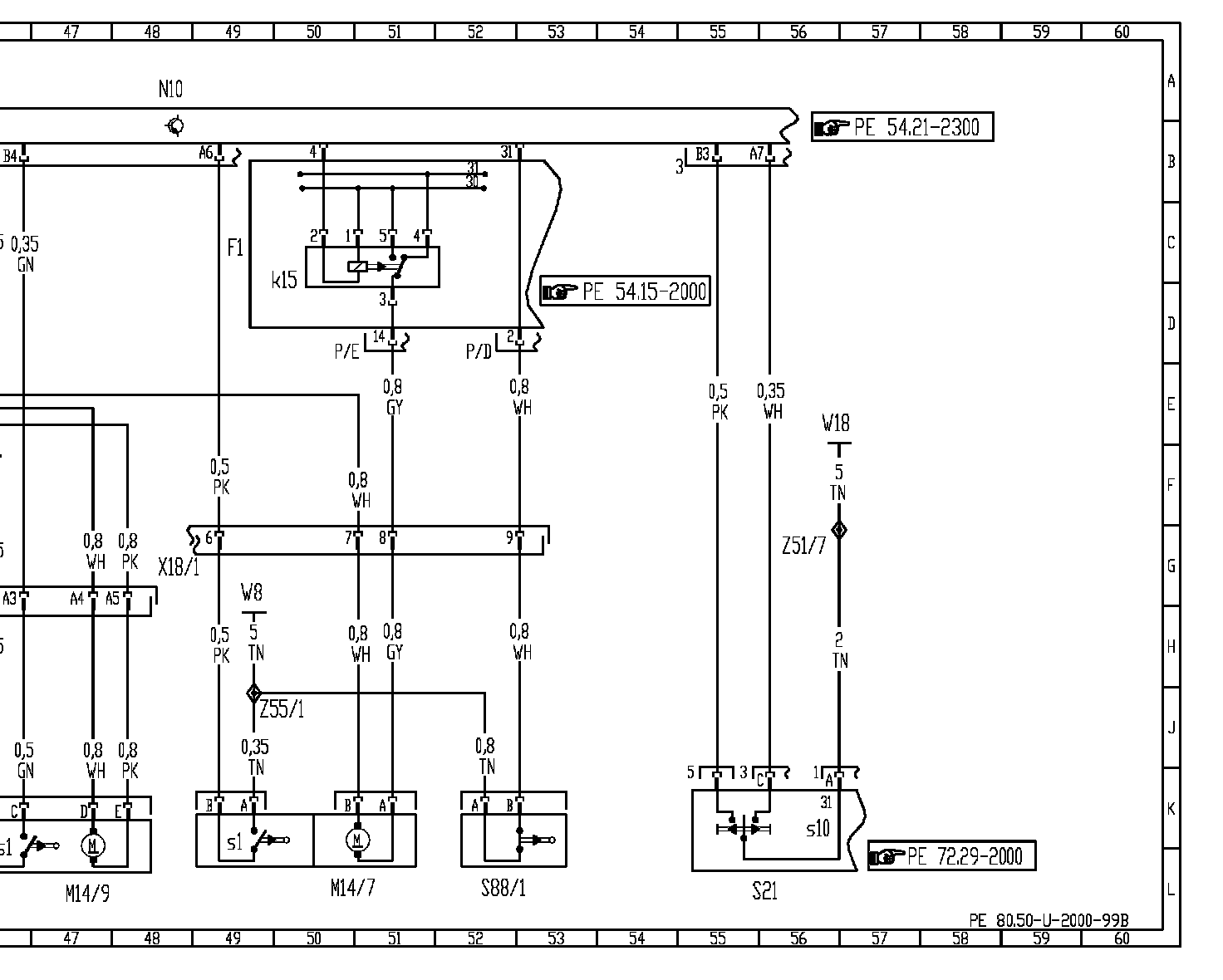

Wiring Diagram, Part 4:

Component Description/Coordinates, B26 to S87/6:

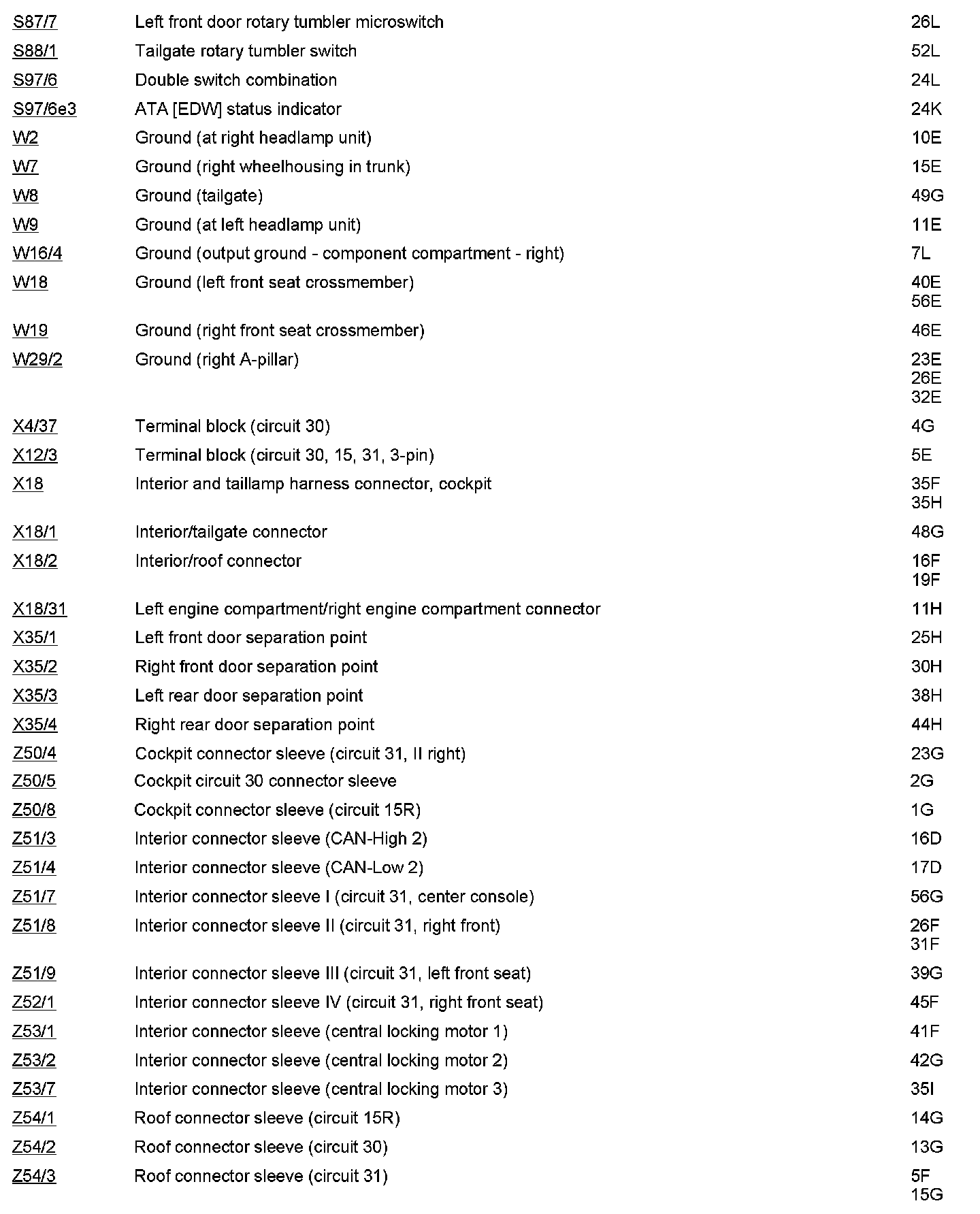

Component Description/Coordinates, S87/7 to Z54/3:

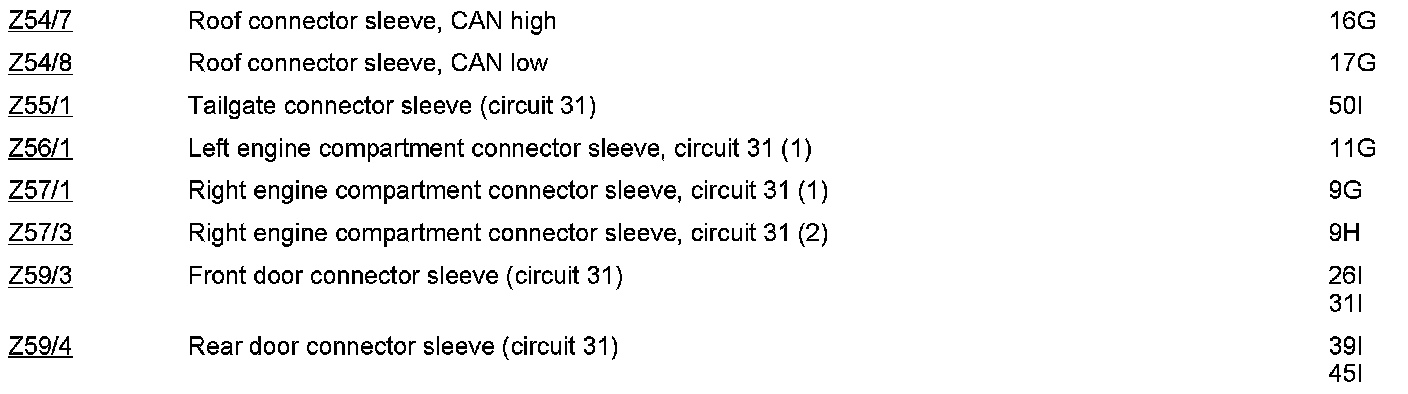

Component Description/Coordinates, Z54/7 to Z59/4:
