Drive Authorization System (DAS) PE80.57-U-2000E (As of 11/99)



Driver Authorization System (DAS) PE80.57-U-2000E
- As of 11/99

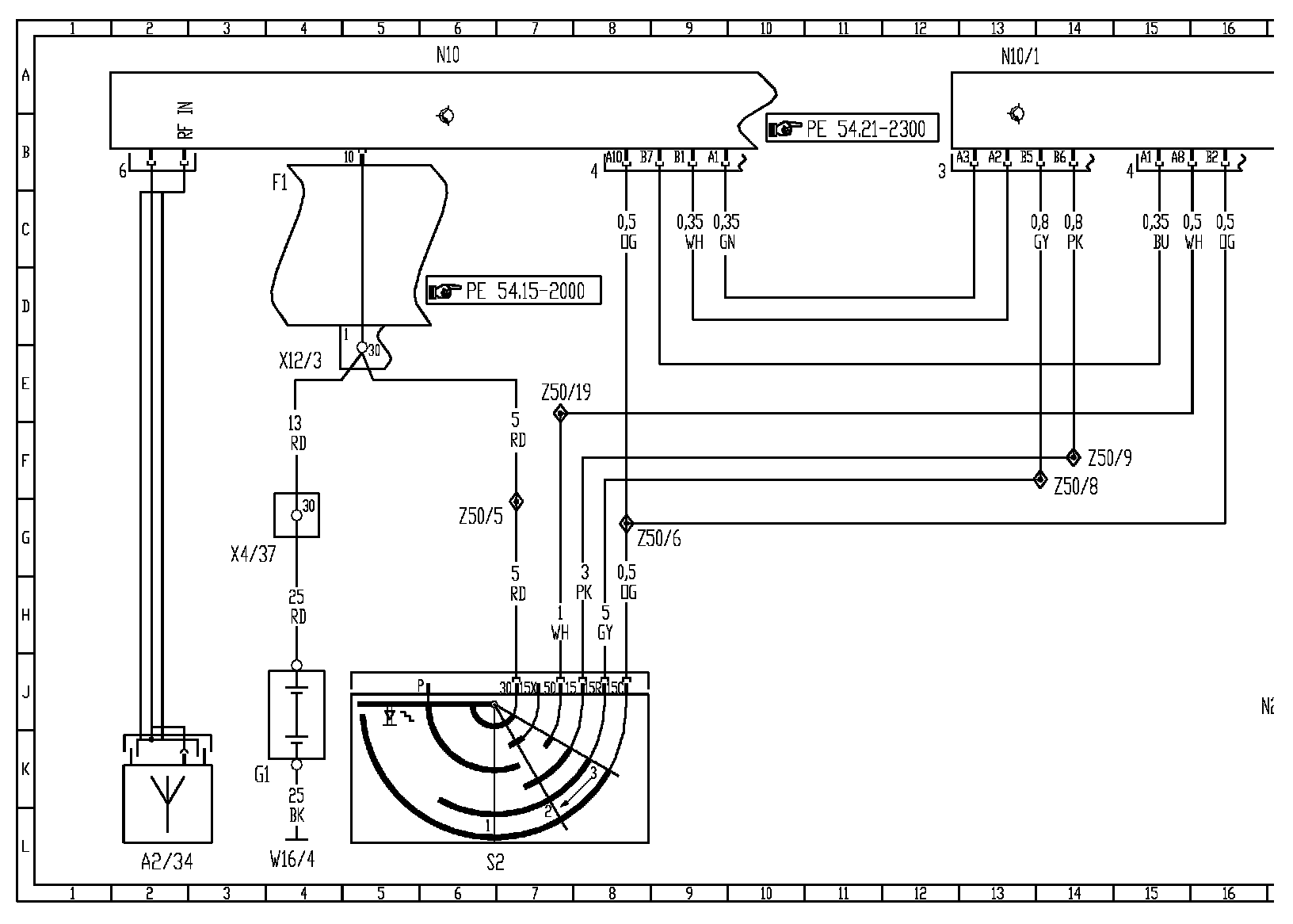

Wiring Diagram, Part 1:

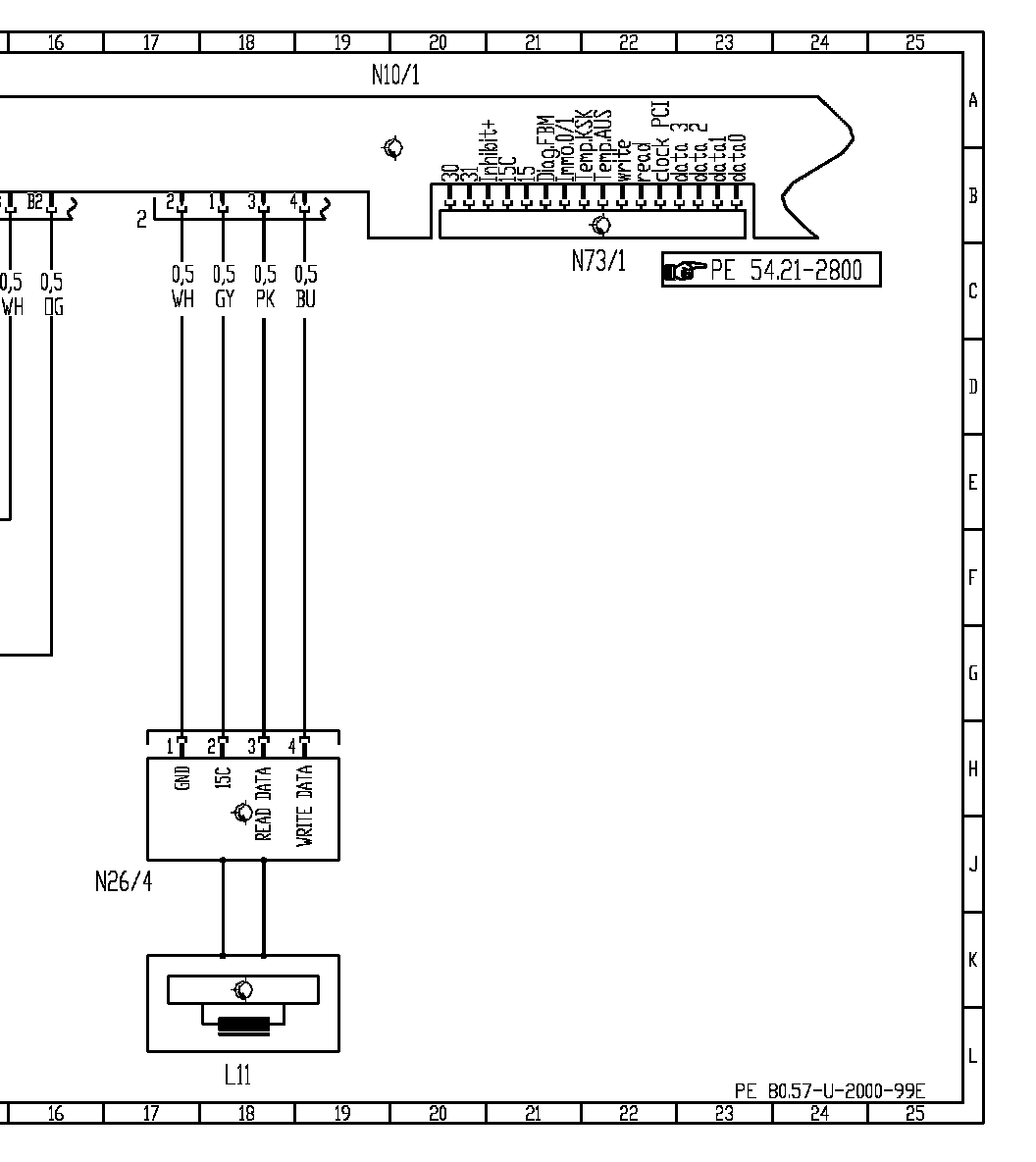

Wiring Diagram, Part 2:

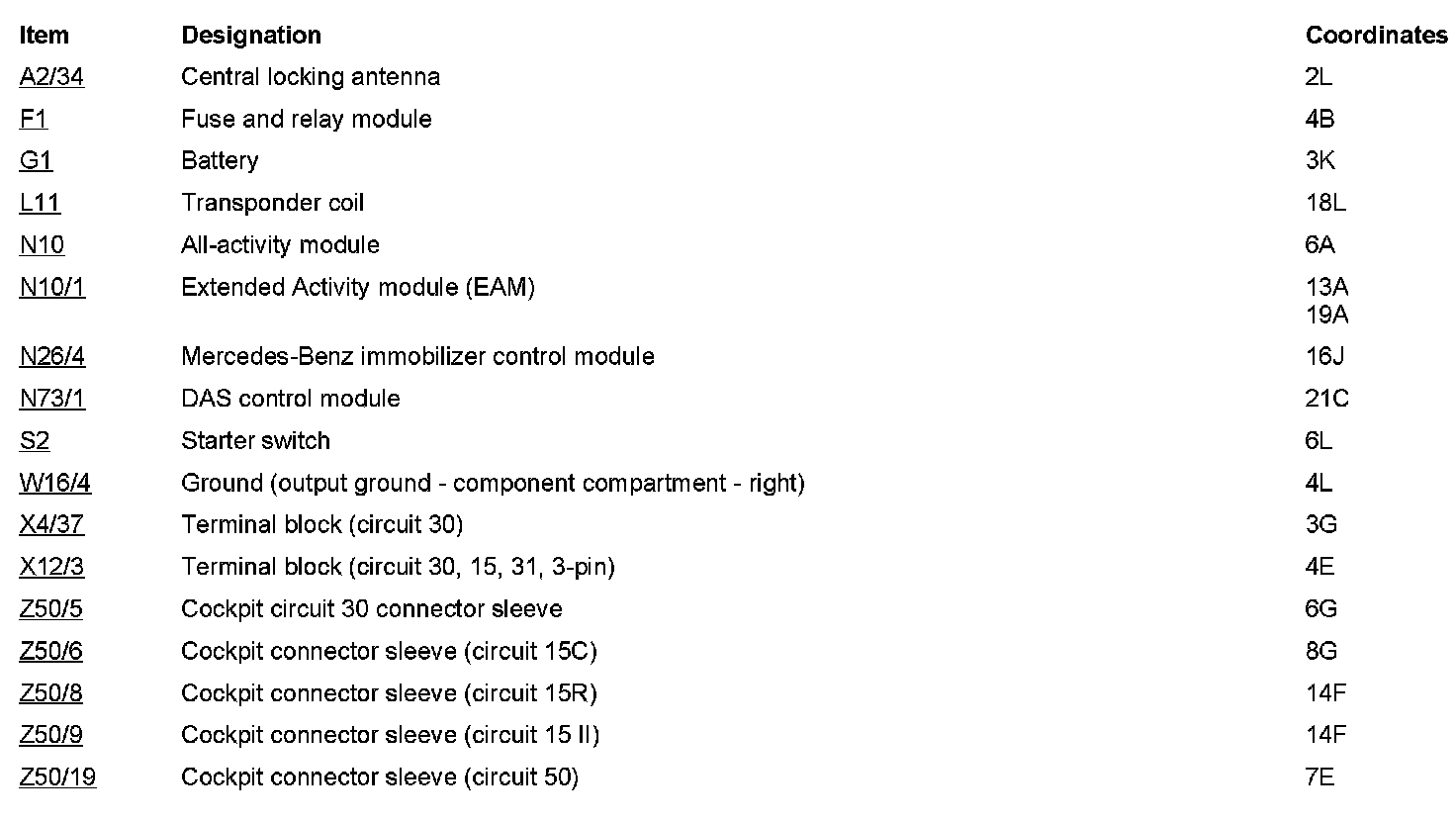

Component Description/Coordinates, A2/34 to Z50/19:
