All Activity Module (AAM) PE54.21-U-2300A (Up to 11/99)

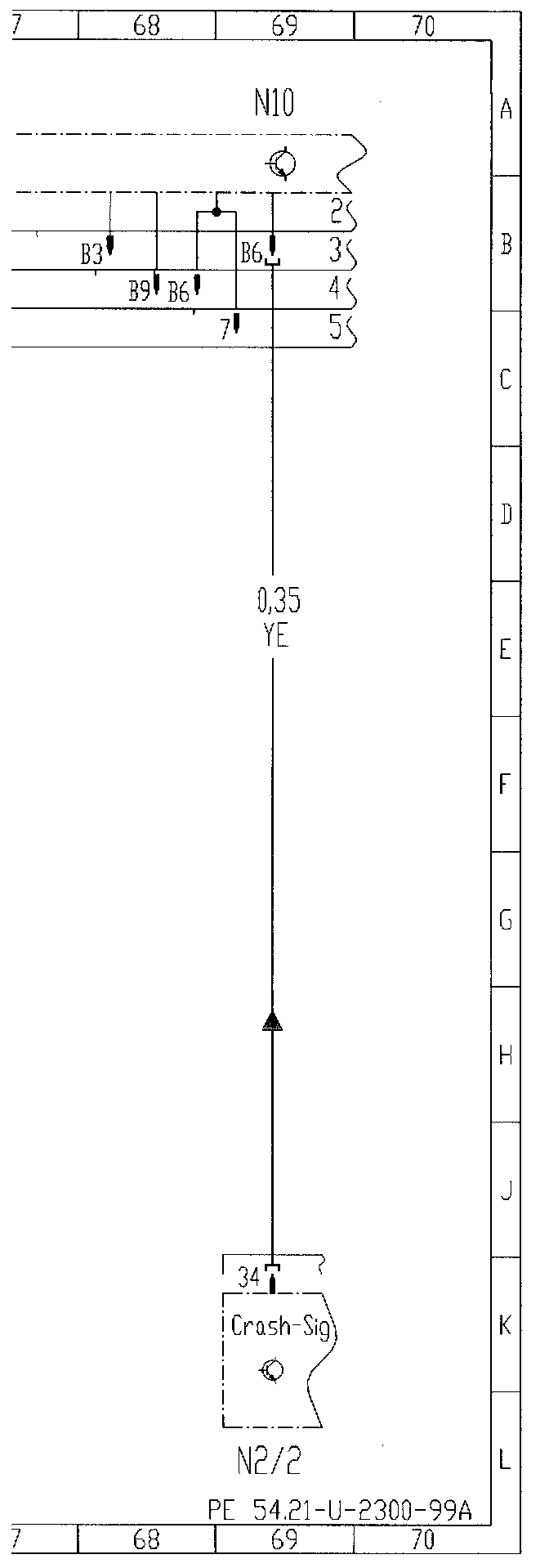

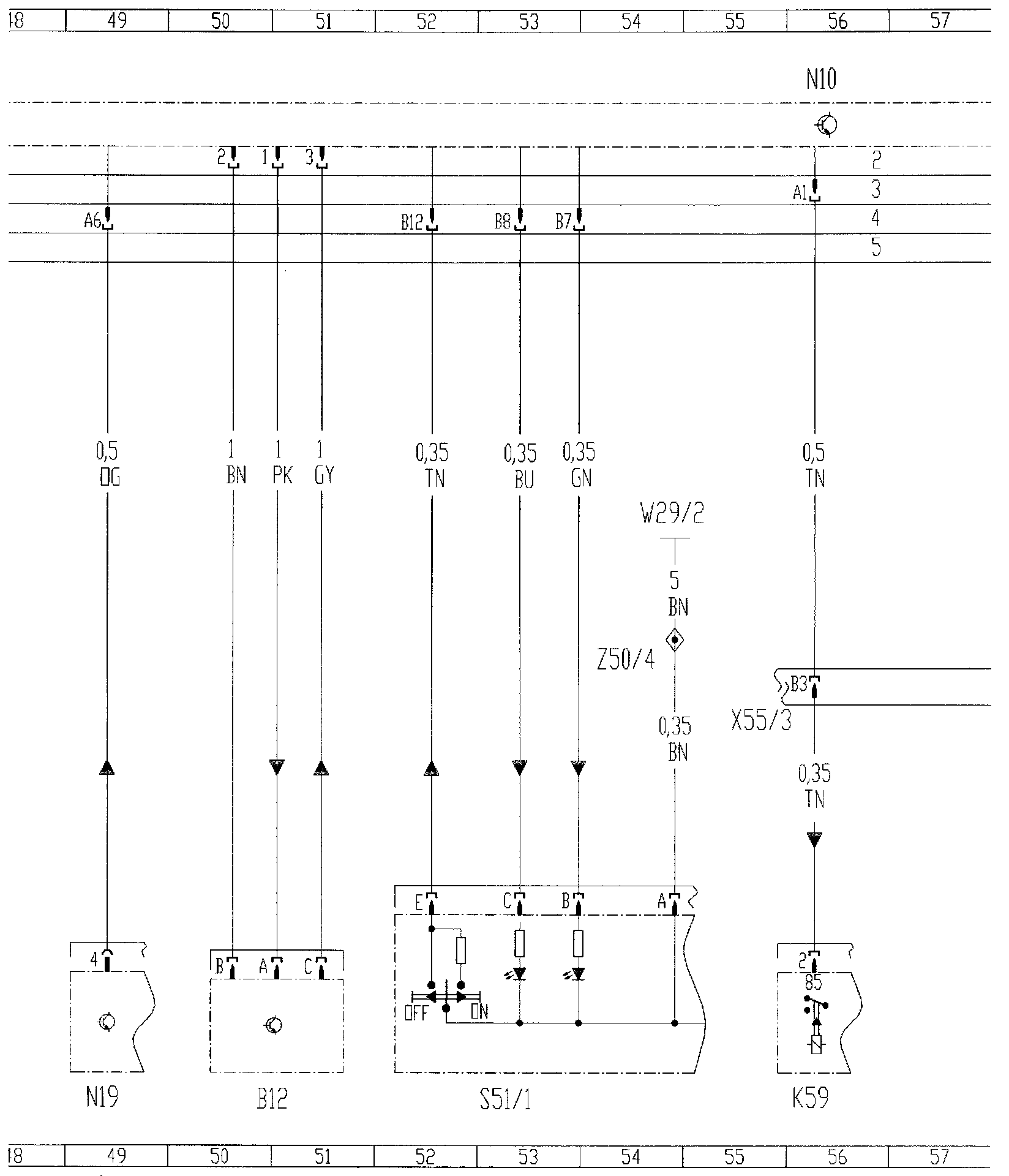

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

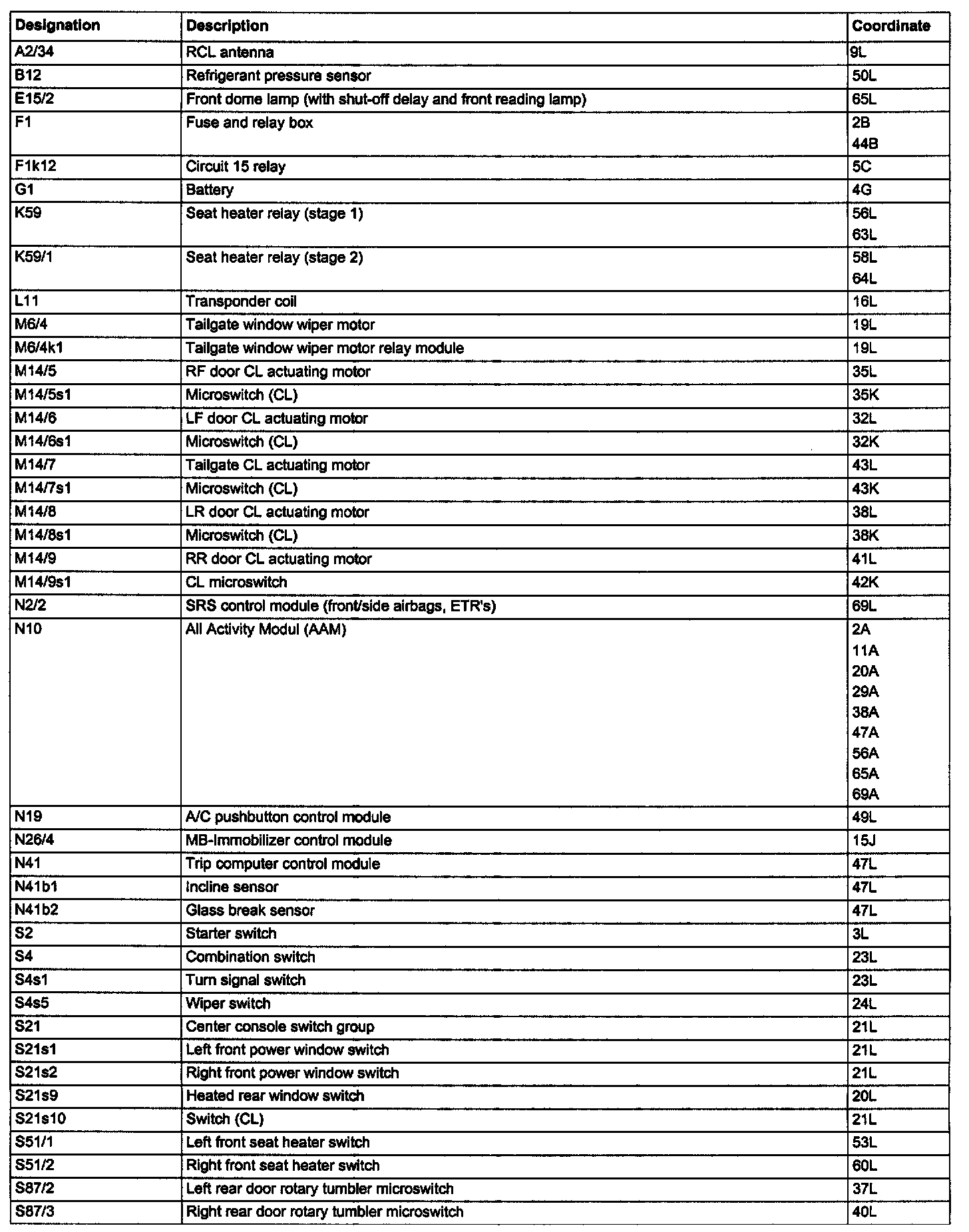

Component Description/Coordinates, A2/34 - S87/3:

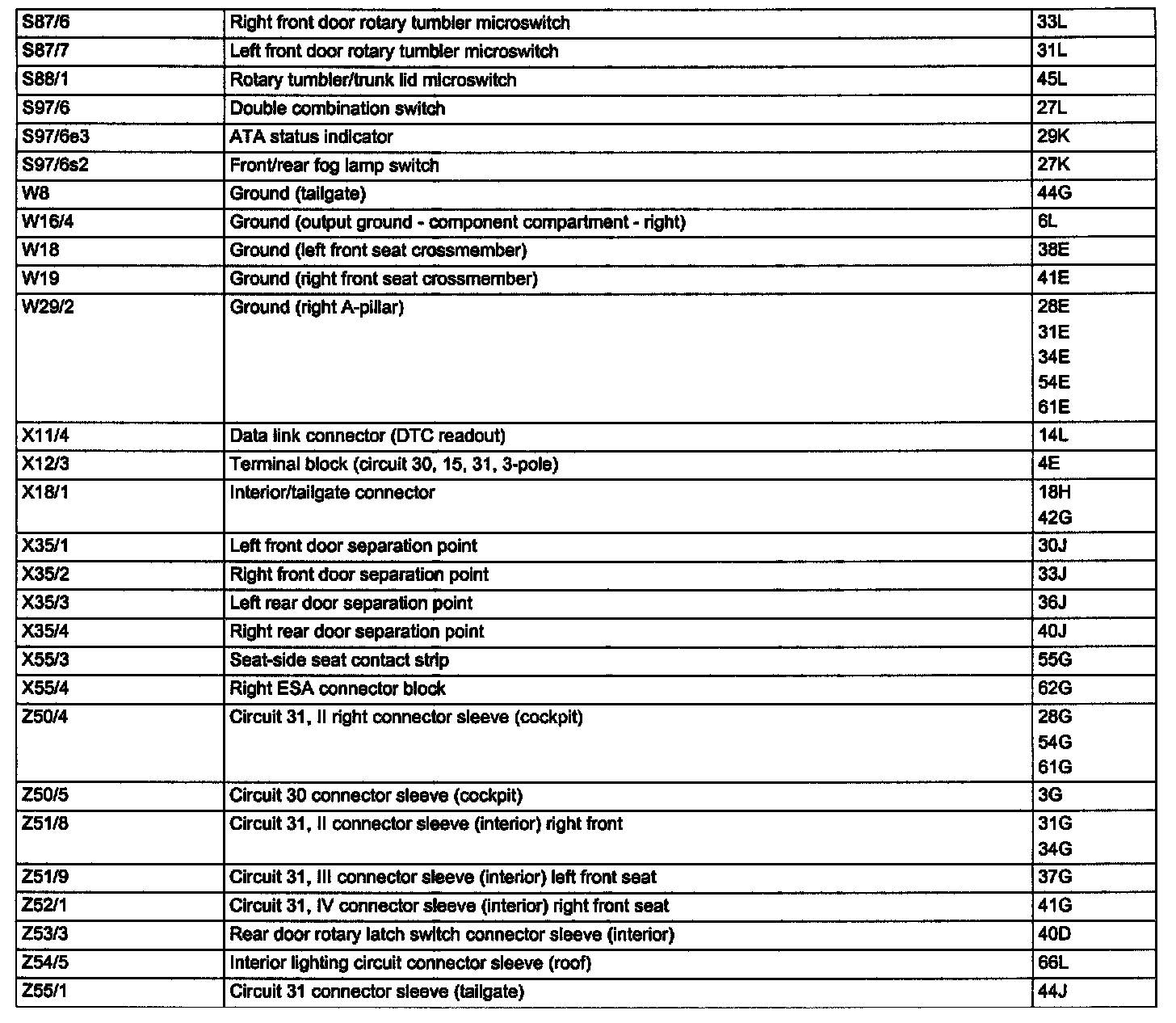

Component Description/Coordinates, S87/6 - Z55/1:
