Extended Activity Module (EAM) PE54.21-U-2800A

Diagram, Part 1:

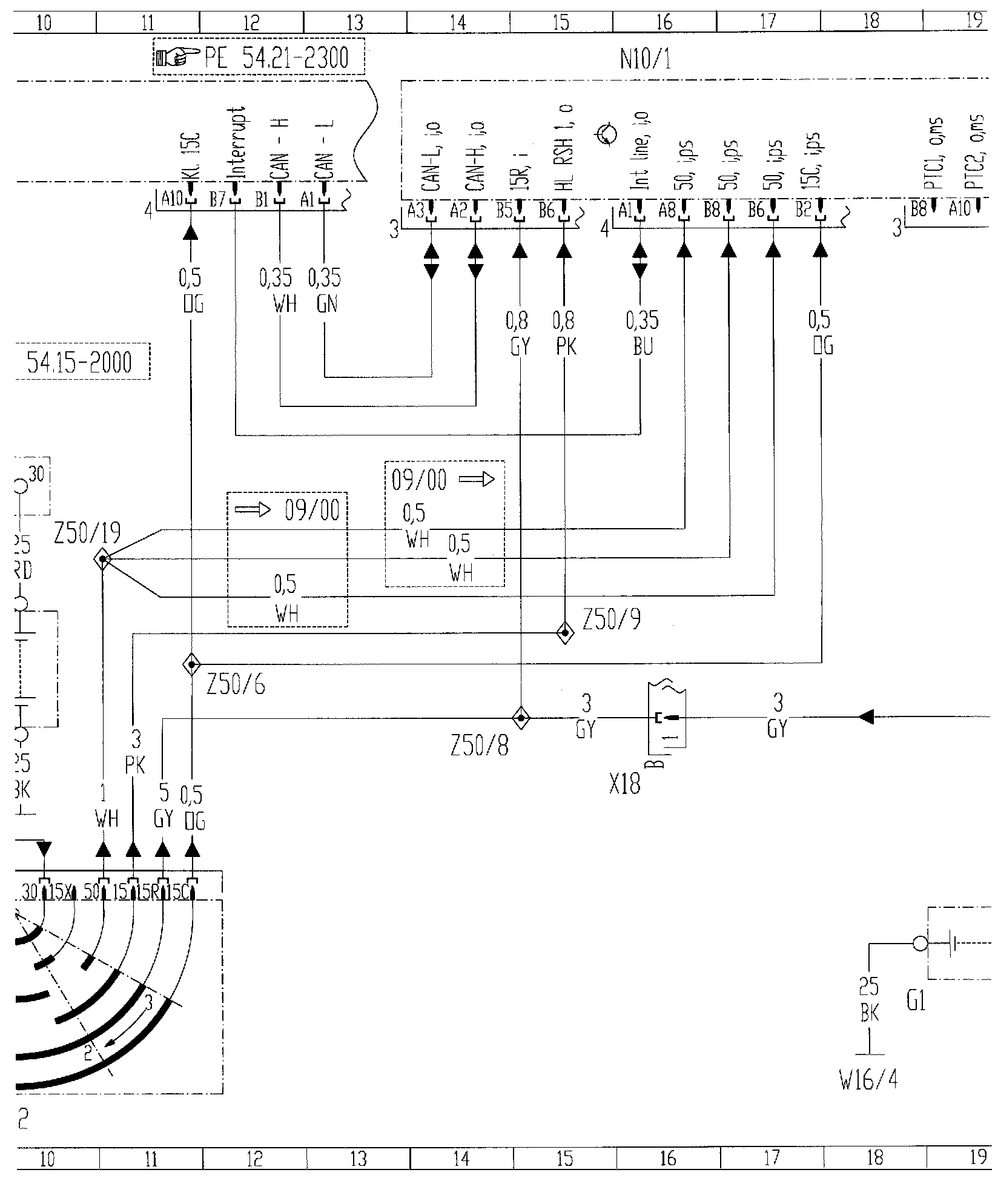

Diagram, Part 2:

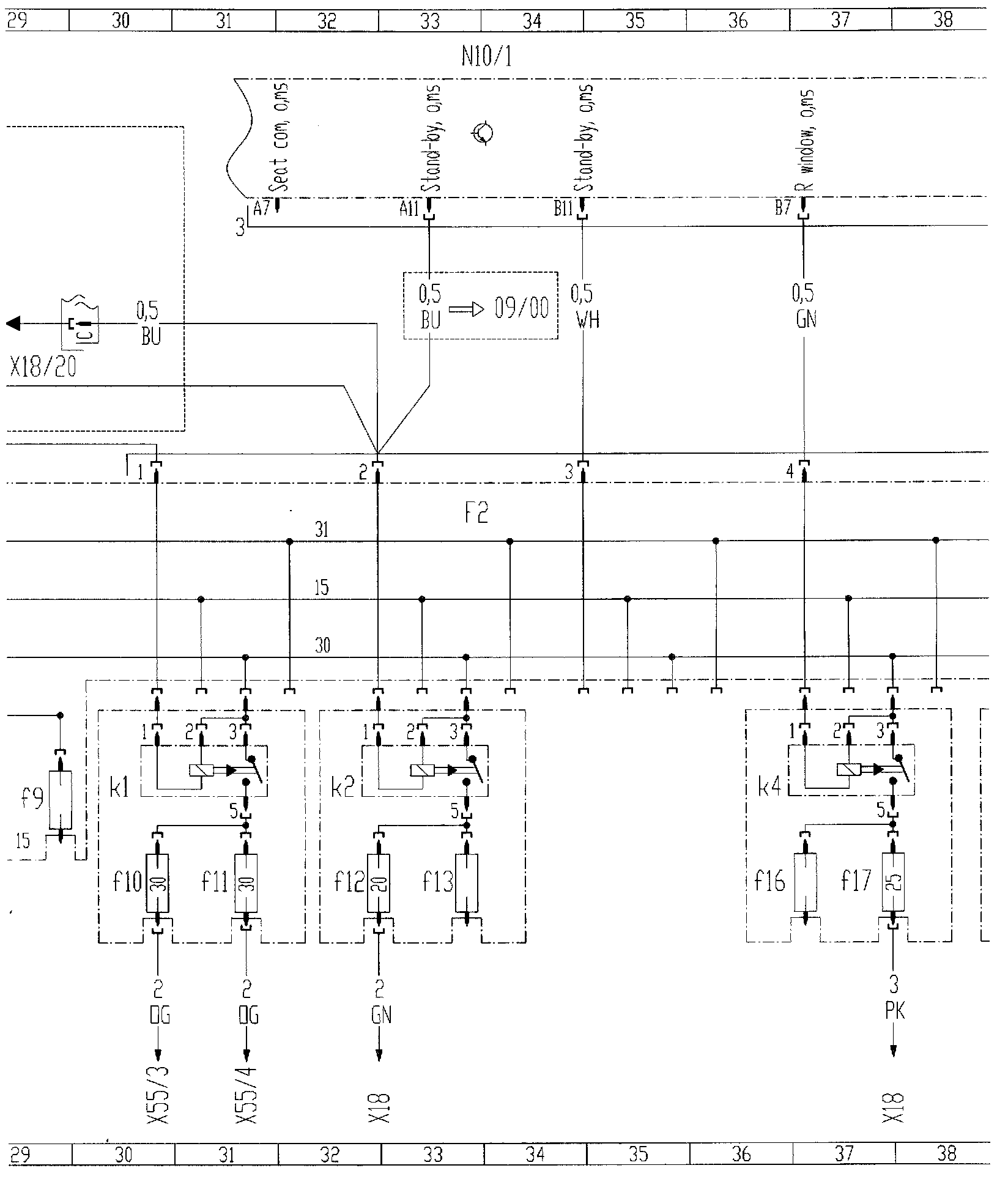

Diagram, Part 3:

Diagram, Part 4:

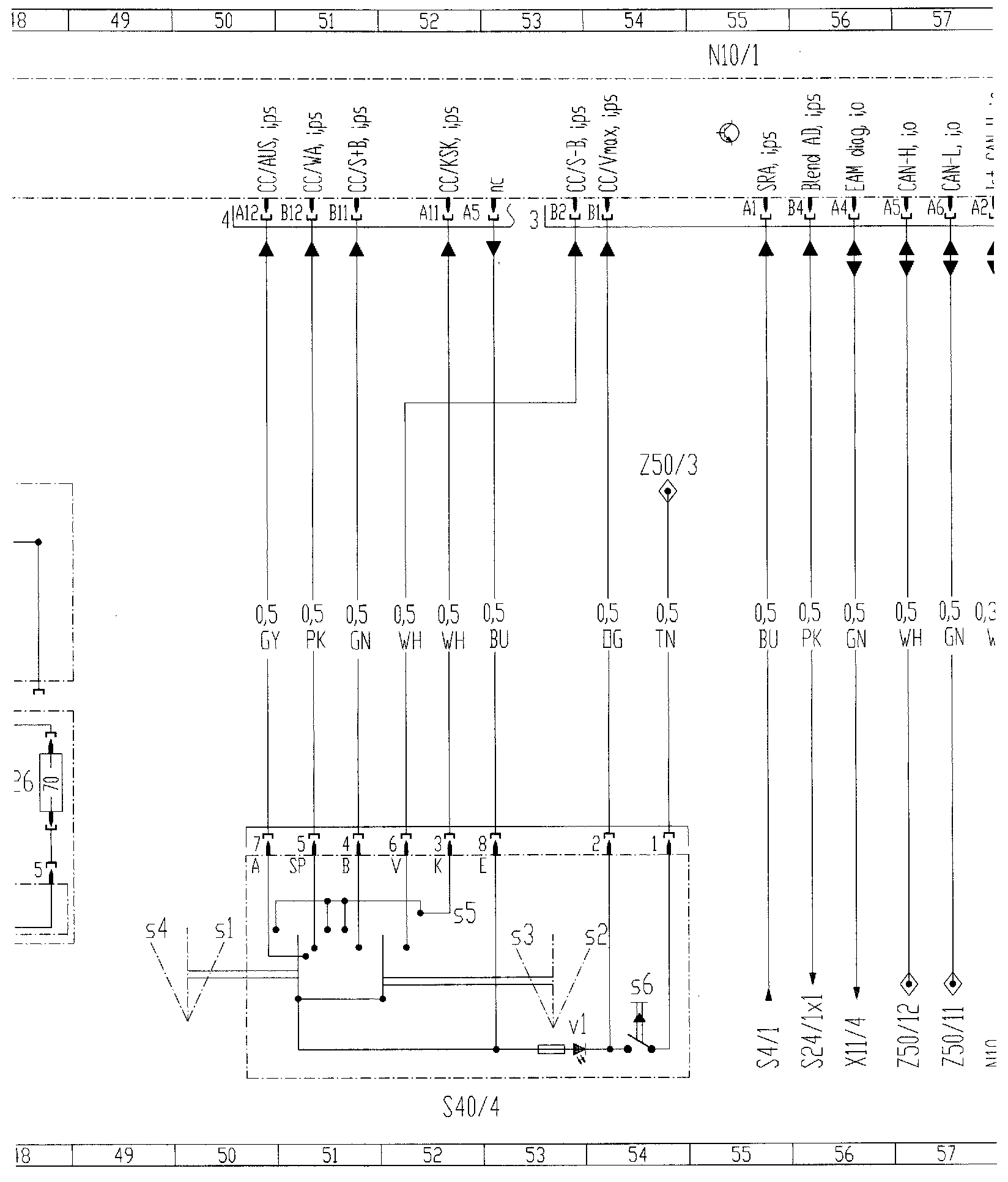

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

Diagram, Part 9:

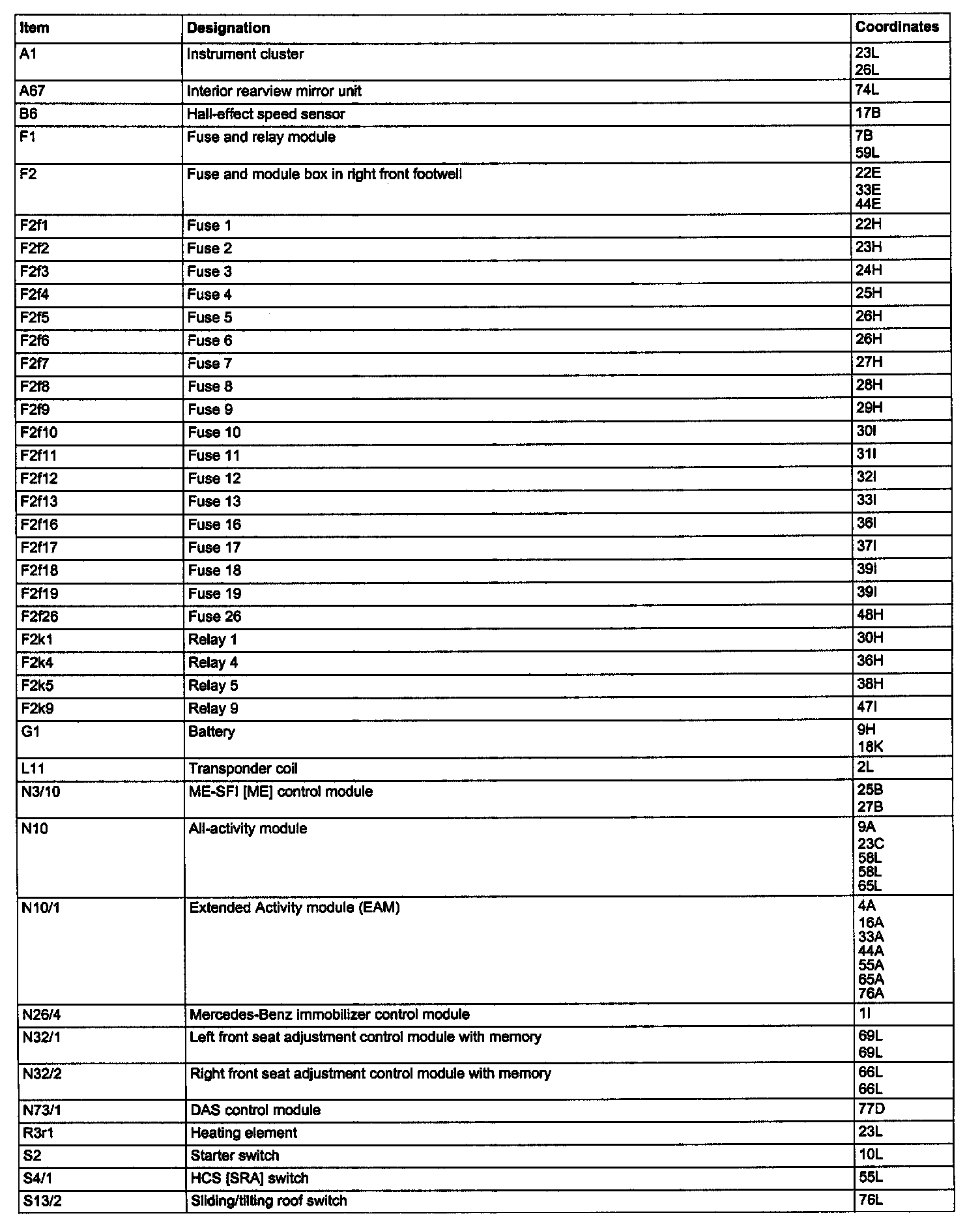

Component Description/Coordinates, A1 - S13/2:

Component Description/Coordinates, S13/4 - Z50/11:

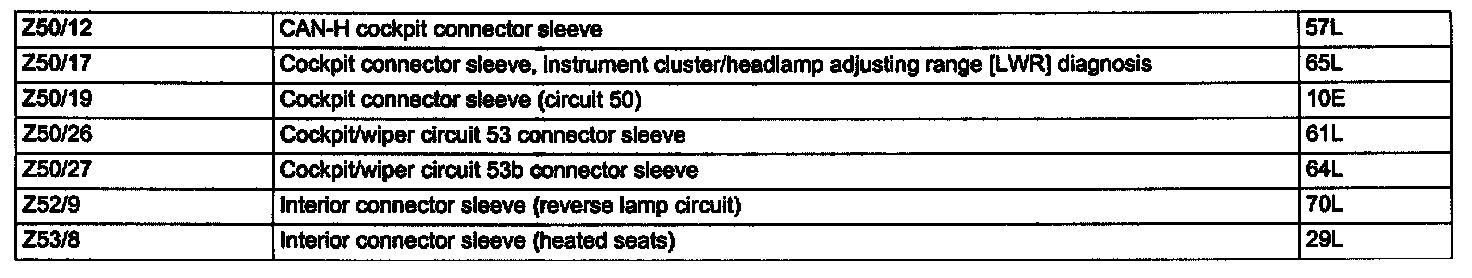

Component Description/Coordinates, Z50/12 - Z53/8:
