Garage Door Opener Transmitter
Garage Door Opener Transmitter
Garage Door Opener PE68.05-U-2000E

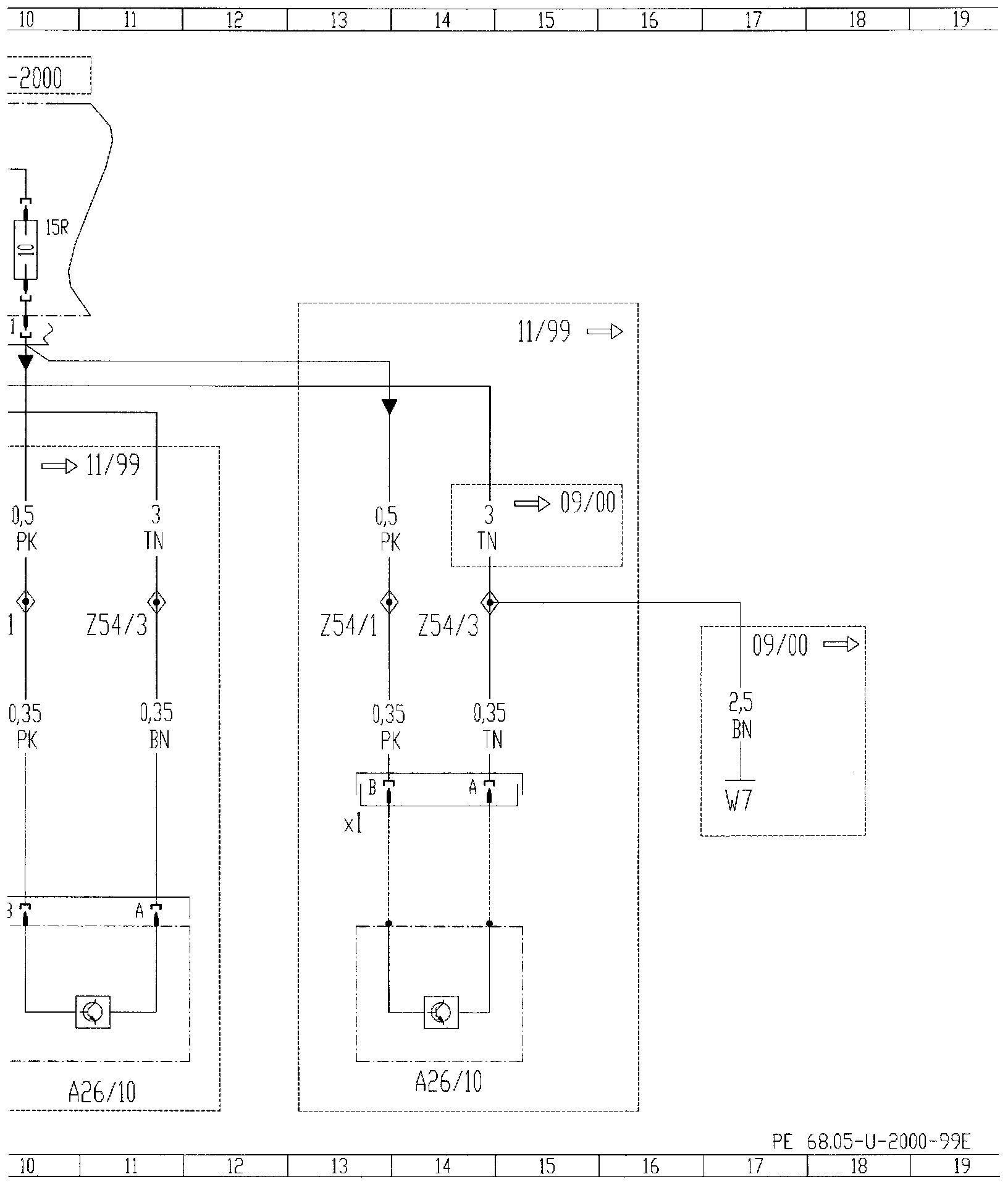

Diagram, Part 1:

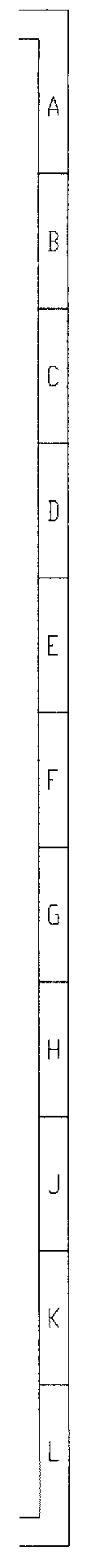

Diagram, Part 2:
Diagram, Part 3:

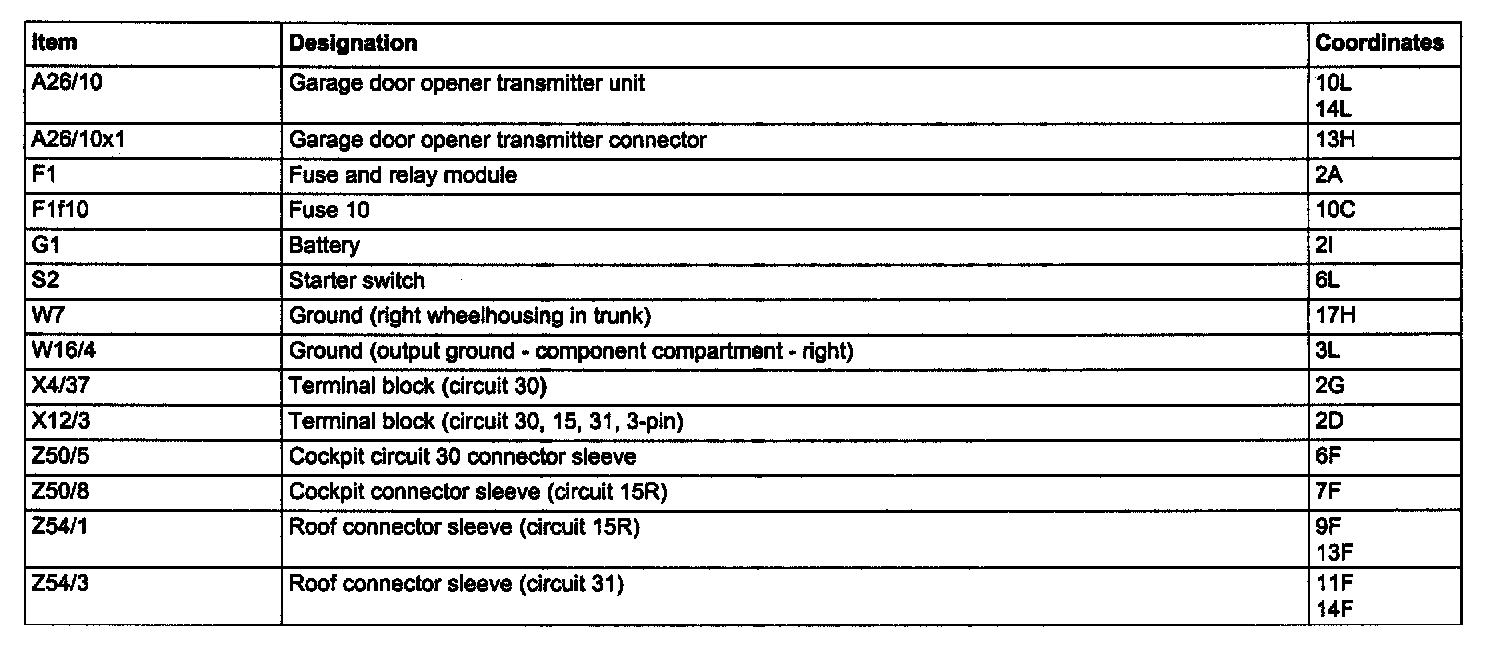

Component Description/Coordinates, A26/10 - Z54/3:
