Central Locking (CL) PE80.20-U-2000J (As of 11/99)
Central Locking (CL) PE80.20-U-2000J (as of 11/99)
- with CODE (466) central locking

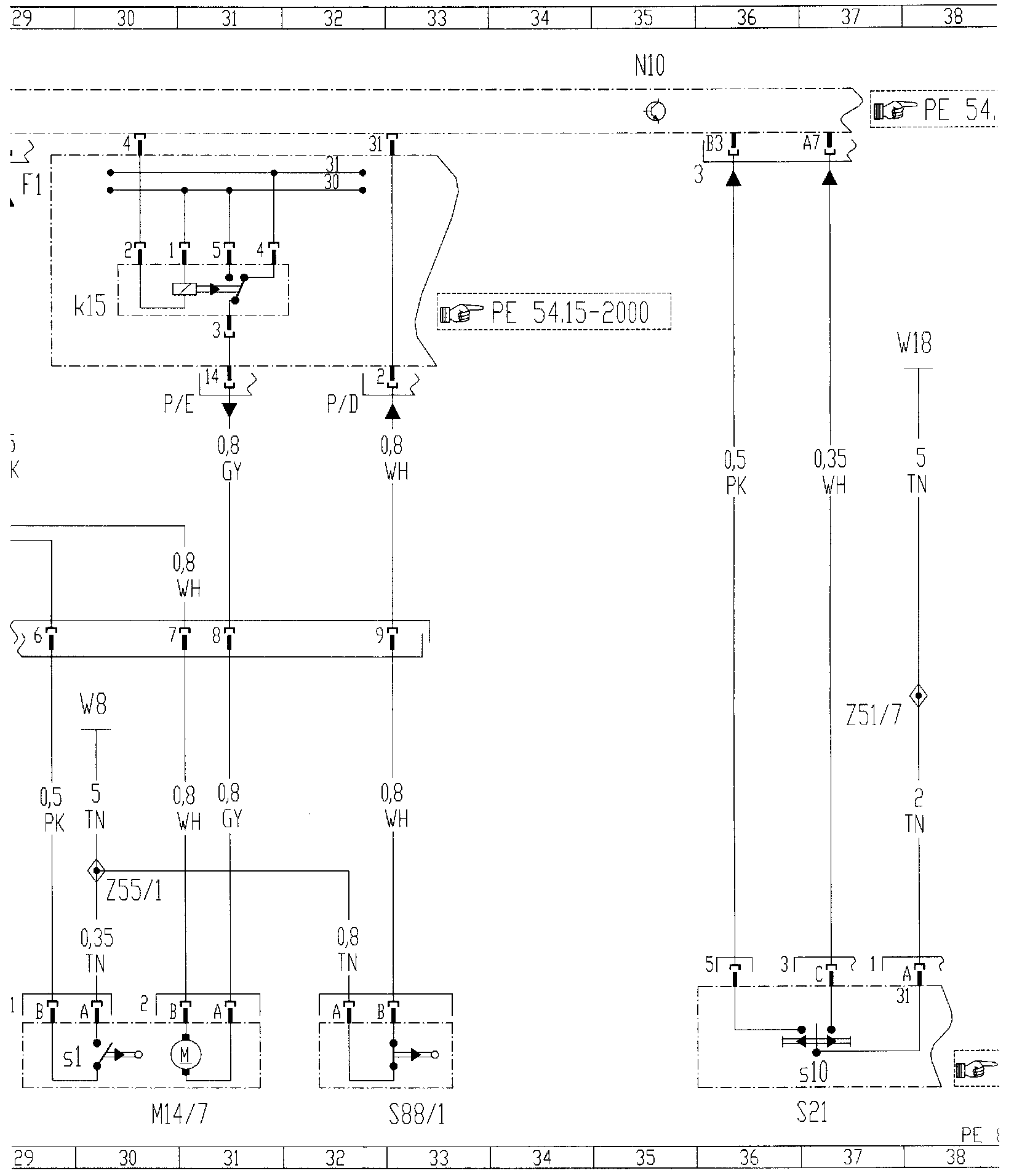

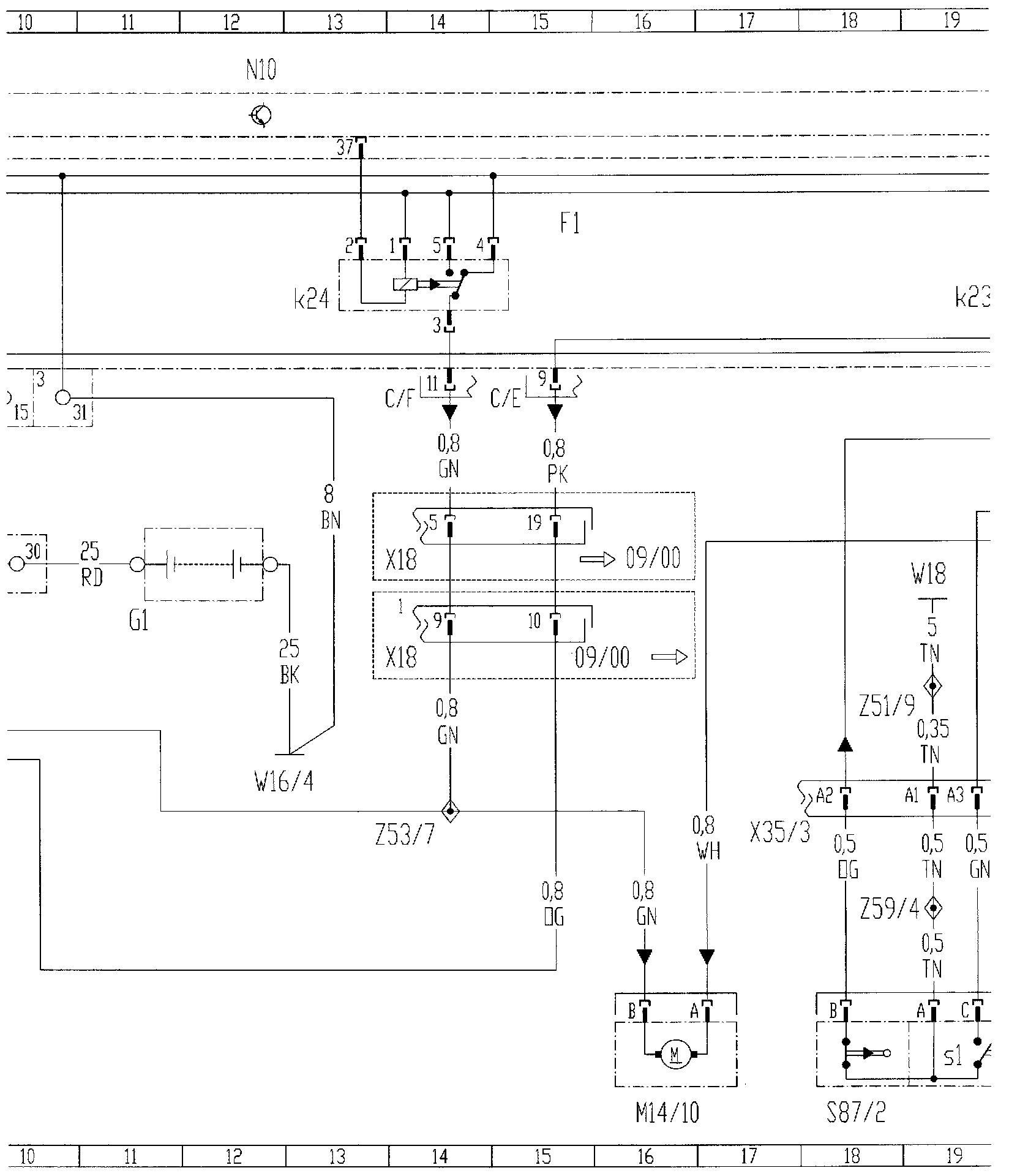

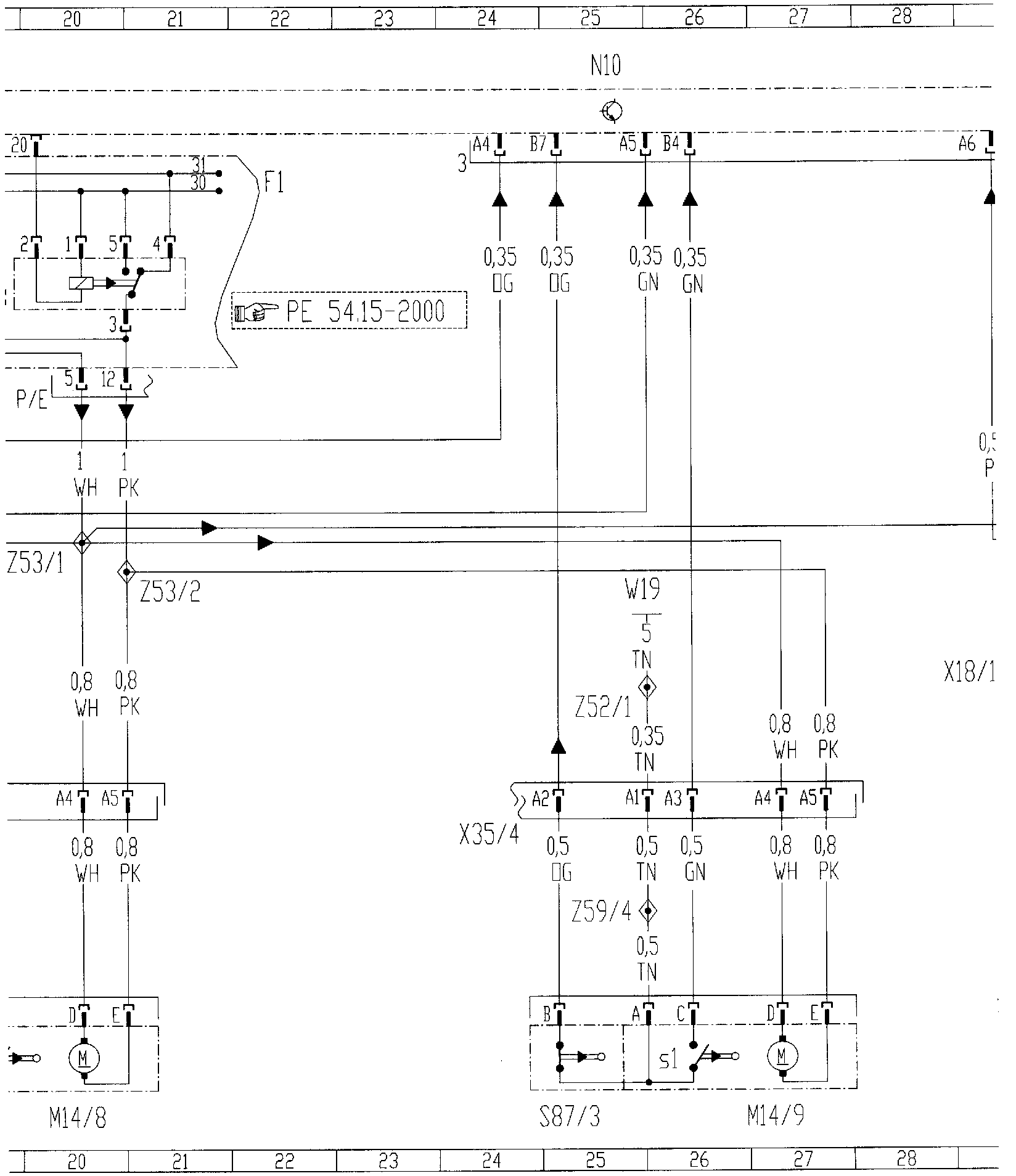

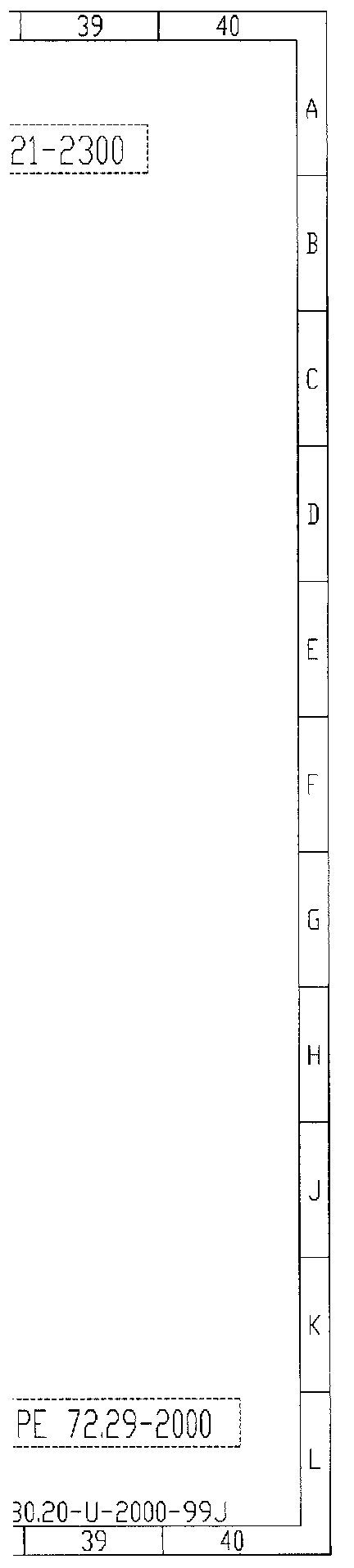

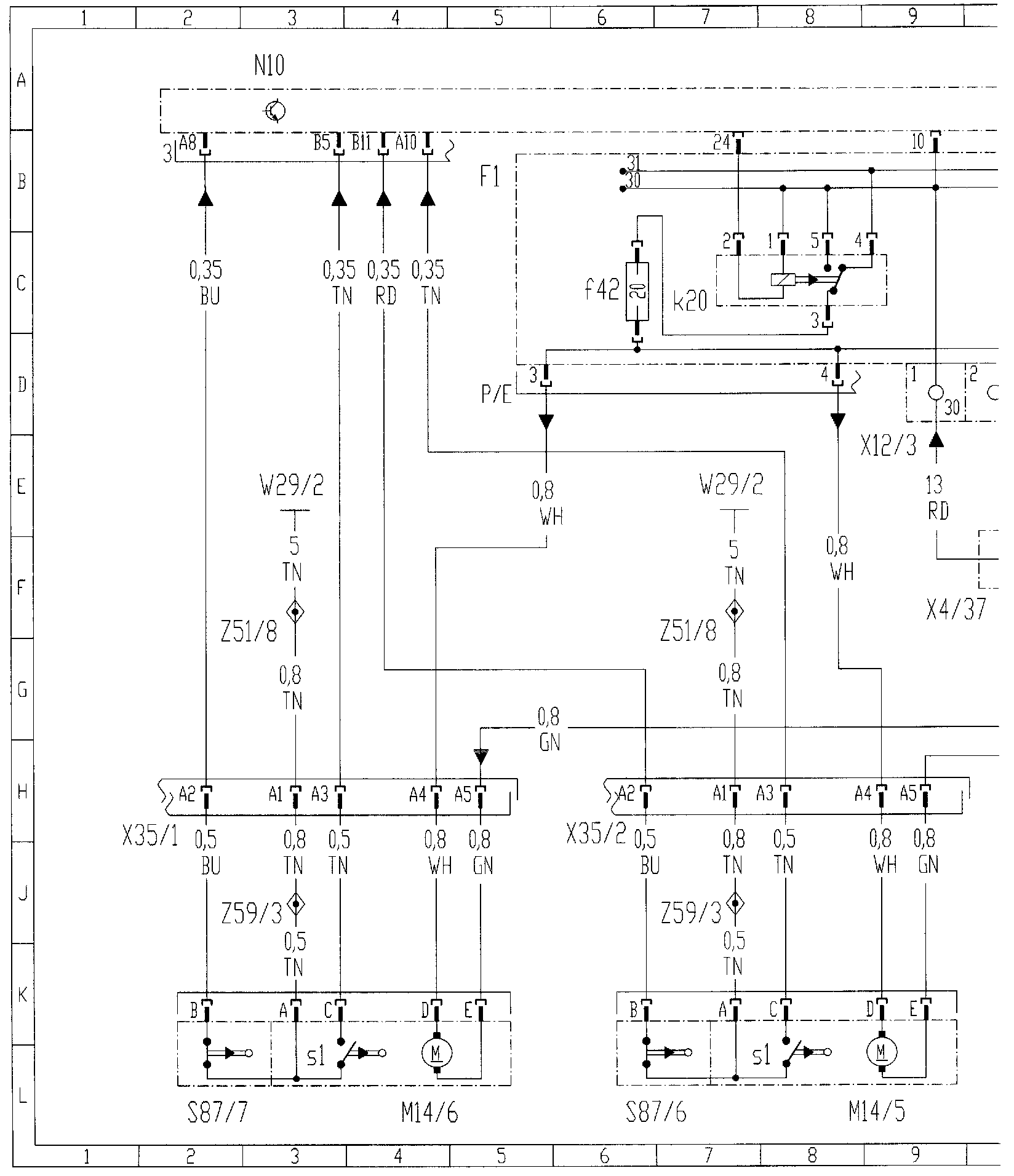

Diagram, Part 1:
Diagram, Part 2:
Diagram, Part 3:
Diagram, Part 4:
Diagram, Part 5:
Component Description/Coordinates, F1 - Z59/4:
