Radio Freq. Remote Central Locking PE80.35-U-2100A (Up to 11/99)

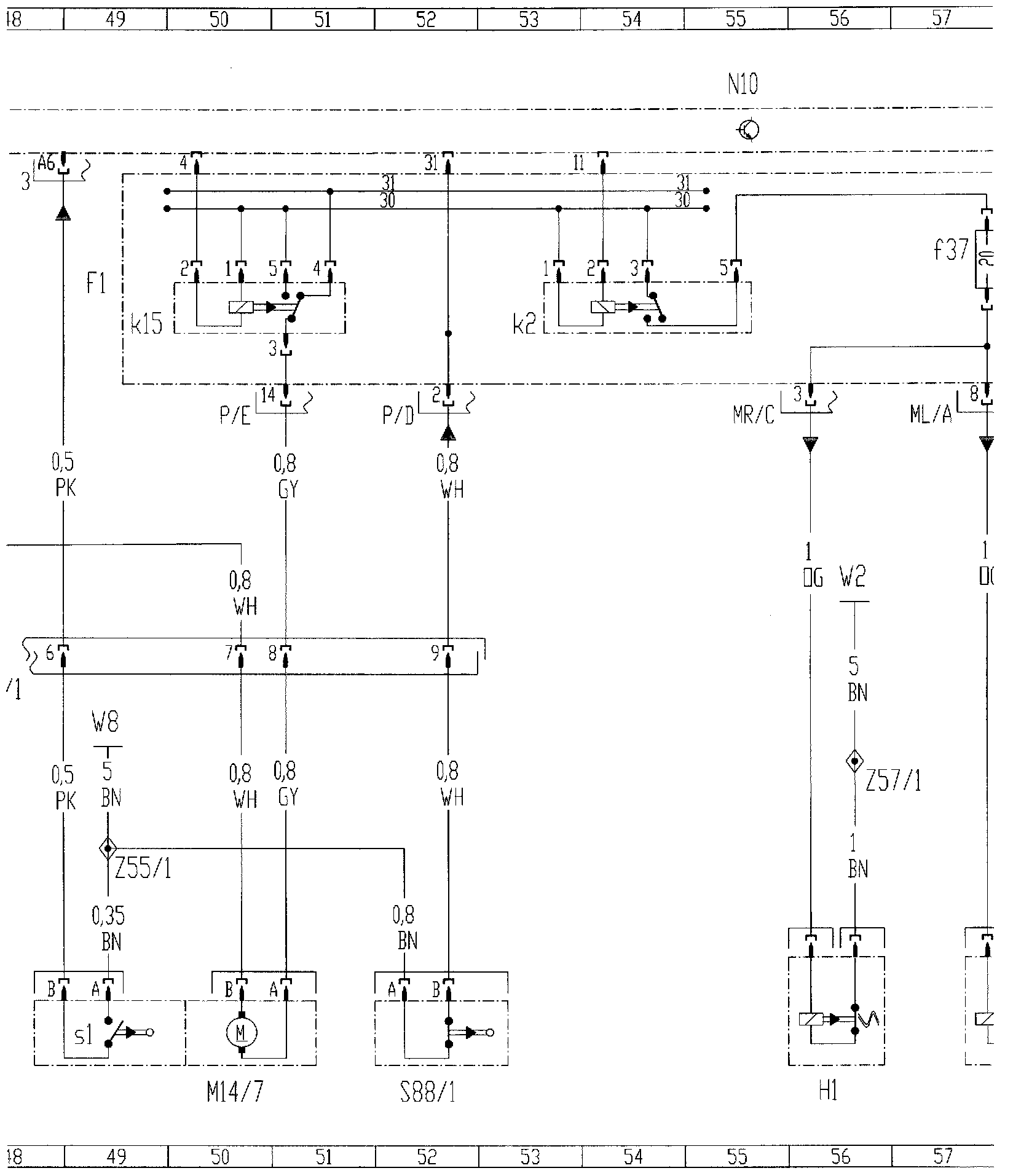

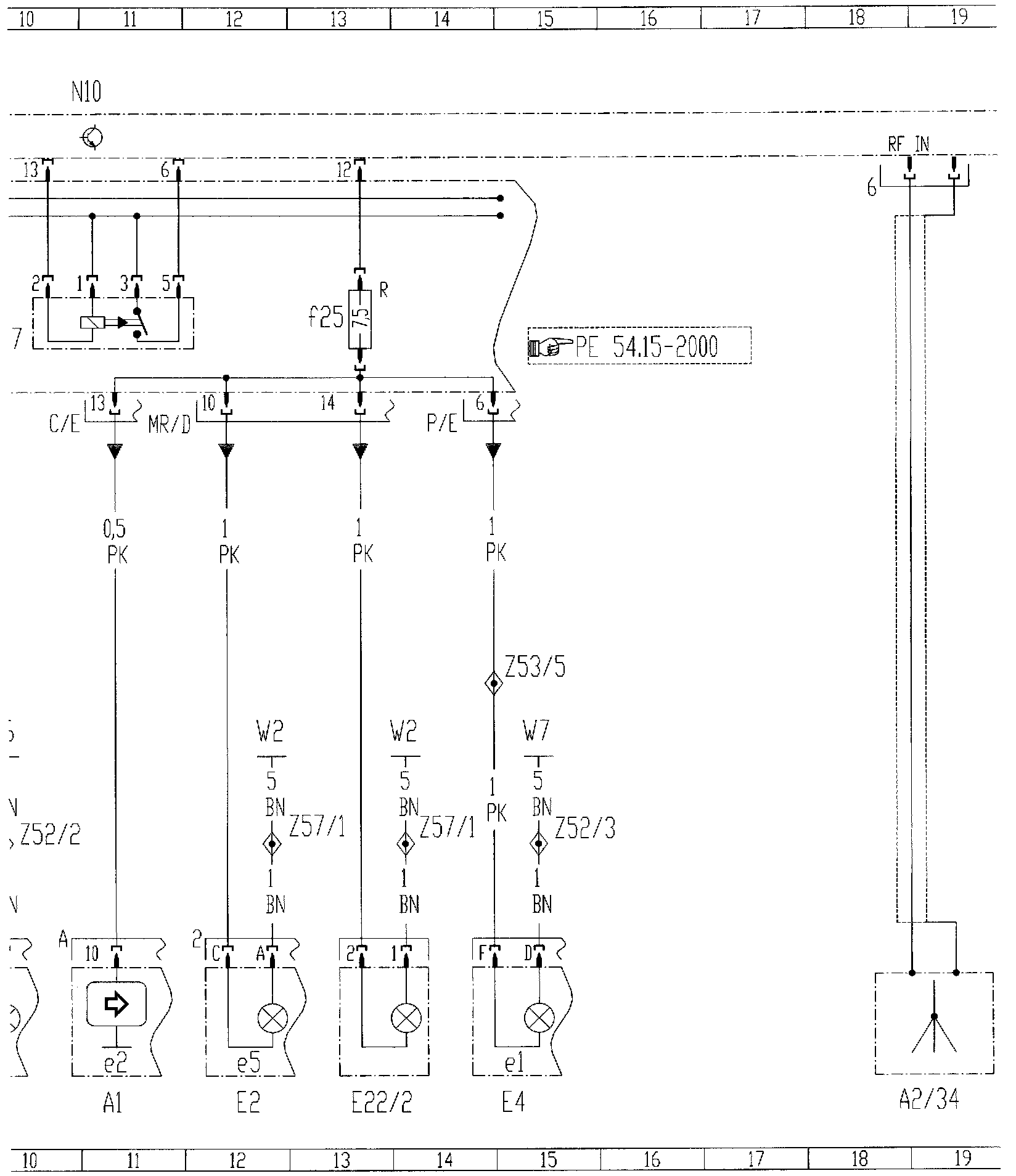

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

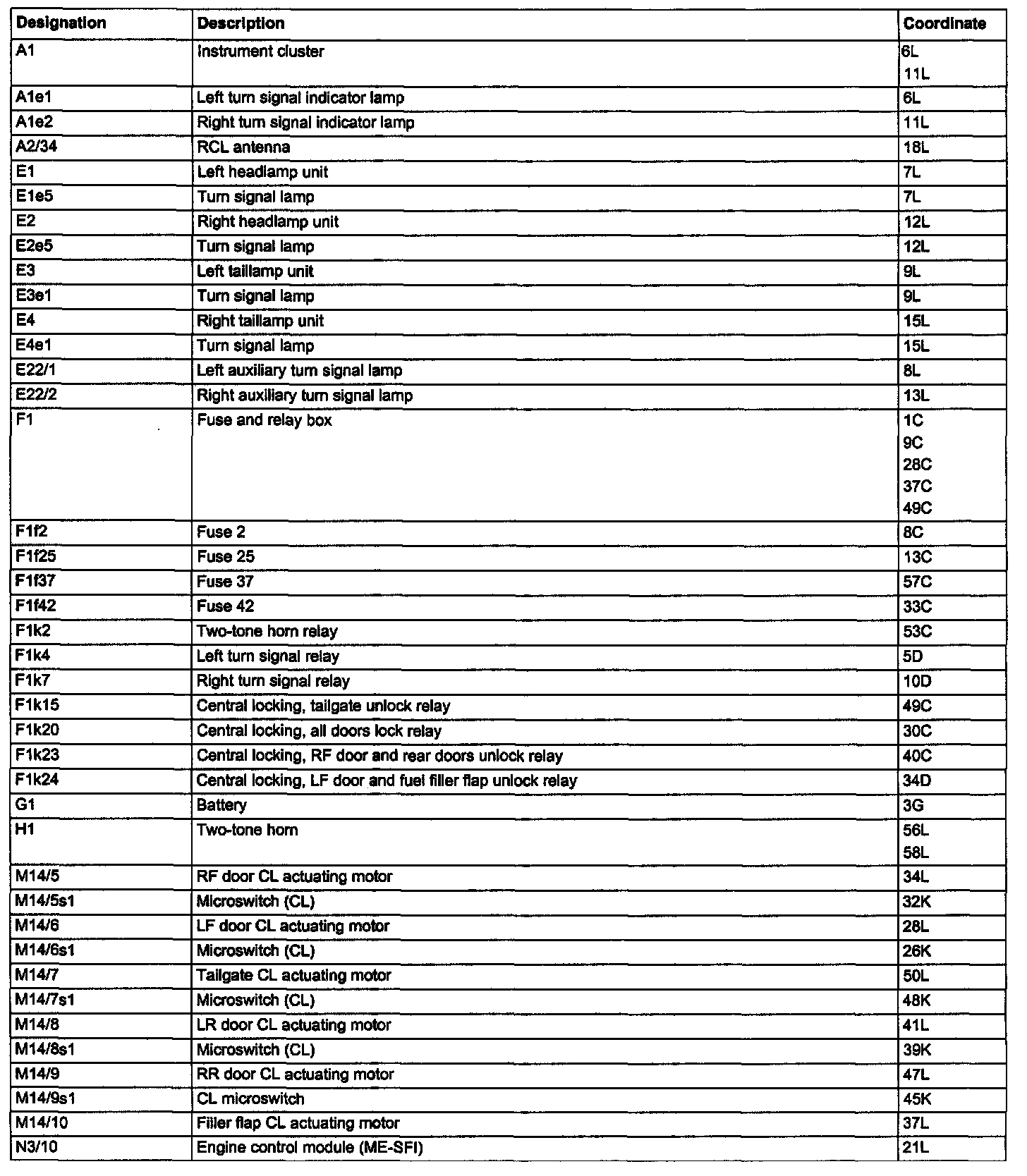

Component Description/Coordinates, A1 - N3/10:

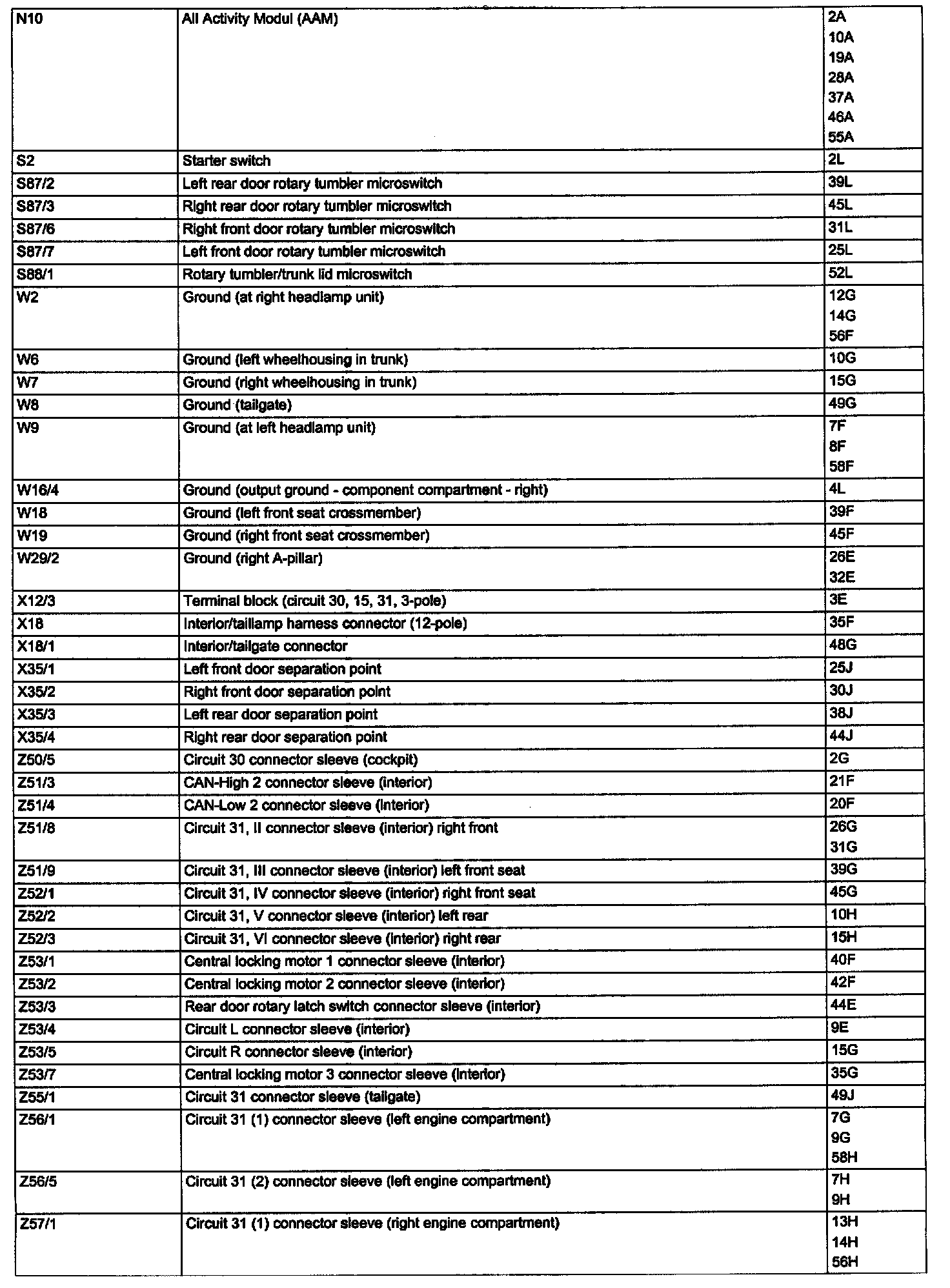

Component Description/Coordinates, N10 - Z57/1:
