Radio Freq. Remote Central Locking PE80.35-U-2100B (As of 11/99)

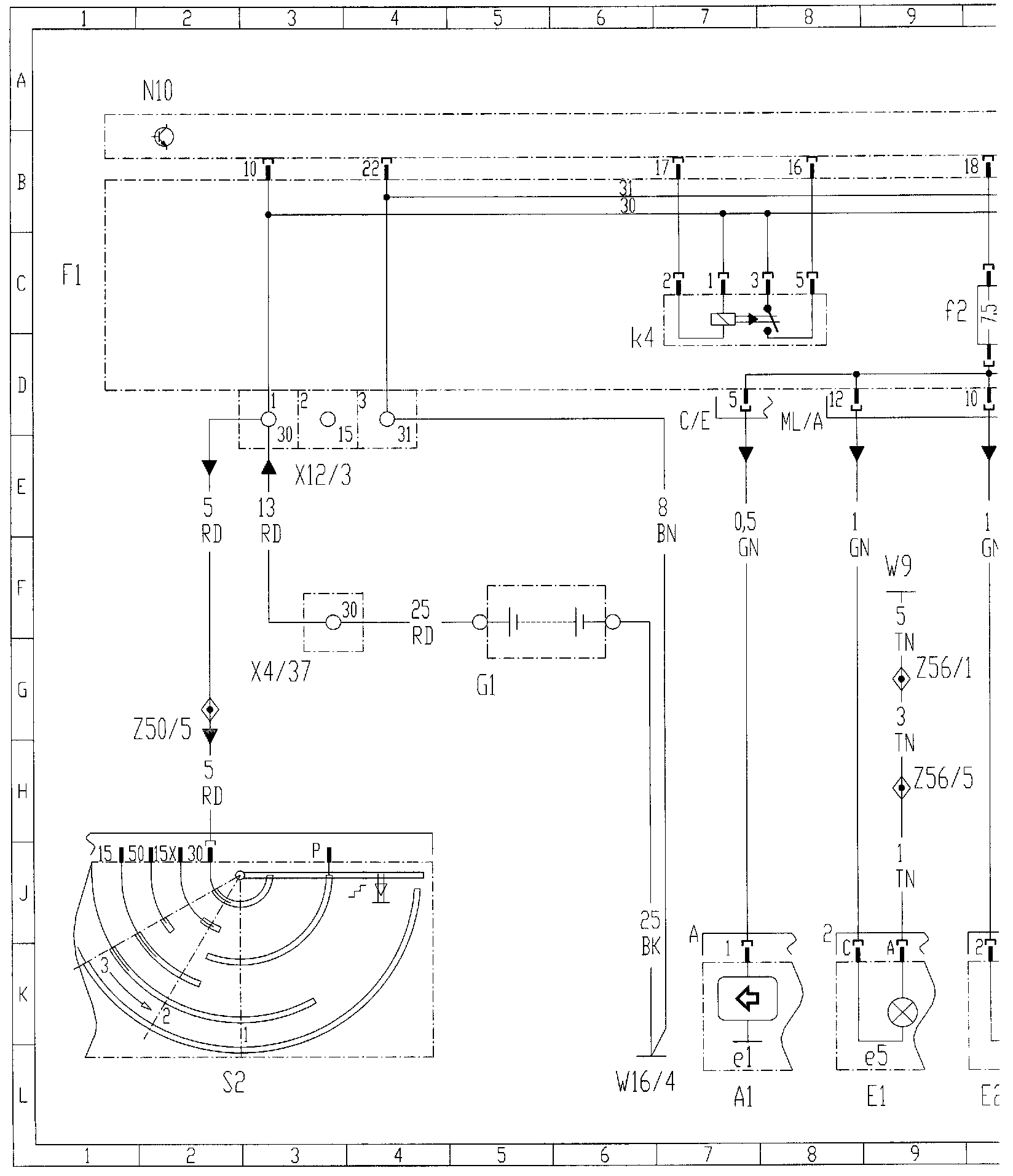

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

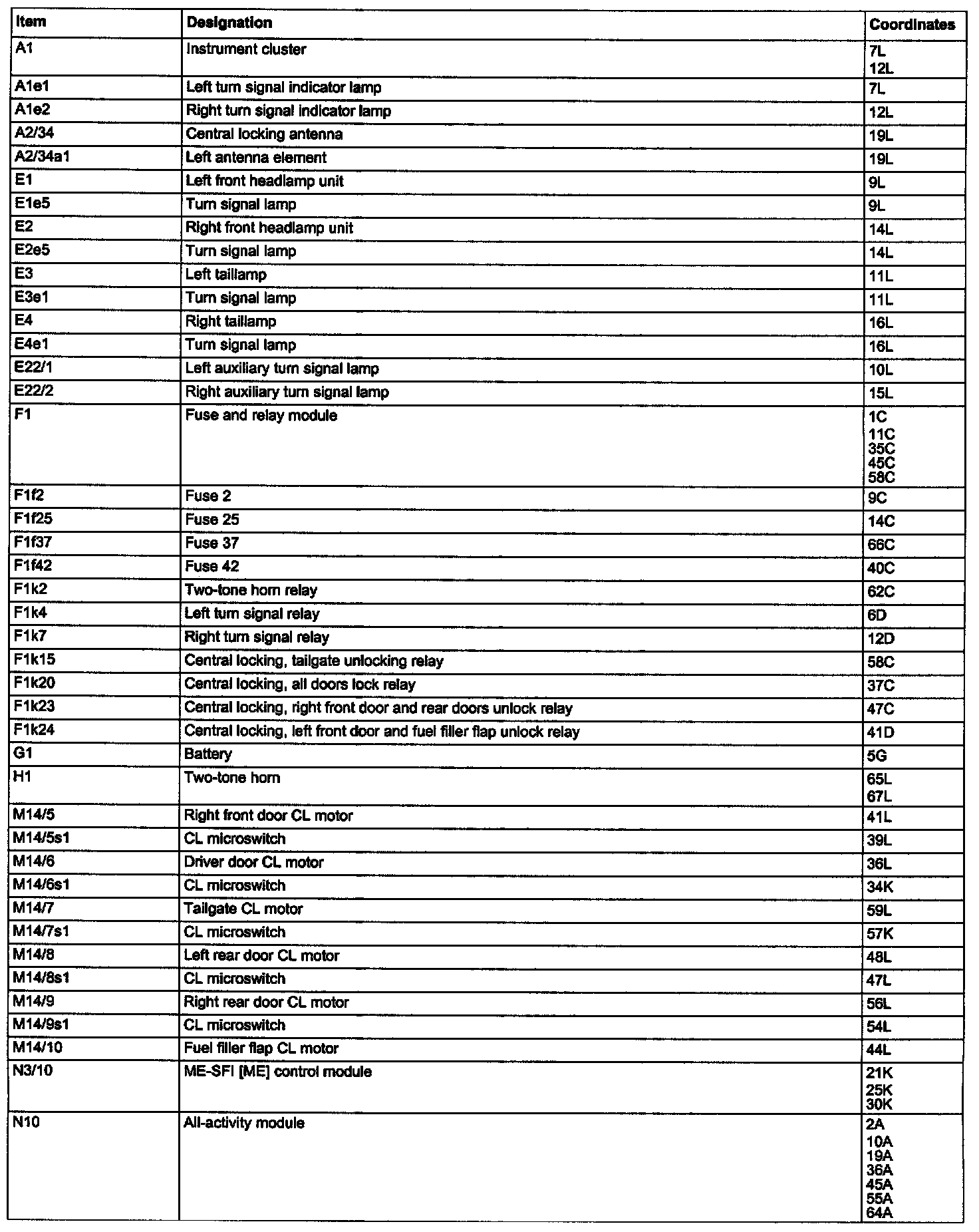

Component Description/Coordinates, A1 - N10:

Component Description/Coordinates, S2 - Z59/4:
