Auto Dimming Inside Rear View Mirror PE68.49-U-2000E (Up to 11/99)



Auto Dimming Inside Rear View Mirror PE68.49-U-2000E (up to 11/99)
- with CODE (249a) automatic dimming inside rearview mirror

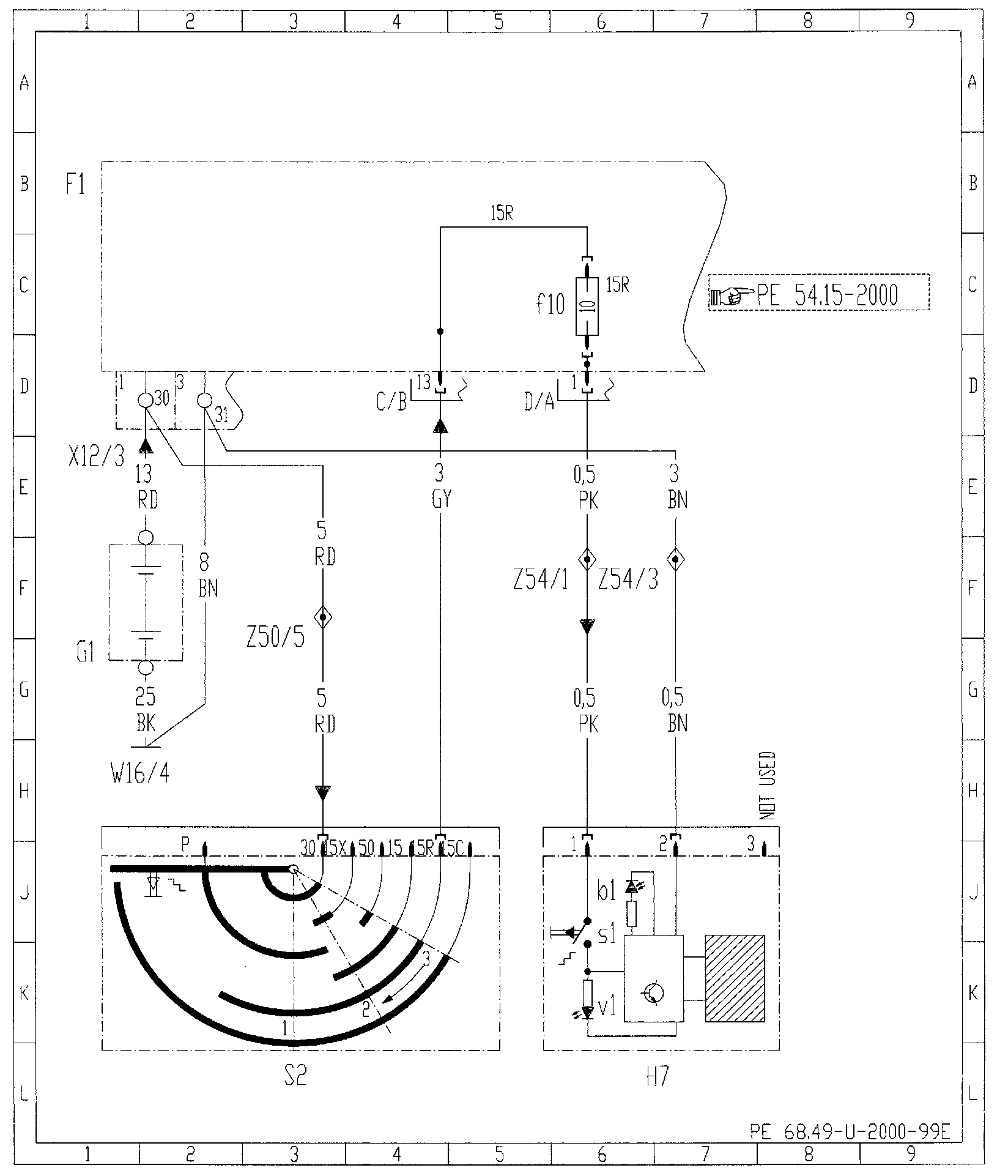

Diagram:






Component Description/Coordinates, F1 - Z54/3:
