Auto Dimming Inside Rear View Mirror PE68.49-U-2000G (As of 11/99)

Auto Dimming Inside Rear View Mirror PE68.49-U-2000G (as of 11/99)
- with CODE (249a) automatic dimming inside rearview mirror

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

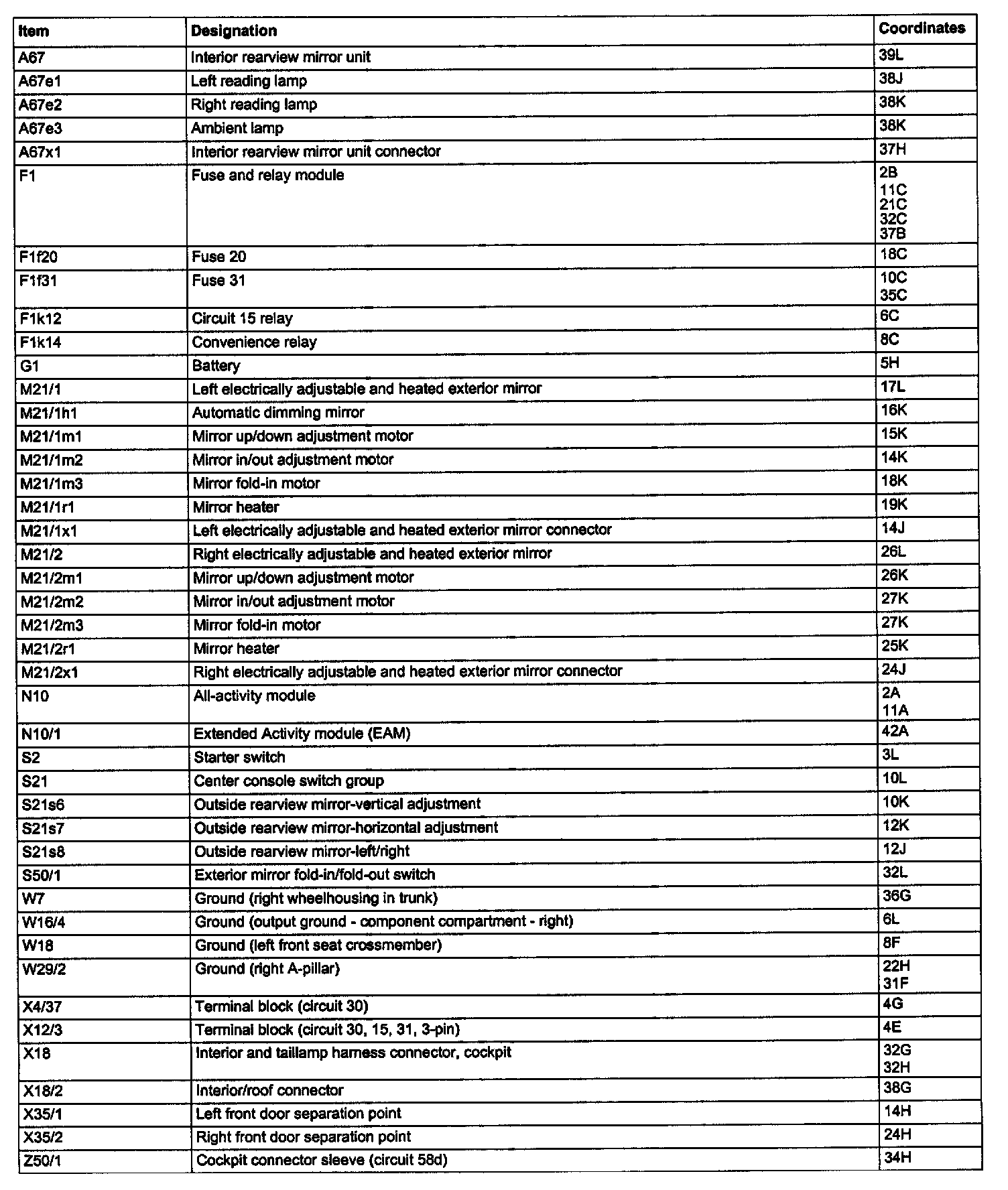

Component Description/Coordinates, A67 - Z50/1:

Component Description/Coordinates, Z50/3 - Z59/3:
