Outside Mirrors PE88.79-U-2000A (As of 11/99)

Outside Mirrors PE88.79-U-2000A (as of 11/99)
- with CODE (500b) Folding left and right exterior mirrors

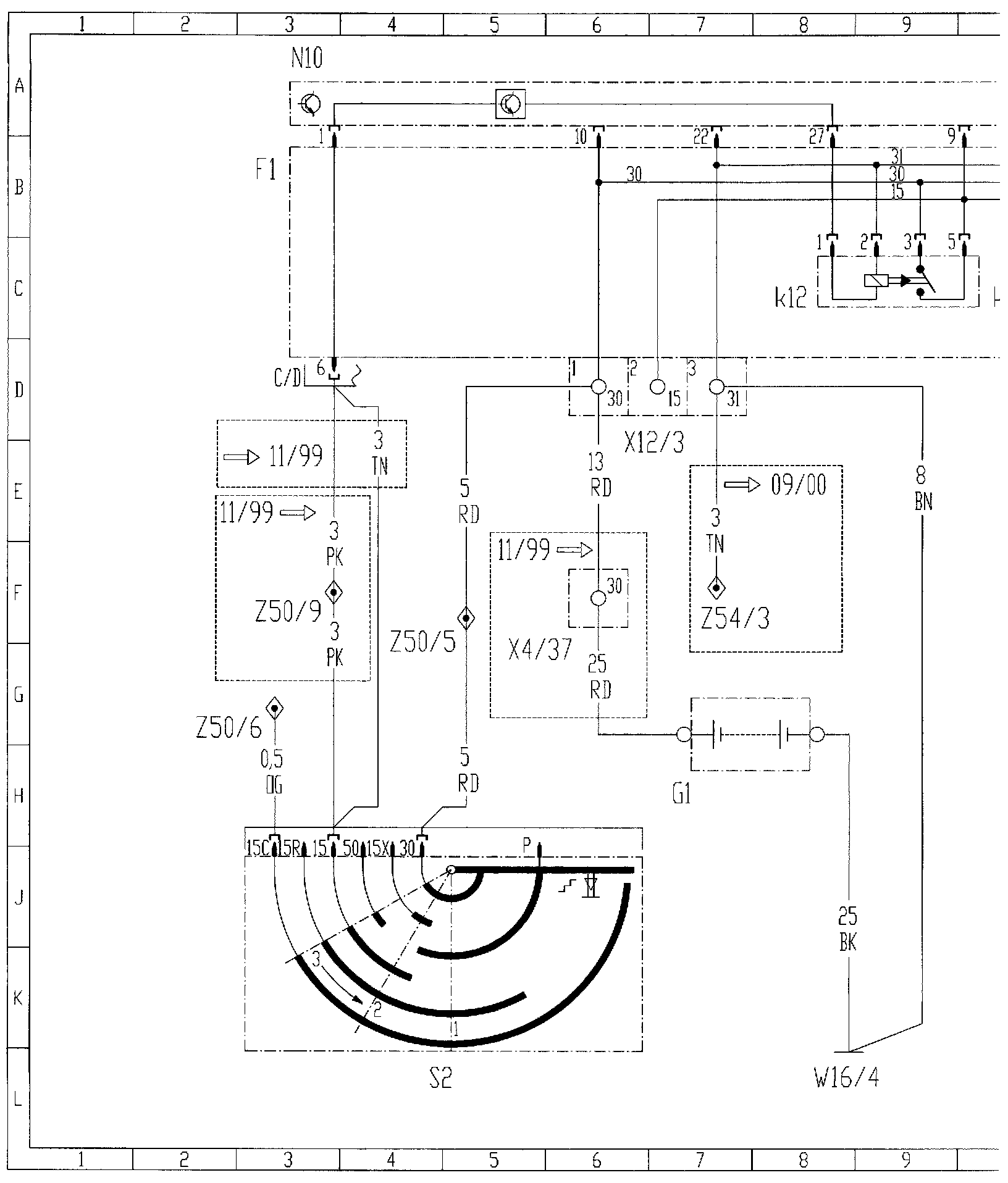

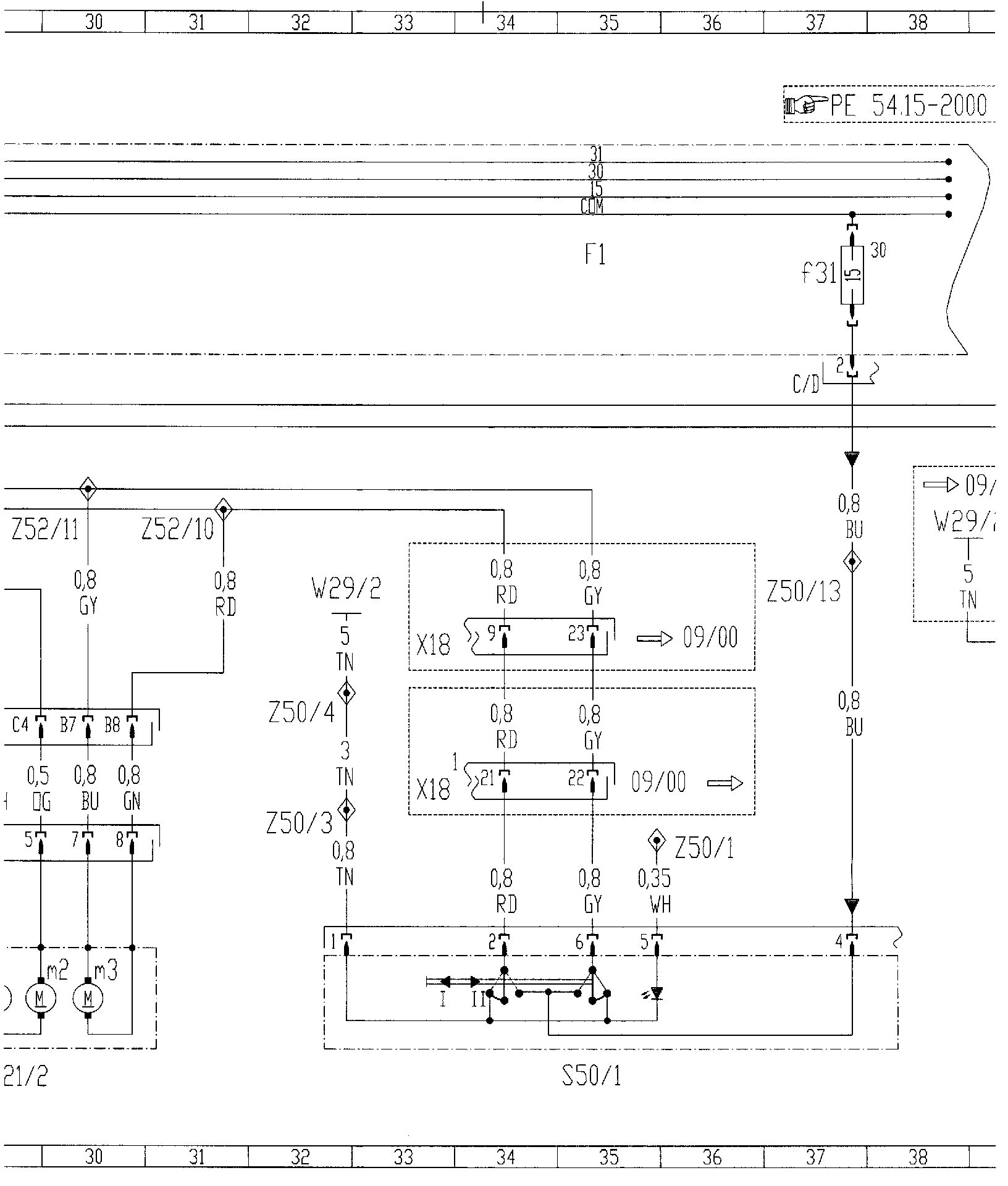

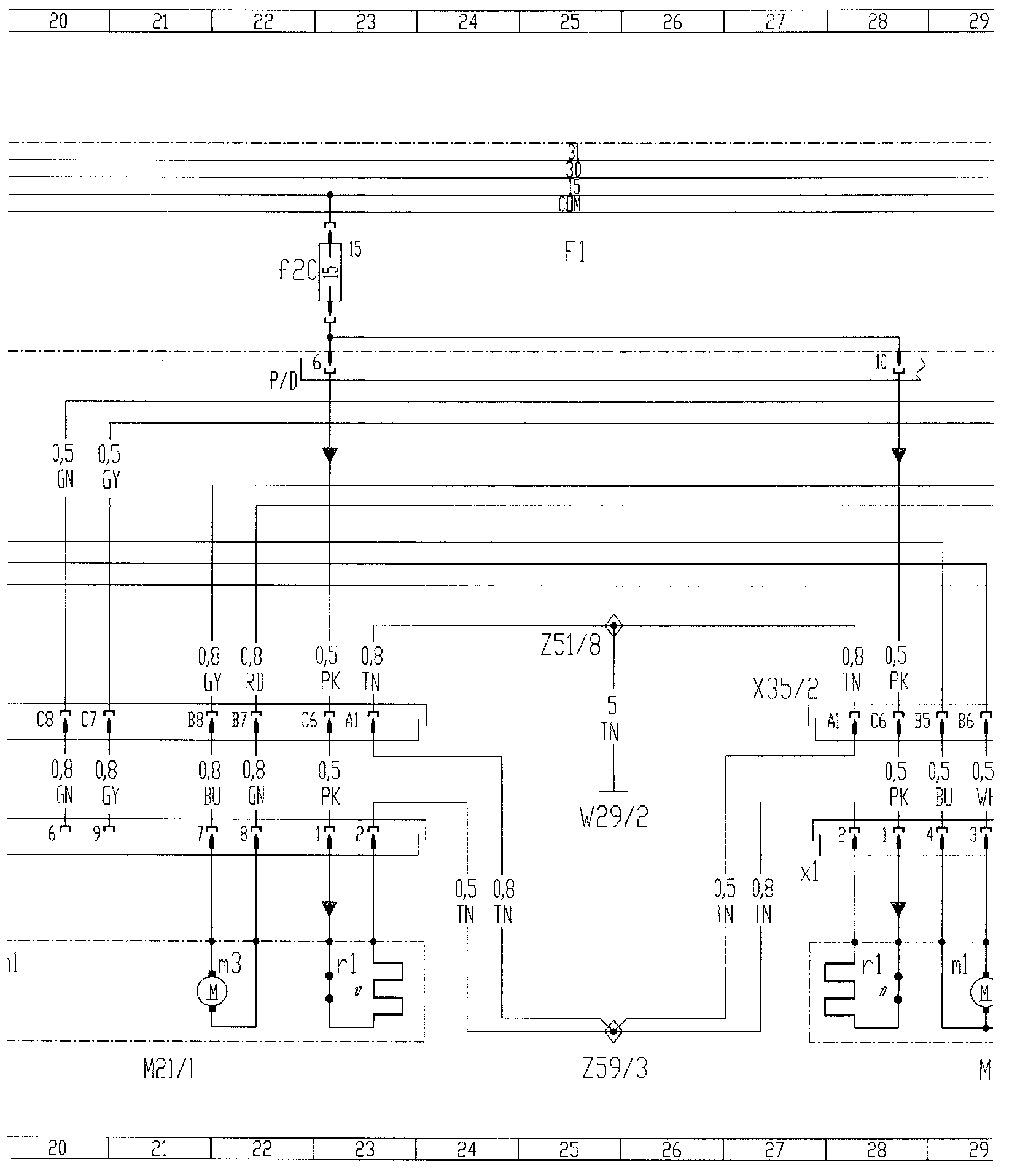

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Component Description/Coordinates, A67 - Z50/1:

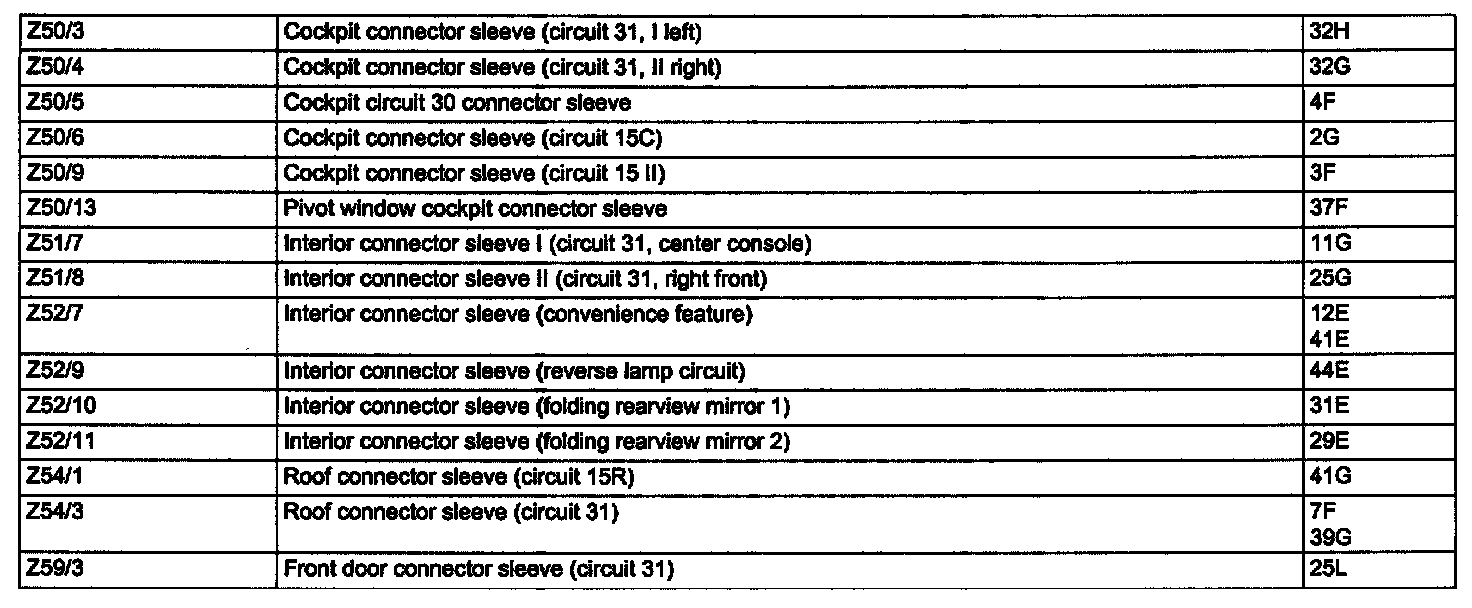

Component Description/Coordinates, Z50/3 - Z59/3:
