Outside Mirrors PE88.79-U-2000K (up to 11/99)

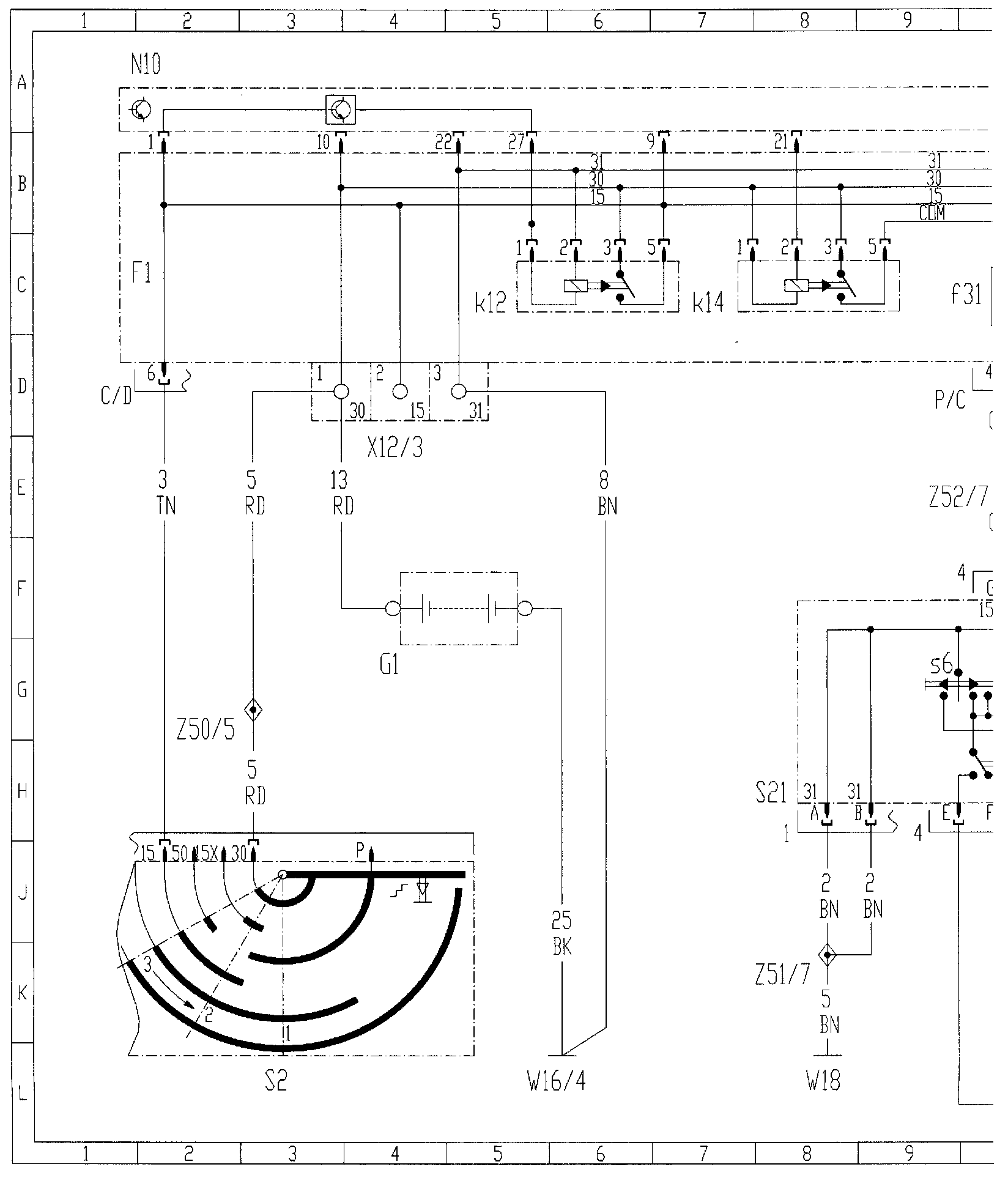

Diagram, Part 1:
Diagram, Part 2:

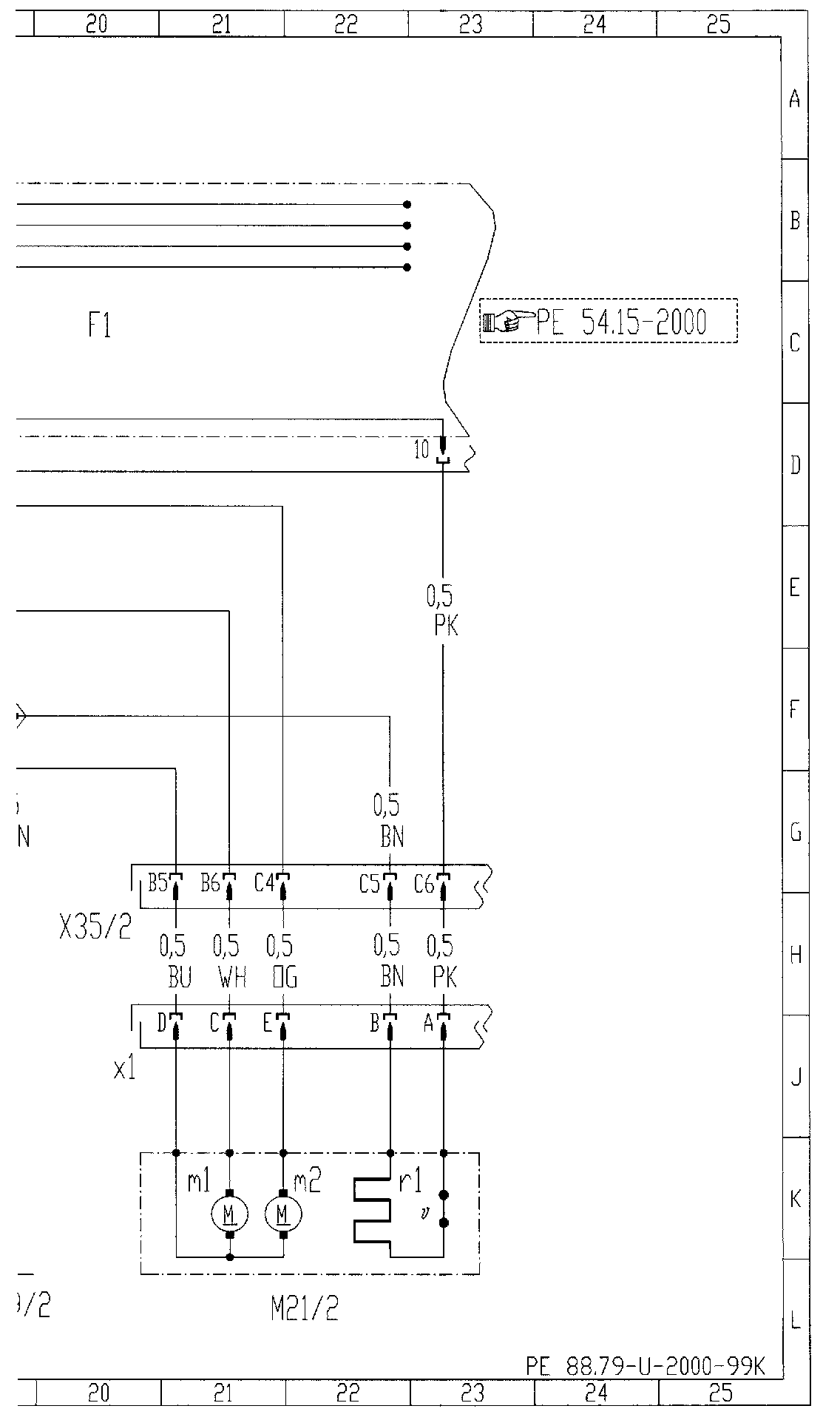

Diagram, Part 3:

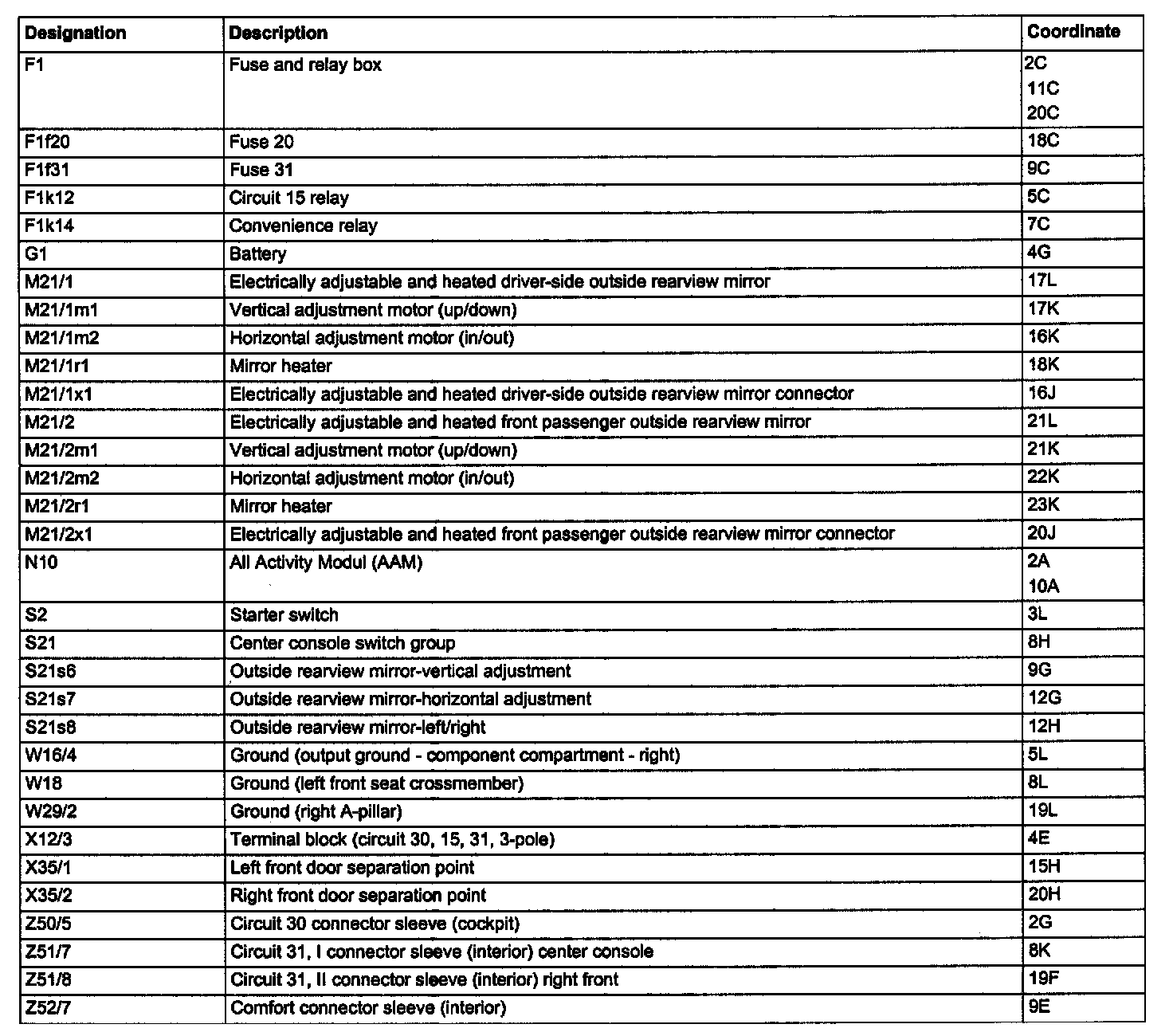

Component Description/Coordinates, F1 - Z52/7:
