Outside Mirrors PE88.79-U-2000Q (As of 11/99)

Outside Mirrors PE88.79-U-2000Q (as of 11/99)
- with CODE (500b) Folding left and right exterior mirrors
- with CODE (249b) Automatic dimming interior rearview and exterior rearview mirror (driver)

Diagram, Part 1:

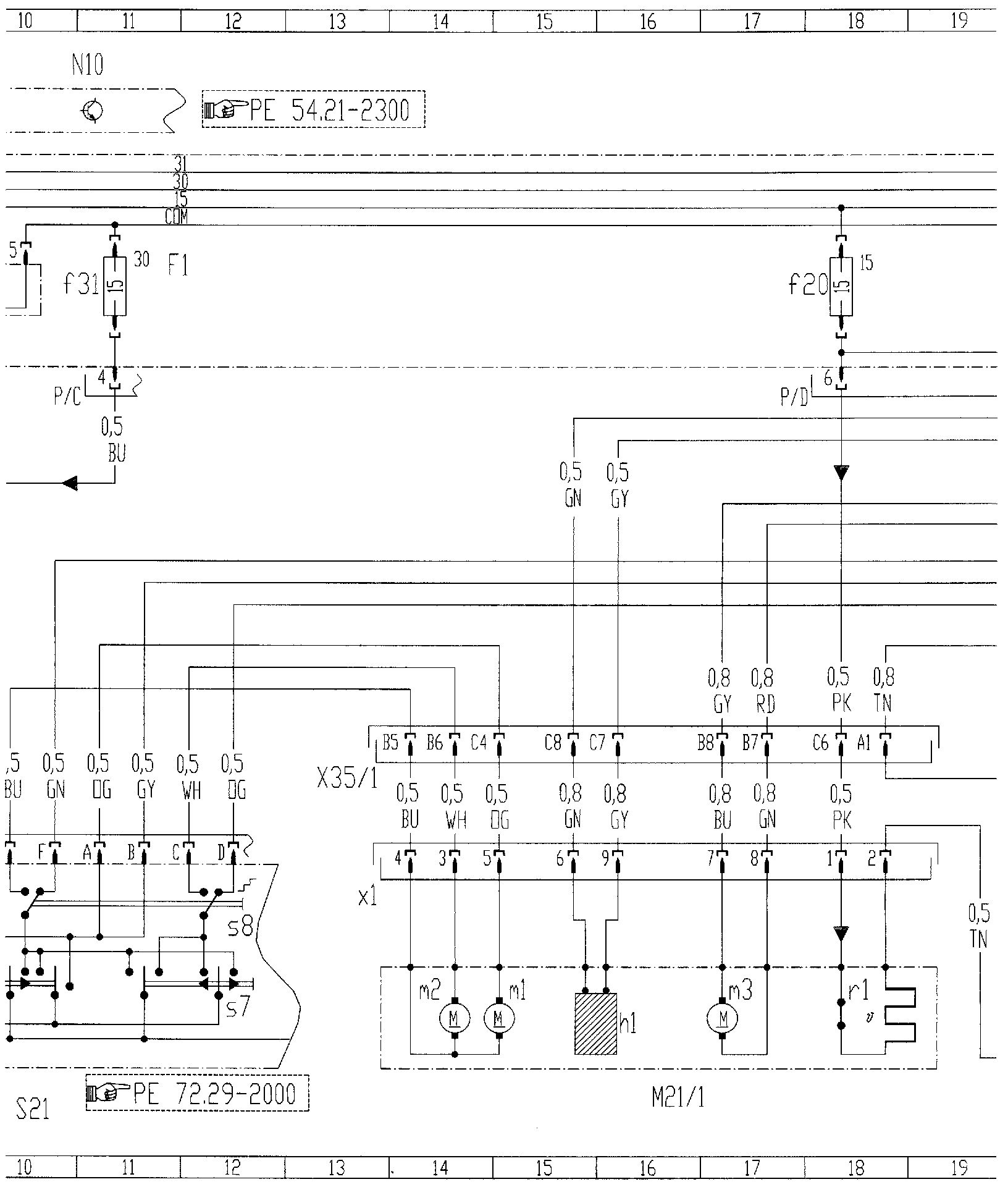

Diagram, Part 2:

Diagram, Part 3:

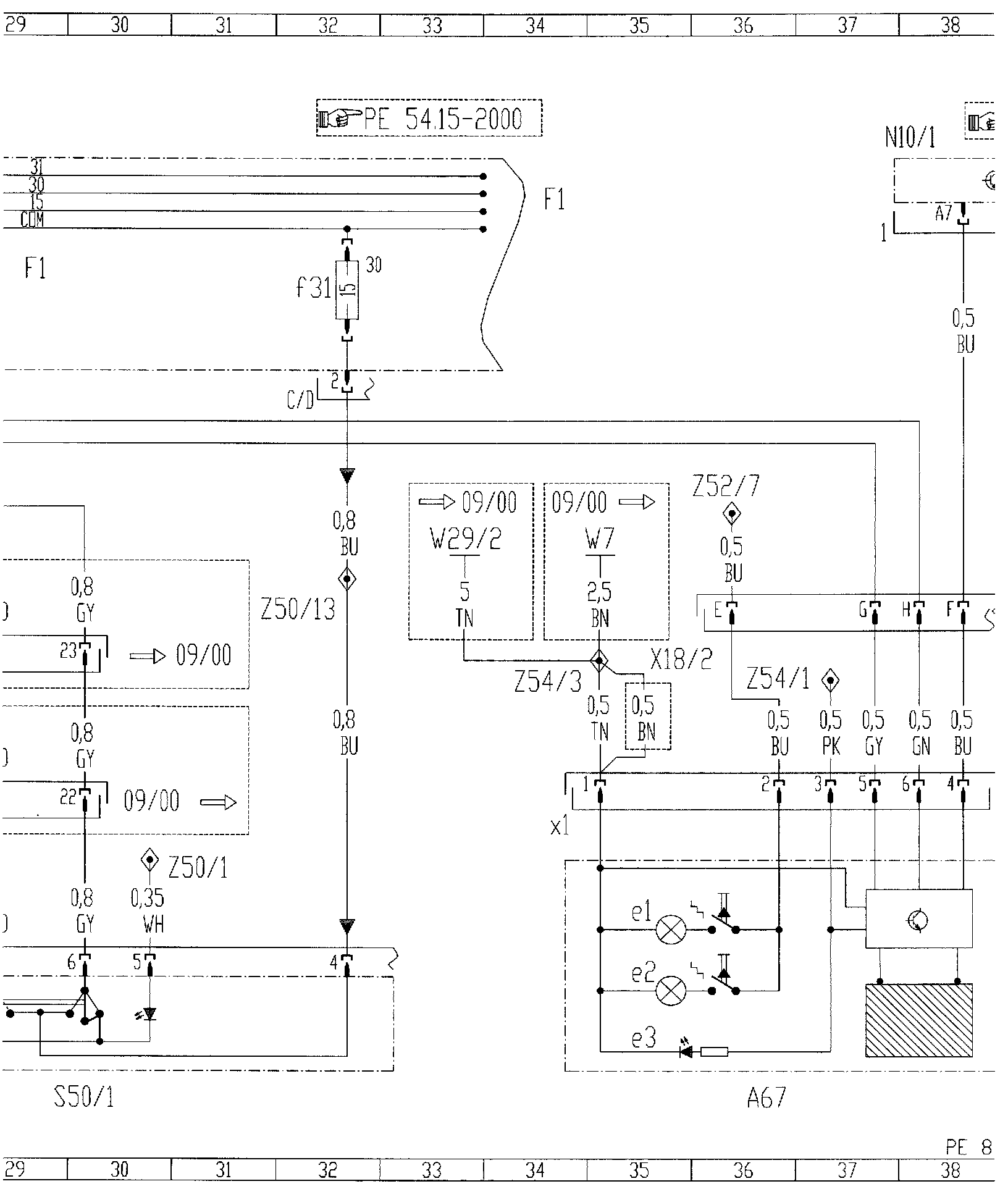

Diagram, Part 4:

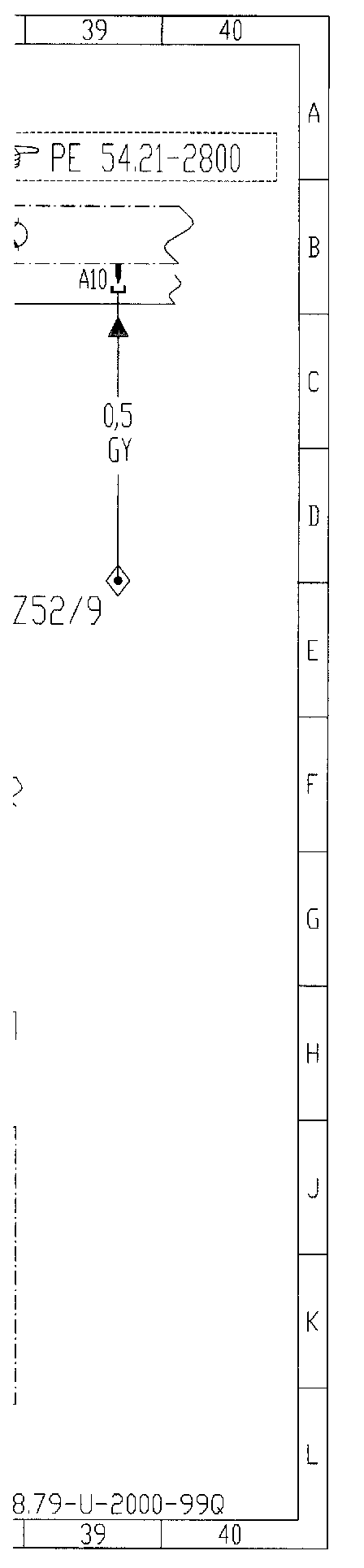

Diagram, Part 5:

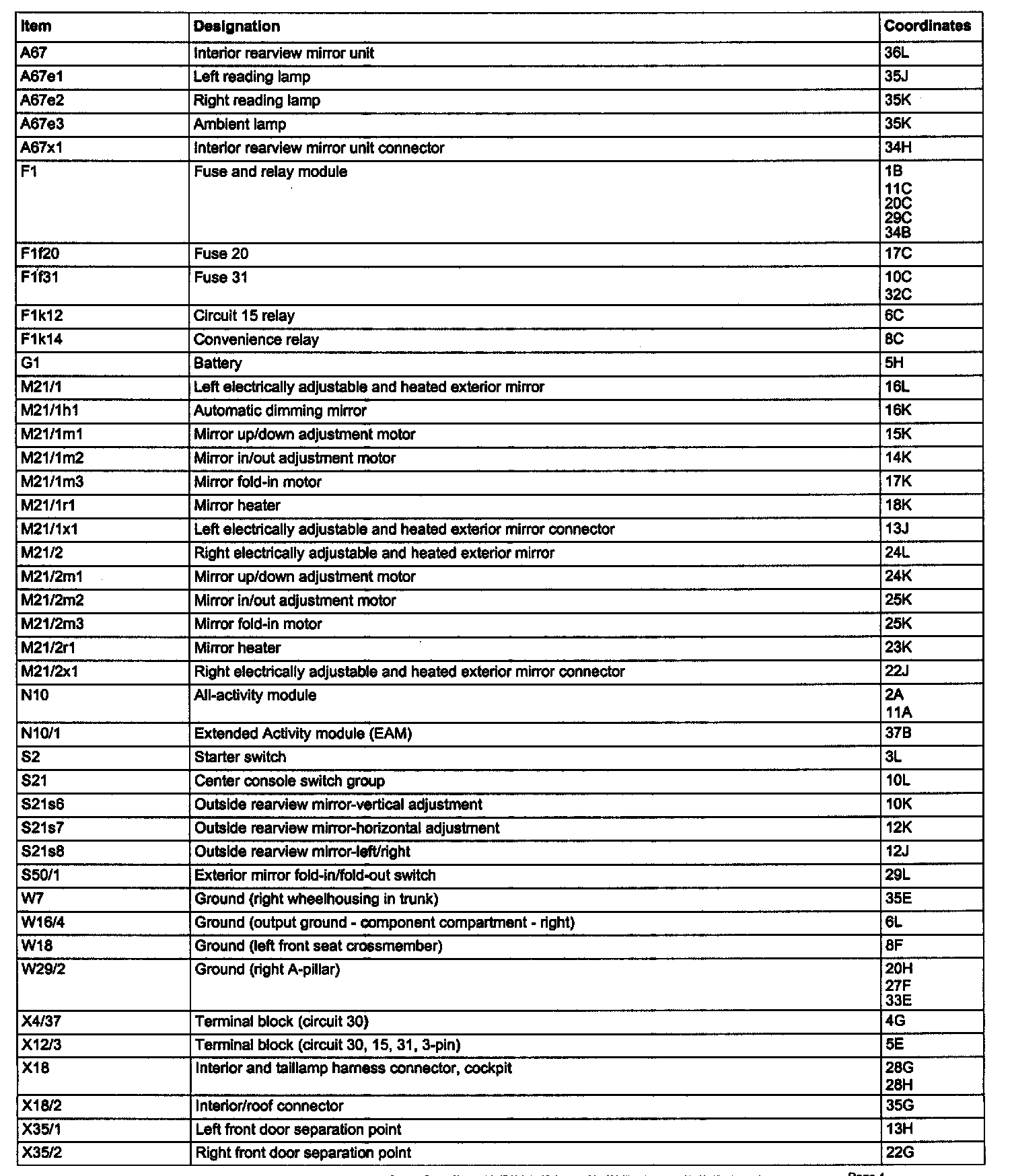

Component Description/Coordinates, A67 - X35/2:

Component Description/Coordinates, Z50/1 - Z59/3:
