System Diagram
System Diagram
Starter, Generator PE15.00-U-2000L

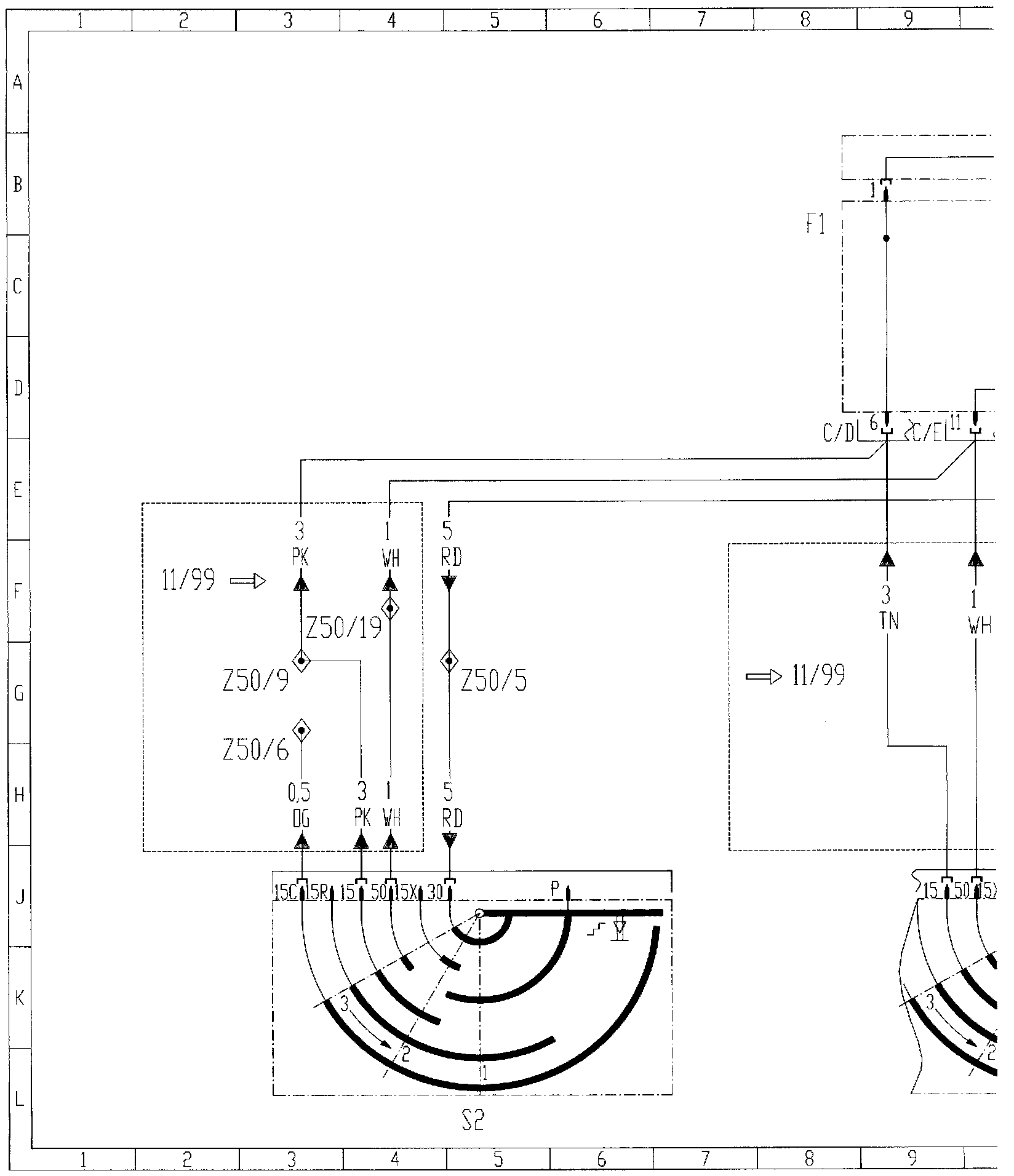

Diagram, Part 1:
Diagram, Part 2:

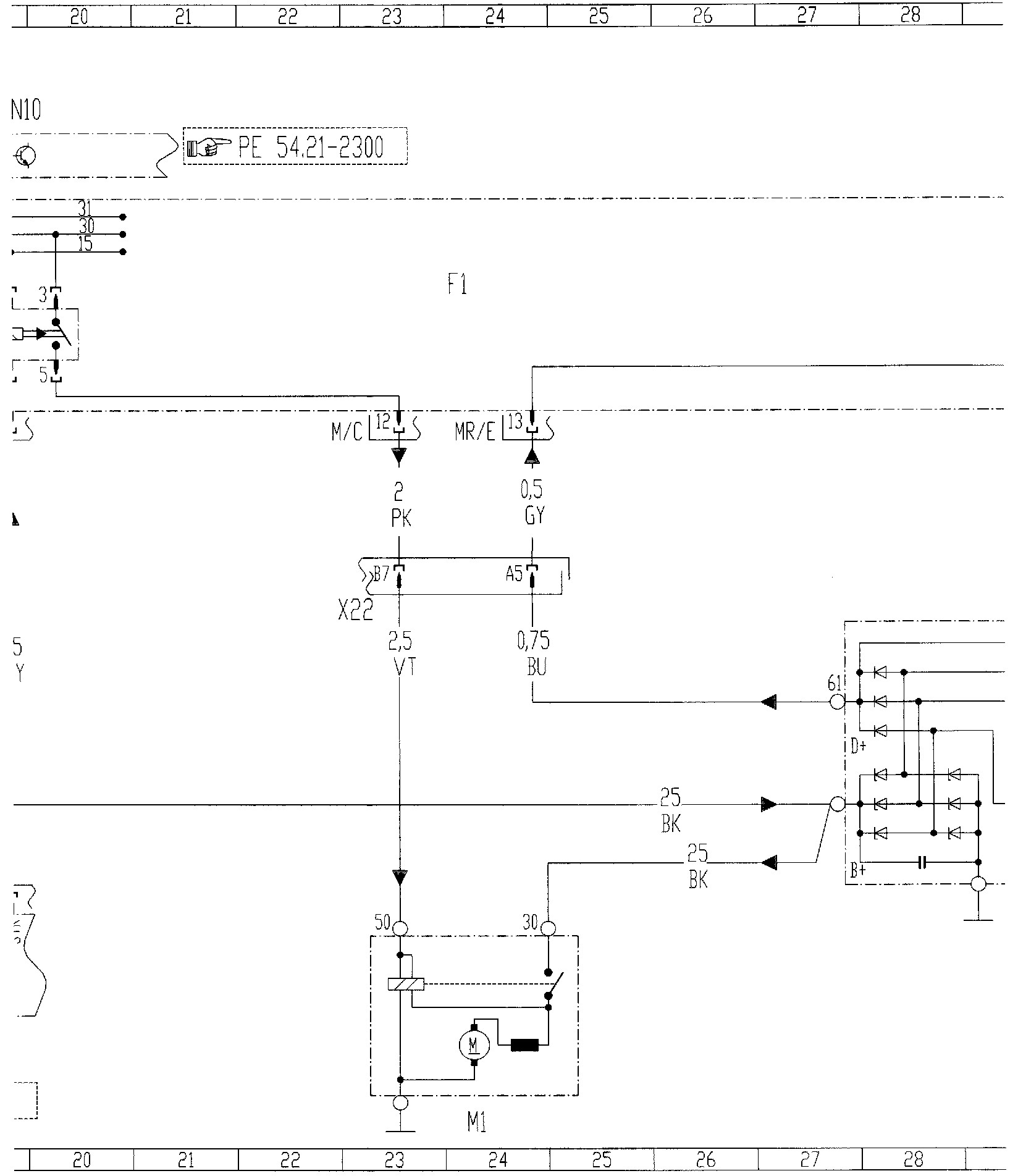

Diagram, Part 3:

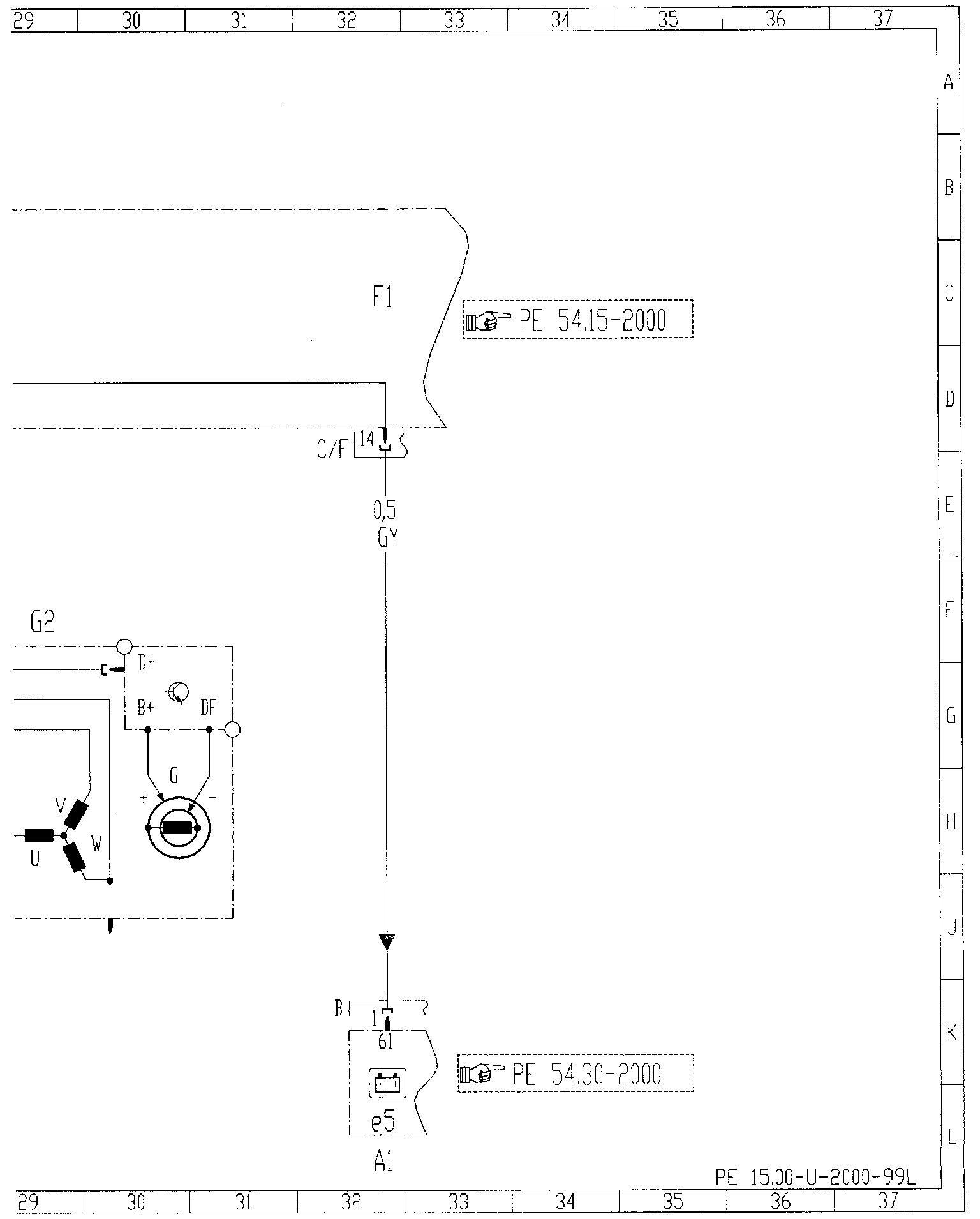

Diagram, Part 4:

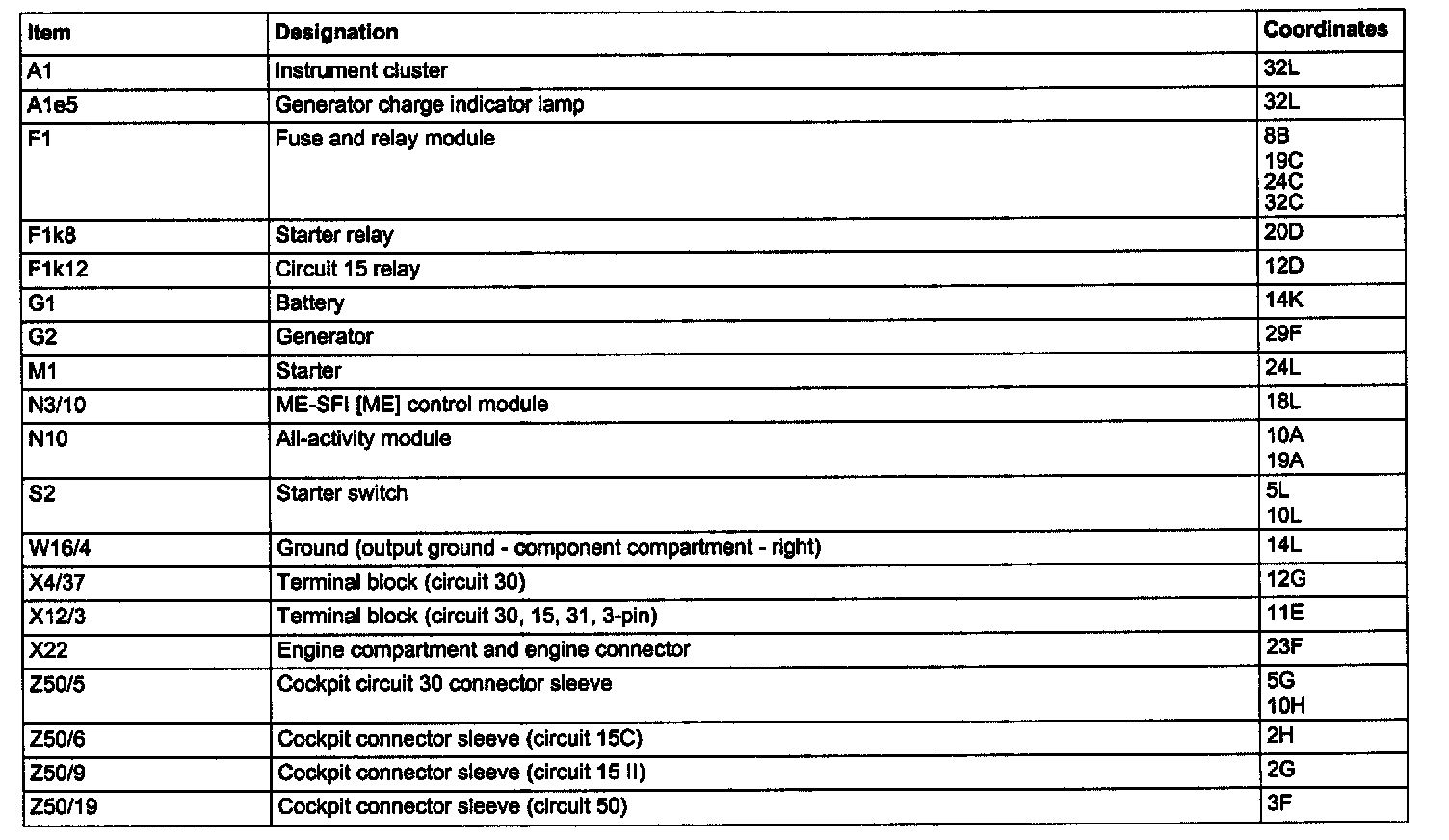

Component Description/Coordinates, A1 - Z50/19:
