Steering Column Lock



PE46.10-U-2000A - Steering Column Lock

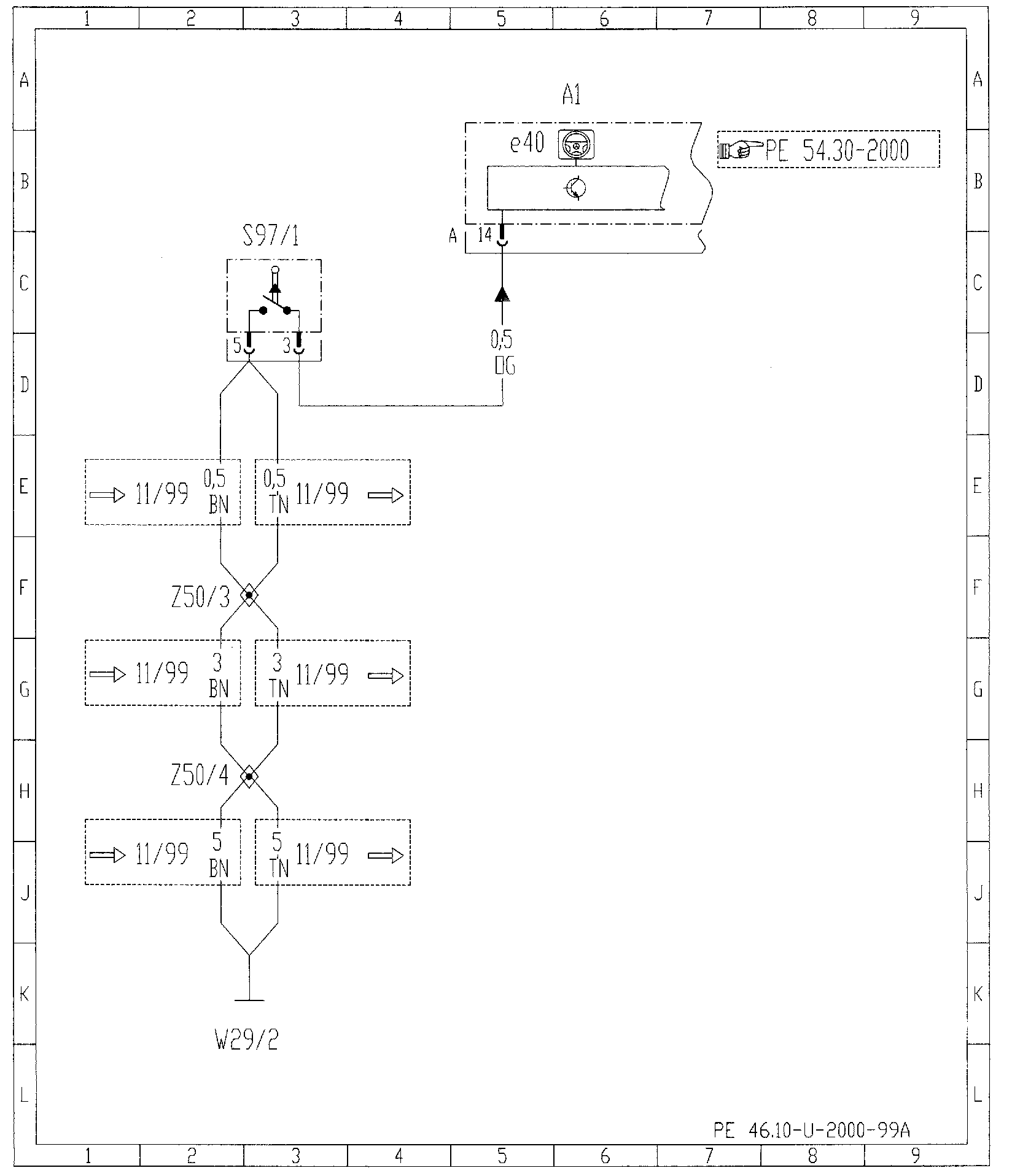

Diagram:

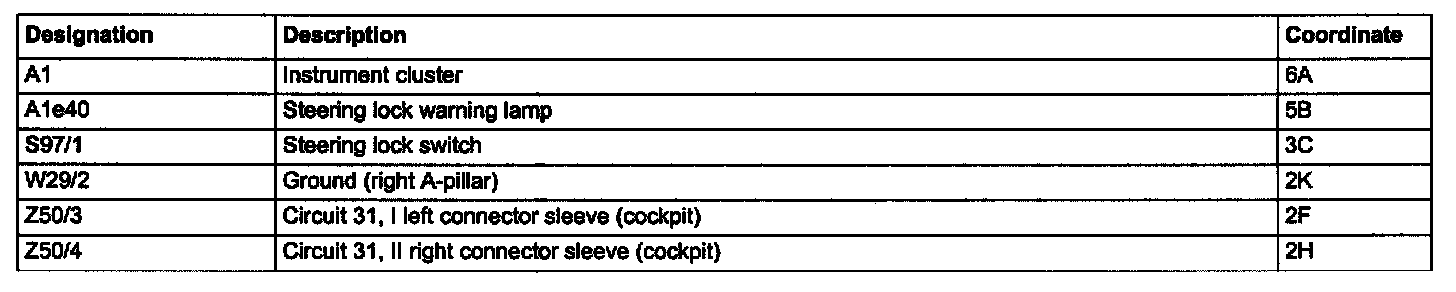

Component Description/Coordinates, A1 - Z50/4:
