Home
>>
Mercedes Benz Truck
>>
2000
>>
ML 320 (163.154) V6-3.2L (112.942)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sunroof / Moonroof
>>
Lamella Roof PE77.20-U-2100A (Up to 11/99)

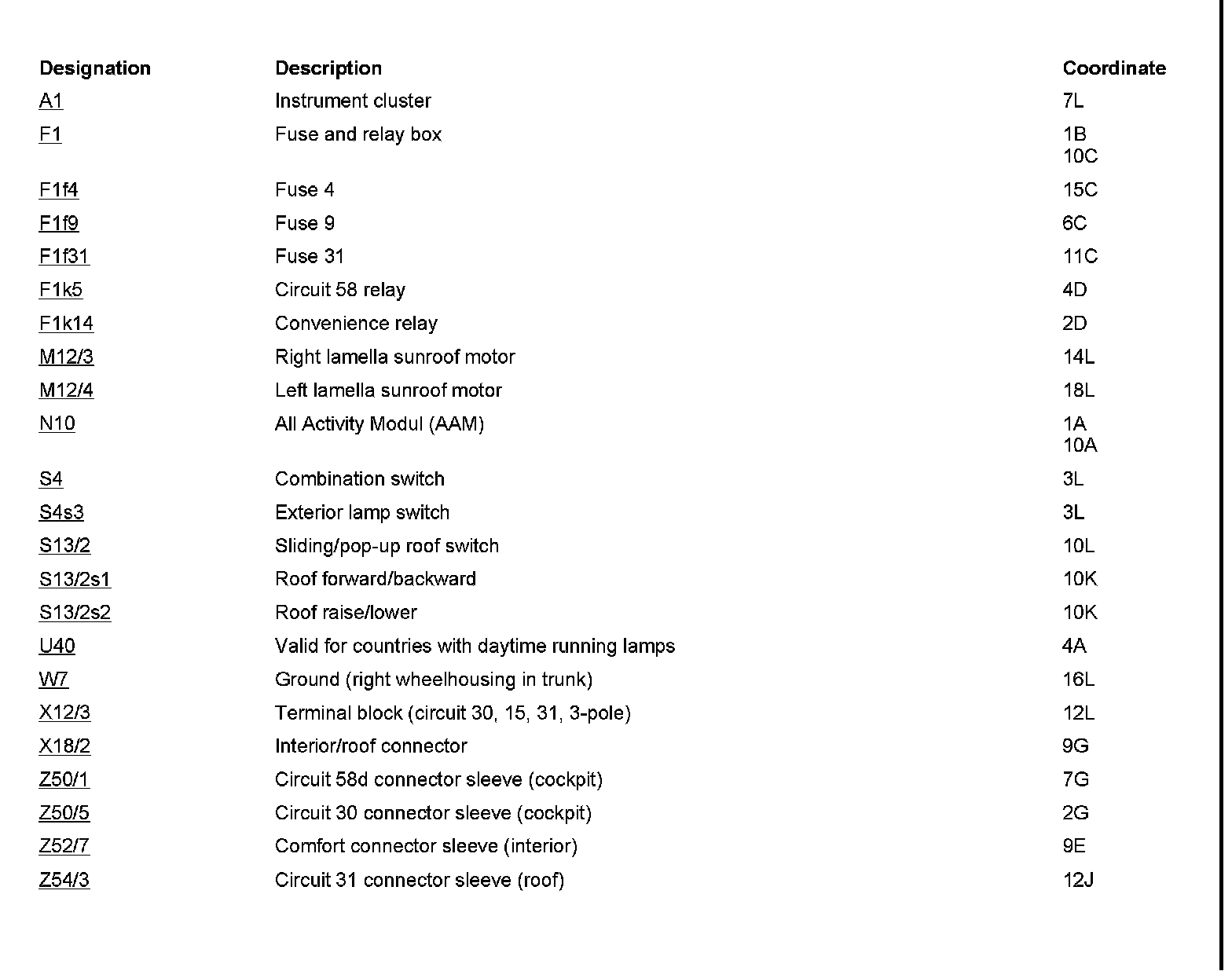

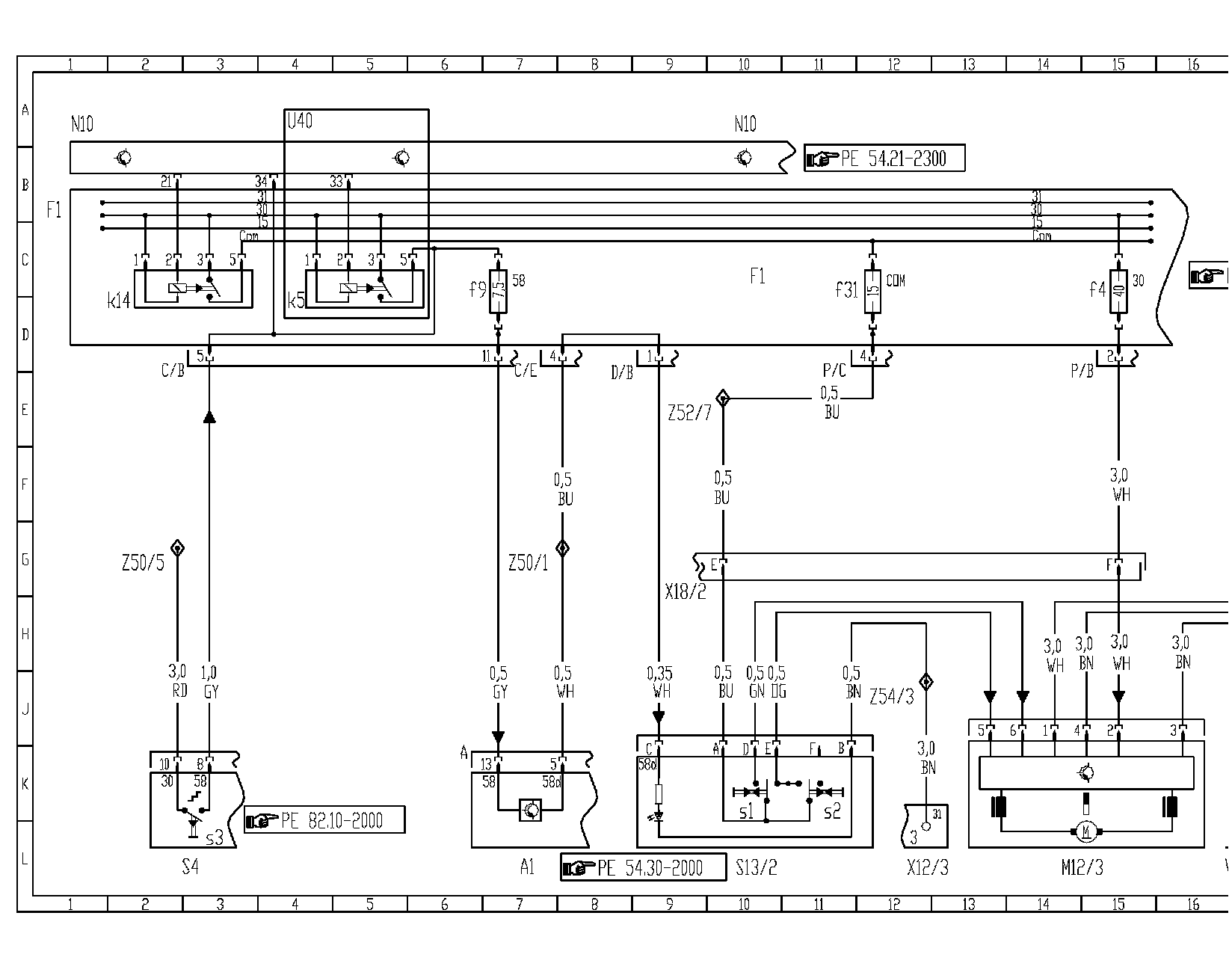

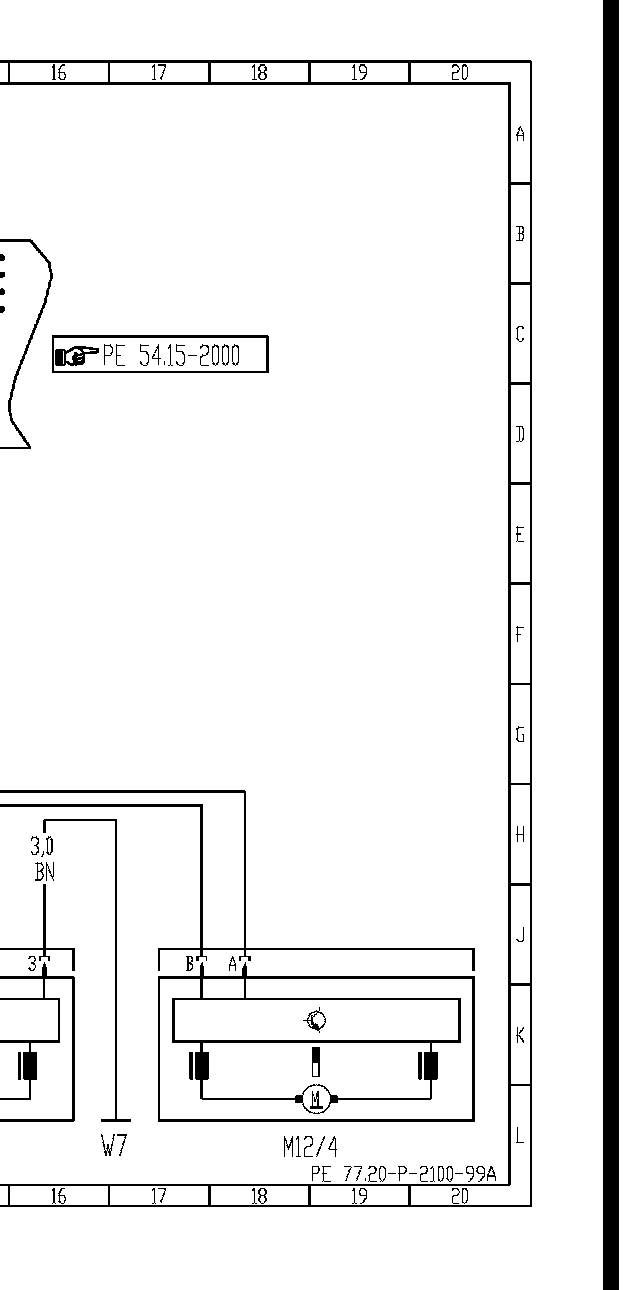

Lamella Roof PE77.20-U-2100A (Up to 11/99)
Lamella Roof PE77.20-U-2100A (up to 11/99)
- with CODE (417a) Louver sunroof
p�YP:
