Lamella Roof PE77.20-U-2100B (As of 11/99)
Lamella Roof PE77.20-U-2100B (as of 11/99)
- with CODE (417a) Louver sunroof

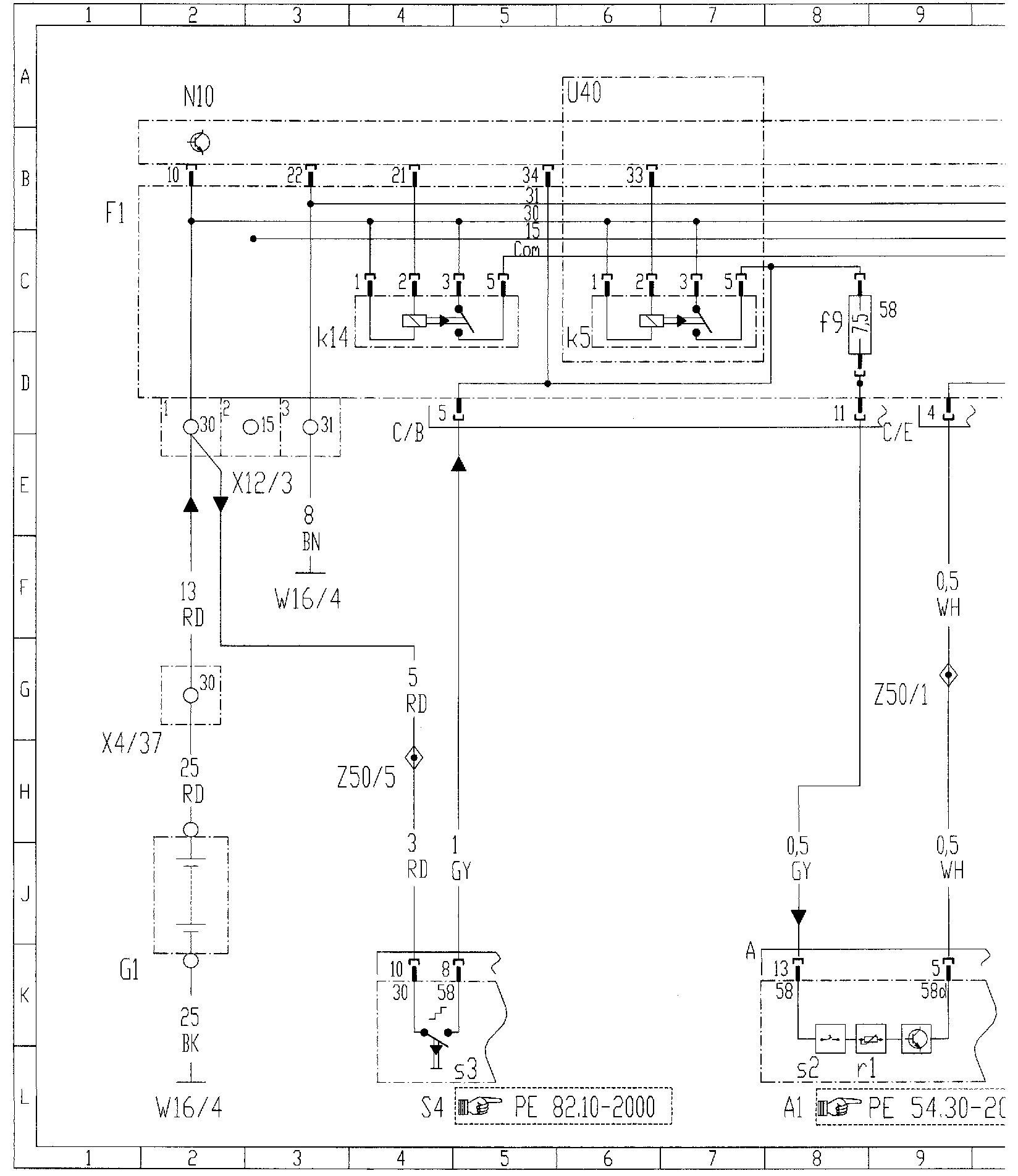

Diagram, Part 1:

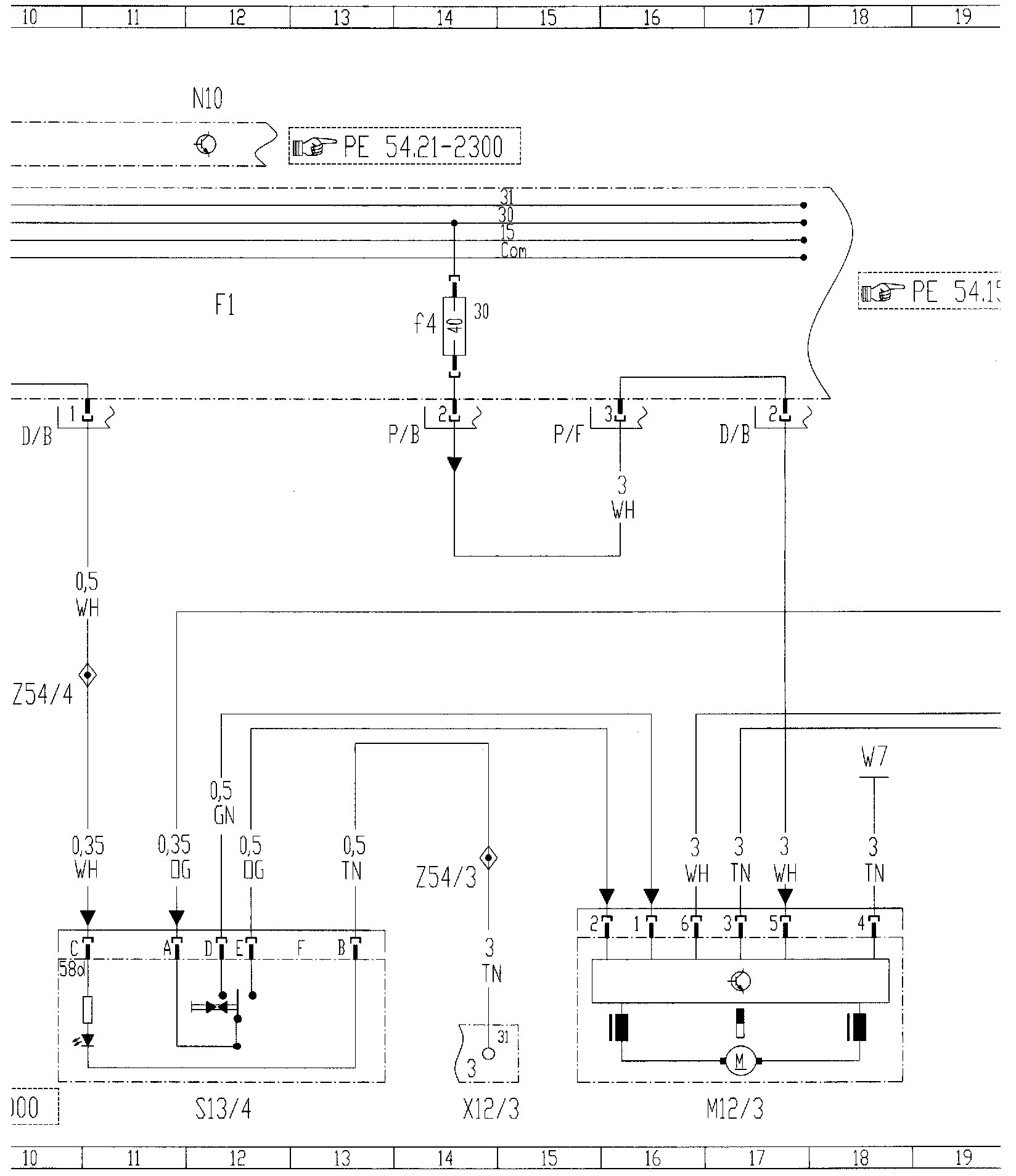

Diagram, Part 2:

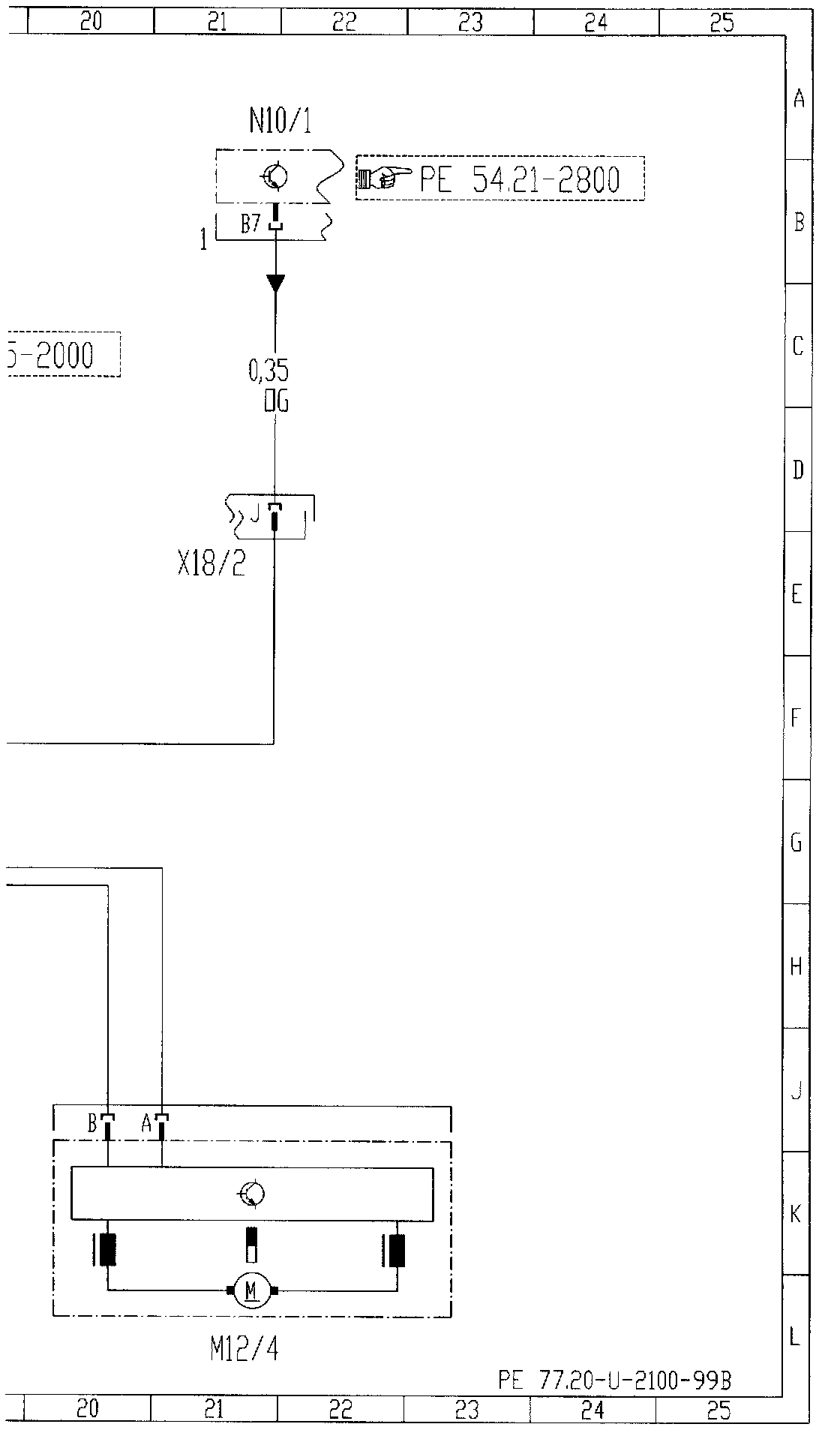

Diagram, Part 3:

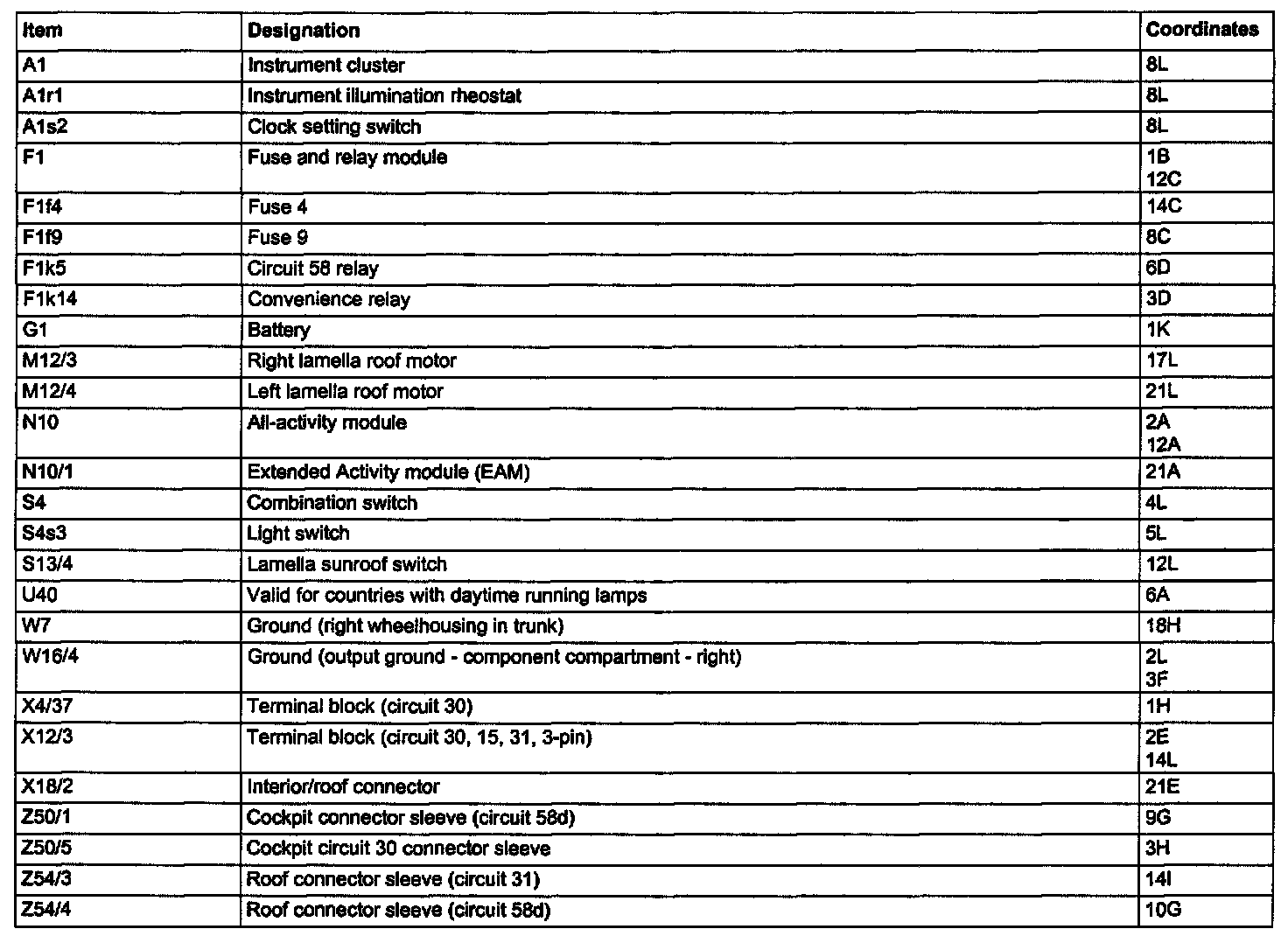

Component Description/Coordinates, A1 - Z54/4:
Lamella Roof PE77.20-U-2100B (as of 11/99)
- with CODE (417a) Louver sunroof
