Hinged Power Windows PE67.39-U-2000A
Hinged Power Windows PE67.39-U-2000A
- with CODE (848) Electric pivoting side window

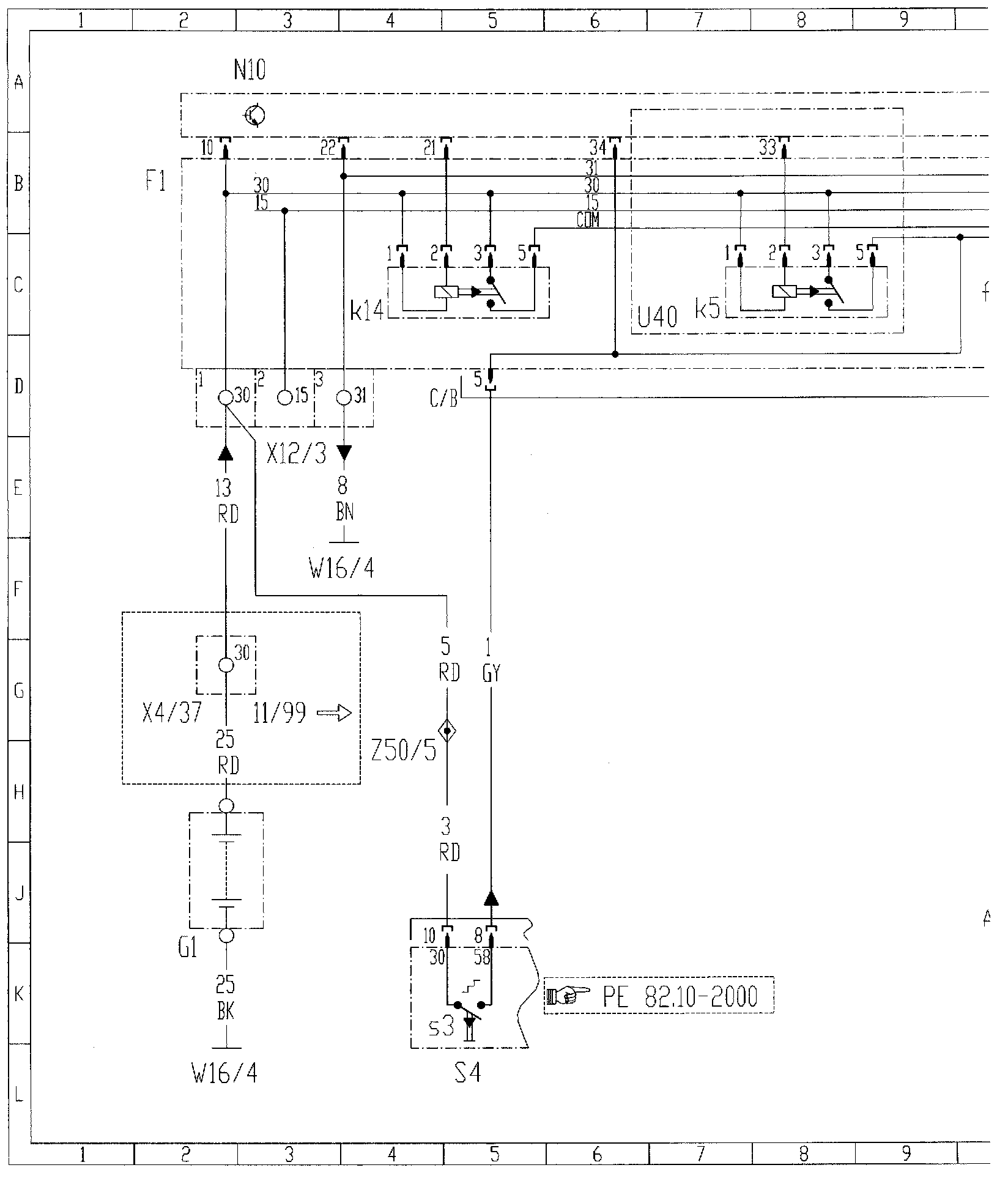

Diagram, Part 1:
Diagram, Part 2:

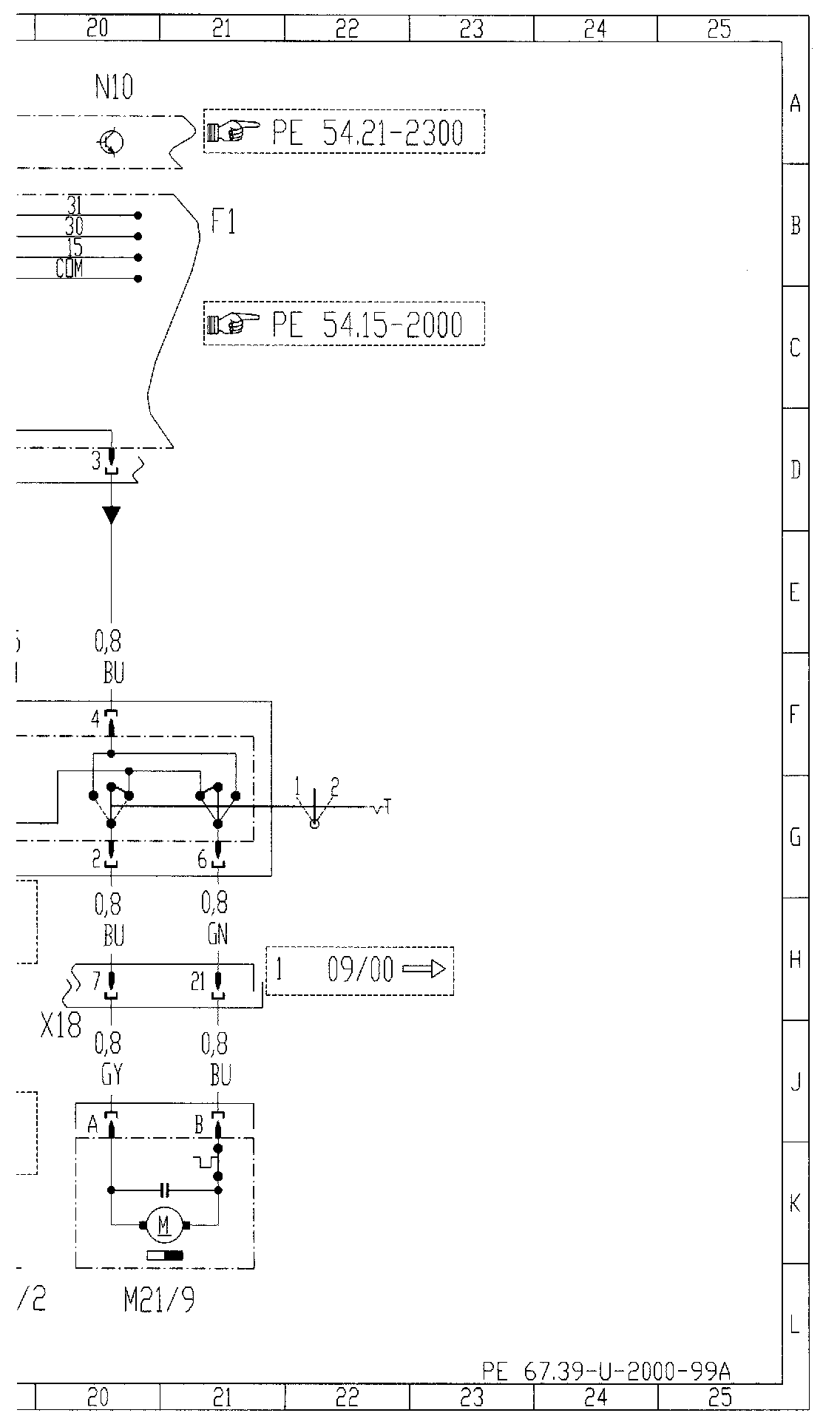

Diagram, Part 3:

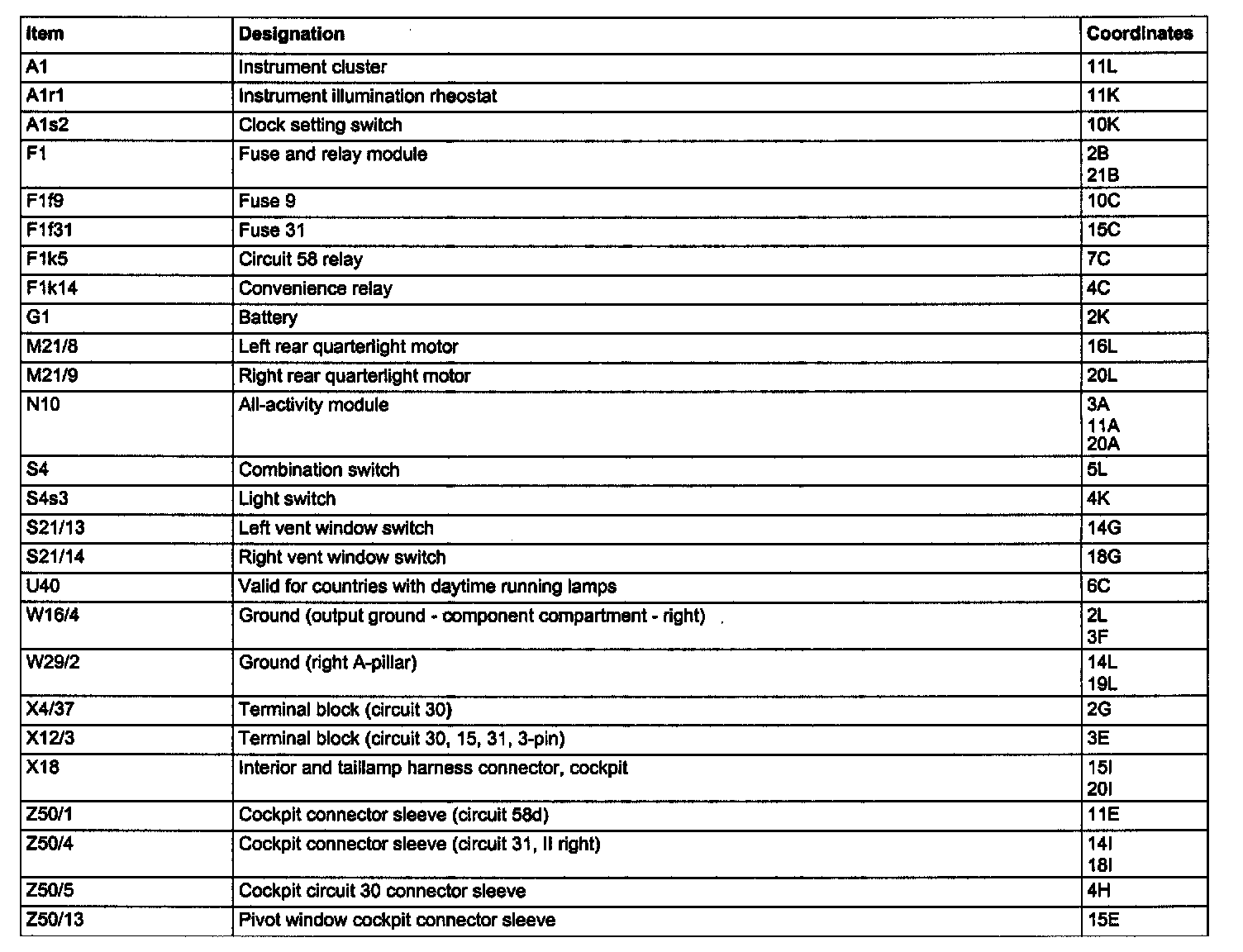

Component Description/Coordinates, A1 - Z50/13:
Hinged Power Windows PE67.39-U-2000A
- with CODE (848) Electric pivoting side window
