W51/6 - Ground RR Wheelhouse/Frame

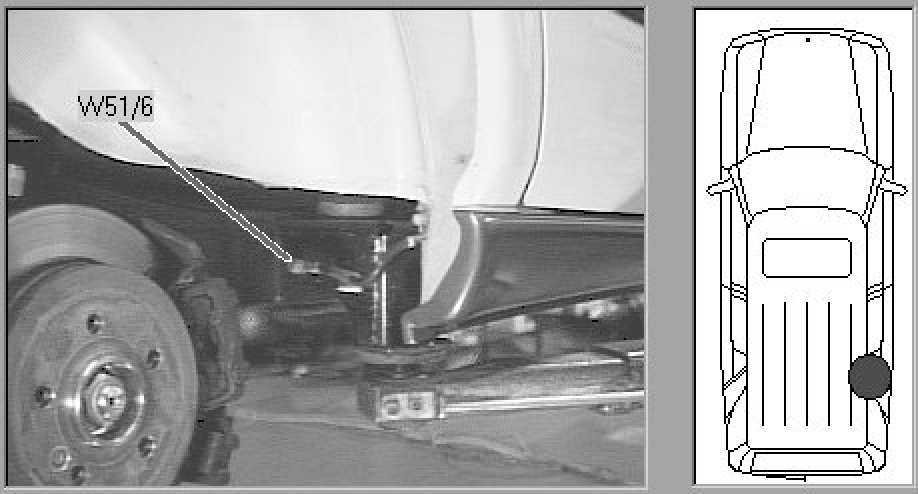

W51/6 - Ground RR Wheelhouse/Frame
Beneath vehicle, at front of right rear wheel housing.
