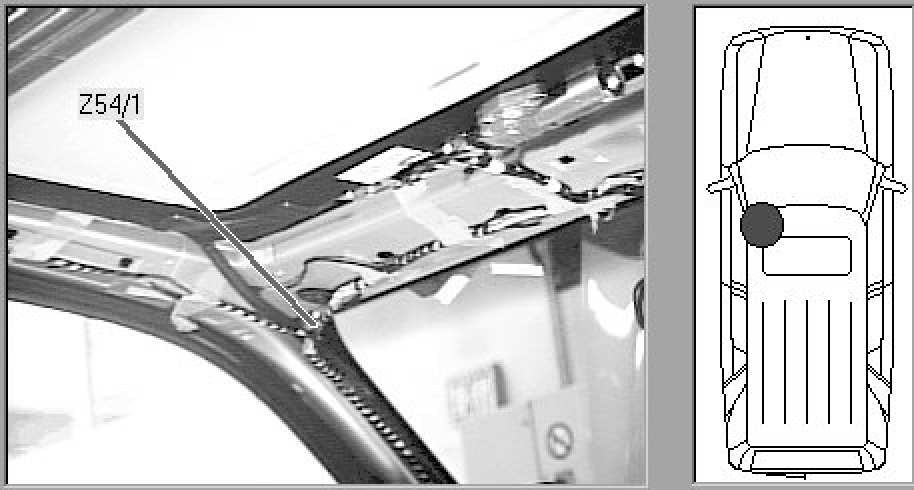

Z54/1 - Cir. 15R Solder Splice








Passenger compartment, at windshield header near top of left A-pillar.
