Mercedes Benz Truck
>>
2000
>>
ML 320 (163.154) V6-3.2L (112.942)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
By Splice Location
>>
GF00.19-U-3000-02E - Engine Compartment, Right
GF00.19-U-3000-02E - Engine Compartment, Right
Arrangement
Assignment

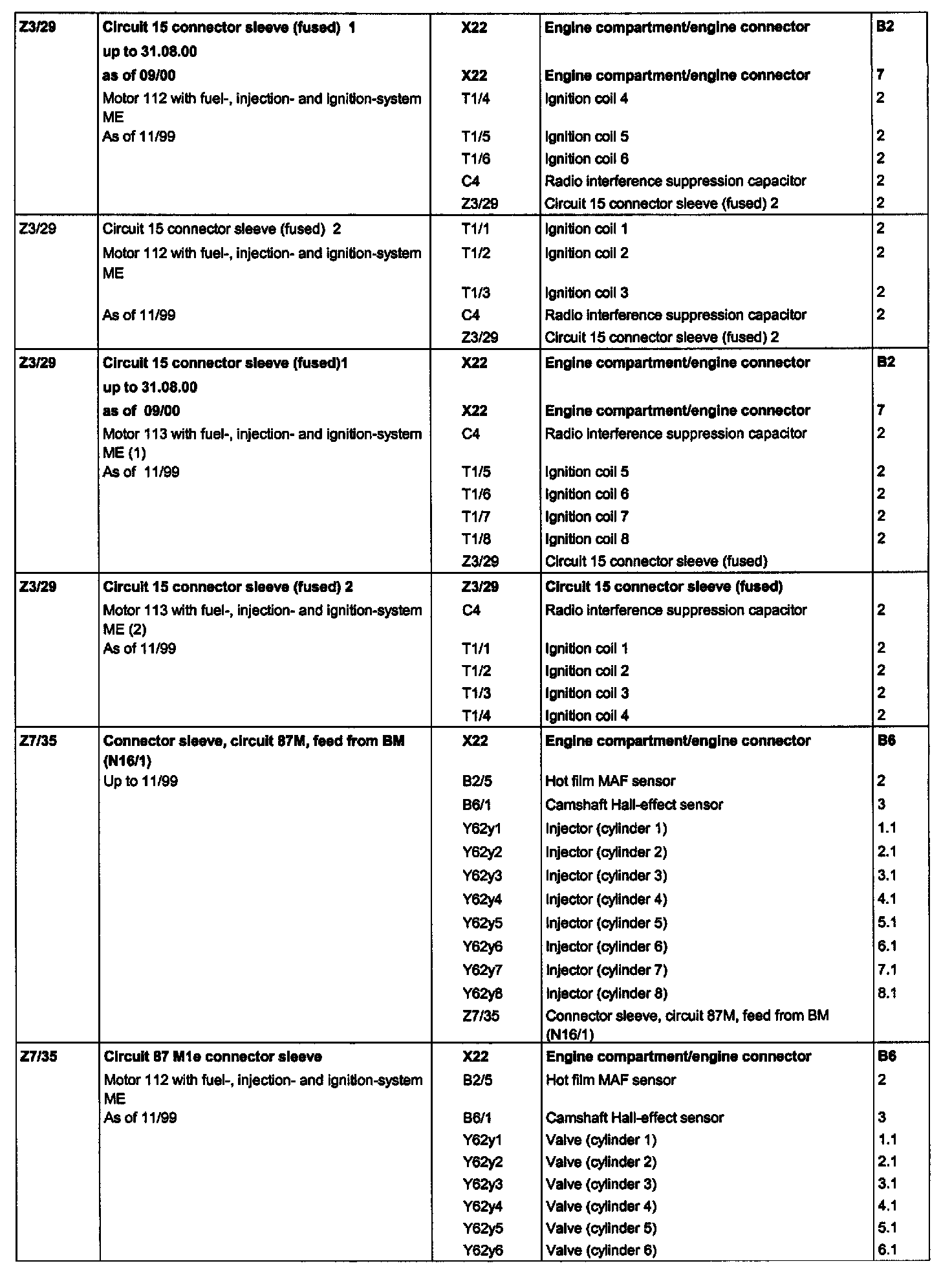

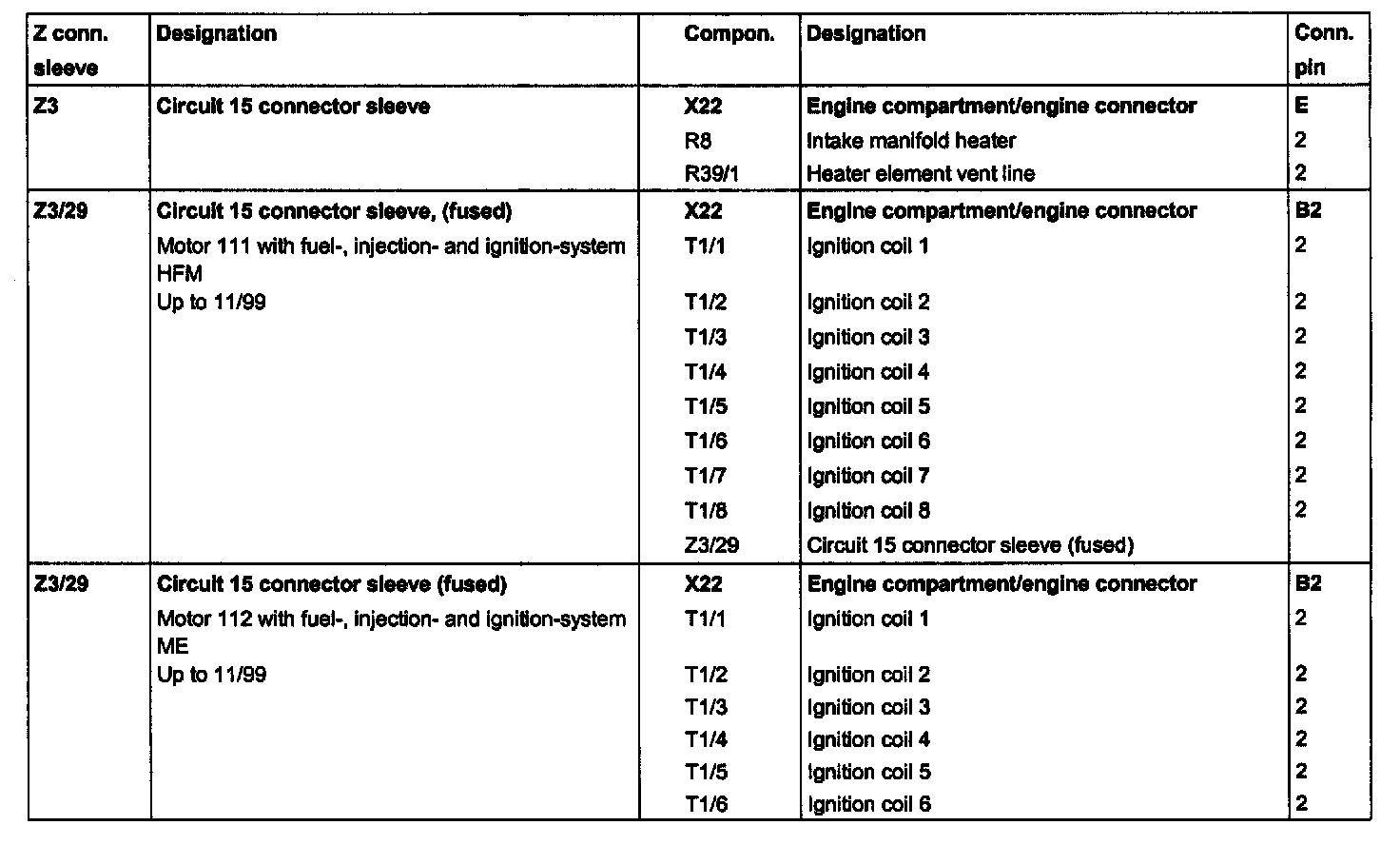

Z3 - Z3/29:

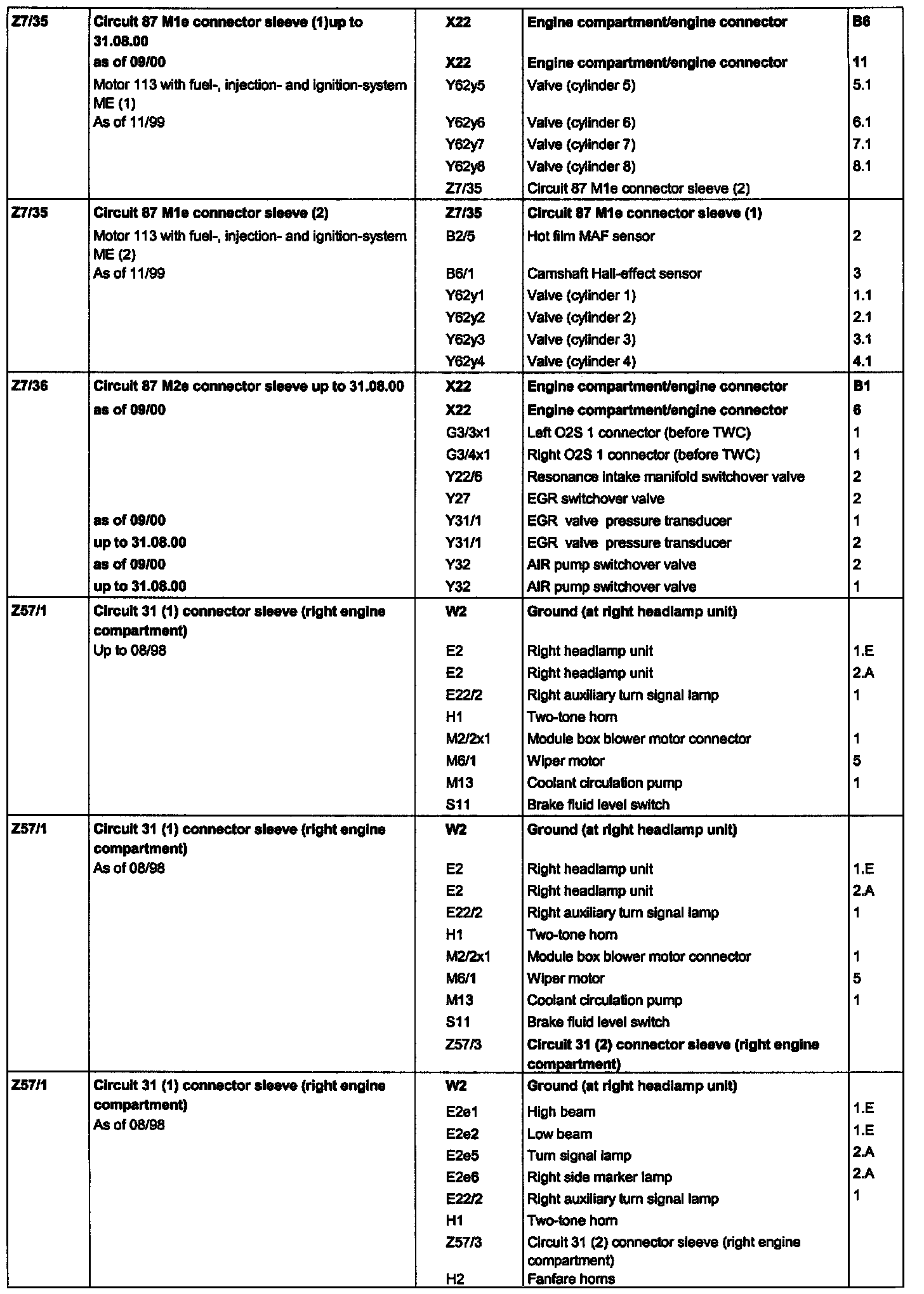

Z3/29 - Z7/35:
Z7/35 - Z57/1:

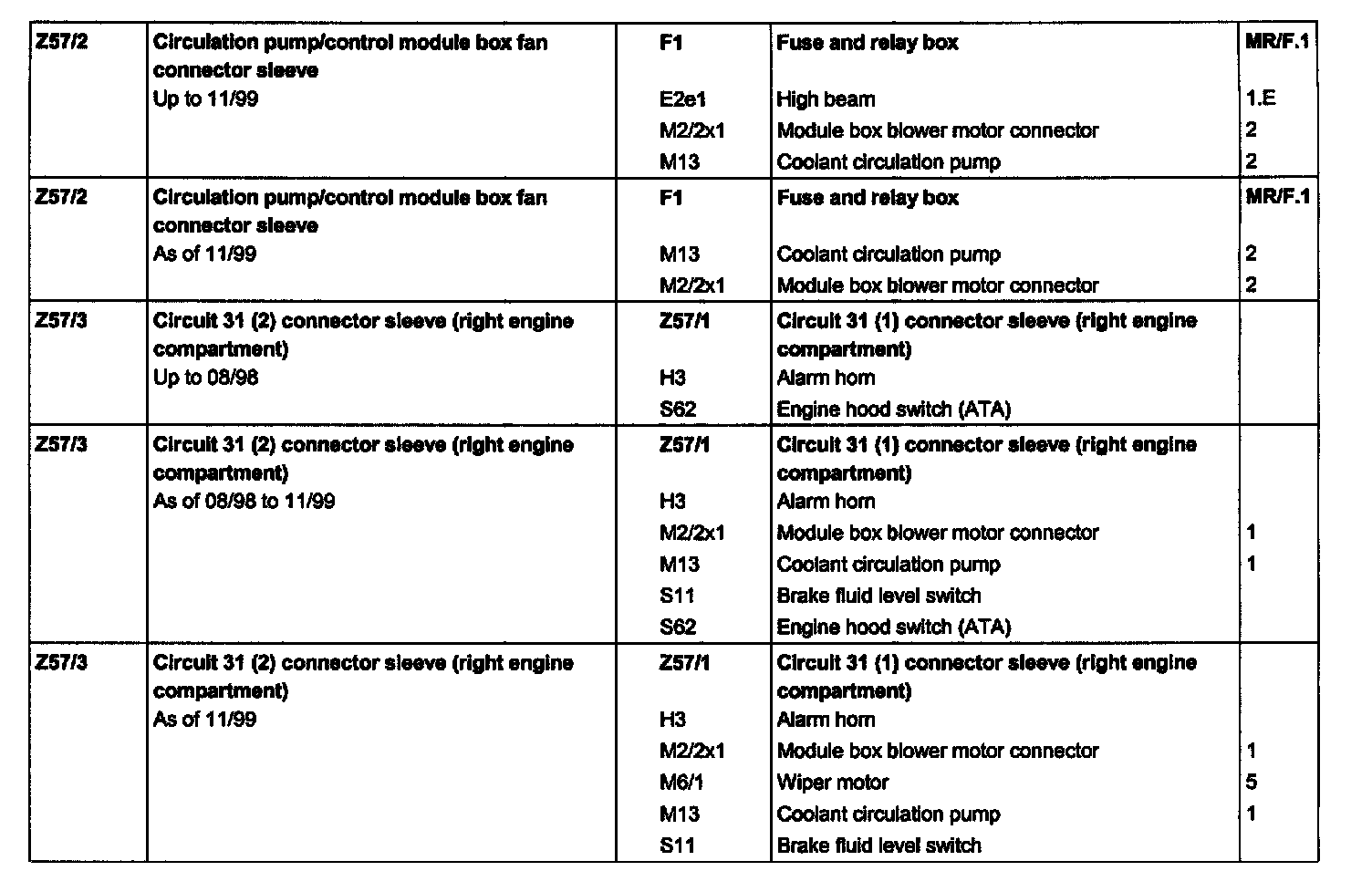

Z57/2 - Z57/3:
