GF00.19-U-3000-05E - Interior Compartment, Right
GF00.19-U-3000-05E - Interior Compartment, Right

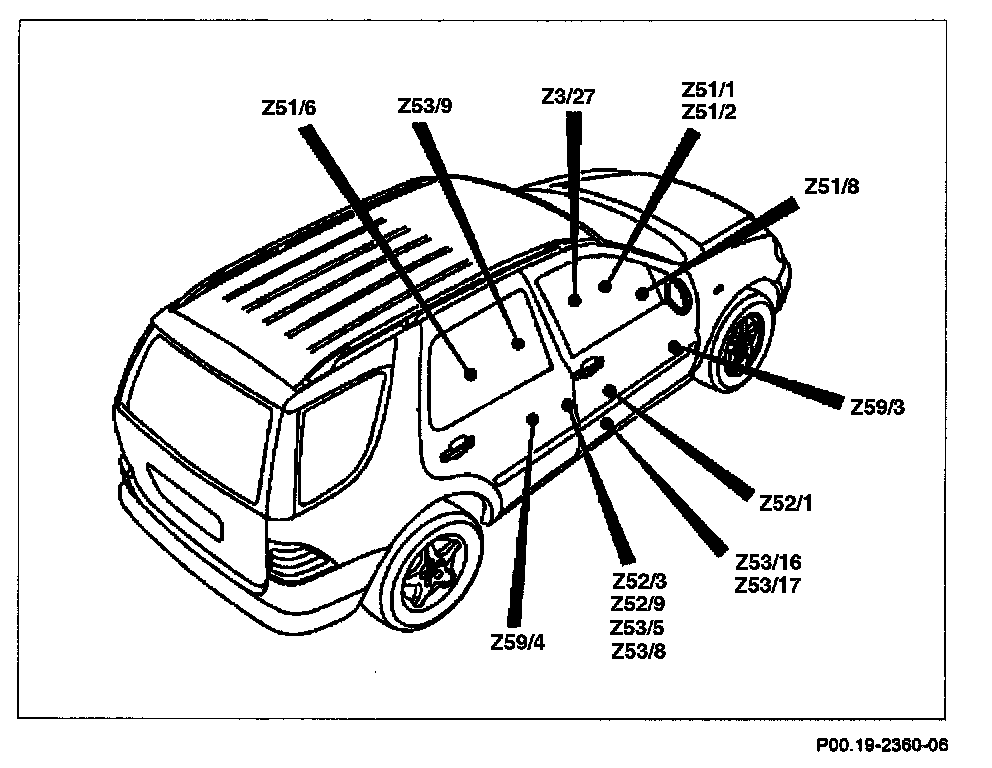

Arrangement
Assignment

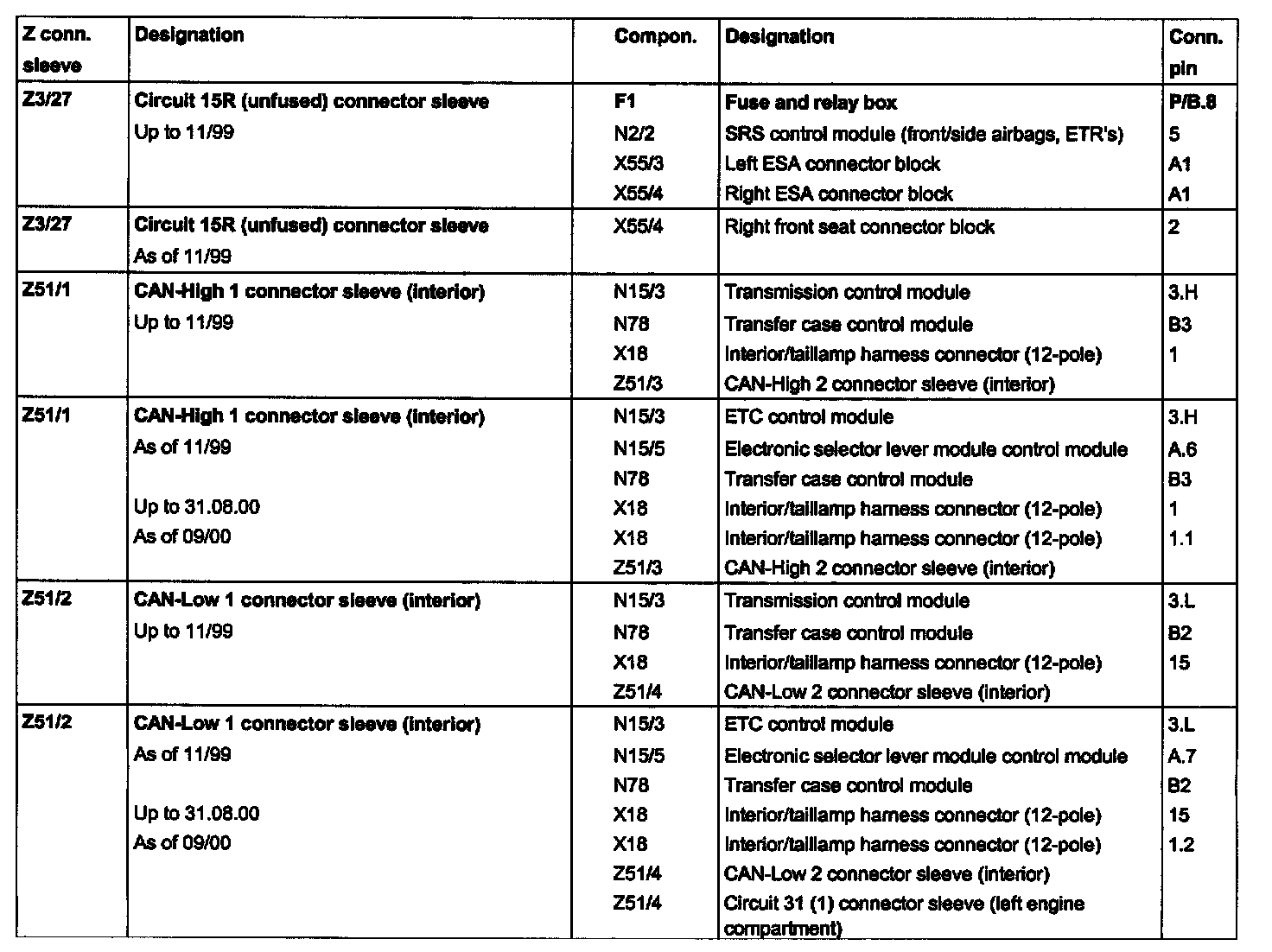

Z3/27 - Z51/2:

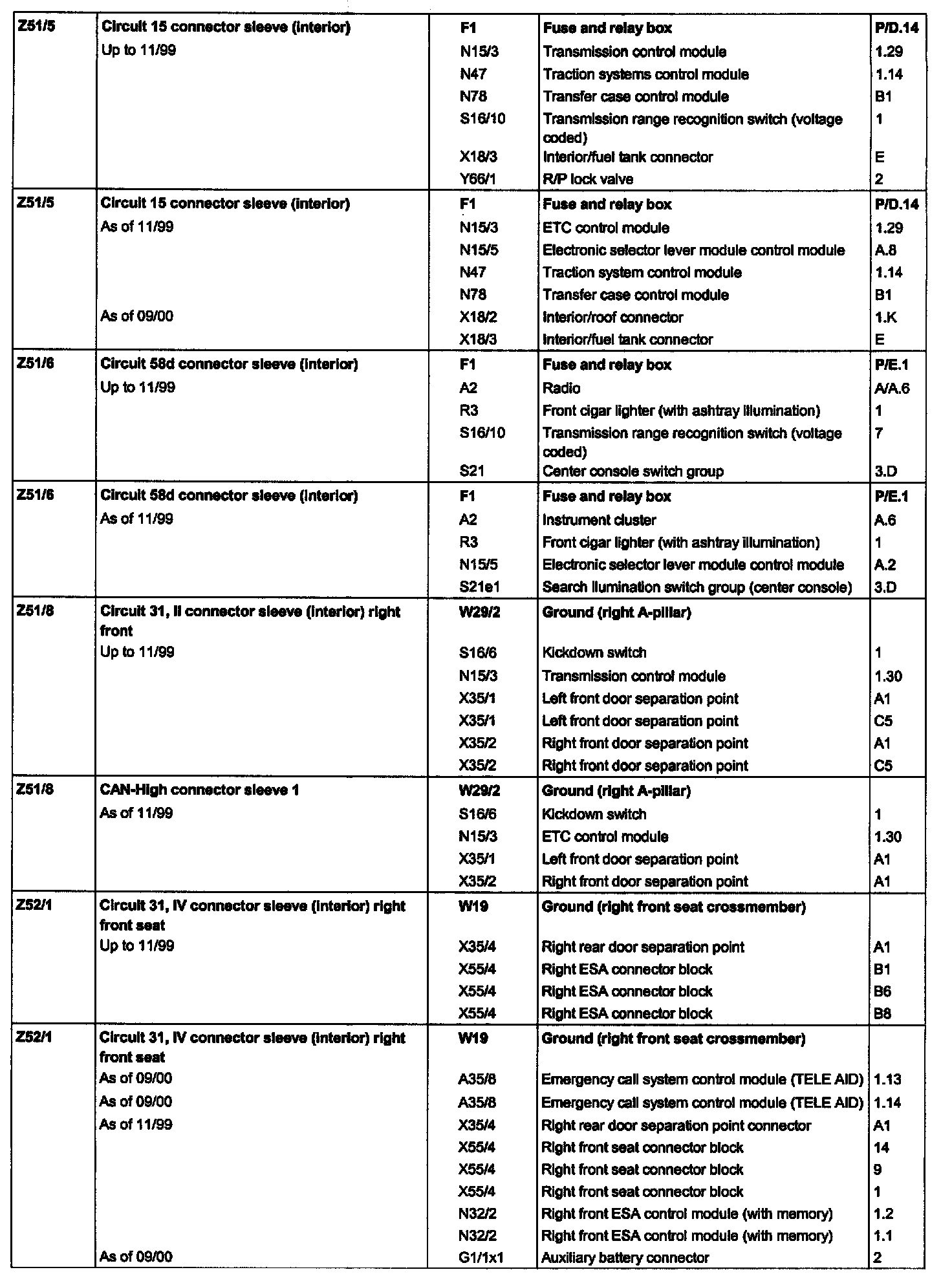

Z51/5 - Z52/1:

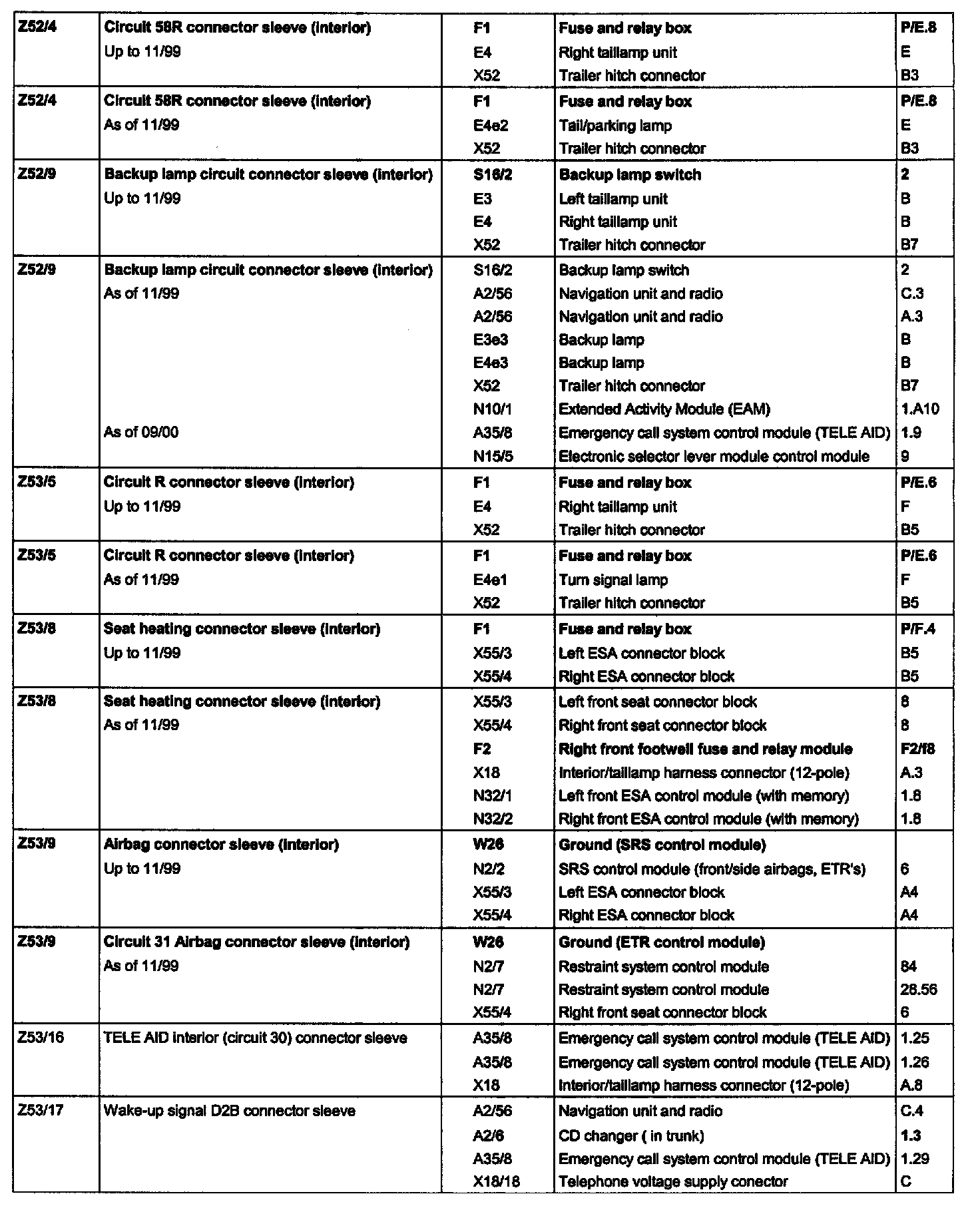

Z52/4 - Z53/17:

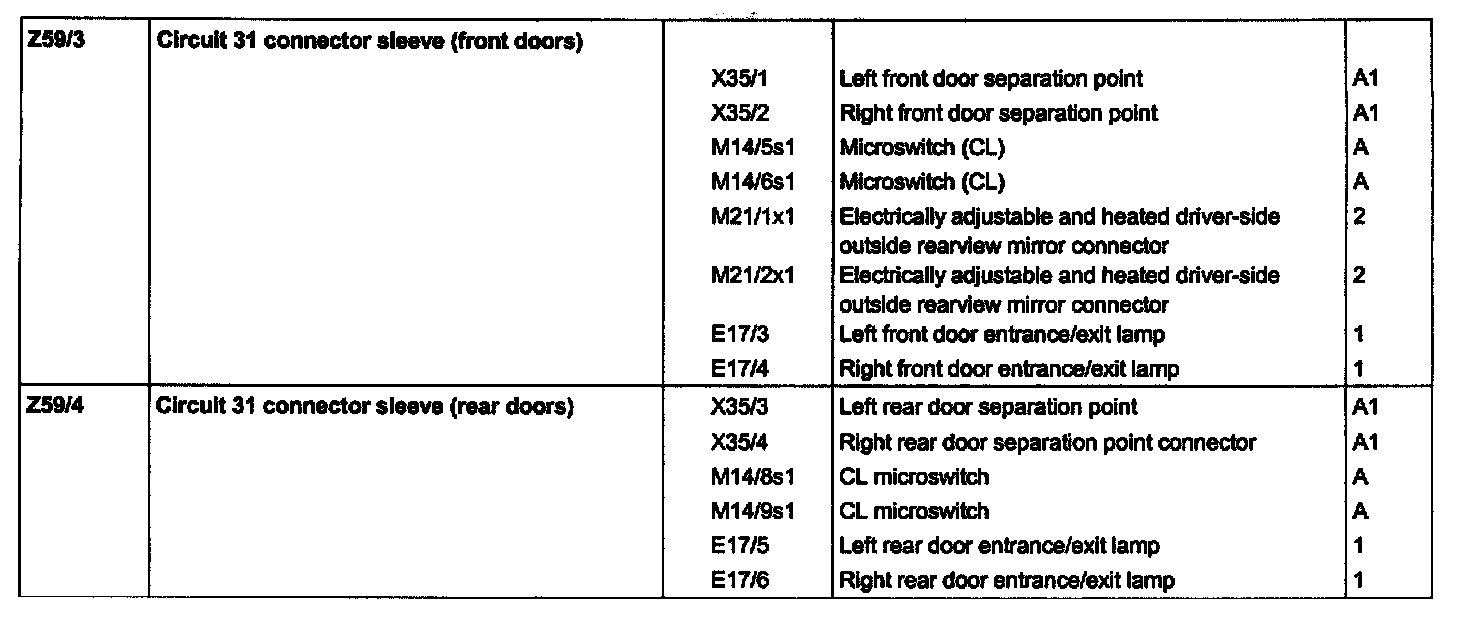

Z59/3 - Z59/4:
