AN20.30-P-0001S Retrofit Coolant Preheater



AN20.30-P-0001S Retrofitting coolant preheater

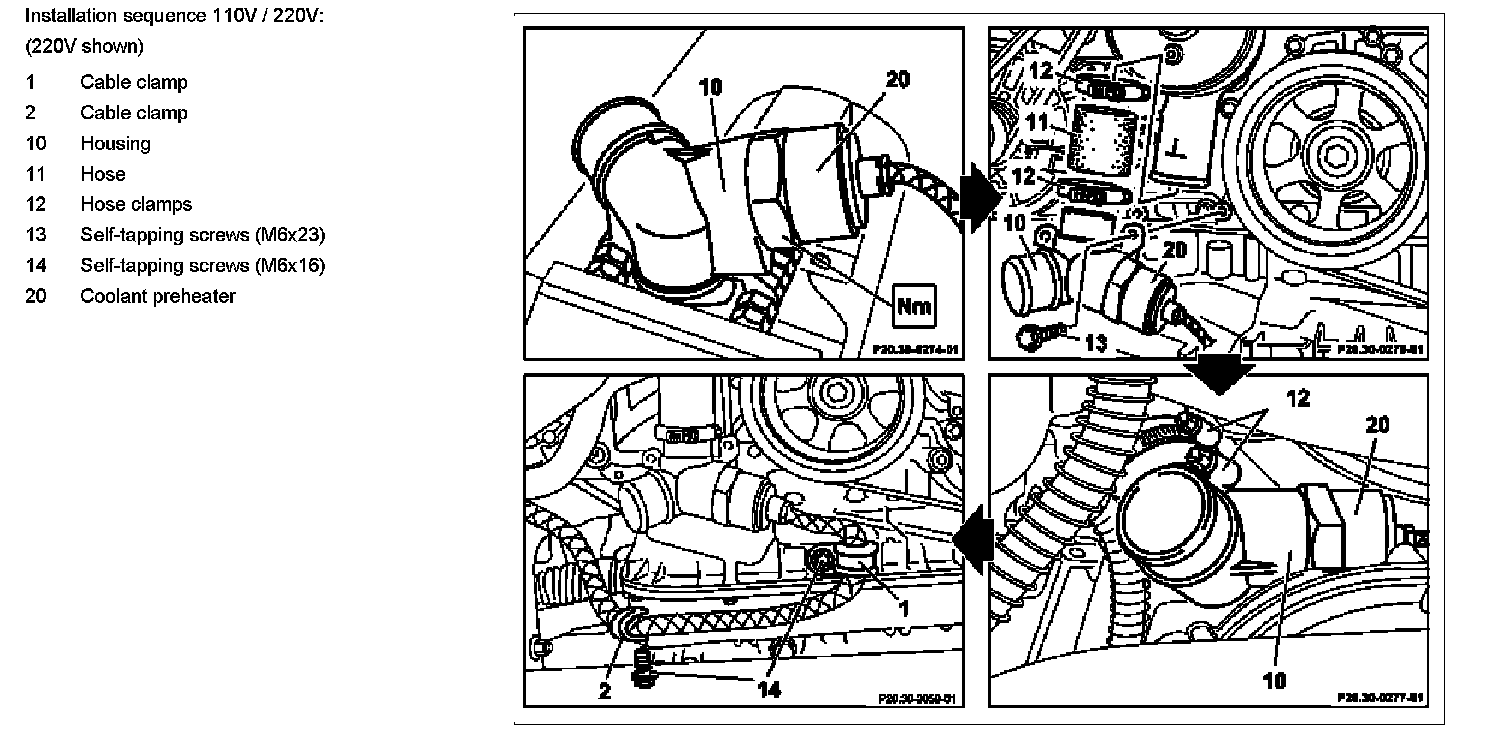

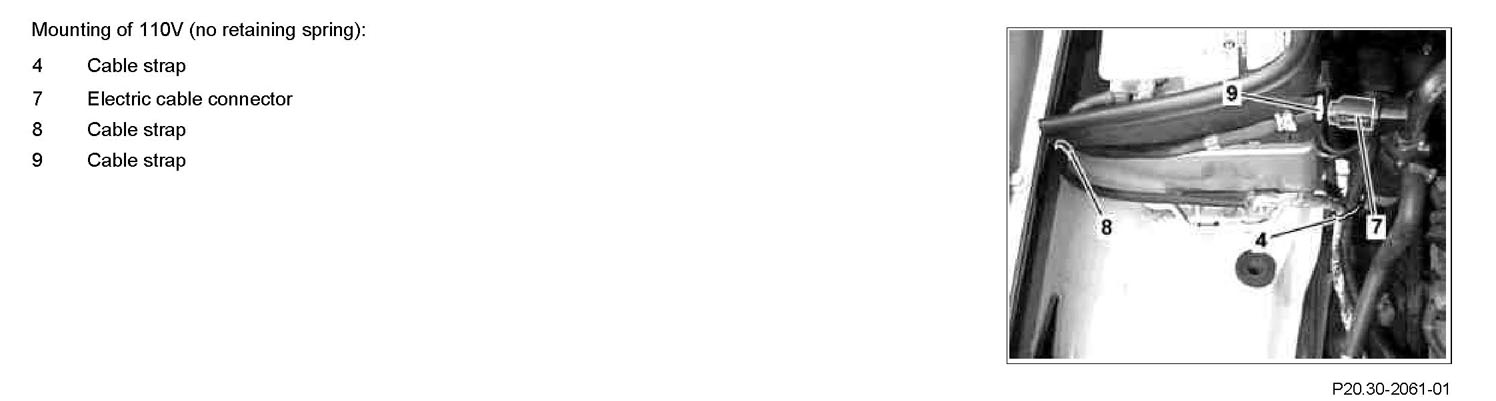

Component Identification:




Component Identification:




Component Identification:

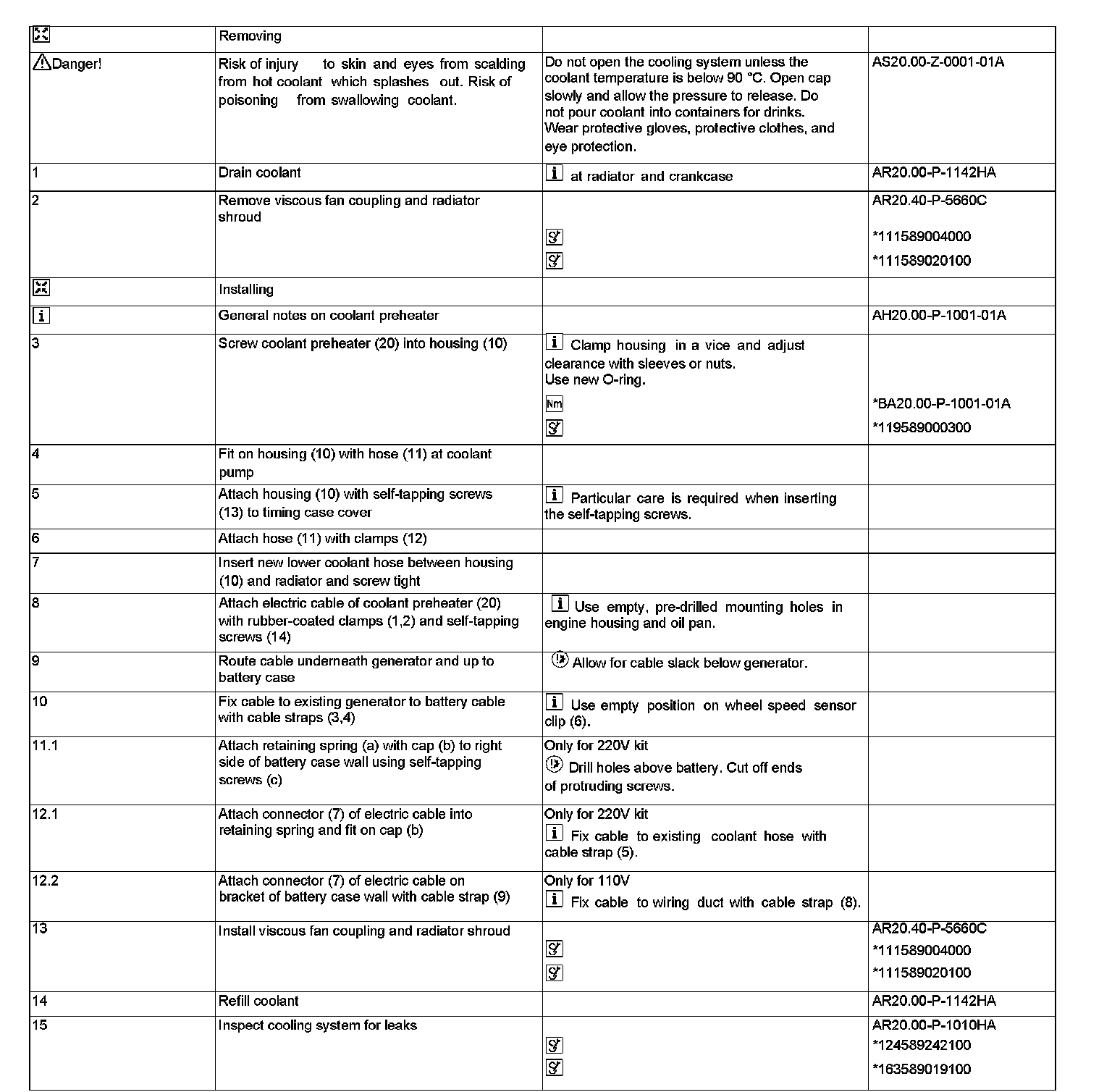

Steps 1-15:

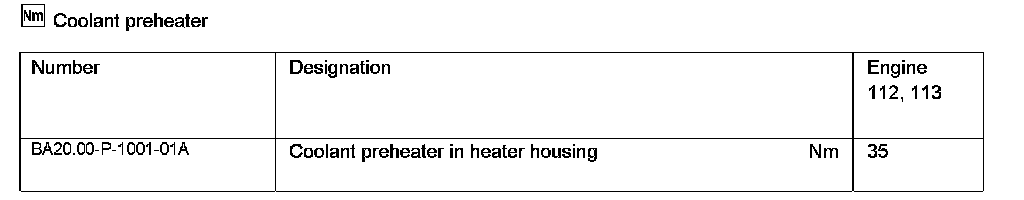

Coolant Preheater:




Special Tools:




Special Tools:




Special Tools:




Parts Order Notes:
