Cabin Temperature Sensor / Switch: Service and Repair

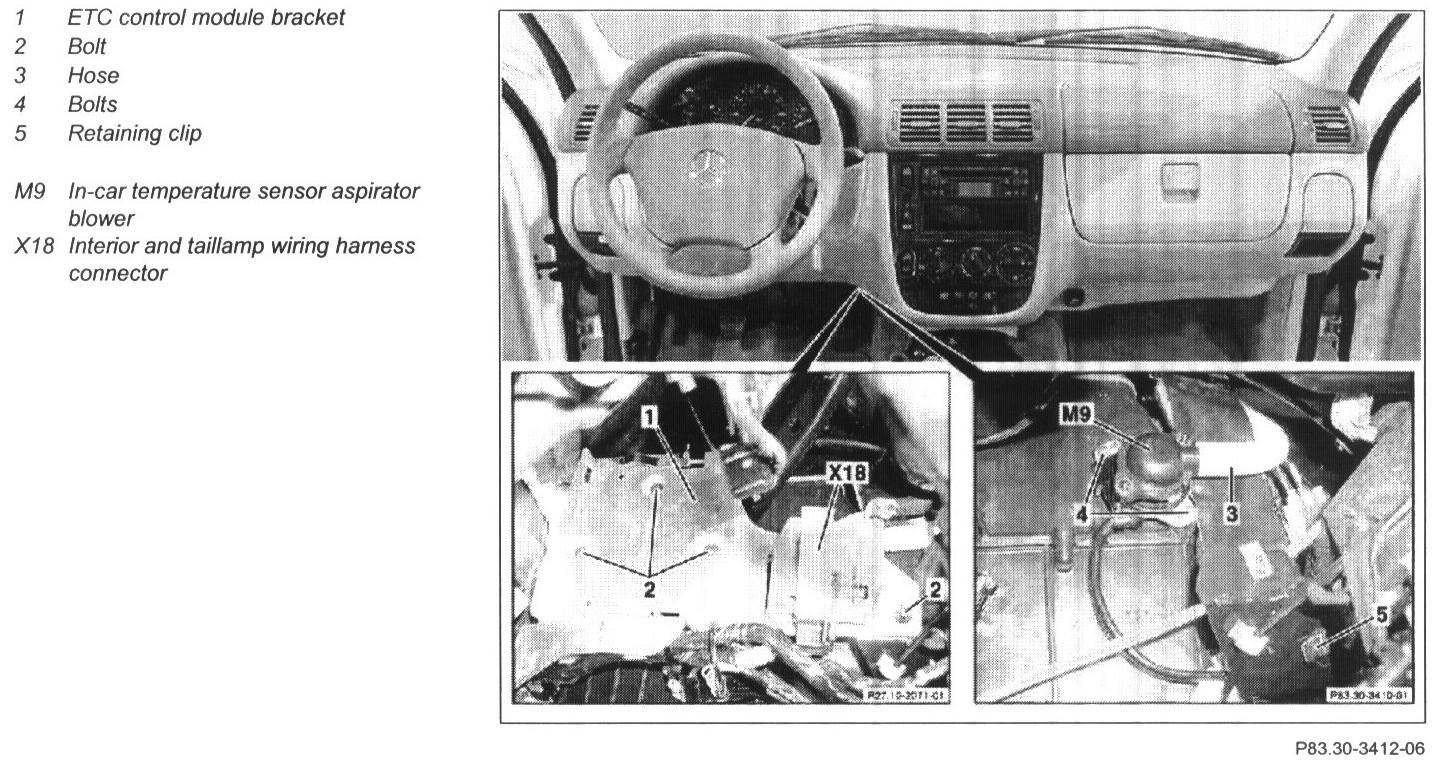

Remove, Install In-Car Temperature Sensor For Aspirator Blower (M9)





1 Remove ETC control module
2 Detach connector for interior/rear lamp wiring harness (X18) at ETC bracket (1)

NOTE: Release damp on back of bracket and slide connector forward.

3 Disconnect connector (X18)
4 Unscrew bolts (2)
5 Lay bracket (1) downward and to the side
6 Detach hose (3) at aspirator blower (M9)
7 Detach clip (5) of aspirator blower connector at instrument panel bracket
8 Disconnect in-car temperature sensor aspirator blower's connector
9 Unscrew bolts (4)
10 Remove in-car temperature sensor aspirator blower (M9)
11 Install in the reverse order.
