Air Conditioning PE83.30-U-2000A

PE83.30-U-2000A Air Conditioning
- with CODE (580) Air Conditioning or Tempmatic for USA

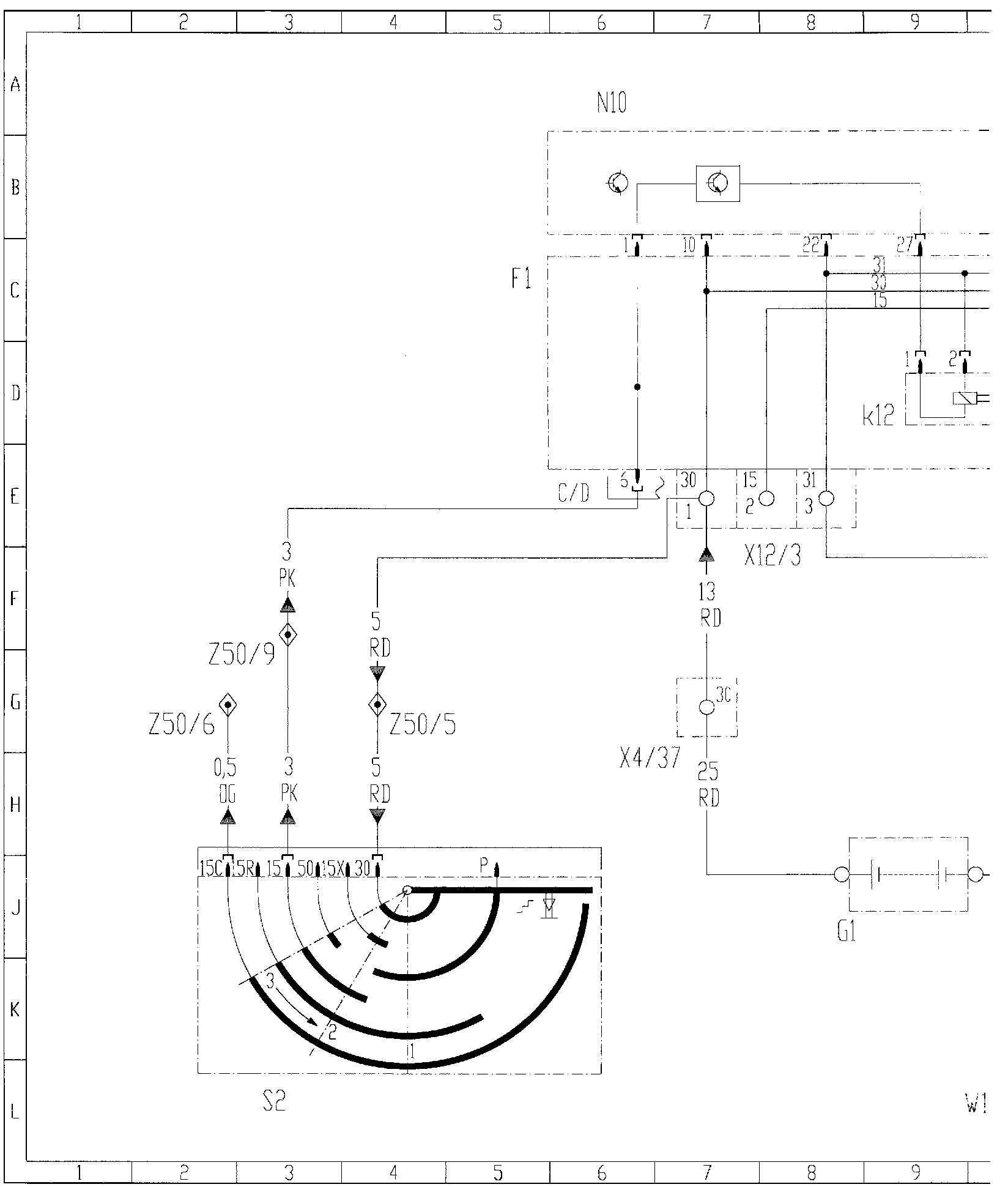

Diagram, Part 1:

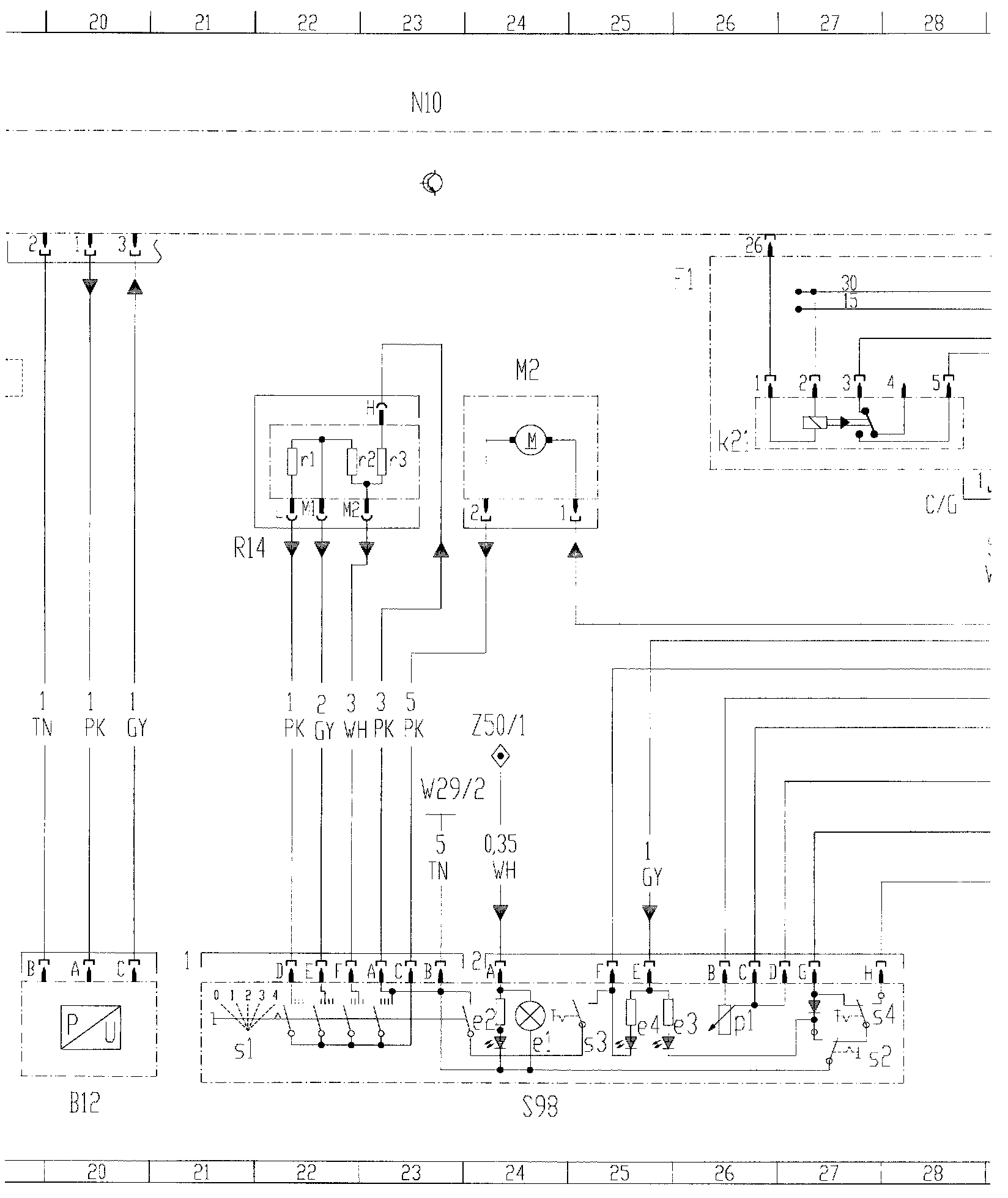

Diagram, Part 2:

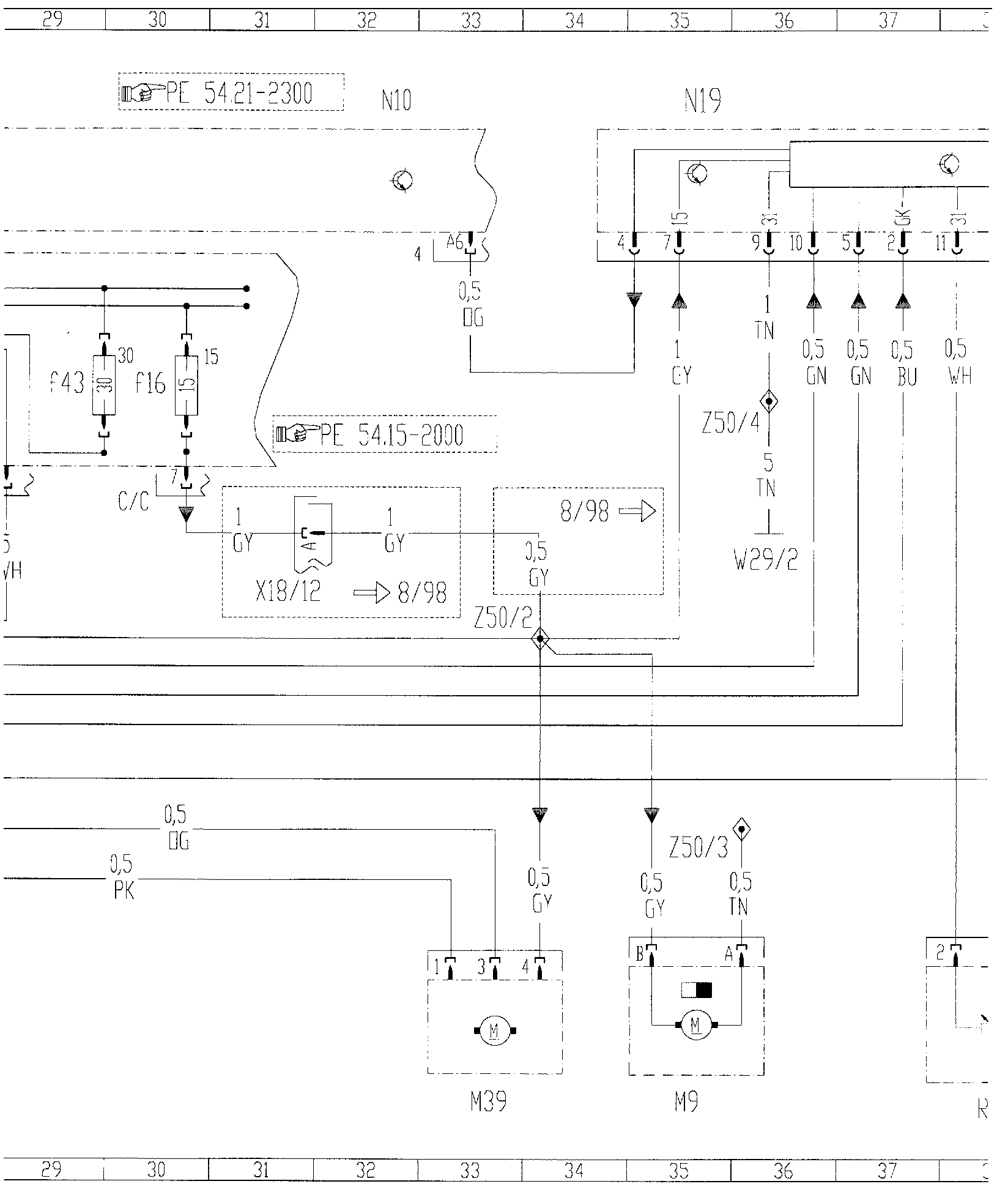

Diagram, Part 3:

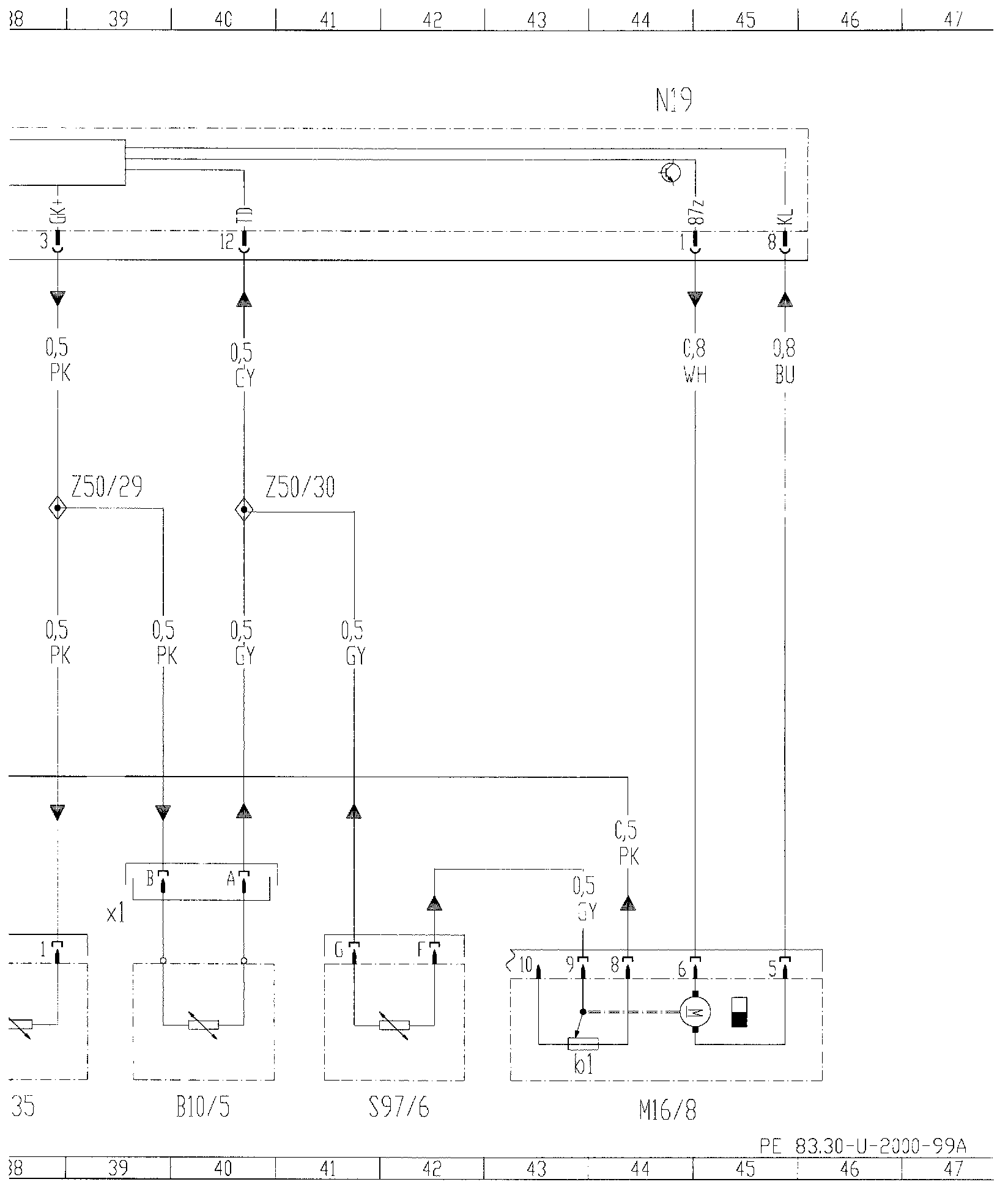

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

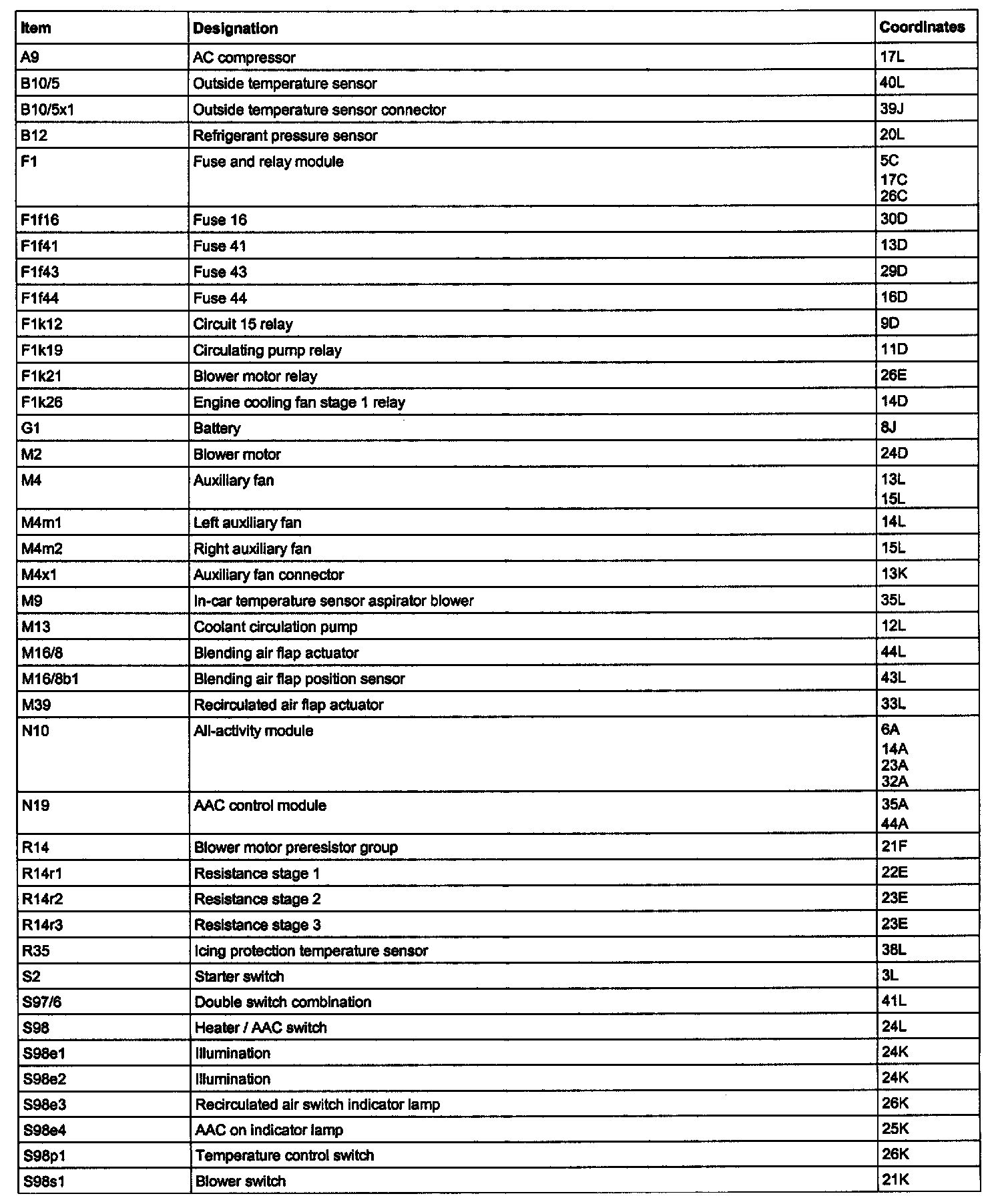

Component Description/Coordinates, A9 - S98s1:

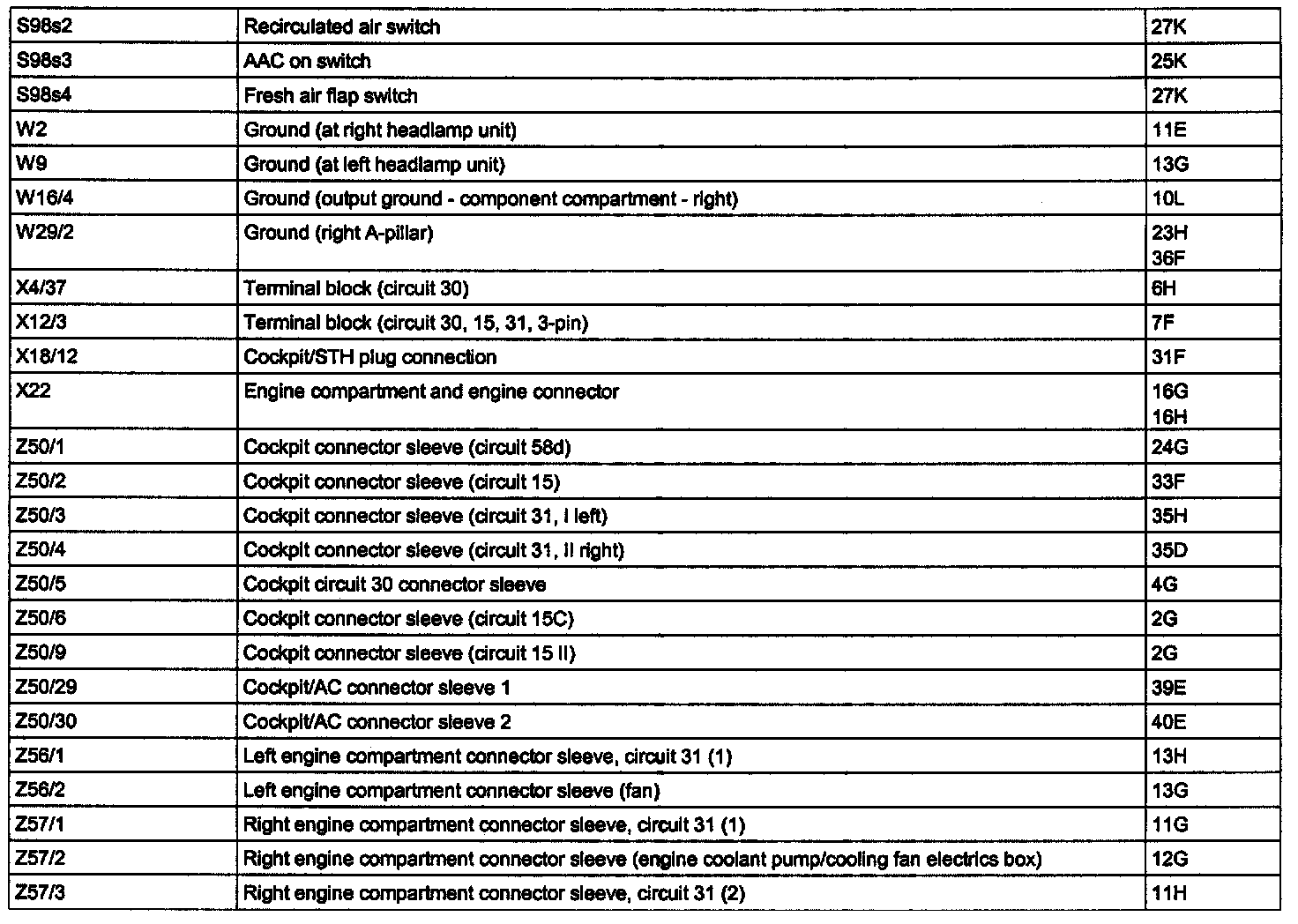

Component Description/Coordinates, S98s2 - Z57/3:
