Instrument Cluster (CLUS) PE54.30-U-2000L (Up to 11/99)

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

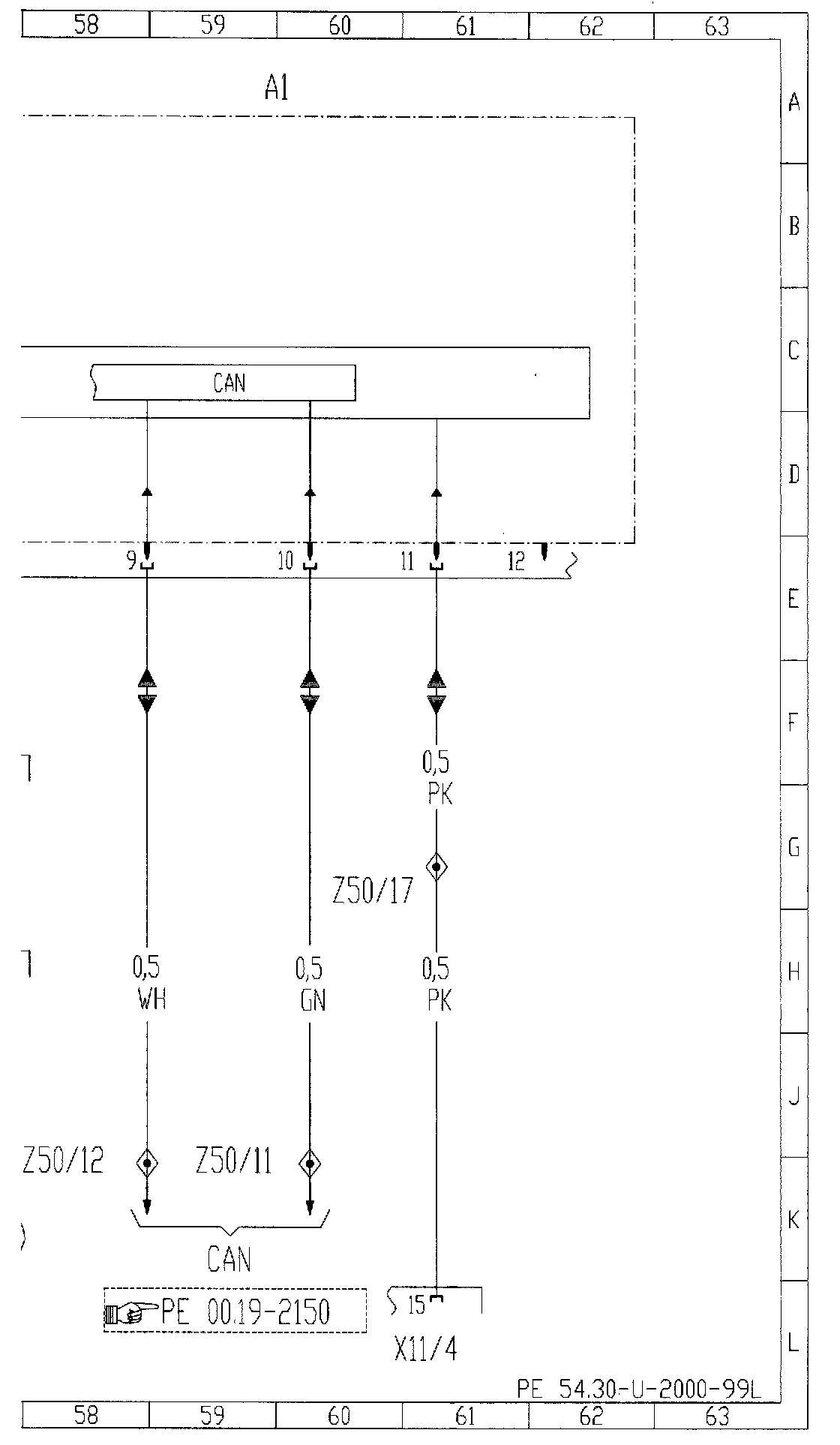

Diagram, Part 7:

Component Description/Coordinates, A1 - F1f25:

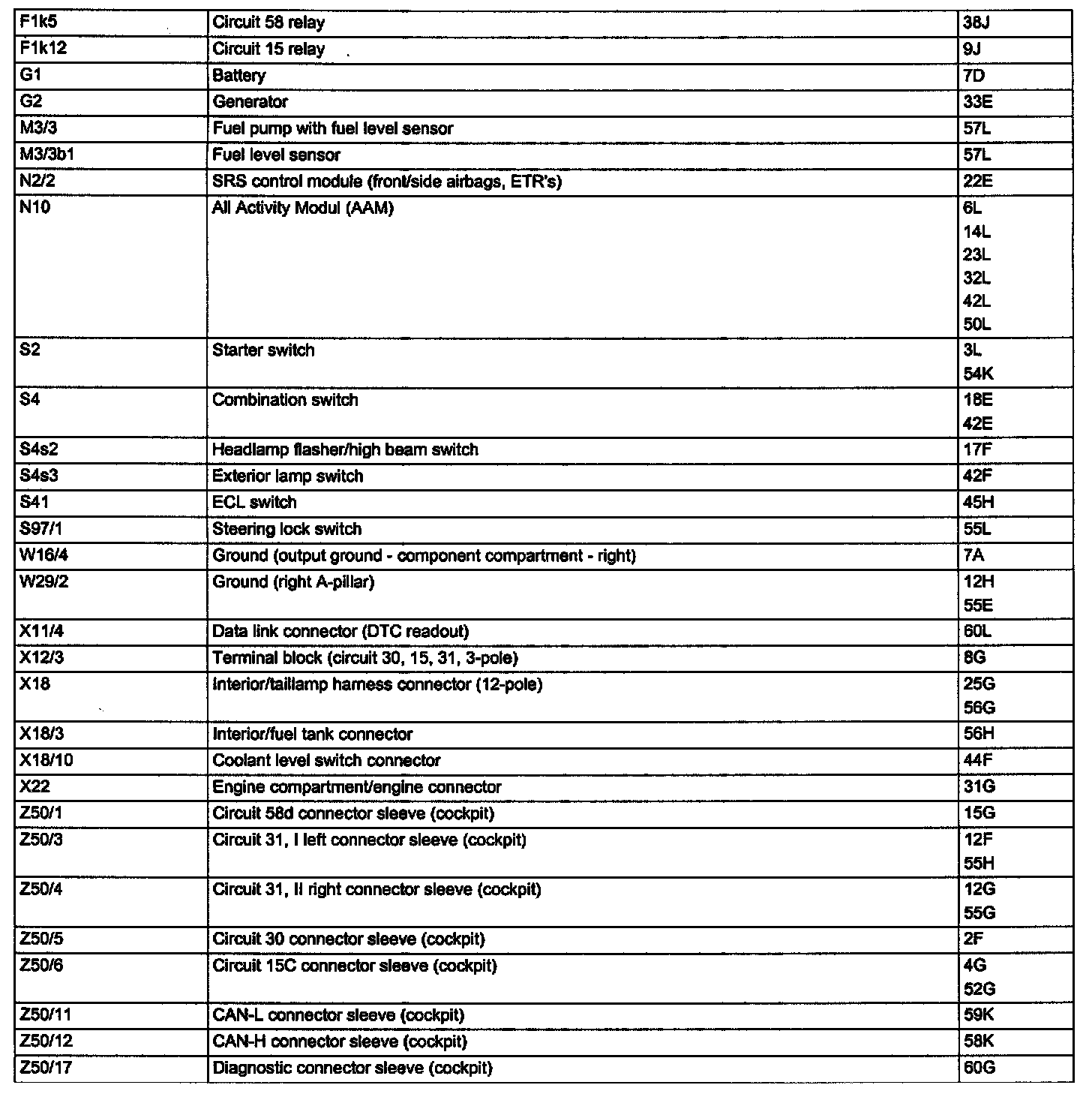

Component Description/Coordinates, F1k5 - Z50/17:
