Instrument Cluster (CLUS) PE54.30-U-2000M (As of 11/99)

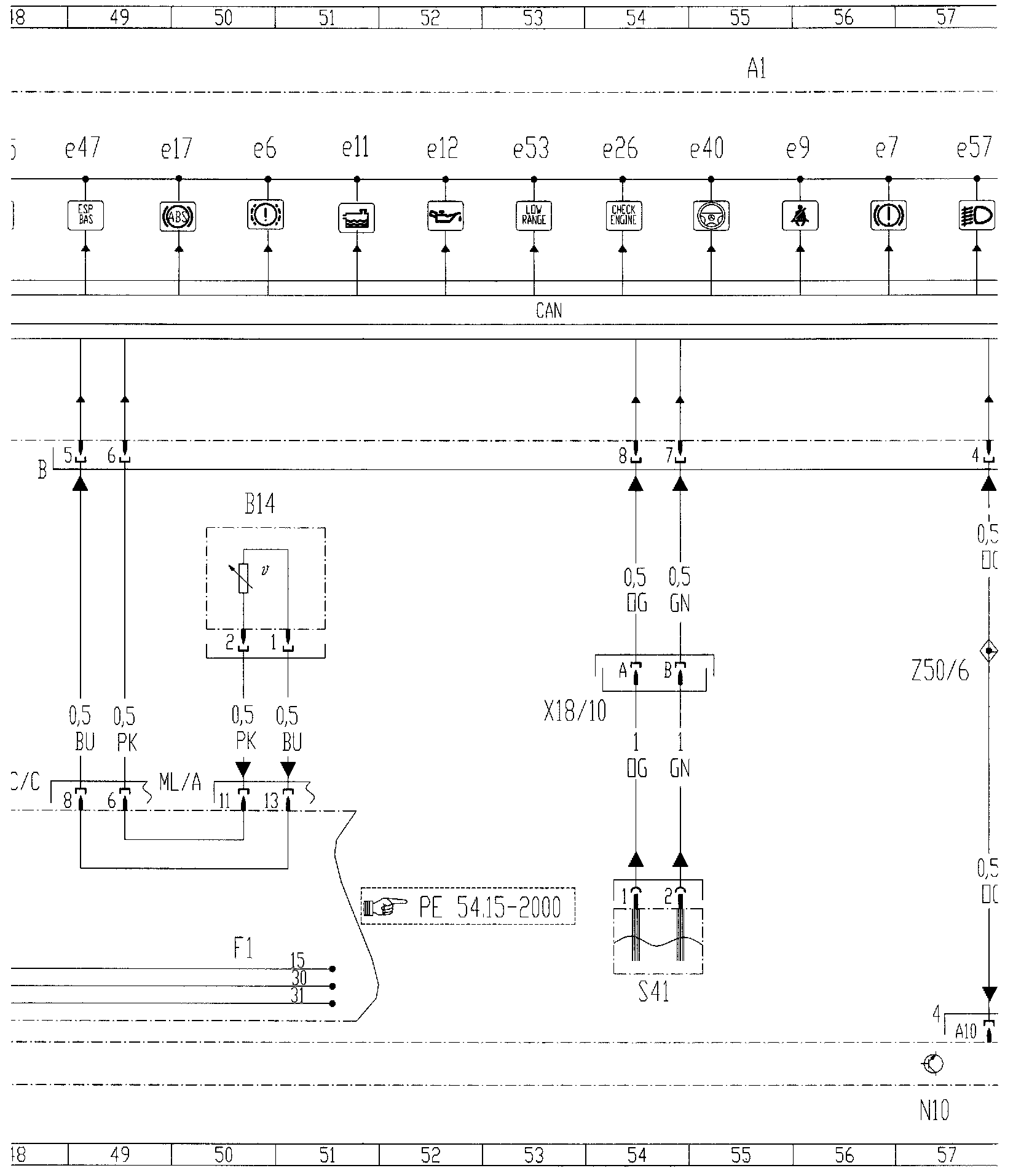

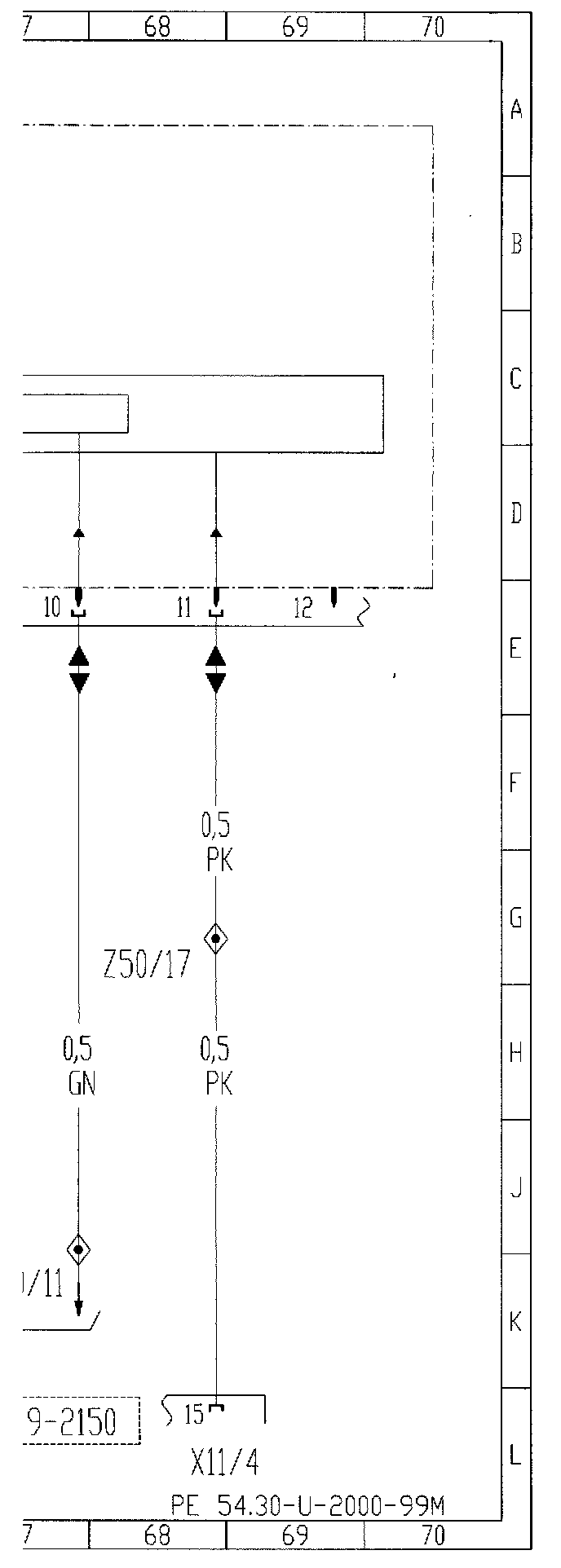

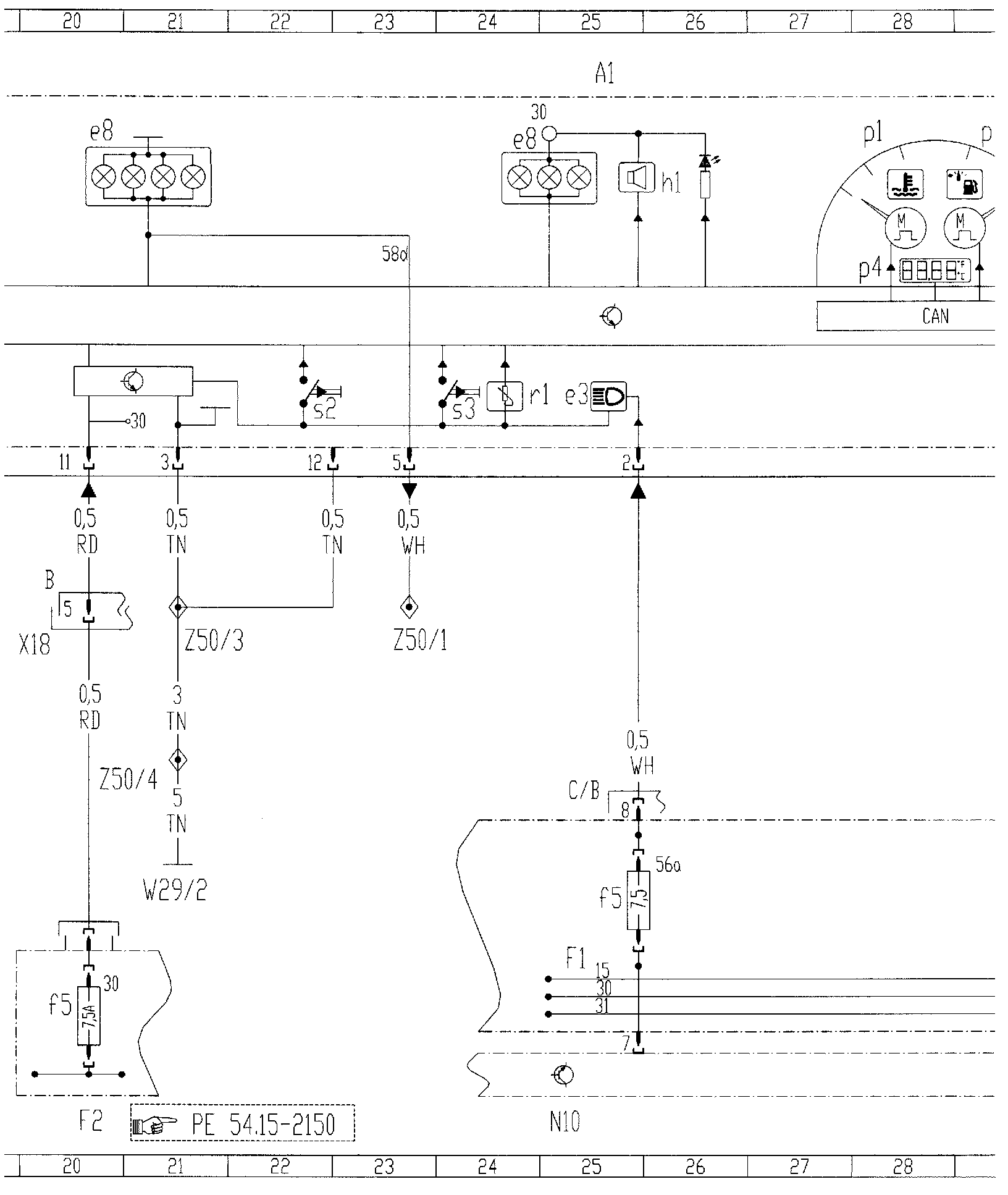

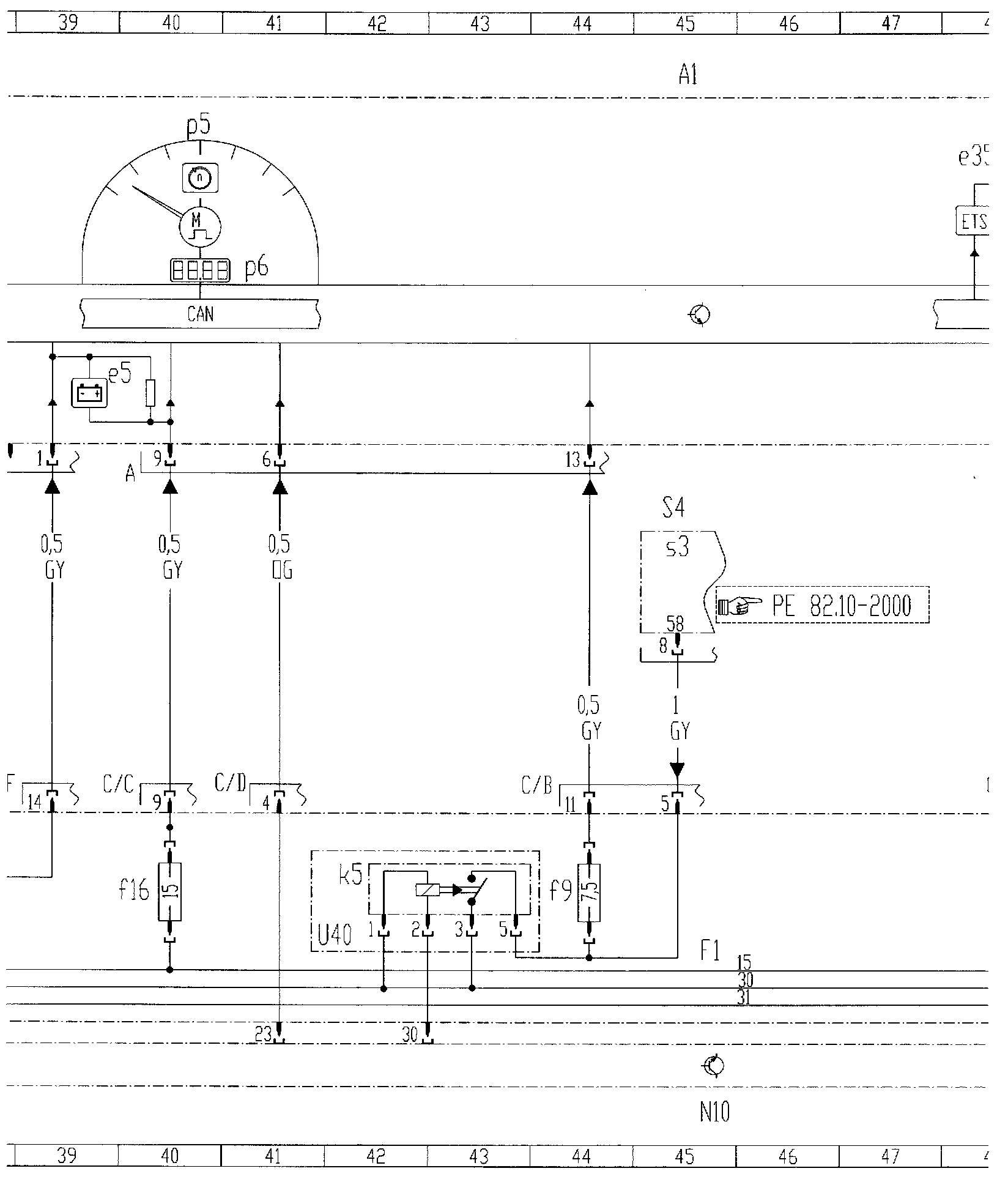

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

Component Description/Coordinates, A1 - F1k12:

Component Description/Coordinates, F2 - Z50/17:
