Exterior Lights PE82.10-U-2000C (As of 11/99)

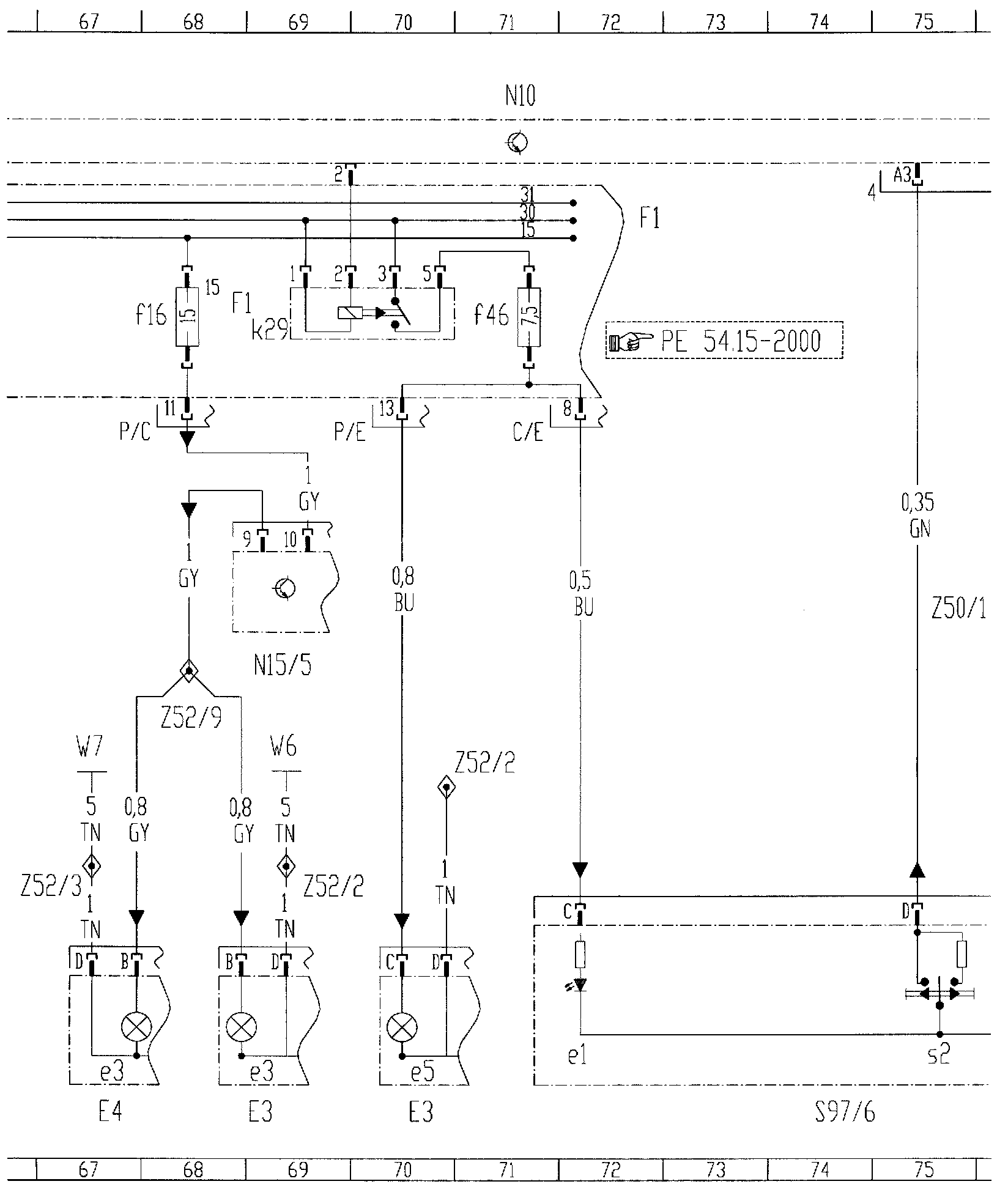

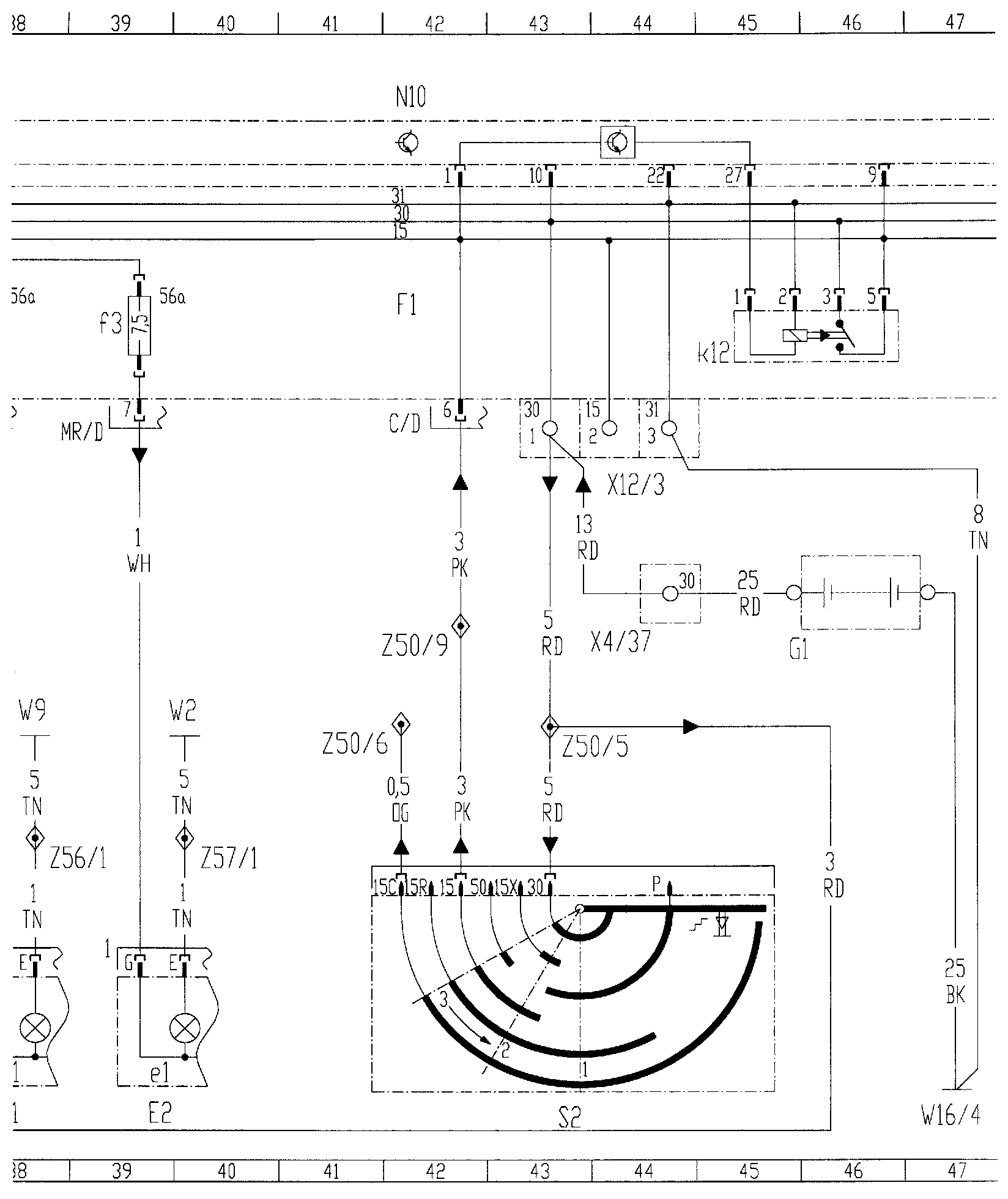

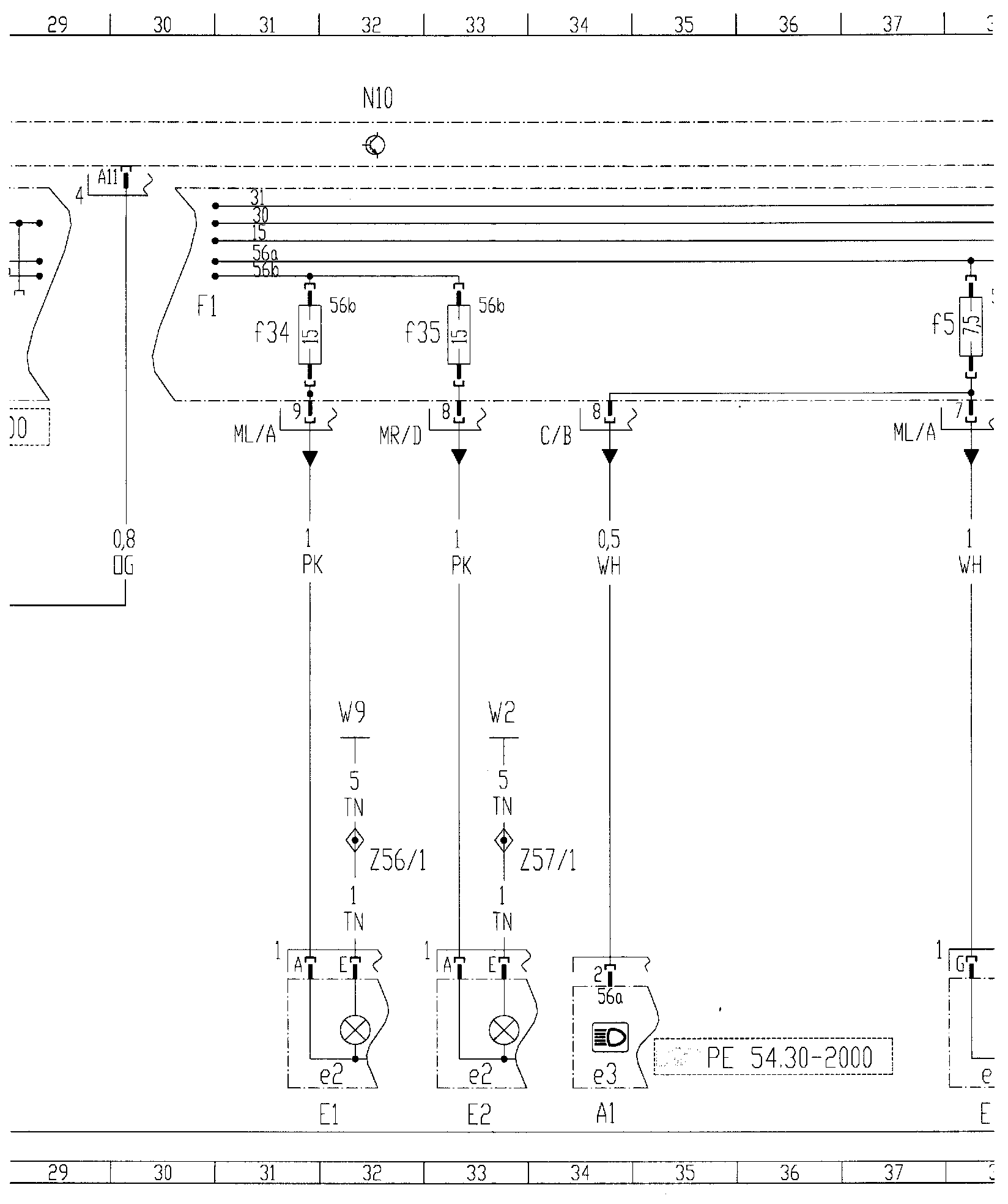

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

Diagram, Part 9:

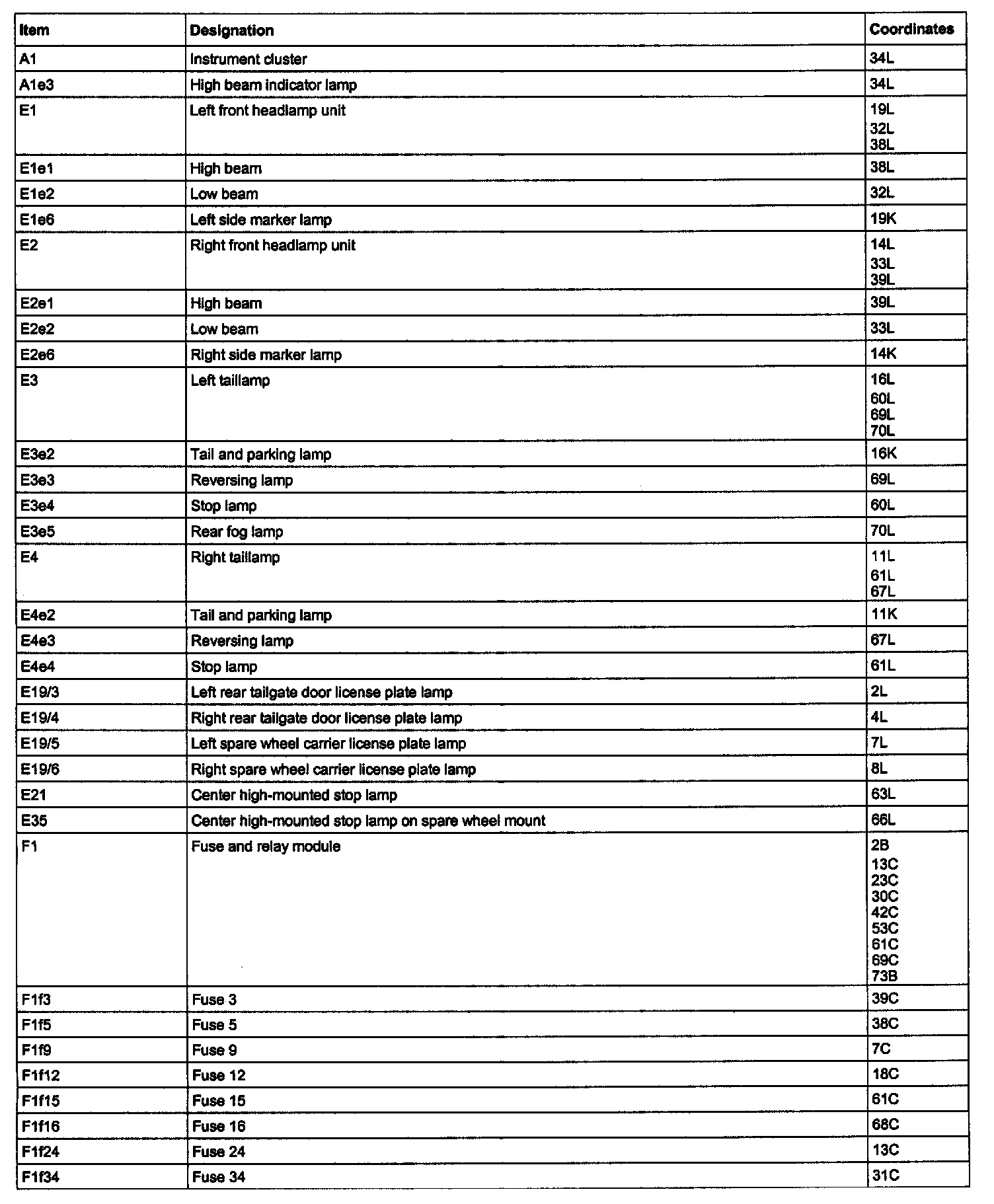

Component Description/Coordinates, A1 - F1f34:

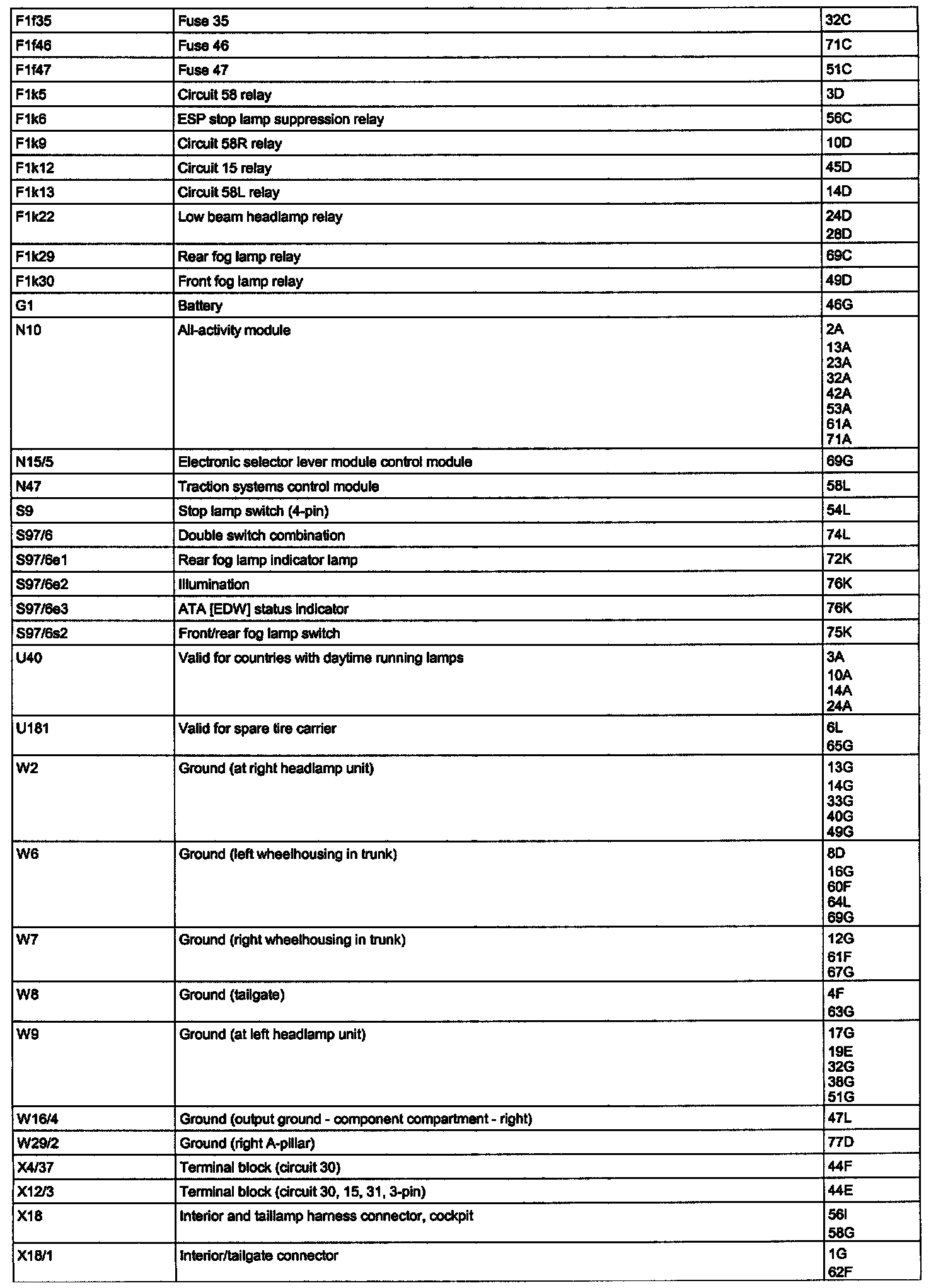

Component Description/Coordinates, F1f35 - X18/1:

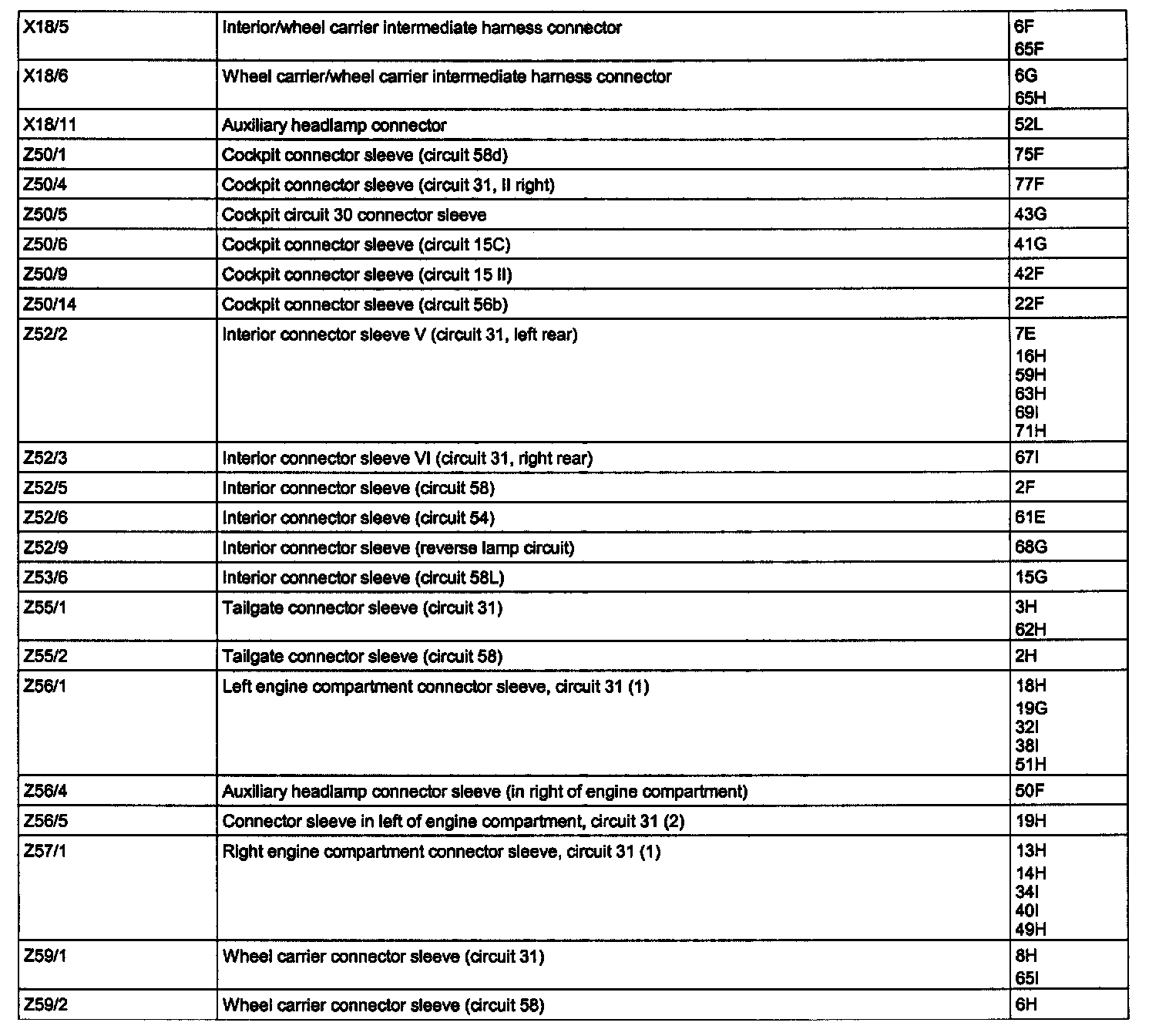

Component Description/Coordinates, X18/5 - Z59/2:
